Tera D5100 Wireless 1D 2D QR Barcode Scanner User Manual

1. Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your Tera D5100 Wireless 1D 2D QR Barcode Scanner. The D5100 is a versatile scanning device designed for efficiency and durability, supporting both 1D and 2D barcode symbologies, including QR codes. It offers flexible connectivity options (2.4 GHz wireless and USB wired) and is compatible with Windows, Mac, and Linux operating systems.

2. Setup

2.1 Package Contents

• Tera D5100 Barcode Scanner
• 2.4 GHz USB Receiver
• USB Charging/Data Cable
• User Manual (this document)

2.2 Charging the Scanner

The scanner features a 2000mAh battery. A unique LED indicator displays the remaining battery level with four lights, each representing 500mAh of charge. When a 500mAh segment is used, one light turns off. A full charge provides over 40 hours of continuous scanning and over 60 days of standby time.

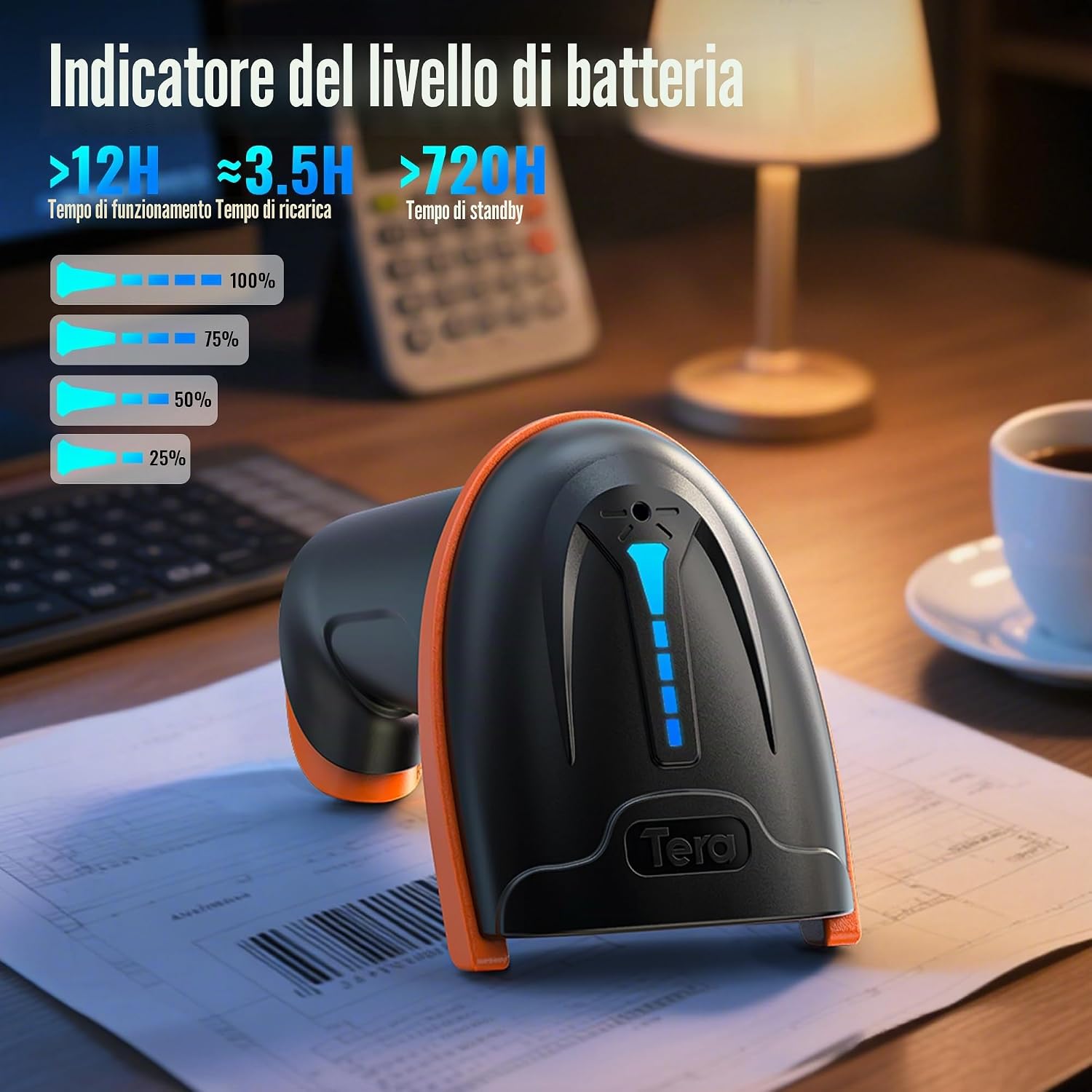

Figure 1: Battery Level Indicator on the Tera D5100 Scanner.

2.3 Connecting the Scanner

The Tera D5100 offers two connection methods: 2.4 GHz wireless via the included USB receiver, or direct USB 2.0 wired connection. Both methods are plug-and-play, requiring no additional driver installation. The scanner is compatible with Windows, Mac, and Linux systems. The wireless range extends up to 300 feet in open areas.

• 2.4 GHz Wireless Mode: Insert the USB receiver into an available USB port on your computer. The scanner will automatically connect.
• USB Wired Mode: Connect the scanner directly to your computer using the provided USB cable.

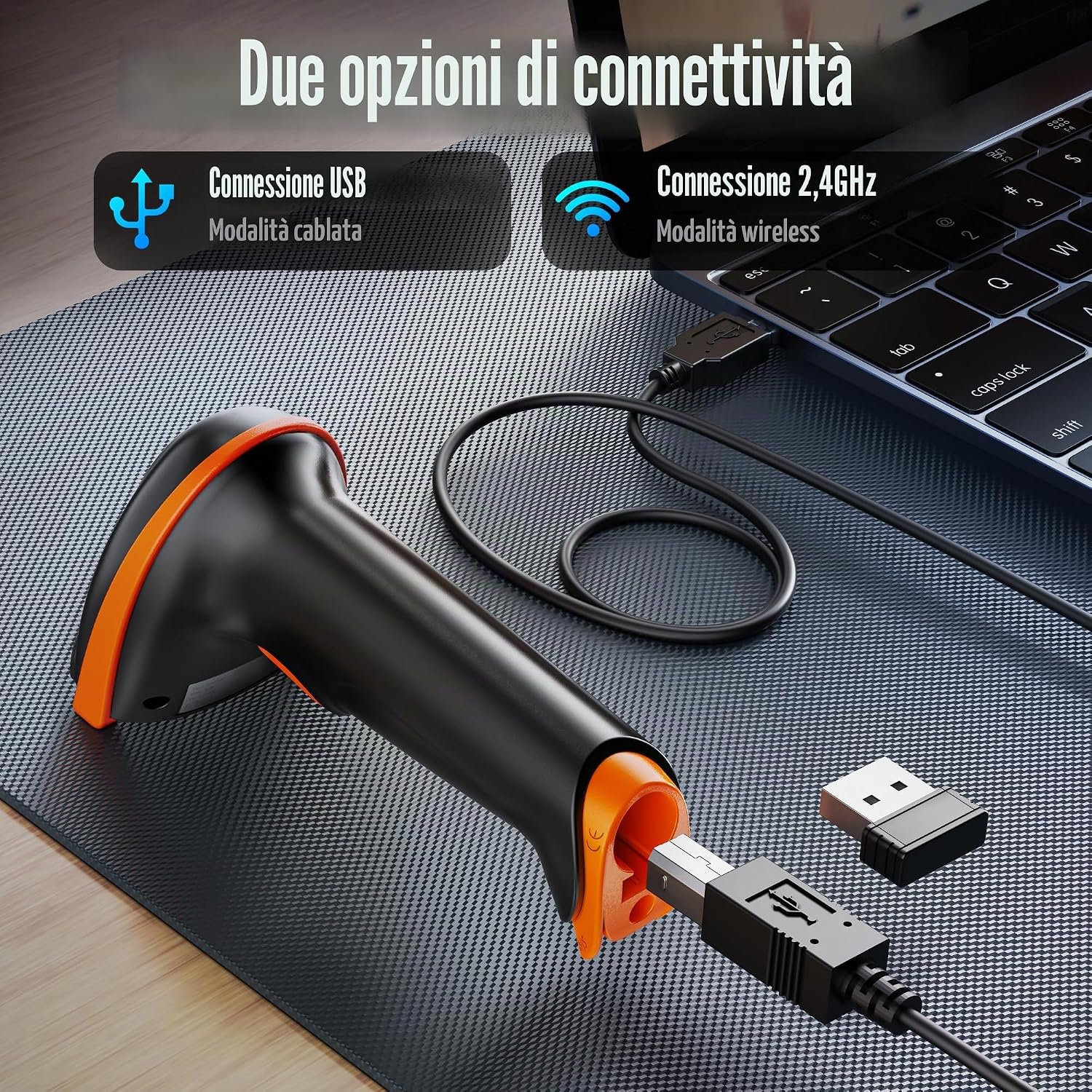

Figure 2: Two Connectivity Options: USB Wired and 2.4GHz Wireless.

3. Operating Instructions

3.1 Scanning Barcodes

To scan, aim the scanner at the barcode and press the trigger. The D5100 can read a wide range of 1D, 2D, and QR codes, whether displayed digitally on a screen or printed on physical labels.

Figure 3: Scanning Digital and Printed 1D/2D Barcodes.

3.2 Data Upload Modes

The scanner supports two data upload modes: Instant Upload Mode for immediate data transfer, and Storage Mode for saving scanned data internally to be uploaded at a later time. This allows for flexible operation in various environments.

• Instant Upload Mode: Scanned data is transmitted directly to the connected device as it is read.
• Storage Mode: Scanned data is stored in the scanner's internal memory. To upload, scan the 'Upload Data' configuration barcode (refer to the full programming guide).

Figure 4: Instant and Storage Data Upload Modes.

3.3 Keyboard Language Support

The Tera D5100 supports multiple keyboard languages, including English, Italian, German, Japanese, Spanish, and French, ensuring compatibility with diverse international systems. To change the keyboard language, scan the appropriate configuration barcode from the full programming guide.

Figure 5: Multi-Language Keyboard Support.

3.4 Customizing Scanned Data

The scanner can be configured to add or hide digits from scanned barcode data. This feature is useful for customizing output to fit specific software or inventory systems, such as adding prefixes or suffixes to scanned codes. Consult the detailed programming manual for configuration steps.

4. Maintenance and Care

4.1 Durability Features

The Tera D5100 is designed for durability, featuring an anti-shock orange silicone protective casing that helps prevent damage from drops up to 2 meters. Its IP54 rating provides protection against dust ingress, ensuring reliable performance in various work environments.

Figure 6: Robust Design with Fall and Dust Resistance.

4.2 Ergonomic Design

The scanner features an ergonomic design with an extended and thickened curved handle, providing a comfortable and secure grip during prolonged use. The trigger is designed to be smooth and flat for enhanced user experience.

Figure 7: Ergonomic Handle Design for Comfortable Grip.

5. Troubleshooting

5.1 Common Issues and Solutions

• Scanner Not Connecting:
  Ensure the USB receiver is properly inserted into your computer or the USB cable is securely connected. Verify the scanner has sufficient battery charge. Try a different USB port on your device.
• Scanning Incorrect Barcode:
  The D5100 uses a camera-based sensor. If multiple barcodes are in close proximity, the scanner may read an unintended code. Physically cover or isolate the unwanted barcodes to ensure only the target barcode is visible to the scanner.
• No Scan Output:
  Confirm the scanner is in the correct operating mode (e.g., not in a configuration mode). Ensure the barcode is not damaged, smudged, or poorly printed. Check for adequate lighting conditions.
• Compatibility with Square POS:
  Please note that the Tera D5100 scanner is not compatible with Square POS systems.
• USB-C Connectivity for MacBooks:
  The scanner uses a standard USB-A connector. For devices with only USB-C ports, such as some MacBooks, a separate USB-A to USB-C adapter will be required.

6. Specifications

7. Warranty and Support

7.1 Product Warranty

The Tera D5100 Barcode Scanner comes with a 1-year product warranty. Please retain your proof of purchase for warranty claims.

7.2 Customer Support

For further assistance, technical support, or to explore other Tera products, please visit the official Tera store:

Visit the Tera Store
