1. Product Overview
The CDCASA 8x10x7 FT Large Resin Storage Shed is designed for outdoor storage, offering a durable and spacious solution for organizing various items. Constructed from 14mm double-wall resin and reinforced with a 0.6mm galvanized steel frame, this shed provides resistance against weather elements such as water, moisture, and UV radiation. It features a sloped roof for water drainage, a lockable door for security, and integrated vents for air circulation. A skylight panel enhances interior brightness during the day.
Key Features:
- Spacious Design: Overall dimensions of 118.7"D x 99.72"W x 87.9"H, with a base of 115.5"D x 94.5"W. The door measures 71.3"H x 57.6"W, allowing for easy entry and storage of large items like lawn mowers, bicycles, and ladders.
- Durable Construction: Made from 14mm thick double-wall resin, which is waterproof, moisture-proof, and UV-resistant. The internal structure is reinforced with 0.6mm galvanized steel.
- Impact-Resistant Floor: Provides strong load-bearing capacity.
- Thoughtful Design: Includes a sloped roof to prevent water accumulation, a lockable door (padlock not included), a light-transmitting window, front and rear vents, and a skylight panel for natural light.

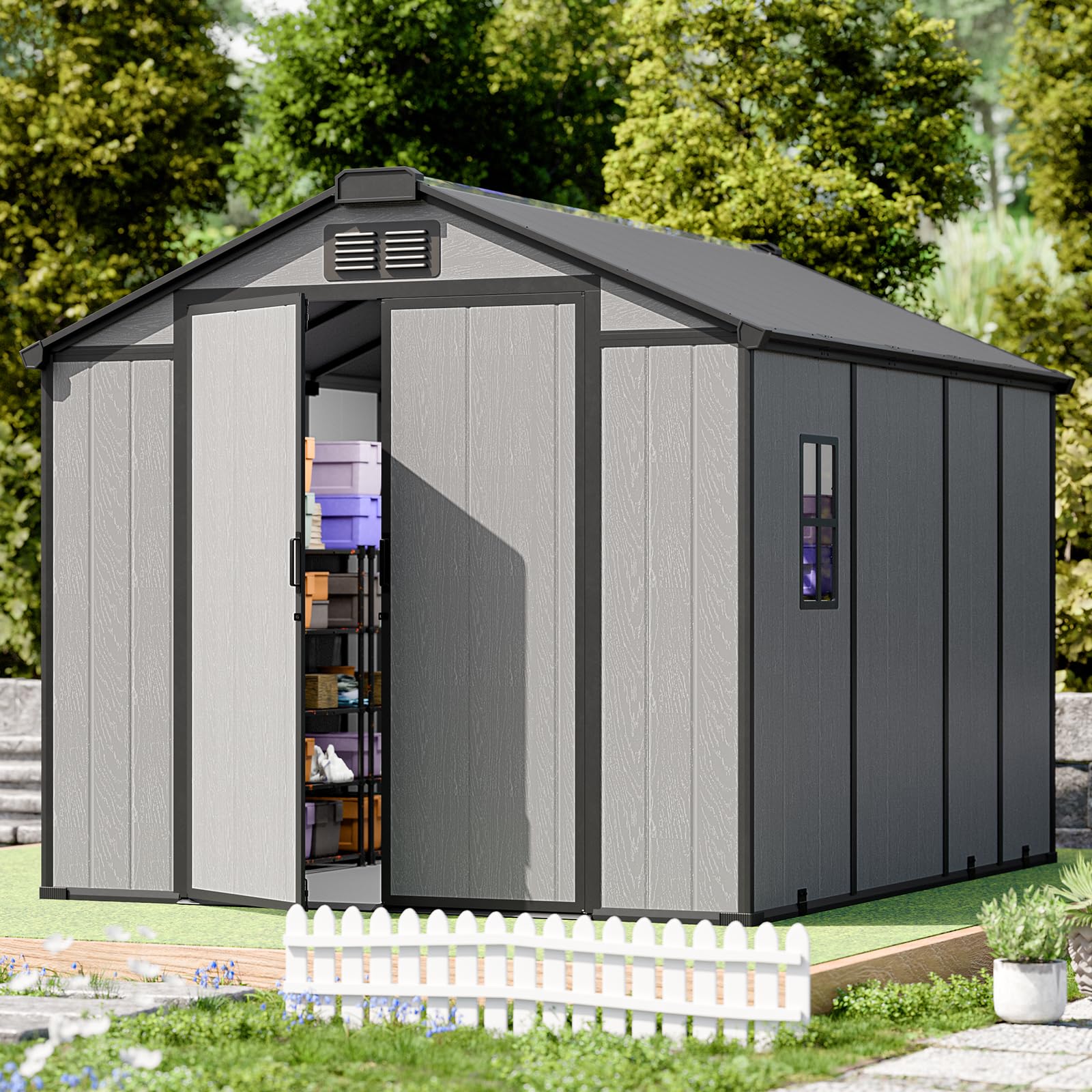

Figure 1: Front view of the CDCASA 8x10x7 FT Large Resin Storage Shed.
2. Safety Information
Please read and understand all safety instructions before assembly and use of the shed. Failure to follow these instructions may result in injury or property damage.
- Site Preparation: Ensure the assembly area is clear of debris and hazards. A level, hard surface (concrete or wood) is required for stable installation.
- Assembly Safety: Two people are recommended for assembly. Wear appropriate safety gear, including gloves and eye protection. Keep children and pets away from the assembly area.
- Tool Use: Use tools correctly and safely. An electric screwdriver is recommended for efficiency.
- Structural Integrity: Do not modify the shed's structure. Ensure all screws and fasteners are tightened securely during assembly and checked periodically.
- Ventilation: The shed includes vents for air circulation. Do not block these vents.
- Weight Distribution: Distribute stored items evenly to prevent structural strain. Do not exceed the floor's load-bearing capacity (600 lbs/sq ft).
- Anchoring: Securely anchor the shed to the ground using an anchor kit (if included or purchased separately) to prevent wind damage.
- Locking: Use a padlock on the lockable door to secure contents and prevent unauthorized access.
3. Setup and Assembly
The CDCASA storage shed is designed for straightforward assembly with an interlocking panel design that reduces the number of screws required. Allow several hours for installation and ensure you have the necessary tools.
3.1 Unpacking and Inspection
- The shed is delivered in 5 separate boxes. These may arrive on different days.
- Carefully unpack all components and check against the parts list in your detailed manual.
- Inspect all parts for damage. Contact customer service immediately if any parts are missing or damaged.
Figure 2: The shed is delivered in 5 boxes. Assembly requires a ladder, electric screwdriver, and 2-3 people.
3.2 Site Preparation
A level and stable foundation is crucial for the shed's stability and longevity. Recommended surfaces include:
- Concrete Slab
- Asphalt Foundation
- Level Ground (properly compacted)
- Floating Slab (wood or composite decking)
Figure 3: Examples of suitable level surfaces for shed installation.
3.3 Assembly Steps
Follow the detailed manual provided with your shed for step-by-step assembly instructions. The interlocking block design simplifies the process.
- Assemble the base frame on your prepared level surface.
- Attach the wall panels, ensuring they interlock correctly.
- Install the internal steel structure reinforcement for enhanced stability.
- Mount the roof panels, ensuring the sloped design is correctly oriented for drainage.
- Install the doors, window, and ventilation components.
- Securely tighten all screws and fasteners.
- Anchor the shed to the ground using the provided anchor kit for stability against wind.
Figure 4: The internal steel structure provides reinforcement, reducing screws by 20% and assembly time by 30%.
Figure 5: Reinforced structure design with double-sided groove for stability.
4. Operating Instructions
4.1 Door Operation
The shed features double swing doors. To open, unlatch the door and pull outwards. To close, push the doors shut and engage the latch mechanism. For security, a padlock can be added to the latch.
Figure 6: The shed's latch design allows for a padlock to secure contents.
4.2 Ventilation
The shed is equipped with front and rear vents to promote air circulation and reduce condensation. Ensure these vents remain unobstructed for optimal performance.
Figure 7: Built-in vents facilitate air circulation within the shed.
4.3 Natural Lighting
The integrated skylight panel and window allow natural light into the shed, improving visibility during daytime hours without the need for artificial lighting.
Figure 8: The skylight panel provides natural illumination inside the shed.
5. Maintenance
Regular maintenance will help prolong the life and appearance of your CDCASA storage shed.
- Cleaning: Clean the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the resin material.
- Roof Drainage: Ensure the sloped roof remains clear of heavy debris (leaves, snow) to maintain proper water drainage.
- Fastener Check: Periodically check all screws and fasteners to ensure they are tight. Re-tighten if necessary.
- Ventilation Check: Ensure vents are free from obstructions to maintain airflow.
- Door Functionality: Keep door hinges and latches clean and lubricated if needed to ensure smooth operation.
- Foundation: Regularly inspect the foundation for any signs of shifting or damage that could affect the shed's stability.
Figure 9: The sloped roof design facilitates easy drainage of rain and snow.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leakage inside the shed | Improper roof panel installation; damaged seals; obstructed drainage. | Check roof panel alignment and seals. Clear any debris from the roof and gutters. Ensure all screws are tight. |
| Doors do not close or latch properly | Uneven foundation; misaligned hinges; debris in latch mechanism. | Verify the shed is on a level surface. Adjust hinges if necessary. Clean the latch mechanism. |
| Shed feels unstable or wobbly | Inadequate anchoring; uneven foundation; loose fasteners. | Ensure the shed is properly anchored to the ground. Check and level the foundation. Tighten all assembly fasteners. |
| Excessive condensation inside | Blocked vents; high humidity. | Ensure all vents are clear and unobstructed. Consider adding a dehumidifier if humidity is consistently high. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | CDCASA |
| Model Number | US-SS306-GY-86-LL529-2 |
| Color | Gray |
| Material | Resin (14mm double-wall) |
| Frame Material | Galvanized Steel (0.6mm) |
| Product Dimensions (D x W x H) | 115.5" x 94.5" x 90.6" (Overall: 118.7"D x 99.72"W x 87.9"H) |
| Floor Area | 78.5 square feet |
| Door Width | 57.6 inches |
| Door Height | 71.3 inches |
| Water Resistance Level | Waterproof |
| Load Capacity (Floor) | 600 lbs/sq ft |
| Style | Cottage |
Figure 10: Detailed product dimensions including height, width, and depth.
8. Warranty Information
Specific warranty details for the CDCASA 8x10x7 FT Large Resin Storage Shed are typically provided with the product packaging or can be obtained directly from the manufacturer. Please refer to the documentation included with your purchase for comprehensive warranty terms and conditions.
9. Customer Support
For any questions, concerns, or assistance with your CDCASA storage shed, please contact our customer service team.
- Email: customer-service@cd-casa.com
- Online Support: Visit the official CDCASA store on Amazon for FAQs and additional resources.
When contacting support, please have your model number (US-SS306-GY-86-LL529-2) and purchase details readily available.
Figure 11: Contact information for customer support.
