Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your PetsCosset 67" H Large Walk-in Catio Outdoor Cat Enclosure. Designed to offer a safe and stimulating outdoor environment for your cats, this enclosure features multiple levels, a storage cabinet, and options for window or pet door connection. Please read all instructions carefully before assembly and use to ensure proper function and safety.
Safety Information
- Adult Assembly Required: Assembly requires two or more adults. Do not attempt to assemble alone.
- Tool Safety: Use appropriate tools as specified. Gloves and a power drill can assist with assembly, but always exercise caution.
- Stable Placement: Ensure the catio is placed on a flat, stable surface to prevent tipping. For outdoor use, consider placing it in a sheltered area like a covered patio or porch to extend product life and protect against harsh weather.
- Regular Inspection: Periodically check all screws, latches, and structural components to ensure they are secure. Tighten as necessary.
- Pet Supervision: While designed for safety, always supervise your pets, especially during initial use.
- Weight Limit: Do not allow children or adults to climb inside or on the catio. It is designed for cats only.
- Weather Protection: The Oxford roof provides some weather resistance. In extreme weather conditions, additional protection may be necessary.
Package Contents
Your PetsCosset Catio is shipped in multiple packages (typically 3 boxes). Please verify all components are present before beginning assembly. Refer to the included parts list for a complete inventory.
- Pre-labeled wooden panels
- Galvanized wire mesh sections
- Oxford roof cover
- 7 platforms
- 2 resting boxes
- 2 scratching posts
- 1 cat bed
- Hardware kit (screws, latches, etc.)
- Assembly instructions
Setup and Assembly
Assembly typically takes 45-60 minutes with 1-2 persons, though 2 or more people are recommended for easier installation. Clear, step-by-step instructions and pre-labeled panels are provided to guide you. Using gloves and a power drill can make the process faster and easier.
- Step 1: Attach the Base Panels. Begin by connecting the base panels according to the provided diagrams.
- Step 2: Assemble Upper Frame. Connect the labeled frame panels to form the main structure.
- Step 3: Install Roof Panels. Secure the roof frame and attach the Oxford cover.
- Step 4: Final Assembly. Install interior components such as platforms, resting boxes, scratching posts, and the cat bed. Ensure all doors and latches are securely fastened.
Note: Some users have reported that screw holes for latches may not be pre-drilled on both sides. If this occurs, carefully mark and drill pilot holes before securing the latches.
Image: Step-by-step assembly process for the PetsCosset Catio, showing the structure being built.
Image: Visual guide illustrating the four main assembly steps for the catio, highlighting ease of setup.
Operating Instructions
Providing Outdoor Access
The PetsCosset Catio offers flexible options for your cat to access the outdoors safely:
- Window Connection: A removable rear panel allows the catio to connect to a suitable home window, providing a natural route for your cat between indoor and outdoor spaces.
- Pet Door Attachment: The design supports attachment to a pet door, enabling free movement for your cat.
- Cat Tunnel Connection: Expand the outdoor space by connecting a cat tunnel to the enclosure.
Image: A catio connected to a house window, showing a cat enjoying the outdoor view from inside the enclosure.
Image: Illustrations of the catio connecting to a pet door and a cat tunnel, demonstrating versatile access options.
Utilizing Interior Features
The multi-level design provides various zones for your cats:
- Platforms: Seven platforms encourage climbing, perching, and exploration.
- Resting Boxes: Two enclosed resting boxes offer private spaces for rest and privacy.
- Scratching Posts: Two scratching posts support natural scratching behaviors.
- Cat Bed: A dedicated cat bed provides an elevated spot for lounging.
- Ground Activity Zone: An open bottom area allows for ground-level play.
Image: An interior view of the catio highlighting different zones: hide & rest, upper lounge, play & climb, and ground activity, with cats utilizing the features.
Image: A detailed view of the catio's vertical space, showing cat condos, scratching posts, multiple platforms, and a clear capsule bed.
Storage Cabinet
The built-in storage cabinet keeps cat-care essentials organized and easily accessible. The interior shelf offers two height positions to accommodate various items.
Image: A close-up of the catio's built-in storage cabinet, showing it used for cat food, treats, toys, and cleaning supplies with an adjustable shelf.
Adjustable Roof System
The roll-up Oxford roof allows you to adjust overhead coverage:
- Cover Down: Provides added shade and light outdoor coverage, blocking sun and light rain.
- Cover Up: Rolls up for brighter views and increased airflow, utilizing the mesh roof for enhanced ventilation.

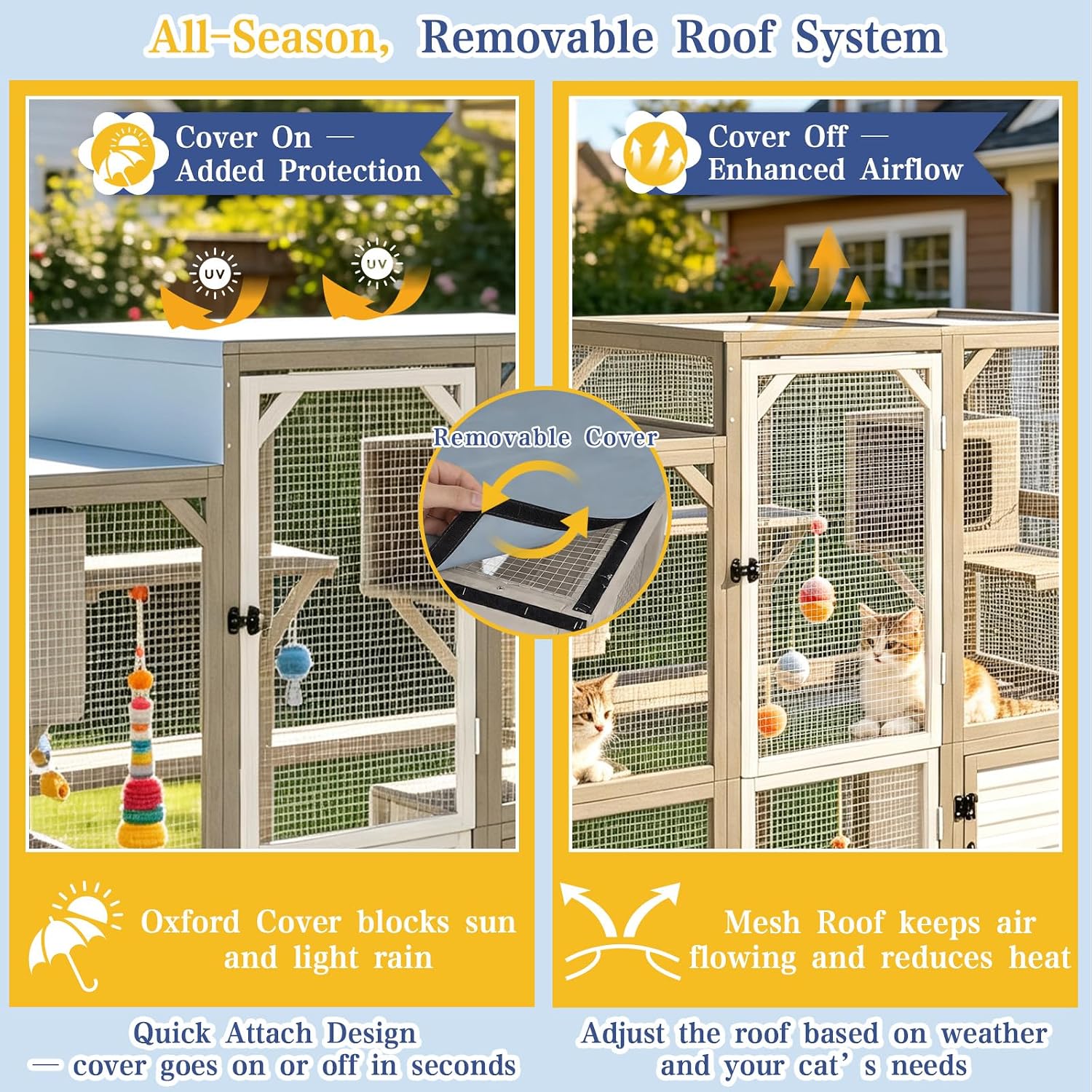

Image: Two panels demonstrating the removable roof system: one with the cover on for protection, and one with the cover off for enhanced airflow.
Image: The catio with its roll-up front cover, shown both down for shade and privacy, and rolled up for airflow and an open view.
Walk-In Access
The walk-in design provides easy access for feeding, interaction, and cleaning. This allows owners to comfortably reach all areas of the catio, including platforms, resting areas, scratching posts, and the storage cabinet.
Image: A person standing inside the PetsCosset Catio, demonstrating the walk-in access for easy interaction and maintenance.
Expandable Modular System
The catio can be connected with another matching unit to create a wider or longer outdoor cat enclosure, expanding the play area horizontally or extending roaming space front-to-back.
Image: Diagrams illustrating how multiple catio units can be connected side-by-side or front-to-back to expand the enclosure.
Maintenance
- Regular Cleaning: Clean the platforms, resting boxes, and floor regularly using pet-safe cleaning solutions.
- Wire Mesh: Inspect the galvanized wire mesh for any damage or loose areas. Clean with a damp cloth.
- Wood Care: The fir wood construction should be wiped clean as needed. For longer product life, consider applying a pet-safe wood sealant periodically, especially if exposed to frequent rain or harsh sun.
- Oxford Roof Cover: The Oxford roof cover can be wiped clean with a damp cloth. Ensure it is dry before rolling up or storing to prevent mold or mildew.
- Scratching Posts: Replace scratching post material if it becomes heavily worn to encourage continued use.
- Placement: To maximize product lifespan, place the catio in a sheltered outdoor area such as a covered patio or porch.
Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Difficulty with assembly / Misaligned parts | Incorrect panel orientation; missing pilot holes for hardware. | Review the instruction manual diagrams carefully. Ensure panels are oriented correctly. If pilot holes are missing for latches or other hardware, carefully mark and drill small pilot holes before screwing. Ensure two or more people are assisting with assembly. |
| Catio feels unstable after assembly | Loose screws; uneven ground. | Check and tighten all screws. Ensure the catio is placed on a completely flat and level surface. |
| Water damage or mold after rain | Prolonged exposure to heavy rain; inadequate drying. | While the Oxford roof offers some protection, the catio is not fully waterproof. Place in a sheltered outdoor area (e.g., covered patio). Ensure the roof cover is properly deployed during rain. Clean any mold immediately with a pet-safe solution and ensure thorough drying. Consider additional weatherproofing measures if exposed to frequent heavy rain. |
| Catio appears too small for cat(s) | Cat size exceeds recommended capacity. | This model is designed for 3-4 small to medium cats. For larger cats or more active cats, consider connecting additional units to expand the space. |
| Wheels not rolling smoothly | Small wheel size; debris in wheels. | Clean any debris from the wheels. For easier movement on rougher surfaces, consider replacing the wheels with larger, more robust casters if desired. |
Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 65" L x 29.6" W x 67.1" H |
| Item Weight | 98.5 pounds |
| Model Number | PET96NEW-Luxury Large CATIO |
| Brand | PetsCosset |
| Material | Fir Wood, Galvanized Wire Mesh, Oxford Roof Cover |
| Color | Grey |
| Style | Modern |
| Included Components | 2 Small Doors at Bottom, 2 Resting Rooms, 6 Jumping Platforms, Large Walk-in Openable Door, Removable Back Window, Weather-Resistant Roll-Up Oxford Roof Cover, Cabinet Height-Adjustable Shelves, 7 Platforms, 2 Resting Boxes, Scratching Posts, Cat Bed |
| Capacity | Suitable for 3-4 small to medium cats |
Image: A diagram showing the detailed dimensions of the PetsCosset Catio, including length, width, and height, and internal component sizes.
Warranty and Support
PetsCosset offers a 30-day easy return policy for this product. For any questions, concerns, or assistance with assembly or parts, please contact PetsCosset customer support. Refer to your purchase documentation for specific contact details.
Note: The product is designed for pet use only. Misuse or improper assembly may void any implied warranty.
