Rowenta X-Force Flex 10.80 Essential Cordless Vacuum Cleaner User Manual

Introduction

Thank you for choosing the Rowenta X-Force Flex 10.80 Essential cordless vacuum cleaner. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your appliance. Please read these instructions carefully before first use and keep them for future reference.

Product Overview

The Rowenta X-Force Flex 10.80 Essential is a versatile cordless vacuum cleaner designed for deep, effortless cleaning. It combines powerful suction, long battery life, and an ultra-lightweight design for optimal performance on all floor types.

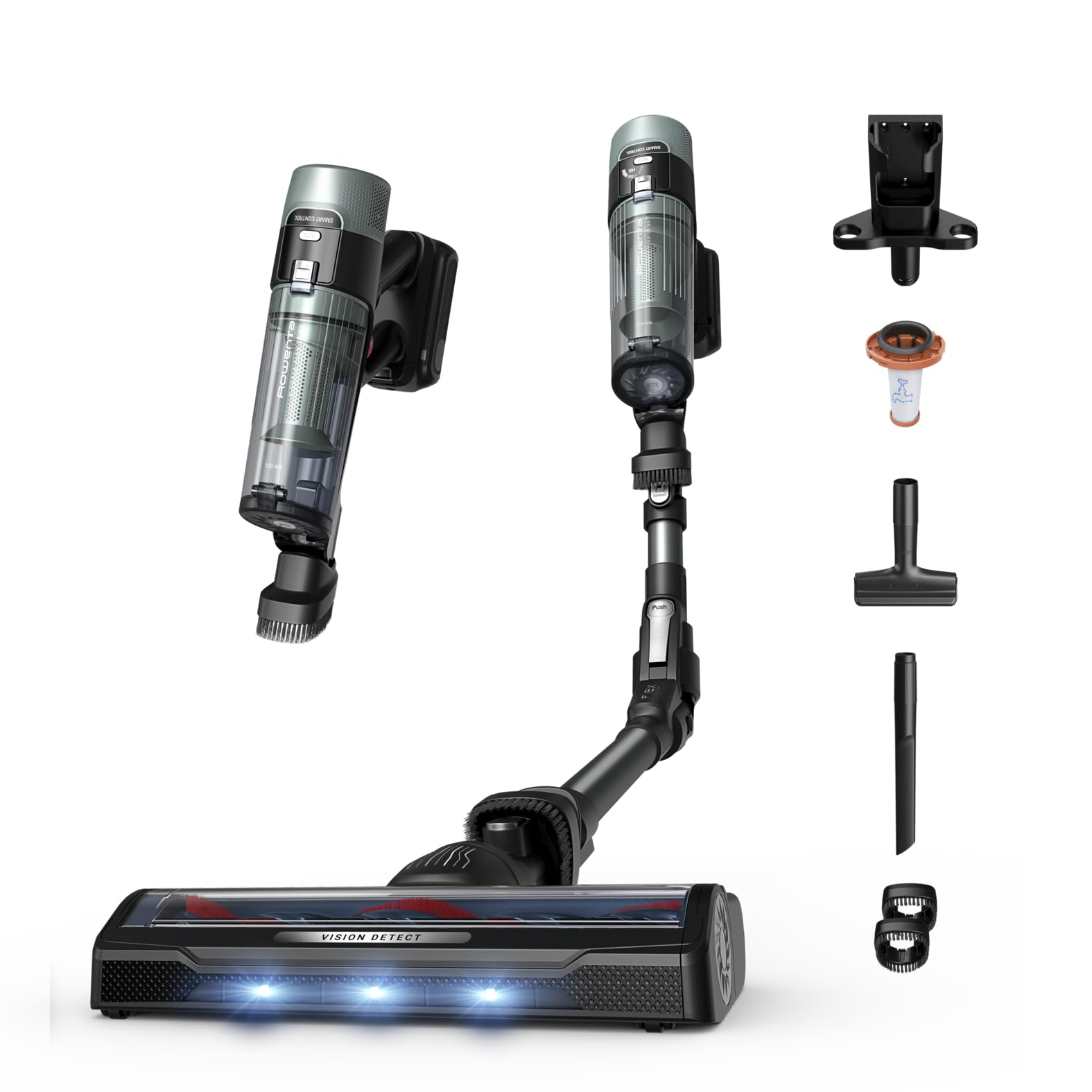

Image: The Rowenta X-Force Flex 10.80 Essential cordless vacuum cleaner, fully assembled.

Key Features:

• High Suction Power: Equipped with a motor providing up to 120 Air Watts of suction for thorough cleaning.
• Multi-function Brush with LED Lights: Ensures visible and deep cleaning on all floor types, from carpets to hard floors.
• Intelligent Technology: Automatic suction power adjustment based on surface type, optimizing battery life.
• Extended Autonomy: Up to 60 minutes of runtime on a single charge in handheld Eco mode.
• Lightweight and Flexible Design: Weighs only 1.1 kg in handheld mode, with Flex technology to reach difficult areas without bending.

Included Components:

Image: Overview of the Rowenta X-Force Flex 10.80 Essential accessories kit.

• Main unit with dust bin and motor
• Flexible extension tube
• Motorized floor brush with LED lights
• Charging base
• Crevice tool
• Sofa brush
• Additional filter
• 2 Easy Brush attachments
• Power adapter

Safety Instructions

Before using your appliance, please read all instructions and safety precautions. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• This appliance is intended for domestic use only.
• Do not use the appliance outdoors or on wet surfaces.
• Do not pick up liquids, hot ashes, sharp objects, or flammable/combustible materials.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Use only the charger supplied by Rowenta.
• Do not operate the vacuum cleaner if it has been dropped, damaged, left outdoors, or dropped into water.
• Always turn off the appliance before connecting or disconnecting the motorized brush.
• Ensure the filter is correctly installed before use.

For detailed safety information, please refer to the official Safety Information PDF document provided by Rowenta.

Assembly

Follow these steps to assemble your Rowenta X-Force Flex 10.80 Essential:

1. Attach the Flexible Tube: Insert the flexible extension tube into the main unit until it clicks securely into place.
2. Connect the Floor Brush: Attach the motorized floor brush to the other end of the flexible tube, ensuring it locks firmly.
3. Install the Dust Bin: Ensure the dust bin is correctly attached to the main unit.
4. Attach Accessories: For specific cleaning tasks, attach the desired accessory (crevice tool, sofa brush, Easy Brush) directly to the main unit or the end of the flexible tube.

Image: Various components of the Rowenta X-Force Flex 10.80 Essential, ready for assembly.

Charging the Battery

Before first use, fully charge the battery. A full charge typically takes approximately 3 hours.

1. Connect the Charger: Plug the power adapter into a wall outlet and connect the charging cable to the charging port on the battery or the charging base.
2. Place the Vacuum: Place the main unit onto the charging base, or connect the charger directly to the battery if it's removable.
3. Monitor Charging: The battery indicator on the Smart Control display will show the charging status. It will typically show a pulsating light during charging and a solid light when fully charged.

Image: Close-up of the battery being charged, indicating long autonomy.

The vacuum offers up to 60 minutes of autonomy when used in handheld Eco mode.

Operation

Powering On/Off and Mode Selection:

1. Turn On: Press the power button on the main unit to start the vacuum cleaner.
2. Select Power Mode: Use the mode selection buttons on the Smart Control display to switch between Eco, Auto, and Boost modes. The display will show the current mode and battery level.
3. Turn Off: Press the power button again to turn off the appliance.

Image: Close-up of the Smart Control display showing Eco, Auto, and Boost modes, along with battery indicator.

Understanding Power Modes:

• Eco Mode: Provides maximum runtime for everyday cleaning tasks on hard floors.
• Auto Mode: Automatically adjusts suction power based on the surface type, optimizing performance and battery life.
• Boost Mode: Delivers maximum suction power for stubborn dirt and deep cleaning, especially on carpets.

Image: Illustration of the automatic suction power adjustment feature on different floor types.

Using the Flex Tube:

The flexible tube allows you to reach under low furniture without bending. Simply press the 'Flex' button on the tube to articulate it, making it easier to clean hard-to-reach areas.

Image: The vacuum cleaner demonstrating its flexible tube for cleaning under furniture and its lightweight design for handheld use.

Using Accessories:

• Crevice Tool: Ideal for narrow spaces, corners, and edges.
• Sofa Brush: Designed for upholstery, curtains, and delicate surfaces.
• Easy Brush: Integrated brushes for quick cleaning of various surfaces.

Image: Close-up of the motorized brush with LED lights, illustrating its deep cleaning capability.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

Emptying the Dust Bin:

1. Detach the Dust Bin: Press the release button to detach the dust bin from the main unit.
2. Empty Contents: Open the dust bin lid and empty the collected dust and debris into a waste bin.
3. Reattach: Close the lid and reattach the dust bin to the main unit until it clicks into place.

Cleaning the Filter:

It is recommended to clean the filter regularly, especially if you notice a decrease in suction power.

1. Remove Filter: Open the dust bin and remove the filter assembly.
2. Clean Filter: Tap the filter gently to remove loose dust. For a deeper clean, rinse the filter under cold running water.
3. Dry Thoroughly: Allow the filter to air dry completely for at least 24 hours before reinserting it. Do not use a dryer or other heating elements.
4. Reinstall: Once completely dry, reinsert the filter into the dust bin and reattach the bin to the vacuum.

Cleaning the Brush Roll:

Periodically check the brush roll for tangled hair or debris.

1. Turn Off: Ensure the vacuum cleaner is turned off and disconnected from the charger.
2. Remove Brush Roll: Follow the instructions in the full manual to unlock and remove the brush roll from the motorized floor brush.
3. Clean: Use scissors or your fingers to remove any tangled hair, threads, or debris from the brush roll.
4. Reinstall: Reinsert the clean brush roll and lock it back into place.

Troubleshooting

If you encounter issues with your Rowenta X-Force Flex 10.80 Essential, refer to the following common problems and solutions:

Specifications

Warranty and Support

Rowenta is committed to providing durable products. This appliance is designed to be repairable for 15 years at a fair price, ensuring long-term usability and reducing waste.

Image: Logo indicating 15 years repairable at fair price.

For further assistance, detailed instructions, or to access official documents, please refer to the following resources:

• Official User Manual (PDF): Download Manuale utente (PDF)
• Safety Information (PDF): Download Informazioni sulla sicurezza (PDF)
• Certificate of Conformity (PDF): Download Certificato di conformità (PDF)
• Visit the Rowenta Store: Rowenta Official Store
