denqir Cordless Brushless Grass Trimmer XB-ws-gcj01-lq02 User Manual

1. Important Safety Instructions

Read all safety warnings and instructions before operating this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

General Safety

• Always wear eye protection and sturdy footwear when operating the trimmer.
• Keep children and bystanders at a safe distance (at least 15 meters) from the operating area.
• Do not operate the trimmer in wet conditions or rain.
• Inspect the work area for objects such as rocks, broken glass, nails, wire, or string that can be thrown or become entangled in the cutting line/blade.
• Ensure all guards and handles are properly installed before use.
• Do not overreach. Maintain proper footing and balance at all times.
• Disconnect the battery pack before making any adjustments, changing accessories, or storing the tool.
• This electric grass trimmer features a lock button for continuous and stable operation, preventing accidental activation, especially by children.
• The rotating guard prevents debris from scattering during cutting.

Battery Safety

• Use only the specified battery packs and charger.
• Do not expose battery packs to water or excessive heat.
• Charge batteries in a well-ventilated area.
• Do not short-circuit the battery terminals.
• Store batteries away from metal objects that could short them.
• Important: Fully charge the battery before first use.

Blade Safety

• Always ensure the trimmer is switched off and the battery is removed before changing or inspecting blades.
• Use appropriate blades for the task (plastic line for soft grass, circular blade for thick bushes, triangular blade for precise edges, flat blade for uniform cuts).
• Inspect blades for damage before each use. Replace damaged blades immediately.

2. Package Contents

Verify that all items listed below are included in your package. If any parts are missing or damaged, please contact customer support.

• 1 x Cordless Grass Trimmer Unit
• 2 x 21V 3000mAh Lithium-ion Batteries
• 1 x Battery Charger
• 1 x Plastic Cutting Line (for light weeds)
• 2 x Flat Metal Blades (for uniform cuts)
• 1 x Triangular Metal Blade (for precise edges)
• 1 x Circular Saw Blade (for thick bushes)
• 1 x Set of Assembly Tools
• Adjustable Handle
• Removable Wheels

Figure 2.1: Overview of all included components.

3. Product Overview

The denqir Cordless Brushless Grass Trimmer is designed for efficient lawn and garden maintenance. It features a 30 cm cutting width, a powerful 800W brushless motor, and a versatile 4-in-1 blade system.

• Brushless Motor: 800W high-speed DC brushless motor with a maximum speed of 20,000 RPM, offering increased power, longer lifespan, reduced noise, and less heat.
• Dual Battery System: Two 21V 3000mAh lithium-ion batteries provide approximately 40-50 minutes of continuous operation.
• Adjustable Design: Features an adjustable handle for comfortable grip and control, and removable wheels for easy maneuverability. The cutting head rotates 0-90° horizontally and vertically.
• Lightweight and Portable: Weighs only 7.8 lbs (approximately 3.5 kg), making it easy to transport and use for extended periods without fatigue. The rod is foldable for easier storage.
• Cutting Width: 30 cm (12 inches) for efficient coverage and precision.

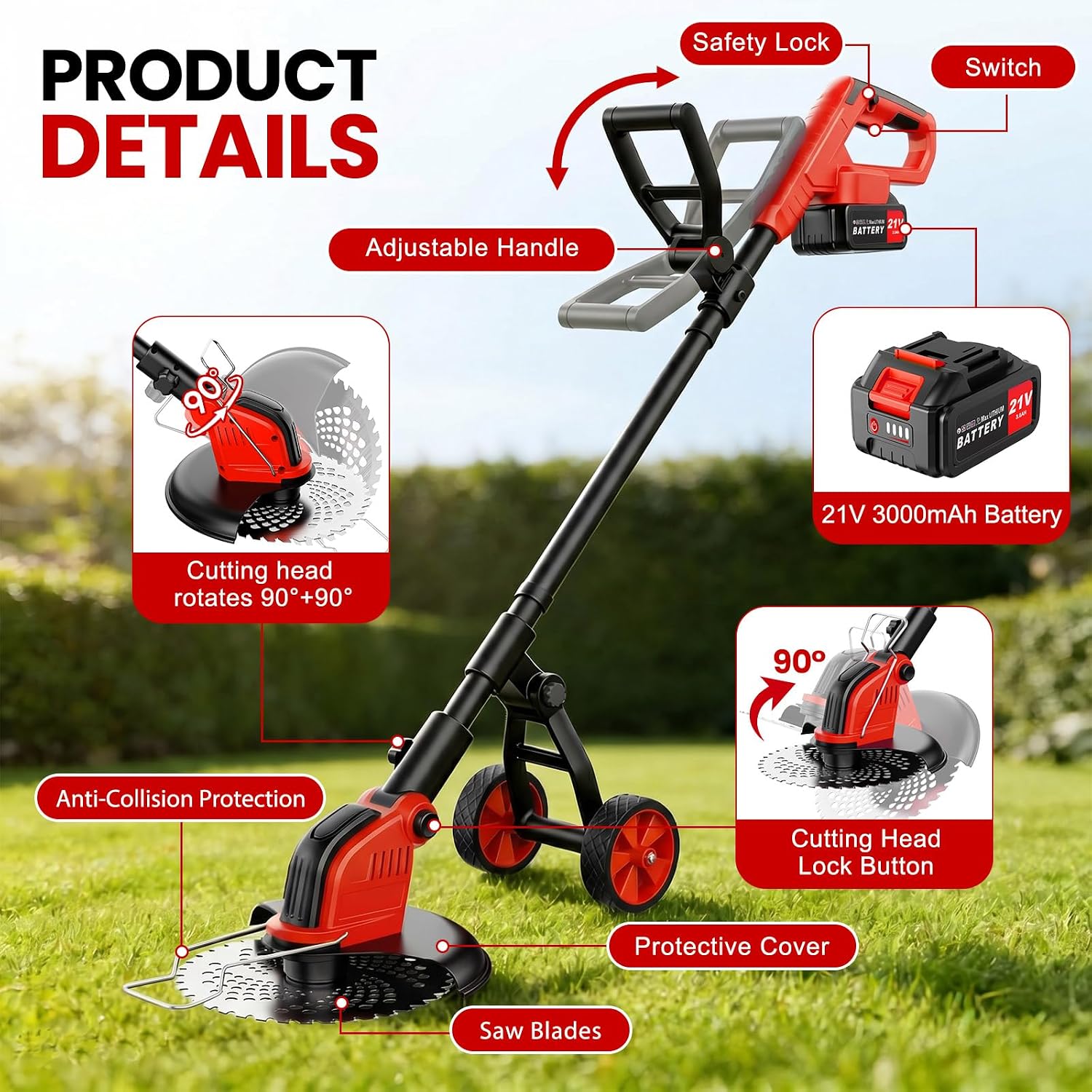

Figure 3.1: Product details and components.

Figure 3.2: Lightweight and portable design.

4. Setup and Assembly

Follow these steps to assemble your grass trimmer before first use.

4.1 Attaching the Protective Cover and Anti-Collision Guard

1. Mount the protective cover onto the trimmer head.
2. Attach the steel anti-collision ring.

4.2 Installing the Blade

Ensure the battery is removed before installing or changing blades.

1. Rotate the washer until you find the small hole. Insert the tool and lock the washer in position.
2. Mount the circular saw blade (the side with letters and the anterior teeth of the blade rotate clockwise).
3. Install the metal washer.
4. Install the blue washer.
5. Install the nut.
6. To remove the blade, locate the small hole on the rotating base and insert the tool to fix the entire base. Then use a tool to loosen the saw blade counter-clockwise.

Figure 4.1: Blade installation steps.

4.3 Attaching the Adjustable Handle and Wheels

• Attach the adjustable handle to the main shaft at a comfortable height. Secure it firmly.
• Install the removable wheels onto the trimmer head assembly. These wheels aid in effortless trimming, especially along edges.

5. Operating Instructions

5.1 Battery Installation and Charging

• Ensure the battery is fully charged before use. Insert a charged 21V 3000mAh battery into the battery slot until it clicks into place.
• To remove, press the battery release button and slide the battery out.
• Use the provided charger to charge the batteries. The charger indicator light will show charging status.

Figure 5.1: High capacity dual battery power.

5.2 Starting and Stopping the Trimmer

• To start: Press and hold the safety lock button, then press the power switch.
• To stop: Release the power switch.

5.3 Adjusting the Cutting Head

• The cutting head can rotate freely from 0 to 90 degrees, both horizontally and vertically. This allows for adaptation to various working environments, such as trimming edges or reaching difficult areas.
• To adjust, press the cutting head lock button, set the desired angle, and release the button to lock it in place.

5.4 Using the Auxiliary Wheels

• When trimming along driveways, paths, or for general mowing, engage the auxiliary wheels. This reduces physical strain and makes operation easier, similar to pushing a lawnmower.

Figure 5.2: Using the trimmer with auxiliary wheels.

6. Blade Types and Usage

Your denqir grass trimmer includes four types of blades, each suited for different cutting tasks:

• Plastic Cutting Line: Ideal for thin grass and light weeds.
• Flat Metal Blades: Provides uniform cuts on large surfaces.
• Triangular Metal Blade: Best for precise edging and trimming.
• Circular Saw Blade: Designed for cutting through thick bushes and tougher vegetation.

Figure 6.1: Four types of cutting blades.

Figure 6.2: Versatile applications: Edge, Mower, Trimmer, Tough-Cut.

7. Maintenance

Regular maintenance ensures optimal performance and extends the life of your trimmer.

• Cleaning: After each use, remove the battery and clean the trimmer head, guard, and blades of any grass clippings or debris. Use a damp cloth; do not use harsh chemicals.
• Blade Inspection: Regularly check blades for sharpness and damage. Replace worn or damaged blades promptly.
• Storage: Store the trimmer in a dry, secure place, out of reach of children. Remove the battery before long-term storage. The foldable rod allows for easier storage.
• Battery Care: Store batteries in a cool, dry place. Do not store fully discharged batteries for extended periods.

8. Troubleshooting

9. Specifications

Figure 9.1: 30 cm (12 inch) cutting width.

Figure 9.2: 800W Brushless Motor performance.

10. Warranty and Support

For any issues or questions regarding your denqir grass trimmer, please contact customer support. The manufacturer guarantees a response within 24 hours and is committed to your satisfaction.

Please refer to your purchase documentation for specific warranty terms and conditions.
