Keyluv Queen Bed Frame JYLKQBC Instruction Manual

Introduction

Thank you for choosing the Keyluv Queen Bed Frame Model JYLKQBC. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and proper use of your new bed frame. Please read this manual thoroughly before beginning assembly and retain it for future reference.

Safety Information

• Maximum Weight Capacity: The bed frame is designed to support a maximum weight of 800 lbs. Do not exceed this limit to prevent damage or injury.
• Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten as necessary.
• Keep small parts away from children during assembly to avoid choking hazards.
• Assemble the bed frame on a soft, clean surface to prevent scratching.
• Do not use power tools for assembly as this may overtighten or damage components.

Package Contents

Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Headboard
• Footboard
• Side Rails
• Wood Slats
• Center Support Bar(s)
• Support Legs
• Assembly Instructions
• Screw Bag (containing all necessary hardware)

Figure 1: Exploded view of Keyluv Queen Bed Frame components.

Setup: Assembly Instructions

Assembly typically requires two adults and takes approximately 1 hour. Follow these steps carefully:

1. Unpack and Identify Parts: Lay out all components on a clean, soft surface. Refer to the parts list to ensure everything is present.
2. Attach Side Rails to Headboard: Connect the side rails to the headboard using the provided hardware. Ensure all connections are snug but do not fully tighten yet.
3. Attach Side Rails to Footboard: Connect the other end of the side rails to the footboard. Again, ensure connections are snug.
4. Install Center Support Bar(s): Secure the center support bar(s) to the designated points on the headboard and footboard, or to the side rails as per the specific design.
5. Attach Support Legs: Screw in all support legs to the frame, including those on the footboard and any central support legs.
6. Install Wood Slats: Place the wood slats across the frame. Many slats feature a unique adhesive Velcro strip for easy and secure placement, which also helps prevent noise. Press firmly to secure.
7. Final Tightening: Once all components are in place, systematically tighten all bolts and screws using the provided tool. Do not overtighten.

Figure 2: Illustration of the easy setup process with unique adhesive Velcro for securing wood slats.

Figure 3: Detail of the durable iron frame ensuring strong and stable support.

Figure 4: Close-up of the noise-free strip design, often EVA silent foam, between metal and slats to prevent squeaks.

Mattress Recommendation: This bed frame does not require a box spring. It is designed for mattresses with a thickness between 8 and 14 inches for optimal aesthetic and comfort.

Figure 5: Recommended mattress height for the Keyluv bed frame.

Operating: Smart LED Lighting System

Your Keyluv bed frame features integrated LED lights in the headboard to enhance your room's ambiance. These lights can be controlled via a remote or a dedicated mobile application.

Features:

• Color Options: Choose from over 60,000 colors to match your mood or decor.
• Adjustable Brightness: Customize the light intensity for reading, relaxing, or creating a subtle glow.
• Dynamic Modes: Explore over 100 dynamic lighting modes.
• Music Sync: The lights can synchronize with music rhythm for a dynamic audio-visual experience.
• Timing Mode: Set schedules for the lights to turn on or off automatically.

Control Methods:

• Remote Control: Use the included remote control to power on/off, change colors, adjust brightness, and select modes.
• Mobile App: Download the dedicated mobile application (refer to the quick start guide for QR code or app store links) for advanced control, including custom color creation, music sync settings, and timing functions.

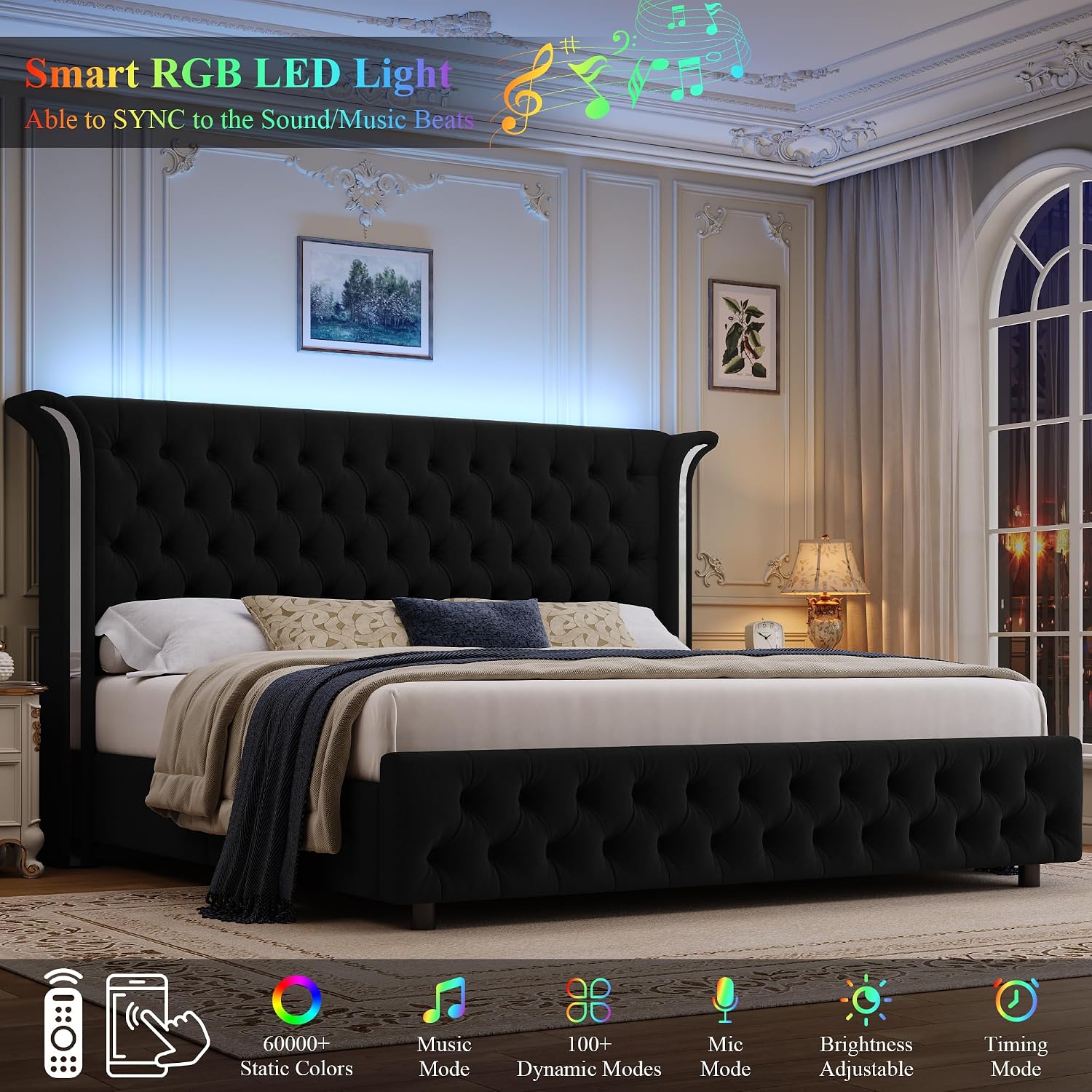

Figure 6: The Keyluv bed frame showcasing its integrated LED lighting feature.

Figure 7: Visual representation of the LED lighting system's capabilities, including color options, music sync, and remote/app control.

Maintenance

Proper care will extend the life and appearance of your Keyluv bed frame.

• Upholstery (Velvet):
  • Regularly vacuum the velvet upholstery using a soft brush attachment to remove dust and debris.
  • For spills, blot immediately with a clean, dry cloth. Do not rub.
  • For stubborn stains, use a mild upholstery cleaner specifically designed for velvet, testing on an inconspicuous area first.
  • Avoid direct sunlight to prevent fading.
• Metal Components:
  • Wipe metal parts with a soft, damp cloth.
  • Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Wood Slats:
  • Wipe with a dry or slightly damp cloth.
  • Ensure slats remain dry to prevent warping or mold.
• General:
  • Periodically check all bolts and screws and re-tighten them to maintain stability and prevent squeaks.
  • Ensure adequate under-bed clearance for robot vacuums if applicable, as designed.

Troubleshooting

Specifications

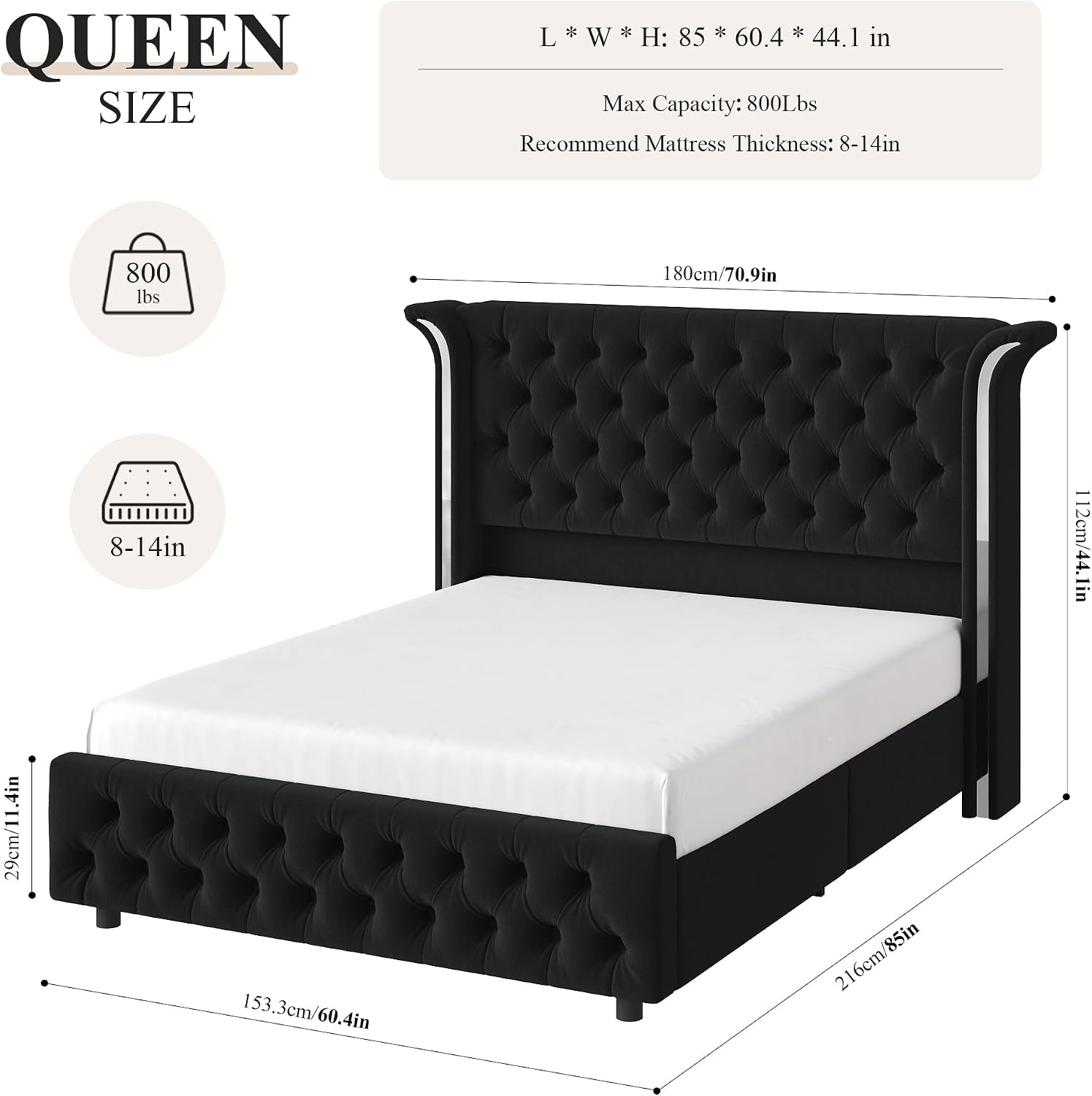

Figure 8: Keyluv Queen Bed Frame with key dimensions and specifications.

Warranty and Support

Keyluv is committed to providing high-quality products and customer satisfaction. Each bed undergoes strict quality control to ensure proper alignment and durability.

For any questions regarding assembly, missing parts, or product issues, please contact our professional customer service team. Refer to your purchase documentation or the Keyluv official website for specific warranty details and contact information.

We are here to provide timely support and ensure your satisfaction.
