Bellemave Twin XL Over Queen Floor Bunk Bed Instruction Manual

1. Important Safety Information

Please read and understand all instructions before assembling and using this bunk bed. Keep this manual for future reference.

• Maximum Weight Capacity: The top bunk is designed for a Twin XL mattress and supports up to 175 lbs. The bottom bunk is designed for a Queen mattress and supports up to 350 lbs. Do not exceed these limits.
• Mattress Requirements: Use only mattresses that are 7-9 inches thick for both bunks. Ensure the mattress fits snugly within the frame to prevent gaps.
• Guardrails: Always use the guardrails on the top bunk. Ensure they are properly installed and secured.
• Ladder Safety: Always use the provided ladder for access to the top bunk. Do not jump on the bed or use alternative climbing methods.
• Age Restriction: The top bunk is not suitable for children under 6 years of age.
• Ventilation: Ensure adequate ventilation around the bunk bed.
• Regular Checks: Periodically check all connections and hardware to ensure they remain tight and secure. Tighten as necessary.
• No Horseplay: Prohibit horseplay on or under the bed.

2. Package Contents

Before assembly, verify that all parts and hardware are present. If any items are missing or damaged, contact customer support immediately.

• Bed Frame Components (Headboards, Footboards, Side Rails, Support Beams)
• Ladder
• Guardrails
• Support Slats
• Hardware Pack (Screws, Bolts, Washers, Allen Wrench)
• Installation Manual

Figure 2.1: Product Dimensions. This diagram illustrates the overall length, width, and height of the bunk bed, along with specific measurements for the top and bottom sleeping areas and ladder placement. Dimensions are provided in inches.

3. Assembly Instructions

Assembly typically requires two adults. Ensure you have ample space and all tools are readily available. An Allen wrench is included; a Phillips head screwdriver may also be needed.

Step-by-Step Guide:

1. Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out on a clean, soft surface (like a carpet) to prevent scratches. Refer to the parts list in your manual to identify each piece.
2. Assemble the Bottom Bed Frame: Connect the headboard and footboard sections of the Queen bed to the side rails using the provided bolts and washers. Hand-tighten all connections initially.
3. Install Bottom Bed Slats: Place the Queen size support slats onto the designated ledges of the bottom bed frame. Secure them with screws as indicated in the manual. Ensure even spacing.
4. Assemble the Top Bed Frame: Connect the headboard and footboard sections of the Twin XL bed to its side rails. Again, hand-tighten connections.
5. Install Top Bed Slats: Place the Twin XL size support slats onto the designated ledges of the top bed frame and secure them.
6. Attach Guardrails: Secure the guardrails to the top bunk frame using the appropriate hardware. Ensure they are firmly attached and stable.
7. Connect Top and Bottom Frames: Carefully lift the assembled top bunk frame and align it with the designated connection points on the bottom bunk frame. Secure them together using the provided bolts and hardware. This step may require two people.
8. Attach the Ladder: Secure the ladder to the top bunk frame and the bottom bed frame as shown in the manual. Ensure it is stable and does not wobble.
9. Final Tightening: Once all components are in place and aligned, go back and fully tighten all bolts and screws using the Allen wrench. Do not overtighten.

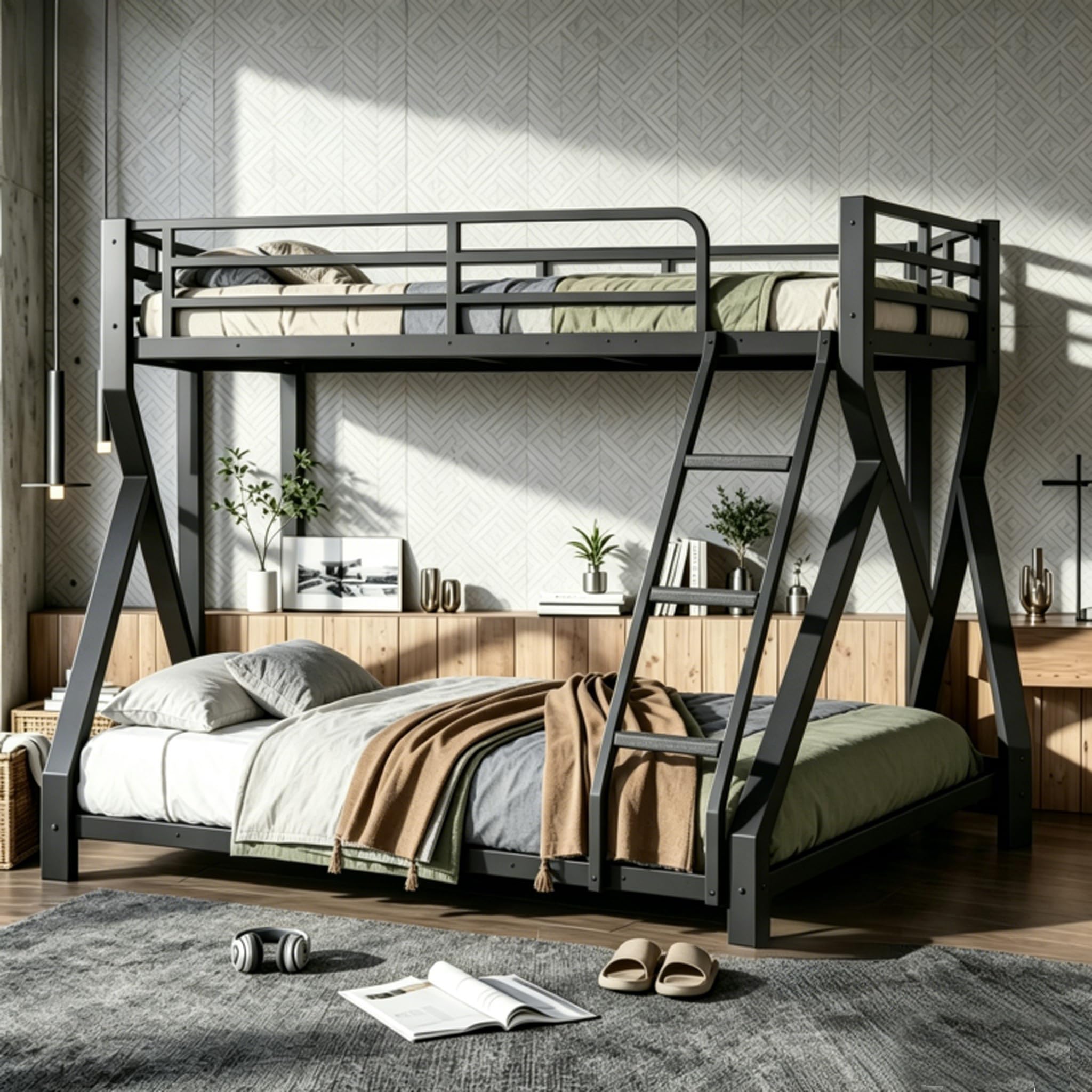

Figure 3.1: Fully assembled Bellemave Twin XL Over Queen Floor Bunk Bed. This image provides an overview of the complete structure, including the top Twin XL bunk, bottom Queen bunk, integrated ladder, and guardrails.

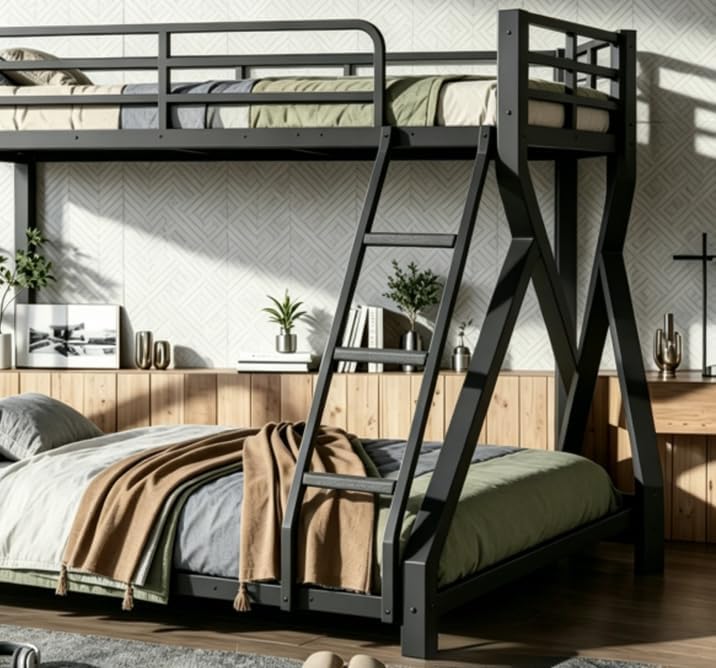

Figure 3.2: Detail of the integrated ladder and its connection to the bed frame. This view highlights the sturdy construction of the ladder and how it securely attaches to the bunk bed for safe access.

Figure 3.3: Detail of the heavy-duty metal support slats. These slats provide robust support for mattresses, ensuring durability and stability for both the Twin XL and Queen sleeping surfaces.

4. Operating and Usage Guidelines

Proper use of your Bellemave bunk bed ensures safety and longevity.

• Mattress Placement: Ensure mattresses are correctly sized and positioned within the bed frames.
• Ladder Use: Always face the ladder when climbing up or down. Use both hands for support.
• Top Bunk Occupancy: Only one person should occupy the top bunk at a time.
• No Hanging: Do not hang items from any part of the bunk bed structure, as this can compromise stability.
• Clearance: Ensure there is adequate head clearance for the bottom bunk occupant and sufficient space around the bed for safe movement.

5. Maintenance

Regular maintenance will help preserve the condition and safety of your bunk bed.

• Cleaning: Wipe down the metal frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Hardware Check: Every 3-6 months, inspect all bolts, screws, and connections. Tighten any loose hardware to maintain structural integrity and prevent squeaking.
• Slat Inspection: Periodically check the condition of the support slats for any signs of bending or damage. Replace any damaged slats immediately.
• Environmental Conditions: Avoid placing the bed in areas with extreme humidity or direct sunlight, which can affect metal integrity over time.

6. Troubleshooting

Common issues and their solutions.

• Squeaking Noises: If the bed makes noise, check all bolts and screws. Loose connections are the most common cause of squeaking. Tighten all hardware securely. Ensure slats are properly seated and secured.
• Wobbly Frame: A wobbly frame usually indicates loose connections. Re-check and tighten all bolts and screws, especially those connecting the main frame components. Ensure the bed is on a level surface.
• Missing Hardware: If you find you are short on screws or other hardware during assembly, double-check the packaging. If still missing, contact Bellemave customer support for replacement parts.
• Difficulty Assembling: Ensure you are following the steps in the manual precisely. Sometimes, parts may appear similar but are designed for specific locations. Do not force parts together. If stuck, review the diagrams or contact support.

7. Specifications

8. Warranty and Support

Bellemave is committed to providing quality products. For any questions, concerns, or assistance with your bunk bed, please contact Bellemave customer support. Refer to your purchase documentation for specific warranty details and contact information.

You can typically find support contact details on the Bellemave official website or through the retailer where the product was purchased.
