Shintenchi Grill Table (Model TPCC) Instruction Manual

1. Introduction

Thank you for choosing the Shintenchi Grill Table. This manual provides essential information for the safe assembly, proper operation, and effective maintenance of your grill table. Please read these instructions thoroughly before assembly and use to ensure optimal performance and longevity of the product.

2. Safety Information

• Always assemble the grill table on a flat, stable surface.
• Ensure all screws and fasteners are securely tightened before use. Periodically check for tightness.
• Do not overload the grill table with excessive weight. Refer to specifications for weight limits.
• Keep children and pets away from the grill table during assembly and when a hot grill is in use.
• Use caution when moving the grill table, especially on uneven surfaces. Engage wheel brakes when stationary.
• This product is designed for outdoor use. Avoid using it indoors or in enclosed spaces.
• Allow the grill to cool completely before attempting to move or clean the grill table.

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.

• Main Frame Components
• Work Surface Panels
• Wheels (4, with 2 locking)
• Grill Lid Holder
• Paper Towel Rack
• Front-Mounted Basket
• Tool Hooks
• Hardware Pack (screws, nuts, washers)
• Assembly Tools (if included)

4. Assembly Instructions

Assembly typically requires two people. Follow the numbered steps carefully. Ensure you use the correct screws and parts as indicated in the included hardware package.

4.1. Unpacking and Preparation

1. Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches.
2. Identify all parts against the package contents list.

4.2. Frame Assembly

1. Attach the side frames to the bottom shelf using the specified screws. Do not fully tighten screws until all components are aligned.
2. Secure the top work surface panels to the side frames.

4.3. Wheel Installation

1. Insert the four wheels into the designated sockets on the bottom frame. Two wheels include locking mechanisms for stability.
2. Ensure the locking wheels are positioned on the same side for easier access.

4.4. Accessory Attachment

1. Mount the grill lid holder to the side of the table as shown in the diagram. This holder is designed to free your hands and prevent the lid from falling.
2. Attach the paper towel rack, front-mounted basket, and tool hooks to their respective positions.
3. Once all components are in place, fully tighten all screws and fasteners.

5. Operating Instructions

The Shintenchi Grill Table enhances your outdoor cooking experience by providing a dedicated workspace and storage.

5.1. Grill Placement

Carefully place your compatible Weber kettle grill into the designated opening on the top work surface. Ensure the grill is seated securely and stably.

5.2. Utilizing the Work Surface

The spacious work surface provides ample room for food preparation, holding plates, seasonings, and grilling tools. Keep items within easy reach while grilling.

5.3. Storage and Organization

• Lid Holder: Use the integrated lid holder to keep your grill lid off the ground and easily accessible.
• Paper Towel Rack: Mount a roll of paper towels for quick clean-ups.
• Front Basket: Store spices, sauces, or smaller grilling accessories in the front-mounted basket.
• Tool Hooks: Hang brushes, tongs, mitts, and other grilling utensils on the side hooks.
• Bottom Shelf: The lower shelf offers additional storage for charcoal bags, larger accessories, or serving trays.

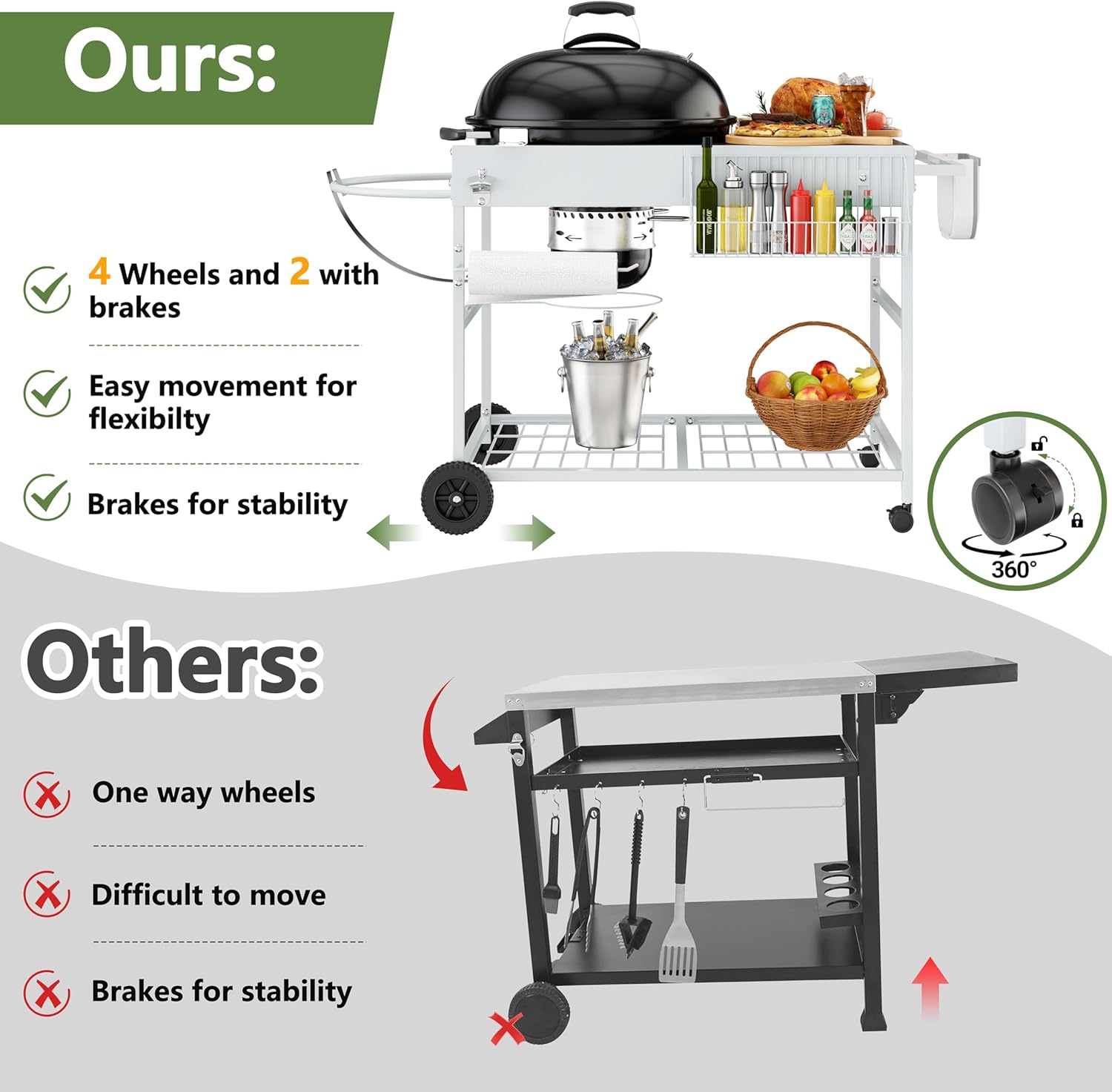

5.4. Mobility and Stability

To move the grill table, release the brakes on the two locking wheels. Use the metal handle to guide the table to your desired location. Once positioned, engage the wheel brakes to secure the table and prevent unintended movement during use.

6. Maintenance

Regular maintenance will help preserve the appearance and functionality of your Shintenchi Grill Table.

• Cleaning: Wipe down all surfaces with a damp cloth and mild soap after each use. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Drying: Ensure the table is thoroughly dried after cleaning to prevent water spots and rust.
• Rust Prevention: The grill table is constructed from iron with a heat-resistant coating. To minimize the risk of rust, especially in humid environments or after exposure to rain, store the table in a dry, covered area when not in use. Consider applying a rust-inhibiting spray periodically, particularly to exposed metal parts.
• Fastener Check: Periodically inspect all screws and bolts to ensure they remain tight. Re-tighten as necessary.

7. Troubleshooting

If you encounter issues with your grill table, refer to the following common solutions:

• Assembly Difficulties: If parts do not align easily, double-check the instruction diagrams and ensure you are using the correct hardware for each step. Sometimes, slightly loosening adjacent screws can help with alignment before re-tightening.
• Wobbly Table: Ensure all fasteners are fully tightened. Verify that the table is on a level surface and that the wheel brakes are engaged if stationary.
• Rust Formation: Rust can occur if the table is exposed to moisture for extended periods. Follow the maintenance guidelines for cleaning and storage. For existing rust, gently clean the affected area and apply a rust-inhibiting paint or coating.

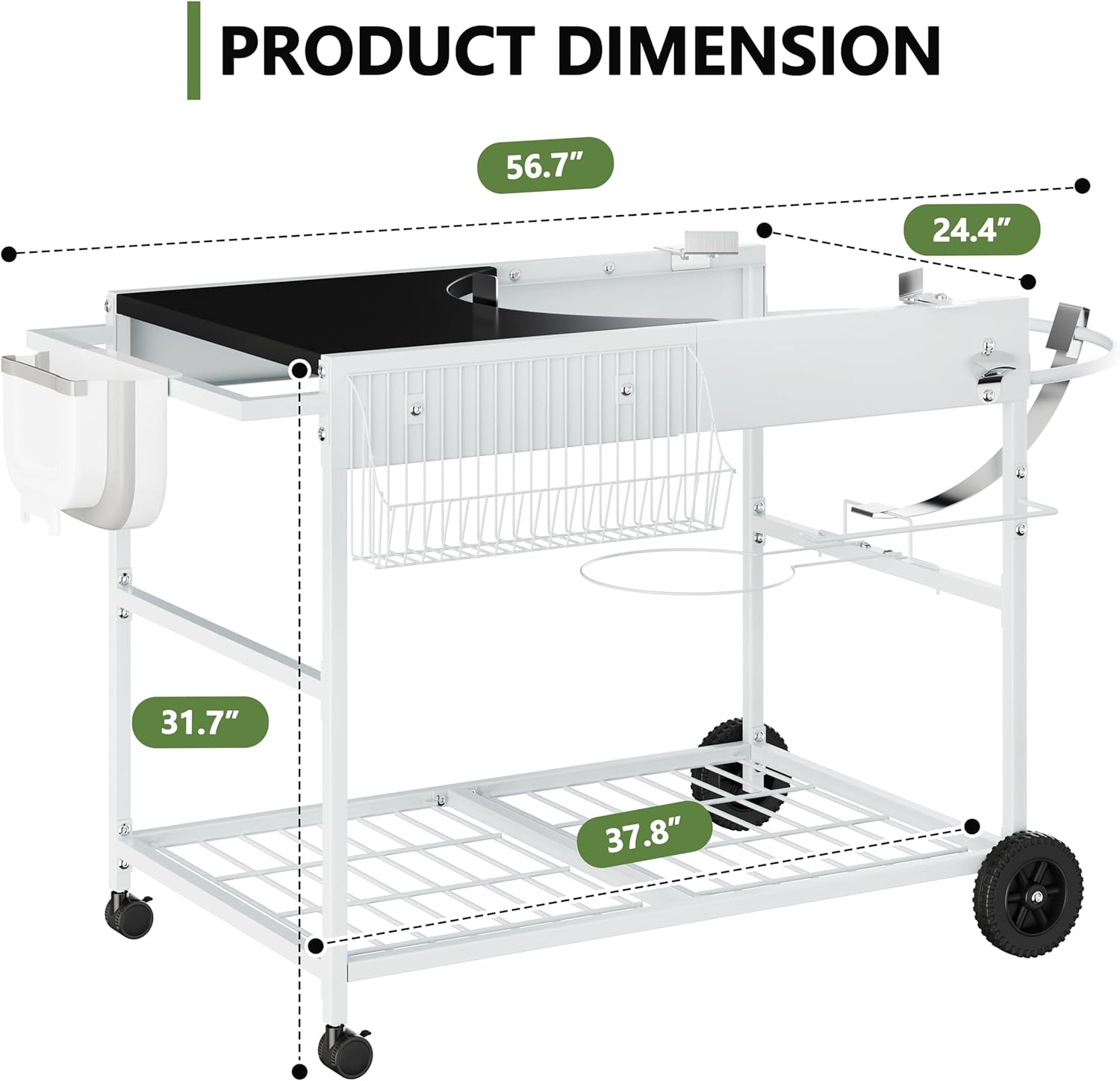

8. Specifications

9. Warranty and Support

For warranty information or technical support, please contact Shintenchi customer service. Refer to your purchase documentation for specific warranty terms and contact details. If you purchased through a retailer, their customer service may also be able to assist.

Manufacturer: Shintenchi
