1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Cazeboo AGOSTA Motorized Bioclimatic Pergola 4x3m. Please read this manual thoroughly before installation and use to ensure safe and correct operation of your pergola. Keep this manual for future reference.
The AGOSTA pergola is designed to enhance your outdoor living space, offering adjustable sun protection, ventilation, and privacy with its motorized louvers and retractable side blinds. Its robust aluminum structure ensures durability and resistance to various weather conditions.
2. Product Features
- Motorized Bioclimatic Louvers: Adjustable aluminum roof louvers (0 to 110 degrees) for precise control over sunlight and ventilation. Operated via remote control.
- Integrated LED Lighting: Enjoy your outdoor space day and night with integrated LED lighting, also controlled remotely.
- Retractable Side Blinds (x2): Two VADA 180 cm retractable textile blinds provide privacy and additional sun/wind protection.
- Robust Aluminum Structure: Freestanding pergola with 11 x 11 cm aluminum posts and galvanized steel roof blades, finished in anthracite grey.
- Weather Resistance: Designed to withstand wind speeds up to 80 km/h. Louvers close to provide rain protection.
- Dimensions: 394 cm x 304 cm, covering approximately 11.8 m². Height of 250 cm.
3. Safety Information
- Ensure the pergola is installed on a stable, level surface capable of supporting its weight.
- Always anchor the pergola securely to the ground using the provided anchoring kit.
- Do not operate the motorized louvers or blinds during strong winds or heavy snowfall to prevent damage.
- Keep children and pets away from moving parts during operation.
- Regularly inspect all components for wear, damage, or loose connections.
- Electrical connections for the motor and LED lighting should be performed by a qualified electrician if you are unsure.
4. Package Contents
Verify that all components are present and undamaged before beginning assembly.
- Thermolacquered aluminum pergola structure
- 4 thermolacquered aluminum posts (110 x 110 x 1.2 mm)
- 38 galvanized steel anthracite grey roof blades
- 1 motor
- 1 LED strip
- 2 remote controls
- Anchoring kit for concrete, brick, or stone ground
- 2 aluminum cassettes (for blinds)
- 2 textilene screens 420 g/m² (blinds)
- 4 fixing hooks for cassettes
- 4 ground anchors for deployed blind bottom
- Screws and hardware
5. Setup and Installation
Assembly requires at least two people. Follow the detailed graphical instructions provided with your product for precise steps. Below is a general overview.
5.1 Site Preparation
- Choose a level and stable location for your pergola.
- Clear the area of any obstructions.
- Ensure adequate drainage around the installation site.
5.2 Main Structure Assembly
Assemble the main frame of the pergola, including the posts and beams, according to the diagrams. Ensure all connections are secure.
Image: Detailed diagram illustrating the AGOSTA pergola's dimensions, features like motorized louvers, remote control, LED lighting, water drainage system, and post specifications.
5.3 Motorized Louver Installation
Install the galvanized steel roof blades and the motor mechanism. Connect the motor to a power source as per electrical safety guidelines. Test the louvers with the remote control to ensure smooth operation and full range of motion (0 to 110 degrees).
5.4 LED Lighting Installation
Integrate the LED strip into the pergola structure. Connect it to the power supply and test its functionality using the remote control.
Image: The AGOSTA pergola illuminated by integrated LED lighting, showcasing options for warm (2700K) and cool (6500K) light temperatures.
5.5 Retractable Side Blinds Installation
Mount the aluminum cassettes for the VADA retractable blinds to the pergola structure. Attach the textilene screens and secure them using the provided fixing hooks and ground anchors. Ensure the blinds retract and deploy smoothly.
Image: Diagram detailing the VADA retractable blinds, including their dimensions (180cm width, 250cm height), textilene material (420 g/m²), 85% occultation rate, and basic installation steps.
5.6 Anchoring
Securely anchor the pergola posts to the ground using the provided kit. This is crucial for stability and safety, especially in windy conditions.
6. Operating Instructions
6.1 Remote Control Functions
Your pergola comes with two remote controls to operate the motorized louvers and LED lighting.
- Louver Control: Use the designated buttons to open, close, or adjust the angle of the roof louvers.
- LED Lighting: Use the designated buttons to turn the LED lights on/off.
6.2 Retractable Blinds Operation
The side blinds are manually retractable. Gently pull down the blind to deploy it and hook it to the ground anchors. To retract, unhook and guide the blind back into its cassette.

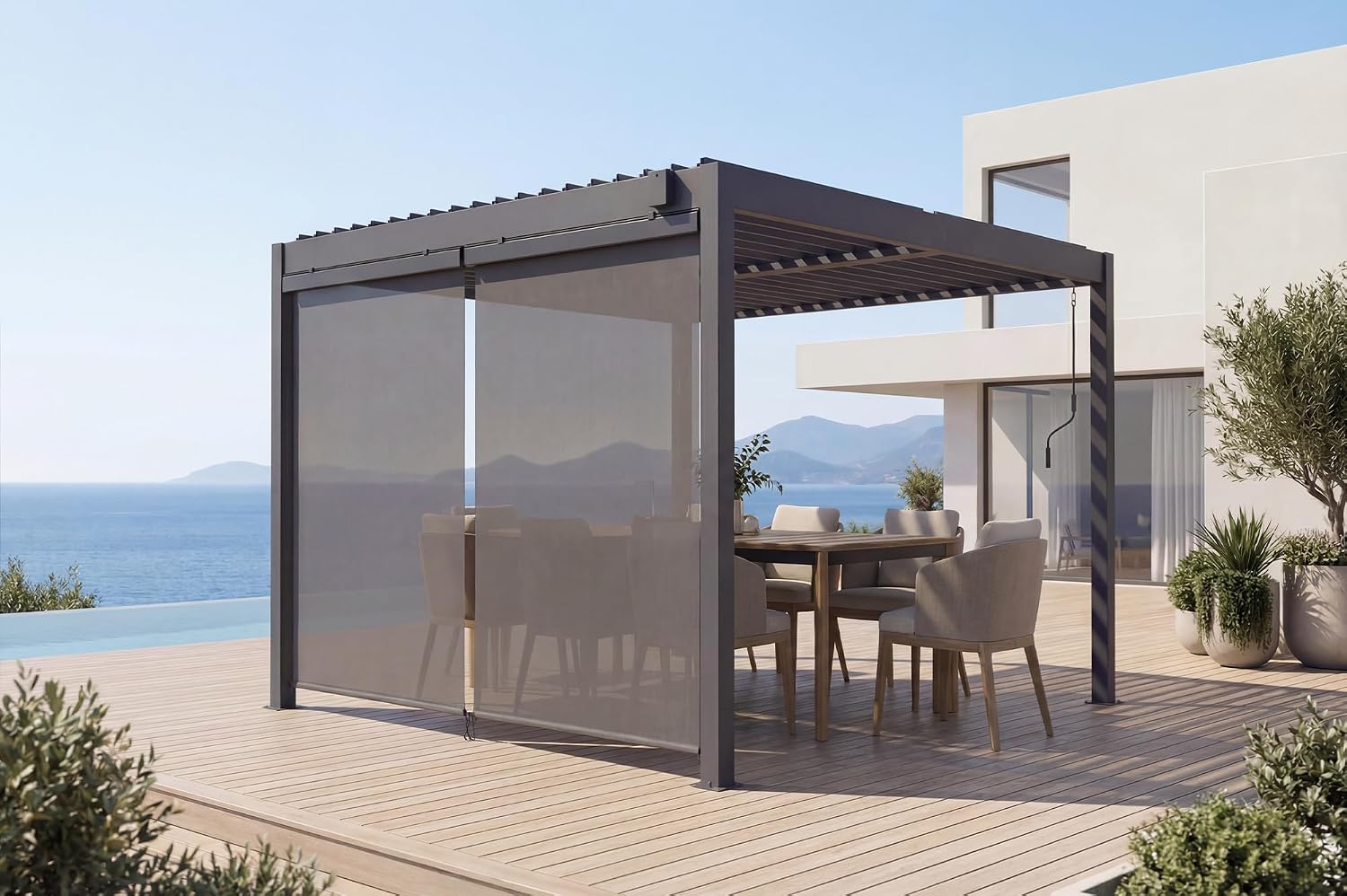

Image: The AGOSTA pergola with its retractable side blinds fully deployed, creating a shaded and private outdoor dining area by the sea.
6.3 Weather Considerations
- Rain: Close the louvers completely to create a waterproof roof and direct rainwater through the integrated drainage system within the posts.
- Wind: In strong winds (above 80 km/h), it is recommended to open the louvers to reduce wind resistance and retract the side blinds to prevent damage.
- Snow: In areas with heavy snowfall, it is advisable to keep the louvers open to prevent snow accumulation and potential structural damage.
7. Maintenance
Regular maintenance will prolong the life and appearance of your pergola.
- Cleaning the Aluminum Structure: Clean the aluminum frame and posts with mild soap and water. Rinse thoroughly with clean water and dry with a soft cloth. Avoid abrasive cleaners or harsh chemicals.
- Cleaning the Louvers: The galvanized steel louvers can be cleaned with a soft brush or cloth and mild soapy water. Ensure the drainage channels are clear of debris.
- Cleaning the Blinds: The textilene screens can be cleaned with a soft brush or sponge and mild soapy water. Allow them to air dry completely before retracting to prevent mildew.
- Motor and Electrical Components: Keep the motor and electrical connections dry and free from debris. Do not attempt to service the motor yourself; contact a qualified technician if issues arise.
- Seasonal Care: In regions with harsh winters, consider retracting the blinds and ensuring louvers are open to prevent snow accumulation.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Louvers not responding to remote control | Dead remote battery, power outage, motor issue | Replace remote battery. Check power supply to the pergola. If power is present, contact support. |
| LED lights not turning on | Power outage, faulty connection, LED strip damage | Check power supply. Inspect connections. Contact support if issue persists. |
| Side blinds difficult to retract/deploy | Obstruction, dirty tracks, damaged mechanism | Check for obstructions. Clean tracks. Inspect the mechanism for damage. |
| Water pooling on roof when louvers are closed | Drainage channels blocked, improper louver alignment | Clear debris from drainage channels in posts and louvers. Ensure louvers are fully closed and aligned. |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | Cazeboo |
| Model Number | PAC-003292 |
| Type | Motorized Bioclimatic Freestanding Pergola with Retractable Blinds |
| Dimensions (L x W x H) | 3.94m x 3.04m x 2.50m (Pergola) |
| Covered Surface Area | 11.8 m² |
| Material (Structure) | Thermolacquered Aluminum |
| Material (Roof Blades) | Galvanized Steel |
| Material (Blinds) | Textilene 420 g/m² |
| Color | Anthracite Grey |
| Post Dimensions | 11 x 11 cm |
| Passage Height (Louvers Closed/Open) | 234 cm |
| Wind Resistance | Up to 80 km/h |
| Louver Adjustment | 0 to 110 degrees |
| Blind Dimensions (H x L) | 250 cm x 180 cm (each) |
| Blind Occultation Rate | 85% |
| Assembly Required | Yes |
| Origin | China |
10. Warranty and Support
Cazeboo products are designed for quality and durability. For specific warranty information, please refer to the documentation included with your purchase or visit the official Cazeboo website. If you encounter any issues or require technical assistance, please contact Cazeboo customer support through their official channels.
For further information and to explore other Cazeboo products, visit the Cazeboo Store on Amazon.
