THINK 30 Queen Murphy Bed with Storage & LED Lights

Introduction

Thank you for choosing the THINK 30 Queen Murphy Bed. This space-saving cabinet wall bed is designed to provide a comfortable sleeping solution while maximizing your living area. It features integrated storage, LED lighting, and a durable oak veneer finish. This manual provides essential information for the safe assembly, operation, and maintenance of your new Murphy bed. Please read all instructions carefully before beginning assembly or use.

Important Safety Information

Failure to follow these safety instructions could result in serious injury or property damage. Keep this manual for future reference.

• Professional Assembly Recommended: Due to the complexity and weight of this product, professional assembly is strongly recommended.
• Wall Anchoring is Mandatory: This Murphy bed MUST be securely anchored to a wall stud using the provided hardware. Failure to properly anchor the unit can result in tipping, causing severe injury or death.
• Weight Capacity: Do not exceed the recommended weight capacity for the bed frame. Refer to specifications for details.
• Clearance: Ensure adequate clearance around the bed for safe operation when opening and closing.
• Children and Pets: Keep children and pets away from the unit during assembly and operation. Do not allow children to play on or around the bed mechanism.
• Moving Parts: Be aware of pinch points and moving parts when operating the bed. Keep hands and fingers clear.
• Mattress Requirements: Use only a mattress that meets the specified dimensions and weight requirements for this Murphy bed. An unsuitable mattress can affect the bed's balance and operation.

Setup and Assembly

This Murphy bed requires assembly. It is highly recommended to have at least two adults for assembly, and professional installation is advised for safety and proper function.

Before You Begin

• Read all instructions thoroughly before starting.
• Identify all parts and hardware using the provided parts list (refer to your packaging for the complete list).
• Ensure you have the necessary tools (e.g., screwdriver, hammer, drill, stud finder).
• Clear a spacious area for assembly.

Key Assembly Steps (General Overview)

1. Assemble the main cabinet frame according to the detailed instructions in your package.
2. Install the bed mechanism and frame within the cabinet.
3. Attach the decorative panels and storage components.
4. Crucial Step: Wall Anchoring. Locate wall studs using a stud finder. Securely attach the Murphy bed to the wall studs using the anti-tip hardware provided. This step is essential for safety.
5. Install the LED lighting system, connecting it to a power source as instructed.
6. Place your Queen-sized mattress onto the bed frame.

Image: The internal bed frame with slats, shown without a mattress, illustrating the structure before final setup.

Image: Detail of the safety latch mechanism, which secures the bed in the closed position. Ensure this is properly installed and engaged.

Operating Instructions

Opening the Murphy Bed

1. Ensure the area in front of the cabinet is clear of obstructions.
2. Release any safety latches or locks that secure the bed in the upright position.
3. Gently pull the bed panel downwards from the top center. The hidden fold-out legs will extend automatically as the bed lowers.
4. Continue to lower the bed until it rests fully on the floor, supported by its legs.

Closing the Murphy Bed

1. Remove any pillows or bedding that might obstruct the closing mechanism.
2. Lift the bed frame from the foot end, guiding it upwards into the cabinet. The hidden legs will retract.
3. Push the bed panel firmly until it is fully upright and flush with the cabinet.
4. Engage any safety latches or locks to secure the bed in the closed position.

Using the LED Lights

• The integrated LED reading lights and ambient strip are controlled by a switch, typically located on the side or top panel of the cabinet.
• Plug the power adapter for the LED lights into a standard electrical outlet.
• Use the switch to turn the lights on/off and adjust brightness if applicable.

Utilizing Storage and Hook

• The built-in shelves and cabinets are designed for organizing small items, books, or decorative pieces. Do not overload shelves.
• The coat hook can be used for hanging lightweight garments or bags. Do not hang heavy items that could stress the cabinet structure.

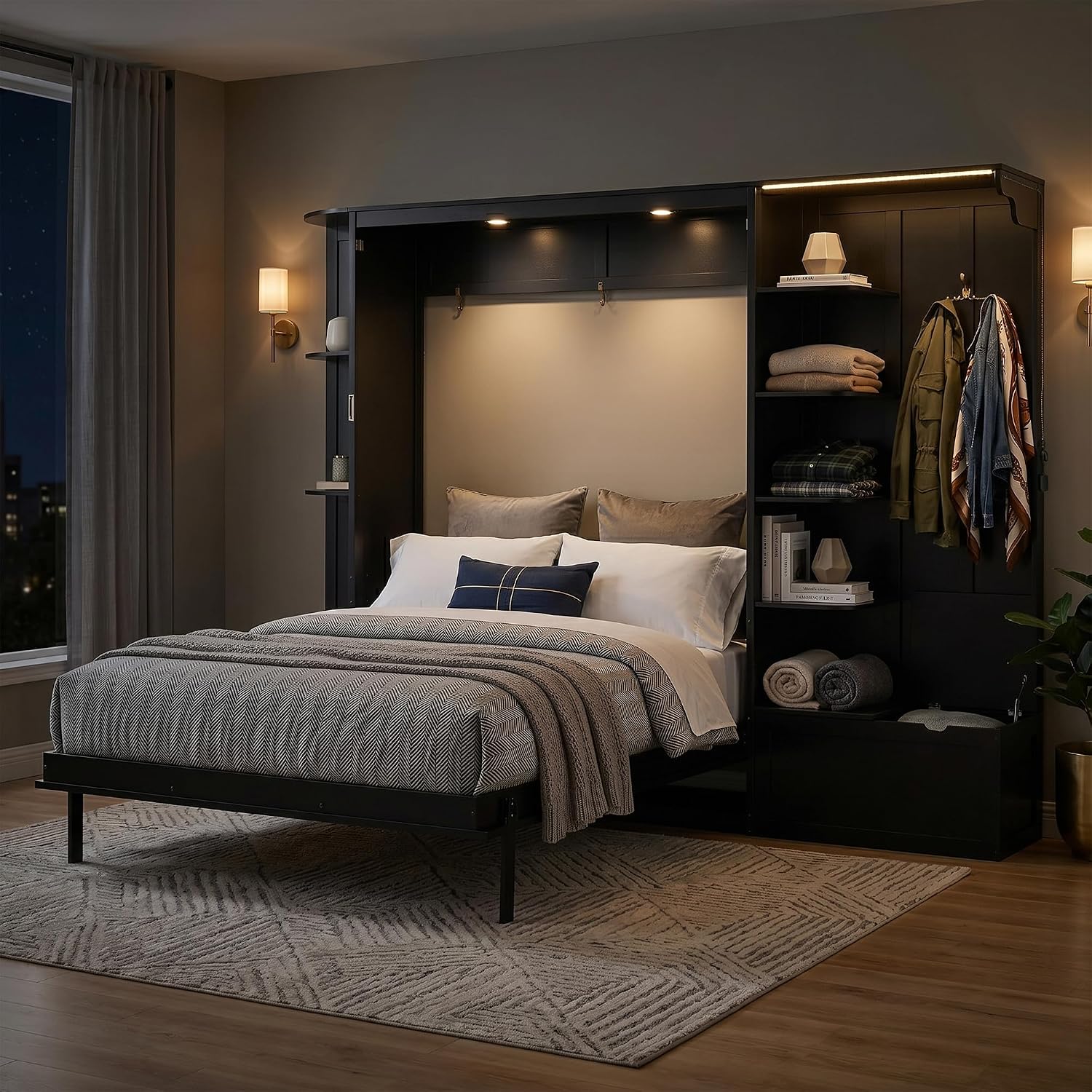

Image: The Queen Murphy bed in its open position, ready for use, with integrated LED lighting illuminated.

Image: The Queen Murphy bed in its closed position, functioning as a stylish cabinet with integrated shelving and storage.

Image: A close-up view of one of the integrated LED light fixtures, providing illumination for reading or ambiance.

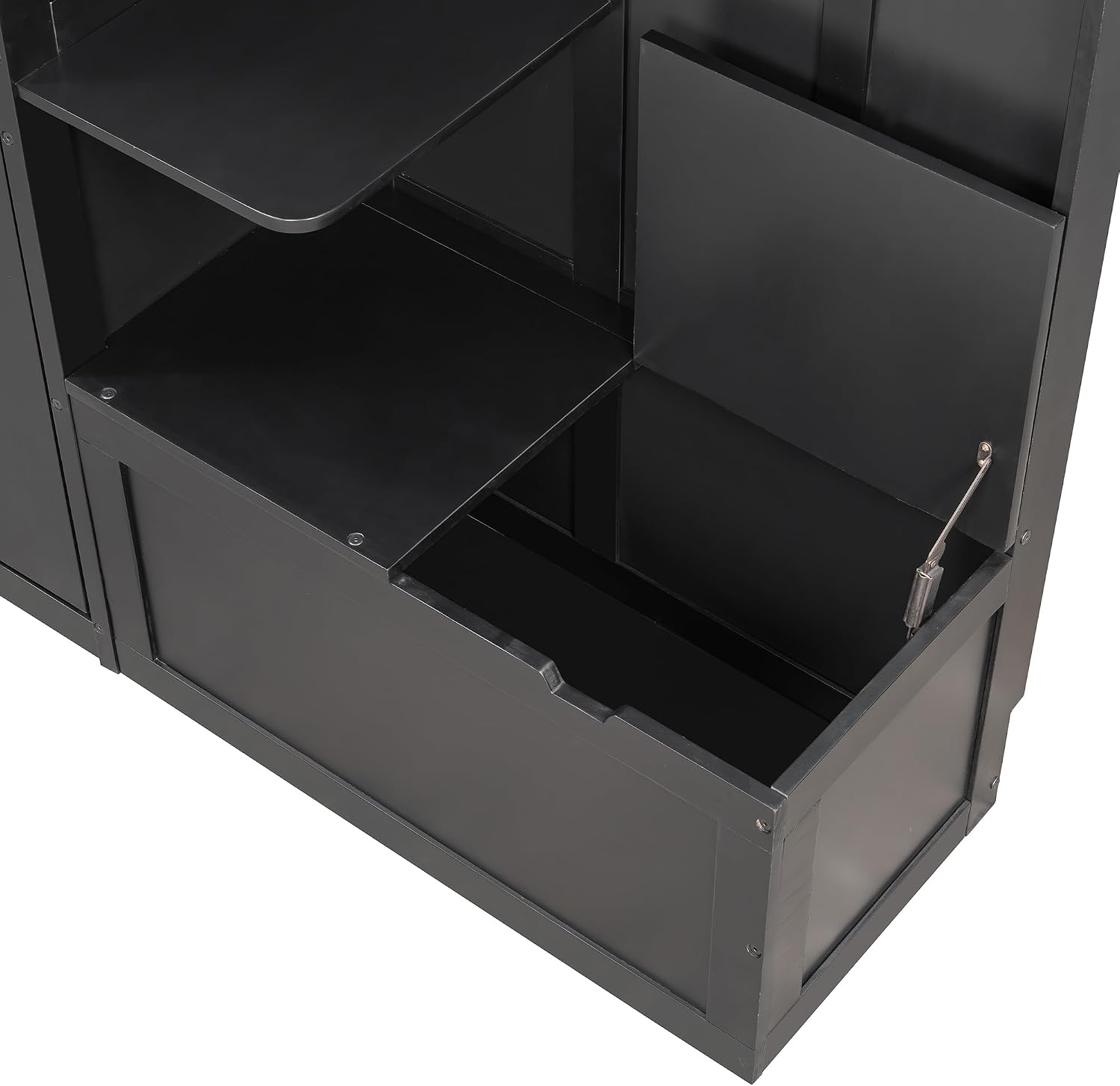

Image: Detail of a built-in storage compartment with a lift-up lid, offering discreet storage space.

Image: A close-up of the integrated coat hook, designed for hanging lightweight items.

Maintenance

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
• Hardware Check: Periodically check all screws, bolts, and connections to ensure they are tight. Retighten as necessary. Pay special attention to wall anchoring hardware.
• Mechanism Lubrication: If the bed mechanism becomes stiff or noisy, apply a small amount of silicone-based lubricant to moving parts. Do not use oil-based lubricants.
• LED Lights: The LED lights are designed for long life. If a light fails, contact customer support for replacement options. Do not attempt to replace individual LEDs yourself.

Troubleshooting

Specifications

Warranty and Customer Support

For warranty information, missing parts, or technical assistance, please refer to the warranty card included with your product packaging or contact THINK 30 customer support directly. Please have your model number (LP000739AAK) and purchase date available when contacting support.

Contact Information: Refer to your product documentation or the official THINK 30 website for the most current customer support contact details.
