Garvee Outdoor Storage Cabinet Instruction Manual

1. Introduction

This manual provides essential instructions for the assembly, operation, maintenance, and troubleshooting of your Garvee Outdoor Storage Cabinet. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your product. Keep this manual for future reference.

Figure 1.1: Garvee Outdoor Storage Cabinet (Model 3WM-T7L12DUGUDC7E-V-16TLRB816)

2. Safety Information

Always follow these safety guidelines to prevent injury and damage to the product:

• Ensure all parts are present and undamaged before beginning assembly. Do not attempt to assemble if any parts are missing or damaged.
• Assemble the cabinet on a flat, level, and stable surface to prevent tipping.
• Use appropriate tools as specified in the assembly instructions.
• Do not overload the shelves. Refer to the specifications for weight limits.
• Secure the cabinet to a wall or ground using the anti-tip device provided to prevent accidental tipping, especially in windy conditions or if children are present.
• Keep children and pets away from the assembly area.
• Wear appropriate safety gear, such as gloves, during assembly.
• Do not store flammable liquids or hazardous materials inside the cabinet.
• Regularly inspect the cabinet for any signs of wear, damage, or instability.

3. Package Contents

Verify that all components are included in your package. If any parts are missing or damaged, contact customer support immediately.

• Wooden Panels (Side, Back, Base, Top, Doors)
• Adjustable Shelves (2)
• Roof Panel
• Hardware Kit (Screws, Bolts, Hinges, Handles, Magnets, Latch)
• Anti-Tip Device
• Instruction Manual

4. Setup and Assembly

Assembly typically requires two adults and basic tools (e.g., screwdriver, hammer). Follow the detailed step-by-step instructions provided in the separate assembly guide included in your package. The general steps are outlined below:

1. Prepare the Area: Choose a flat, level, and stable outdoor location for the cabinet. Ensure sufficient space for assembly.
2. Unpack Components: Carefully unpack all parts and lay them out. Compare with the package contents list to ensure everything is present.
3. Assemble the Base: Connect the base panels according to the assembly guide.
4. Attach Side and Back Panels: Secure the side and back panels to the assembled base.
5. Install Shelves: Insert the adjustable shelves into the desired positions. The cabinet features two adjustable shelves for customizable storage.
6. Attach the Roof: Secure the waterproof roof panel to the top of the cabinet. Ensure it is properly aligned to shed water effectively.
7. Install Doors: Attach the doors using the provided hinges. Ensure they open and close smoothly.
8. Install Handles and Latch: Attach the metal handles and the secure latch mechanism to the doors.
9. Secure with Anti-Tip Device: For safety, attach the anti-tip device to the back of the cabinet and secure it to a solid wall or ground surface.

Figure 4.1: Product Dimensions for Assembly Planning

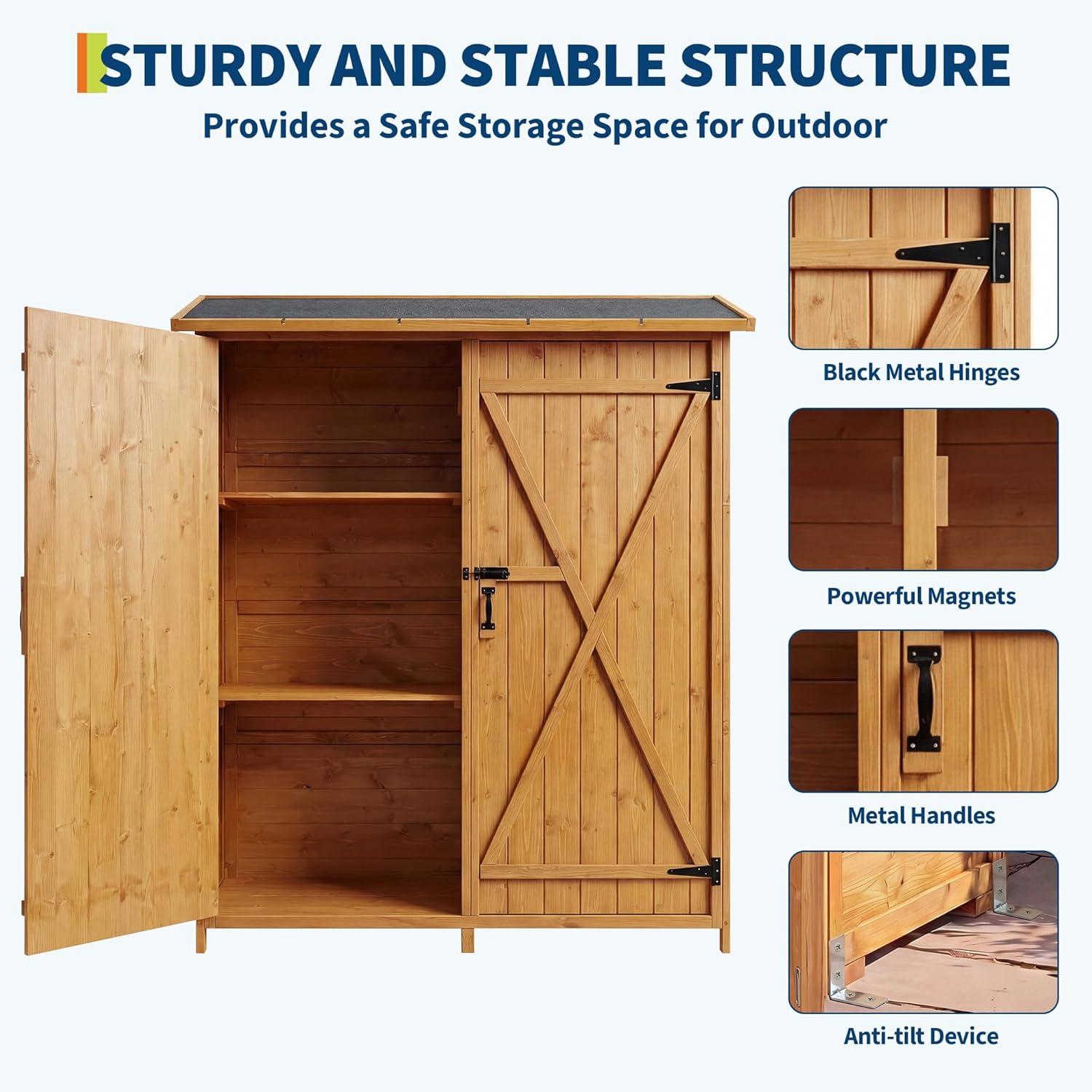

Figure 4.2: Key Structural Components (Hinges, Magnets, Handles, Anti-Tilt Device)

5. Operating Instructions

Using your Garvee Outdoor Storage Cabinet is straightforward:

• Opening and Closing Doors: Grasp the metal handles and pull to open. Push firmly to close, ensuring the magnetic catches engage.
• Locking the Cabinet: Use the integrated latch mechanism to secure the doors. A padlock (not included) can be added for enhanced security.
• Adjusting Shelves: The two internal shelves are adjustable. To reposition, carefully remove items, lift the shelf, and place it on the desired support pegs. Ensure the shelf is level and securely seated before placing items on it.
• Storage Capacity: Utilize the customizable storage space for gardening tools, outdoor cushions, pool toys, and other items. Distribute weight evenly on shelves.

Figure 5.1: Interior Storage and Adjustable Shelves

6. Maintenance

Regular maintenance will help preserve the appearance and functionality of your storage cabinet:

• Cleaning: Wipe down the exterior and interior surfaces with a damp cloth. For stubborn dirt, use a mild soap solution and rinse thoroughly. Avoid harsh chemicals or abrasive cleaners.
• Wood Care: As the cabinet is made of fir wood, periodic treatment with a wood sealant or stain is recommended to enhance its weather resistance and prolong its lifespan, especially in harsh climates.
• Roof Inspection: Periodically check the waterproof roof for any damage or debris that might impede water runoff. Clear any accumulated leaves or dirt.
• Hardware Check: Annually inspect all screws, bolts, hinges, and the latch to ensure they are tight and functioning correctly. Tighten any loose fasteners.
• Stability Check: Confirm the anti-tip device remains securely fastened and the cabinet is stable.

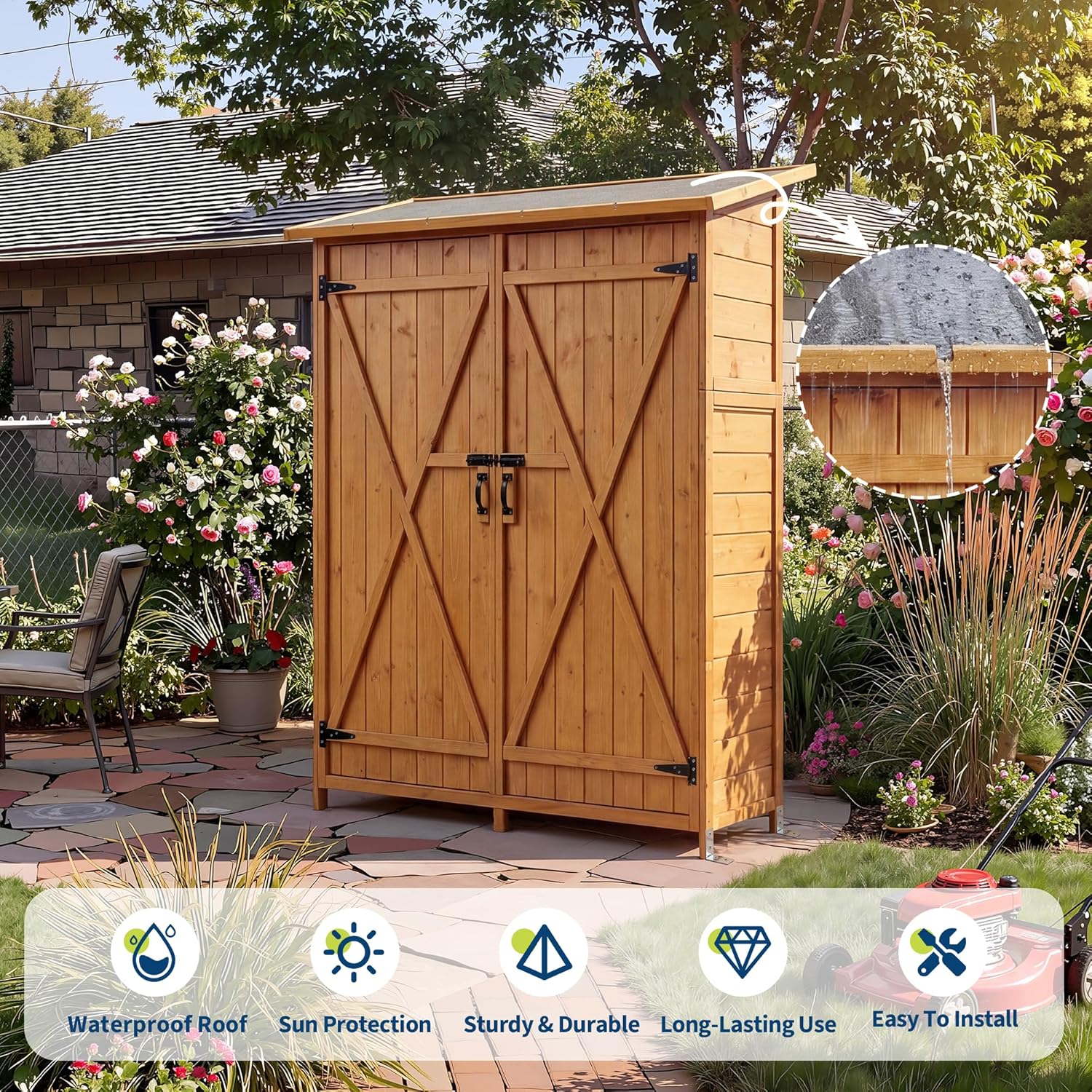

Figure 6.1: Waterproof Roof and Weather Protection

7. Troubleshooting

If you encounter issues with your Garvee Outdoor Storage Cabinet, refer to the following common problems and solutions:

If the problem persists, please contact Garvee customer support.

8. Specifications

9. Warranty and Support

For specific warranty information, please refer to the documentation included with your purchase or contact Garvee customer support. Garvee is committed to providing quality products and support.

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Garvee customer service. You can often find support information on the official Garvee brand store:
