Important Safety Information
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in injury or product damage.
- Professional Installation Recommended: Secure mounting into wall studs or reinforced backing is required. Professional installation is recommended to ensure proper and safe setup.
- Handle Glass with Care: Tempered glass is strong but can break if struck at the edges. Always handle glass panels with extreme care.
- Wear Safety Gear: Always wear appropriate safety glasses, gloves, and protective footwear during installation.
- Check for Level Surfaces: Ensure walls and shower base are level and plumb before installation. Wall profiles allow for minor adjustments, but significant unevenness can compromise stability and sealing.
- Water Sealing: Ensure all seals are properly installed to prevent water leaks.
- Children and Pets: Keep children and pets away from the installation area.
Product Overview

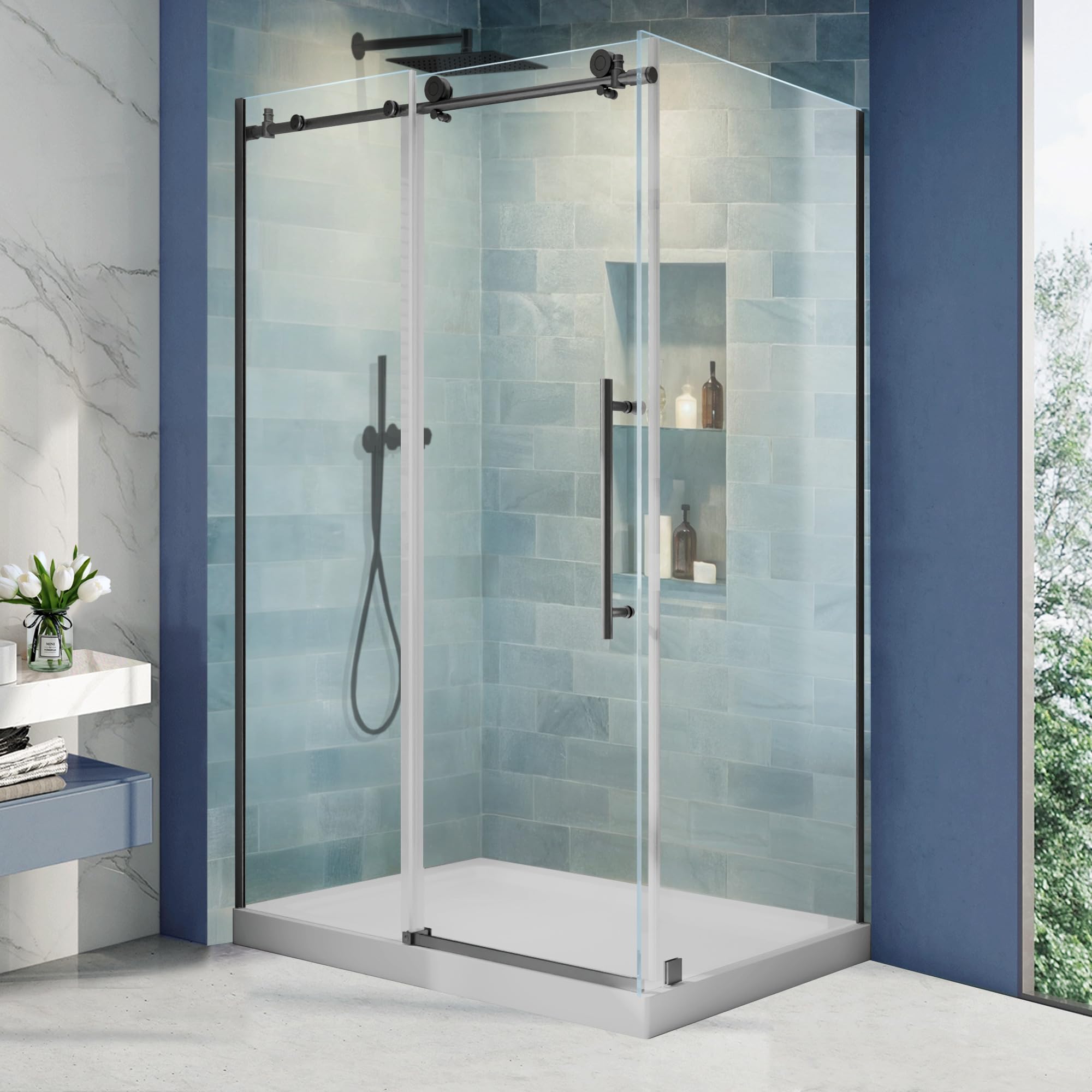

The GroGro Corner Sliding Shower Enclosure is designed to enhance your bathroom with a modern, frameless aesthetic. This enclosure features 5/16" (8 mm) thick clear tempered glass and durable matte black hardware, providing both safety and style. The sliding design offers space efficiency and smooth operation.
Specifications
This section details the dimensions and materials of your GroGro Corner Sliding Shower Enclosure.
- Brand: GroGro
- Model Number: 3272B04CMB
- Color: Matte Black
- Material: Aluminum, Tempered Glass

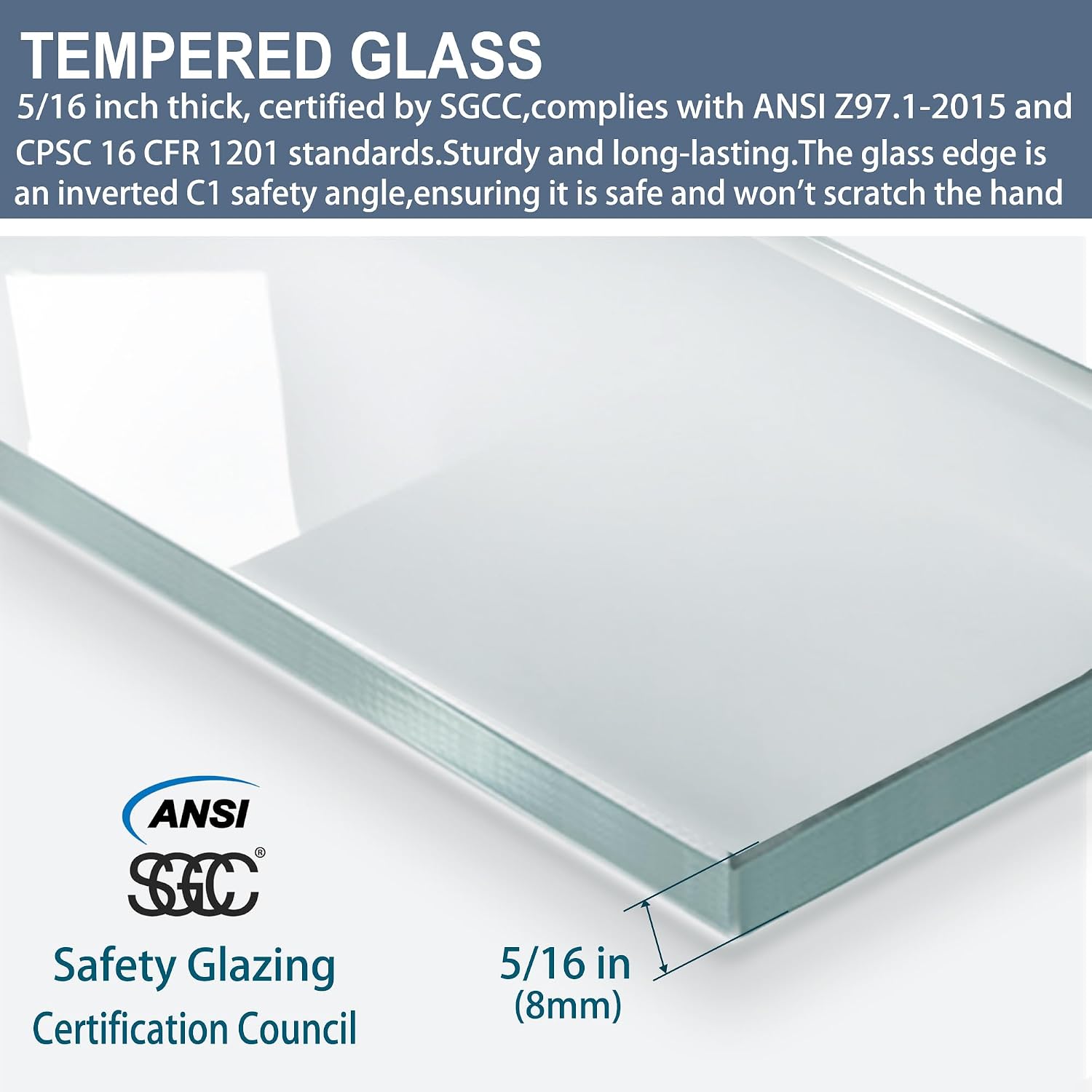

- Glass Thickness: 5/16" (8 mm) SGCC Tempered Glass (ANSI Z97.1-2015 certified)
- Overall Dimensions: 32" D x 44-48" W x 72" H
- Item Weight: 172.4 pounds
- Included Components: Aluminum door frame, 3 Tempered glass panels, Handle, Shower door sealing strip
Dimensions and Measurements
Installation (Setup)
This section provides detailed instructions for installing your GroGro Corner Sliding Shower Enclosure. Professional installation is recommended.
Before You Begin
- Ensure all walls and the shower base are level and plumb.
- All measurements should be taken after finished wall materials (such as tile or backer board) are installed.
- Verify that the minimum threshold width is 2-3/4 inches.
- Unpack all components and check against the parts list in your detailed installation guide (included with product).
Tools Required (Not Included)
- Drill
- Level
- Measuring Tape
- Pencil
- Caulk Gun and Silicone Sealant
- Screwdriver Set
- Safety Glasses and Gloves
Step-by-Step Installation Guide
For a visual and detailed installation process, please refer to the official installation video below. A detailed written guide is also included with your product packaging.
Key installation considerations:
- Wall Adjustments: Wall profiles allow for up to 1/4" of adjustment on each side to accommodate uneven or out-of-plumb walls.

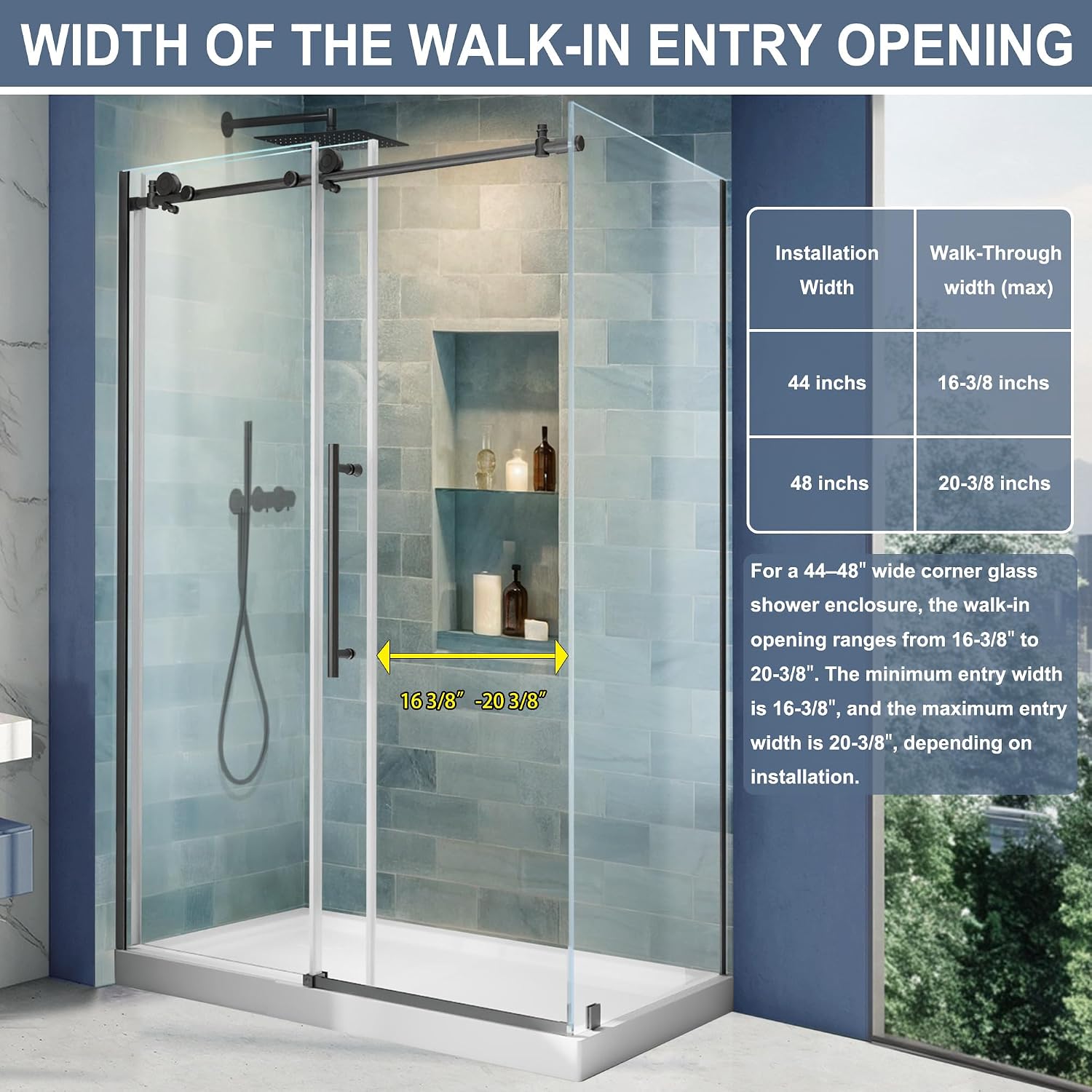

- Width Adjustment: The top guide rail can be trimmed by up to 4 inches to fit openings from 44" to 48" wide.
- Reversible Design: The enclosure can be installed for left or right-hand entry. The movable glass panel must be installed next to the fixed side panel.
Operation
The GroGro Corner Sliding Shower Enclosure is designed for smooth and effortless daily use.
- To open the shower door, gently slide the movable glass panel along the top guide rail using the stainless steel handle.
- To close, slide the panel back until it meets the fixed panel and the magnetic seals engage.
- Avoid forcing the door if it encounters resistance. Check for any obstructions in the track.
Maintenance
Proper maintenance will ensure the longevity and pristine appearance of your shower enclosure.
- Regular Cleaning: Clean the glass panels regularly with a soft cloth and a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive pads that can scratch the glass or damage the hardware finish.
- Prevent Water Spots: The smooth glass surface helps guard against water spots and soap scum buildup. For best results, wipe down the glass after each use.
- Hardware Care: Clean the matte black aluminum frame and stainless steel handle with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Seal Inspection: Periodically check the full-length magnetic seals and bottom seals for wear or damage. Replace if necessary to maintain water tightness.
Troubleshooting
This section addresses common issues you might encounter with your shower enclosure.
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaks from enclosure | Improperly installed seals, gaps in silicone sealant, uneven base/walls. | Check all seals and magnetic strips for proper alignment. Reapply silicone sealant where necessary. Ensure the shower base is level. |
| Door does not slide smoothly | Debris in the track, rollers need lubrication, misaligned track. | Clean the top guide rail and bottom track thoroughly. Apply a silicone-based lubricant to the rollers. Check if the track is level and properly secured. |
| Door does not close completely | Misaligned magnetic seals, obstruction, door out of plumb. | Adjust the magnetic seals for a tighter fit. Remove any obstructions. Verify the door is plumb and adjust wall profiles if needed. |
| Glass appears scratched or damaged | Improper cleaning agents, impact damage. | Use only non-abrasive cleaners. If glass is damaged, contact customer support for replacement options. |
Warranty Information
GroGro products are manufactured to high-quality standards. For specific warranty details regarding your GroGro Corner Sliding Shower Enclosure, please refer to the warranty card included with your purchase or visit the official GroGro website. Keep your proof of purchase for any warranty claims.
Customer Support
If you have any questions, require assistance with installation, or need to report a missing or damaged part, please contact GroGro customer service. Our team is available to help you.
Contact Information:
- Website: Visit the GroGro Store on Amazon
- Email: Refer to product packaging or GroGro website for direct email support.
- Phone: Refer to product packaging or GroGro website for phone support.
