VeDerSel Scooler Lock: Heavy-Duty Anti-Theft Chain Lock with Key

Model: Huaban-black

Brand: VeDerSell

1. Introduction

Thank you for choosing the VeDerSel Scooler Lock. This heavy-duty anti-theft chain lock is designed to provide enhanced security for your bicycle, e-bike, electric scooter, motorcycle, shopping cart, baby stroller, and other mobility devices. Constructed from high-hardness alloy steel with a protective rubber cover, it offers cut-resistant, anti-saw, anti-fracture, and anti-pry performance. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your lock.

2. Safety Information

Please read and understand all safety information before using the lock.

  • No lock is 100% secure. Always choose a secure location to park your vehicle and do not leave valuables unattended for extended periods, especially in high-crime areas.
  • Keep keys in a safe place and away from children.
  • Avoid exposing the lock to extreme temperatures or corrosive substances, which may affect its performance.
  • Ensure the lock is properly engaged before leaving your vehicle.
Image showing various vehicles and a warning about lock security
Figure 2.1: Important safety reminder that no lock offers 100% security. Always be vigilant when securing your belongings.

3. Package Contents

Verify that all items are present in the package:

  • 1 x VeDerSel Scooler Lock (Chain Lock with integrated lock heads)
  • 2 x Keys

4. Product Overview

The VeDerSel Scooler Lock features a robust design for maximum security and user convenience.

Key Features:

  • High Hardness Alloy Steel Construction: The chain and lock body are made from premium alloy steel, treated for enhanced resistance against cutting, sawing, fracturing, and prying.
  • Anti-Scratch Protective Cover: The lock heads feature a rubber cover, and the chain is encased in a fabric sleeve to prevent scratches to your vehicle's frame and reduce noise.
  • Zinc Alloy Anti-Theft Lock Cylinder: Provides rustproof, pry-proof, and hydraulic shear resistant security.
  • Flexible Rotation: The lock heads offer 360° rotation for versatile locking angles.
Close-up images detailing the practical design features of the lock
Figure 4.1: Detailed view of the lock's practical design, highlighting stainless steel rivets, TPR soft plastic, zinc alloy lock cylinder, and 360° rotation.
Images showing the specially treated hardened chain, forging process, cut-resistance, and anti-drill features
Figure 4.2: Illustration of the specially treated hardened chain, demonstrating its forging, cut-resistant, and anti-drill properties.

5. Setup

The VeDerSel Scooler Lock comes pre-assembled and ready for use. No complex setup is required.

  1. Inspect the Lock: Before first use, visually inspect the lock for any signs of damage or manufacturing defects.
  2. Test the Keys: Insert a key into the lock cylinder and turn it to ensure smooth operation. Familiarize yourself with the locking and unlocking mechanism.

6. Operating Instructions

Follow these steps to effectively secure your vehicle:

  1. Position the Lock: Wrap the chain around the part of your vehicle you wish to secure (e.g., wheel, frame) and a fixed object (e.g., railing, fence, thick pillar). The flexible chain allows for a wide locking range.
  2. Engage the Lock Heads: Bring the two lock heads together. The design allows for easy connection.
  3. Lock the Mechanism: Insert one of the provided keys into the lock cylinder. Turn the key to engage the locking mechanism. Remove the key and store it in a safe place.
  4. Verify Security: Gently pull on the lock to ensure it is fully engaged and cannot be easily removed.
  5. To Unlock: Insert the key into the lock cylinder and turn it to disengage the mechanism. The lock heads will release, allowing you to remove the chain.

Usage Examples:

Images demonstrating various ways to lock a scooter or bike to different objects
Figure 6.1: Examples of securing a scooter to a wheel, a bike rack, and a fence using the VeDerSel Scooler Lock.
Image showing a scooter secured with the chain lock to a bike rack
Figure 6.2: The VeDerSel Scooler Lock securing an electric scooter to a public bike rack.
Image showing a helmet secured to a bike seatpost using the lock
Figure 6.3: Demonstrating how to secure a helmet to a bike seatpost for unified protection.

7. Maintenance

Proper maintenance will extend the life and ensure the reliable operation of your lock.

  • Lubrication: Periodically apply a small amount of graphite powder or a specialized lock lubricant into the keyhole to keep the locking mechanism smooth. Avoid using oil-based lubricants as they can attract dirt.
  • Cleaning: Wipe the lock body and chain with a damp cloth to remove dirt and grime. Ensure the lock is dry before storage.
  • Storage: Store the lock in a dry environment when not in use to prevent rust and corrosion.
  • Key Care: Do not force the key if it feels stiff. Ensure it is fully inserted and aligned before turning. Avoid bending or damaging the keys.

8. Troubleshooting

If you encounter issues with your VeDerSel Scooler Lock, refer to the following common problems and solutions:

ProblemPossible CauseSolution
Key is difficult to insert or turn, or the locking mechanism feels sticky.Dirt or debris in the keyhole/cylinder; lack of lubrication; bent key.
  • Apply graphite powder or lock lubricant into the keyhole.
  • Gently clean the key and keyhole with a soft brush.
  • Ensure the key is not bent or damaged. Use a spare key if available.
  • Avoid forcing the key.
Lock heads do not engage properly.Misalignment; obstruction.
  • Ensure the lock heads are perfectly aligned before attempting to engage.
  • Check for any foreign objects obstructing the locking mechanism.

9. Specifications

Detailed technical specifications for the VeDerSel Scooler Lock:

  • Brand: VeDerSell
  • Model Name: Huaban-black
  • Lock Type: Mortise Lock
  • Material: Alloy Steel (Chain, Lock Link), ABS Shell + Zinc Alloy Core (Lock Body), Copper + Nylon (Key)
  • Color: Black
  • Item Dimensions (L x W x H): Approximately 16 x 1.8 x 21 cm (6.3 x 0.7 x 8.3 inches)
  • Chain Length (Excluding Lock Heads): Approximately 59.5 cm (23.4 inches)
  • Overall Total Length (Including Lock Heads): Approximately 92 cm (36.2 inches)
  • Chain Diameter: 6 mm
  • Item Weight (Excluding Keys): Approximately 502 g (1.1 lbs)
  • Suitable Object Diameter for Locking: ≤ 54 mm
  • Special Features: Anti-theft, cut-resistant, anti-saw, anti-fracture, anti-pry, rustproof, pry-proof, hydraulic shear resistant, anti-scratch rubber protective cover, thickened extra long chain.
  • Recommended Uses: Bicycle, e-bike, electric scooter, motorcycle, shopping cart, baby stroller.

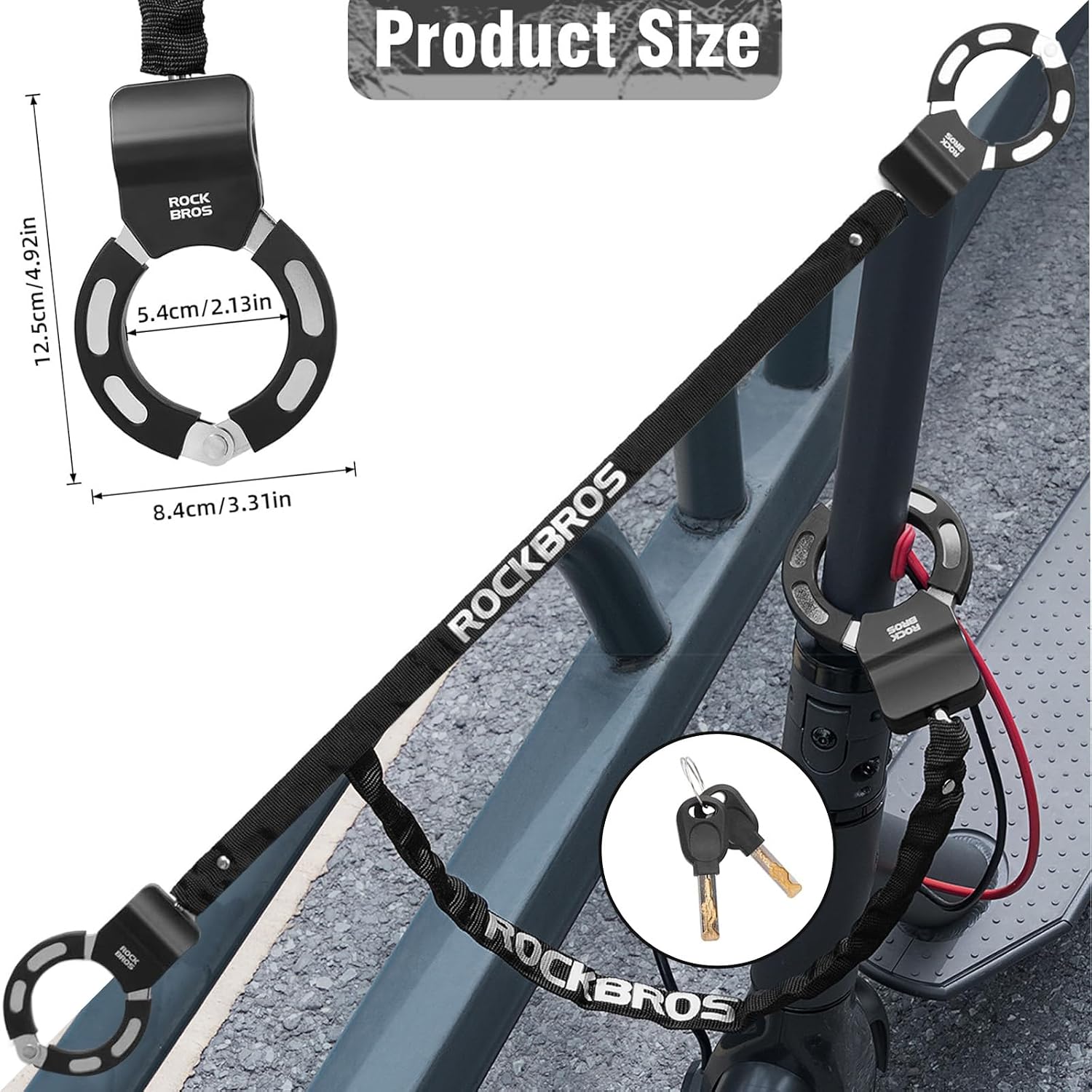

Image showing the product with dimensions labeled
Figure 9.1: Product dimensions, illustrating the size of the lock heads and overall length.
Image detailing the lock materials and key information
Figure 9.2: Overview of lock materials and key specifications.

10. Warranty Information

Specific warranty details for the VeDerSel Scooler Lock are not provided in the product information. Please refer to the retailer or point of purchase for any applicable warranty terms and conditions.

11. Customer Support

Direct customer support contact information for VeDerSell is not provided in the product details. For assistance, please contact the seller through the platform where the product was purchased.
