UDPATIO 12'x20' Hardtop Gazebo Instruction Manual

1. Introduction

Thank you for choosing the UDPATIO 12'x20' Hardtop Gazebo. This manual provides essential information for the safe assembly, proper operation, and effective maintenance of your new outdoor structure. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

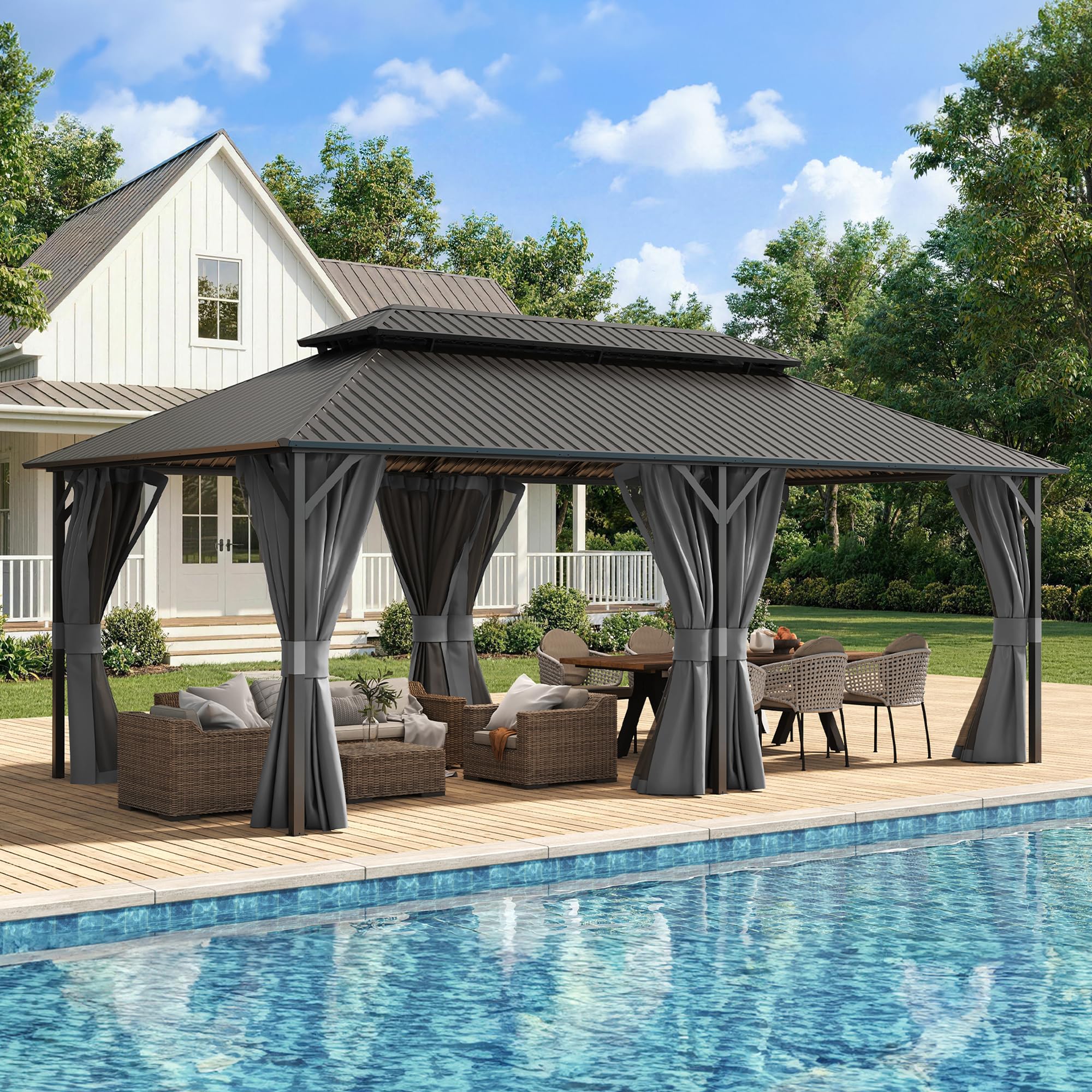

Image 1.1: The UDPATIO 12'x20' Hardtop Gazebo installed in an outdoor setting.

2. Safety Information

Always ensure the gazebo is securely anchored to the ground using the provided ground fixing system to prevent tipping or shifting, especially in windy conditions. Follow the detailed installation instructions carefully, and consider having multiple people assist with the assembly process to ensure safety.

Important: Do not hang excessively heavy items from the gazebo frame. Regularly inspect all connections and anchoring points for security and wear.

3. Package Contents

The UDPATIO 12'x20' Hardtop Gazebo is shipped in 5 separate boxes. Please ensure all boxes are received and inspect them for any shipping damage before proceeding with assembly. A detailed parts list and all necessary hardware are included within the packaging. Refer to the included instruction booklet for a complete inventory of parts.

Image 3.1: Illustration of the gazebo and the 5-box shipping configuration.

4. Setup and Assembly

Assembly of the UDPATIO 12'x20' Hardtop Gazebo requires careful attention to detail and multiple individuals. It is estimated to take approximately 8 hours for 6-8 people to complete. The gazebo features a new splice card slot design that reduces the number of screws and enhances structural integrity. Detailed step-by-step instructions are provided in the separate assembly manual included with your product.

4.1. Structural Stability

The gazebo is designed with a stable structure, including thickened reinforced corner brackets for even weight distribution, secure horizontal crossbars to reduce frame sway, and thickened high-density poles with strong load-bearing capacity. The four pillars adopt a sturdy tripod structure for durability.

Image 4.1: Components highlighting the sturdy pillar and triangular structure for enhanced stability.

4.2. Ground Fixing System

The versatile ground fixing system is compatible with concrete, wood decks, and lawns. Heavy-duty anchor bolts and ground stakes are included to secure the frame firmly, preventing shifting or tipping in strong winds.

Image 4.2: Ground fixing options for various surfaces.

4.3. Assembly Video Guide

For a visual guide on the assembly process, please refer to the official video below. This video demonstrates key steps and provides helpful tips for a smoother installation.

5. Operating Instructions

5.1. Multi-functional Sidewall System

The gazebo features a dual-track sidewall system that supports layered privacy curtains and insect screens. This system allows you to balance airflow with protection from sun, rain, and insects. Zippered enclosures enhance versatility, allowing you to fully enclose the gazebo for privacy or keep it open for ventilation.

Image 5.1: Three usage modes for the sidewall system: Fully Open, Semi Open (with netting), and Fully Closed (with curtains).

5.2. Integrated Hooks

Built-in reinforced hooks are provided for easily hanging lighting, fans, or heaters within the gazebo. Ensure that any hung items do not exceed the weight capacity specified in the assembly manual.

Image 5.2: J-shaped hooks for hanging accessories.

5.3. Product Features Overview

This video highlights various features of the UDPATIO hardtop gazebo, including its metal roof and overall design.

6. Maintenance

6.1. Seasonal Care

In winter, please clear snow from the roof in a timely manner to avoid damage to the product. During rainy days, the galvanized steel double roof provides protection while allowing air ventilation. The frame is designed to be scratch-resistant, wear-resistant, corrosion-resistant, and weatherproof for long-term use.

Image 6.1: Seasonal considerations for the gazebo, emphasizing snow removal in winter.

6.2. Cleaning

• Frame: Wipe the metal frame with a damp cloth and mild soap. Avoid abrasive cleaners.
• Roof: Clean the galvanized steel roof with water and a soft brush if necessary. Ensure proper drainage.
• Curtains/Netting: Hand wash or machine wash on a gentle cycle with cold water and mild detergent. Air dry.

6.3. Inspection

Periodically check all bolts, screws, and anchoring points to ensure they remain tight and secure. Inspect the roof panels and frame for any signs of damage or wear, especially after severe weather conditions.

7. Troubleshooting

• Gazebo feels unstable: Ensure all anchor bolts and ground stakes are properly installed and tightened. Verify that the frame is assembled squarely according to the instructions.
• Missing parts: If you find any parts missing upon unboxing, please contact UDPATIO customer support immediately with your product model and a description of the missing components.
• Difficulty with assembly: Refer to the detailed assembly instructions and the assembly video. Ensure all pieces are oriented correctly before tightening fasteners. Do not force parts together.
• Water leakage: Check roof panel installation to ensure all panels are correctly seated and sealed. While the roof is waterproof, extreme conditions or improper assembly can lead to leaks.

8. Specifications

Image 8.1: Detailed product dimensions for the 12'x20' gazebo.

9. Warranty and Support

For any questions, concerns, or assistance with your UDPATIO Hardtop Gazebo, please contact UDPATIO-US customer support. Refer to any warranty information included in your product packaging for details on coverage and claims. UDPATIO-US offers 30-day easy returns and dedicated customer support.

Contact Information: Please refer to the contact details provided in your product packaging or visit the official UDPATIO website for support.
