Aovowheel Y07S Electric Scooter User Manual

1. Introduction and Safety Guidelines

Thank you for choosing the Aovowheel Y07S Electric Scooter. This manual provides essential information for the safe operation, assembly, and maintenance of your scooter. Please read it thoroughly before first use and retain it for future reference.

Important Safety Information:

• Always wear a helmet and appropriate safety gear (knee pads, elbow pads) when riding.
• Ensure all screws and fasteners are tight before each ride.
• Do not ride in wet conditions, rain, or on slippery surfaces, as this can significantly reduce traction and braking effectiveness.
• The scooter is designed for riders aged 10-60 years, with a maximum load capacity of 155 lbs (70 kg).
• Always maintain a safe speed and distance from other vehicles and pedestrians.
• Avoid sudden turns or maneuvers at high speeds.
• Familiarize yourself with local regulations regarding electric scooter use.

Image: A child riding the Aovowheel Y07S electric scooter, illustrating safe usage for kids and teens. The image highlights recommended age (8 and above), height (4.0FT-5.6FT), and max load (155 lbs).

2. Product Overview

The Aovowheel Y07S Electric Scooter is designed for urban commuting and recreational riding, featuring a foldable design for portability.

Key Features:

• Motor: 250W (Peak 350W) powerful motor.
• Max Speed: Up to 9 MPH (14.5 km/h).
• Max Range: Up to 10 miles (16 km) under specific conditions.
• Battery: 25.2V/4.4AH Lithium Battery.
• Charging Time: Approximately 3-4 hours for a full charge.
• Tires: 6.5-inch solid tires for a smooth ride.
• Braking System: Dual-brake system with a responsive hand brake and a rear fender foot brake.
• Speed Modes: Three adjustable speed modes (3 MPH, 6 MPH, 9 MPH).
• Display: High-definition LCD screen displaying battery level, speed, and mileage.
• Portability: Lightweight (16 lbs) and foldable design for easy transport and storage.

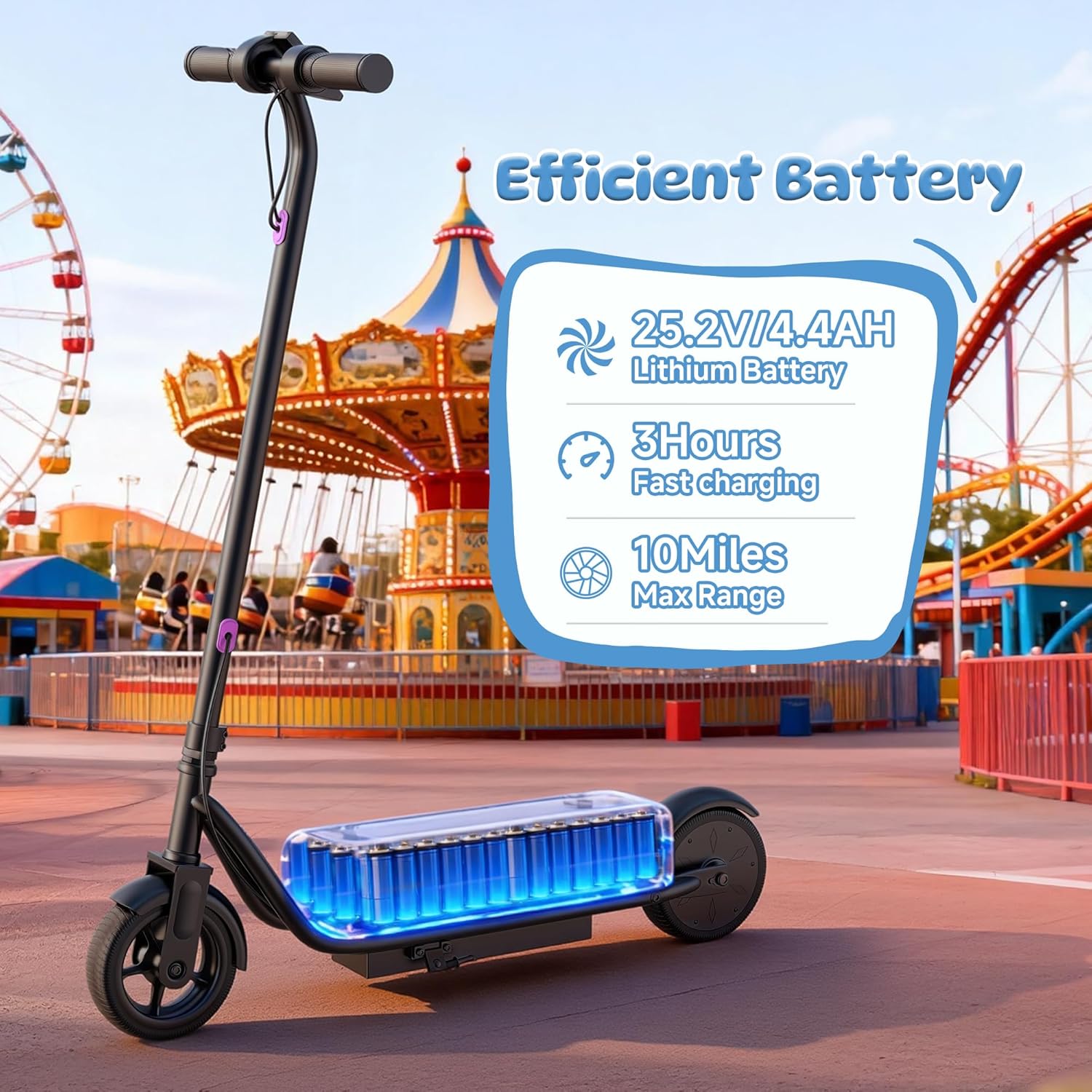

Image: The Aovowheel Y07S electric scooter highlighting its efficient 25.2V/4.4AH Lithium Battery, 3-hour fast charging, and 10-mile max range.

Image: A child riding the Aovowheel Y07S electric scooter, emphasizing the 250W motor, 9 MPH max speed, and 6.5-inch solid tires.

3. Setup and Assembly

Your Aovowheel Y07S Electric Scooter comes partially assembled. Follow these steps to complete the setup:

1. Unpack: Carefully remove all components from the packaging.
2. Handlebar Attachment:
   • Lift the handlebar stem into the upright position until it clicks securely.
   • Attach the handlebars to the stem, ensuring they are properly aligned.
   • Secure the handlebars using the provided screws and tools. Ensure all screws are tightened firmly to prevent wobbling during use.
3. Initial Charge: Before first use, fully charge the scooter's battery.
   • Locate the charging port, typically near the battery compartment.
   • Connect the charger to the scooter and then to a power outlet.
   • The indicator light on the charger will typically turn red during charging and green when fully charged.
   • Allow approximately 3-4 hours for a full charge.
4. Pre-Ride Check: Before every ride, perform a quick check:
   • Ensure tires are in good condition.
   • Verify brakes are functioning correctly.
   • Check that all visible screws and connections are tight.

4. Operating Instructions

Operating your Aovowheel Y07S Electric Scooter is straightforward. Follow these steps for a safe and enjoyable ride:

Power On/Off:

• To power on, press and hold the power button on the handlebar display until the screen illuminates.
• To power off, press and hold the power button again until the display turns off.

Changing Speed Modes:

• The scooter features three speed modes: 3 MPH, 6 MPH, and 9 MPH.
• Press the mode button (usually indicated on the display or near the power button) to cycle through the available speed settings.
• Select a speed mode appropriate for your skill level and riding environment.

Riding:

• Place one foot firmly on the deck of the scooter.
• Use your other foot to push off the ground a few times to gain initial momentum.
• Once moving, gently press the throttle lever (typically on the right handlebar) to engage the motor.
• Place your second foot on the deck.

Braking:

• To slow down or stop, use the hand brake lever on the left handlebar.
• For additional braking or in emergencies, press down on the rear fender with your foot.
• Apply brakes smoothly to avoid sudden stops, especially at higher speeds.

Folding the Scooter:

• Ensure the scooter is powered off.
• Locate the folding mechanism (usually a latch or lever near the base of the handlebar stem).
• Follow the instructions for your specific model to release the latch and fold the stem down towards the deck until it locks into place.
• This makes the scooter compact for carrying or storage.

Image: The handlebar display of the Aovowheel Y07S electric scooter, illustrating the three riding modes (3 MPH, 6 MPH, 9 MPH) and the location of the brake, battery indicator, power button, throttle, and mode selector.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your Aovowheel Y07S Electric Scooter.

Battery Care:

• Charge the battery fully before first use.
• Do not allow the battery to completely drain before recharging.
• If storing the scooter for an extended period, charge the battery to about 50-70% and recharge every 1-2 months to prevent deep discharge.
• Use only the original charger provided with the scooter.
• Avoid exposing the battery to extreme temperatures.

Cleaning:

• Wipe the scooter clean with a damp cloth. Do not use high-pressure water jets or immerse the scooter in water.
• Avoid using abrasive cleaners or solvents that could damage the finish.

Tires and Brakes:

• Regularly inspect the 6.5-inch solid tires for wear or damage. While solid tires do not require inflation, they should be checked for cracks or embedded debris.
• Test the hand brake and rear fender foot brake before each ride to ensure they are responsive and effective.

Fasteners:

• Periodically check all screws and bolts, especially those securing the handlebars and folding mechanism, and tighten them as necessary. Loose fasteners can affect stability and safety.

6. Troubleshooting

This section addresses common issues you might encounter with your Aovowheel Y07S Electric Scooter.

If you encounter a problem not listed here, or if the suggested solutions do not resolve the issue, please contact Aovowheel customer support for assistance.

7. Specifications

Detailed technical specifications for the Aovowheel Y07S Electric Scooter.

Image: The Aovowheel Y07S electric scooter displaying its product size, including net weight (16 lbs) and max payload (155 lbs), along with key dimensions.

8. Warranty and Support

Aovowheel provides a 12-month service for various parts of your electric scooter. This covers returns and exchanges for manufacturing defects.

Contacting Support:

If you have any questions, require assistance with troubleshooting, or need to inquire about warranty service, please contact Aovowheel customer service.

• Email: aovohelp@gmail.com
• Please provide your model number (Y07S) and a detailed description of your issue when contacting support to ensure a prompt resolution.

Note: The speed and range of electric scooters can vary based on rider weight, terrain, temperature, battery condition, and riding style.
