Focustar Portable Electric Kettle FS-2088 User Manual

Introduction

Thank you for purchasing the Focustar Portable Electric Kettle FS-2088. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new appliance. Please read these instructions thoroughly before first use and retain them for future reference.

Important Safety Instructions

• Read all instructions before using the kettle.
• Do not immerse the kettle, power cord, or plug in water or other liquids.
• Ensure the voltage indicated on the appliance matches your local power supply before connecting.
• Do not operate the kettle if the power cord or plug is damaged, or if the appliance malfunctions or has been damaged in any way. Contact customer support for assistance.
• Keep the kettle out of reach of children.
• Always place the kettle on a stable, flat, heat-resistant surface.
• Do not fill above the maximum fill line or below the minimum fill line.
• Avoid contact with hot surfaces. Use handles or knobs.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not use the kettle for purposes other than heating water.
• This appliance is for household and similar applications only.
• Do not operate without water to prevent boil-dry damage.

Product Overview

The Focustar Portable Electric Kettle FS-2088 is designed for convenience and versatility, featuring a compact design and multiple temperature settings.

Components:

• Kettle Body (with integrated display)
• Lid
• Power Cord
• Adapter Plug Set (Type A, BF, C)
• Storage Bag
• User Manual

Key Features:

• Universal Voltage Compatibility: Supports 100-240V for worldwide use.
• 4-Stage Temperature Control: Select from 45°C, 60°C, 80°C, and 100°C.
• Rapid Boiling: Heats 350ml of water in approximately 8 minutes.
• Low Power Consumption: 350W (300W for portable power sources).
• Automatic Shut-off & Boil-Dry Protection: Enhances safety.
• 8-Hour Keep Warm Function: Maintains desired temperature.
• Food-Grade 304 Stainless Steel Interior: Durable and easy to clean.
• Compact & Leak-Proof Design: Ideal for travel and portability.

Figure 1: Detailed view of the kettle's internal structure and safety features. It highlights the food-grade 304 stainless steel interior, an exhaust hole for safe boiling with the lid closed, a triple-layer structure for heat retention and burn prevention, and a detachable power cord with a waterproof cap.

Setup

1. Unpack: Carefully remove all components from the packaging.
2. Initial Cleaning: Before first use, fill the kettle with water to the maximum level, boil it, and then discard the water. Repeat this process 2-3 times to remove any manufacturing residues.
3. Power Connection: Connect the power cord to the kettle and then to a suitable power outlet. If traveling internationally, select the appropriate adapter plug from the included set and attach it to the power cord before plugging into the wall outlet.

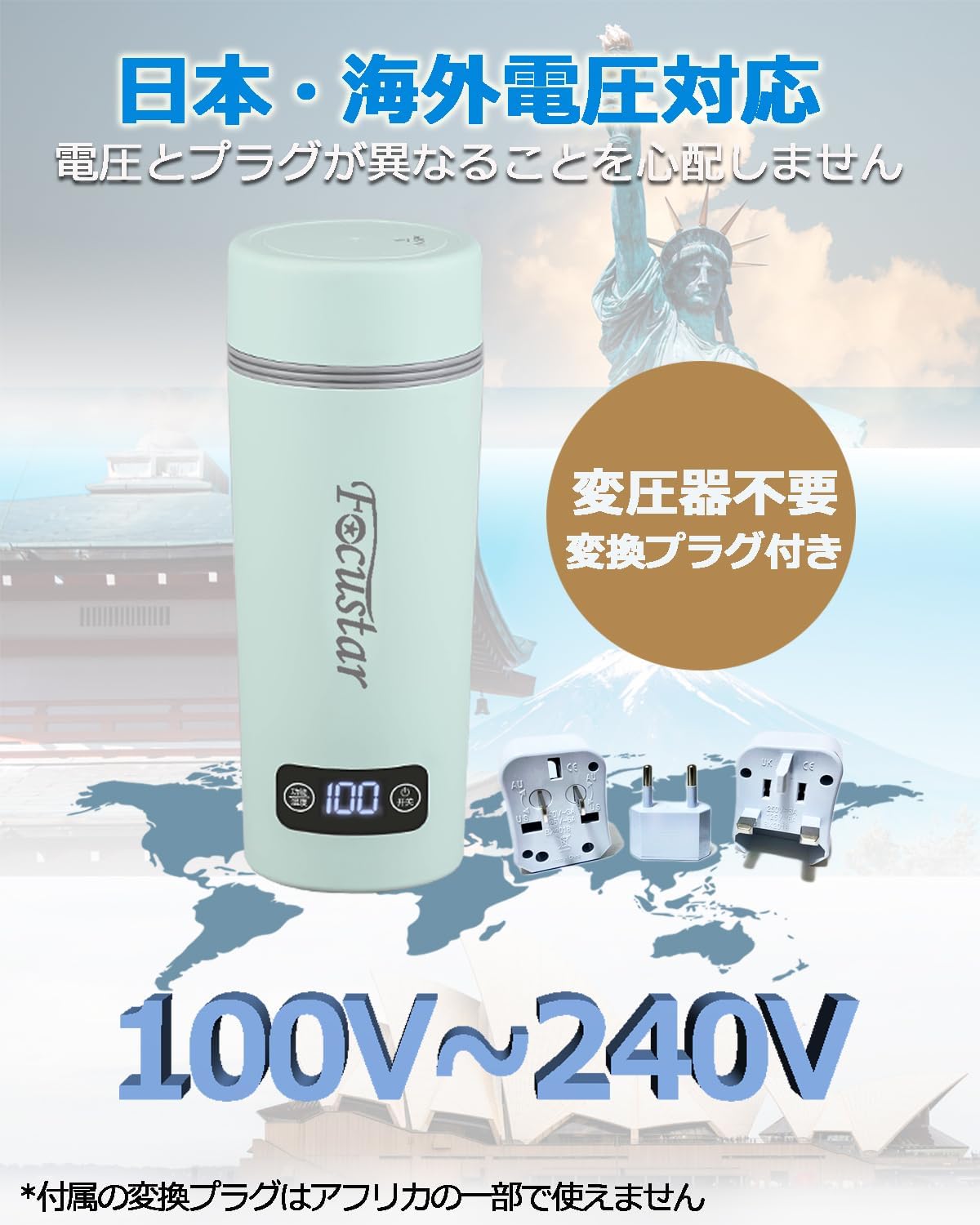

Figure 2: The Focustar Portable Electric Kettle supports 100-240V, making it suitable for international travel without a voltage converter. It comes with a set of adapter plugs (Type A, BF, C) for global compatibility. Please note that some adapter plugs may not be compatible in certain regions of Africa.

Operating Instructions

1. Fill Water: Open the lid and fill the kettle with fresh water. Ensure the water level is between the minimum and maximum fill lines. Close the lid securely.
2. Power On: Plug the kettle into a power outlet. The display will illuminate.
3. Select Temperature: Press the power/temperature selection button to cycle through the available temperature settings: 45°C, 60°C, 80°C, and 100°C. The selected temperature will be displayed.
4. Start Heating: Once the desired temperature is selected, the kettle will begin heating. The real-time water temperature will be shown on the display.
5. Automatic Shut-off: The kettle will automatically turn off once the target temperature is reached or if the water boils (for 100°C setting).
6. Keep Warm Function: After reaching the target temperature, the kettle will automatically enter keep-warm mode for up to 8 hours, maintaining the selected temperature.
7. Pour Water: Carefully pour the hot water. Be cautious of steam and hot surfaces.
8. Unplug: After use, unplug the kettle from the power outlet.

Figure 3: The kettle offers four precise temperature settings: 45°C for baby formula, 60°C for various teas, 80°C for coffee, and 100°C for boiling water, suitable for instant noodles or other hot beverages.

Figure 4: Experience rapid boiling with the Focustar kettle, heating 350ml of water in approximately 8 minutes. The integrated display shows the real-time water temperature for easy monitoring.

Figure 5: Designed for low power consumption with a 300W output, this kettle can be powered by portable power supplies, making it ideal for outdoor activities. Always verify your portable power supply's rated output before connecting.

Figure 6: For safety and convenience, the kettle automatically shuts off once water boils. It also features an 8-hour keep-warm function, ensuring your beverage stays at the desired temperature.

Maintenance and Cleaning

• Before Cleaning: Always unplug the kettle and allow it to cool completely before cleaning.
• Exterior: Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or harsh chemicals.
• Interior: The food-grade 304 stainless steel interior is easy to clean. For general cleaning, rinse with water. For stubborn mineral deposits (limescale), fill the kettle with a mixture of water and white vinegar (1:1 ratio) and let it sit for an hour, or boil the mixture. Then, discard the mixture and rinse thoroughly several times with fresh water.
• Storage: When not in use, store the kettle in a dry place. The included storage bag can be used for protection during travel.

Figure 7: The Focustar kettle boasts a compact and leak-proof design, making it easy to carry in a bag for travel or daily commuting. Its dimensions are approximately 7.5 x 7.5 x 21 cm, with a total weight of 675g including the power cord and plug set.

Troubleshooting

Specifications

Warranty and Support

Focustar products are manufactured to high-quality standards. For any questions, concerns, or issues regarding your Portable Electric Kettle FS-2088, please contact Focustar customer support. Refer to your purchase documentation for specific warranty details and contact information.
