YZFfnte 12x20 FT Heavy Duty Metal Garage Shed Instruction Manual

1. Product Overview

1.1 Product Description

This 12x20 FT Heavy Duty Metal Garage Shed is designed for outdoor storage, providing a secure and spacious solution for vehicles and equipment. Constructed from durable, weather-resistant steel with UV protection, it features thick wall panels for enhanced strength. The sloped roof is engineered to prevent water and snow accumulation, ensuring efficient drainage. The shed includes double doors for easy access and two windows for natural light, making it suitable for various uses such as a carport, tool shed, gardening equipment storage, or a compact outdoor workshop.

1.2 Key Features

• Durable & Weather-Resistant Construction: Made from heavy-duty steel with UV protection, offering resistance to rain, snow, and sun damage.
• Sloped Roof Design: Prevents water and snow buildup, ensuring proper drainage and extending lifespan.
• Spacious Interior with Double Doors & Windows: 12x20 FT size provides ample room, with double doors for accessibility and two windows for natural lighting.
• Versatile Outdoor Storage Solution: Functions as a carport, tool shed, gardening station, pool equipment storage, or workshop.
• Reinforced Structure: Features a triangle roof frame and reinforced roof beams for enhanced stability and snow load capacity.

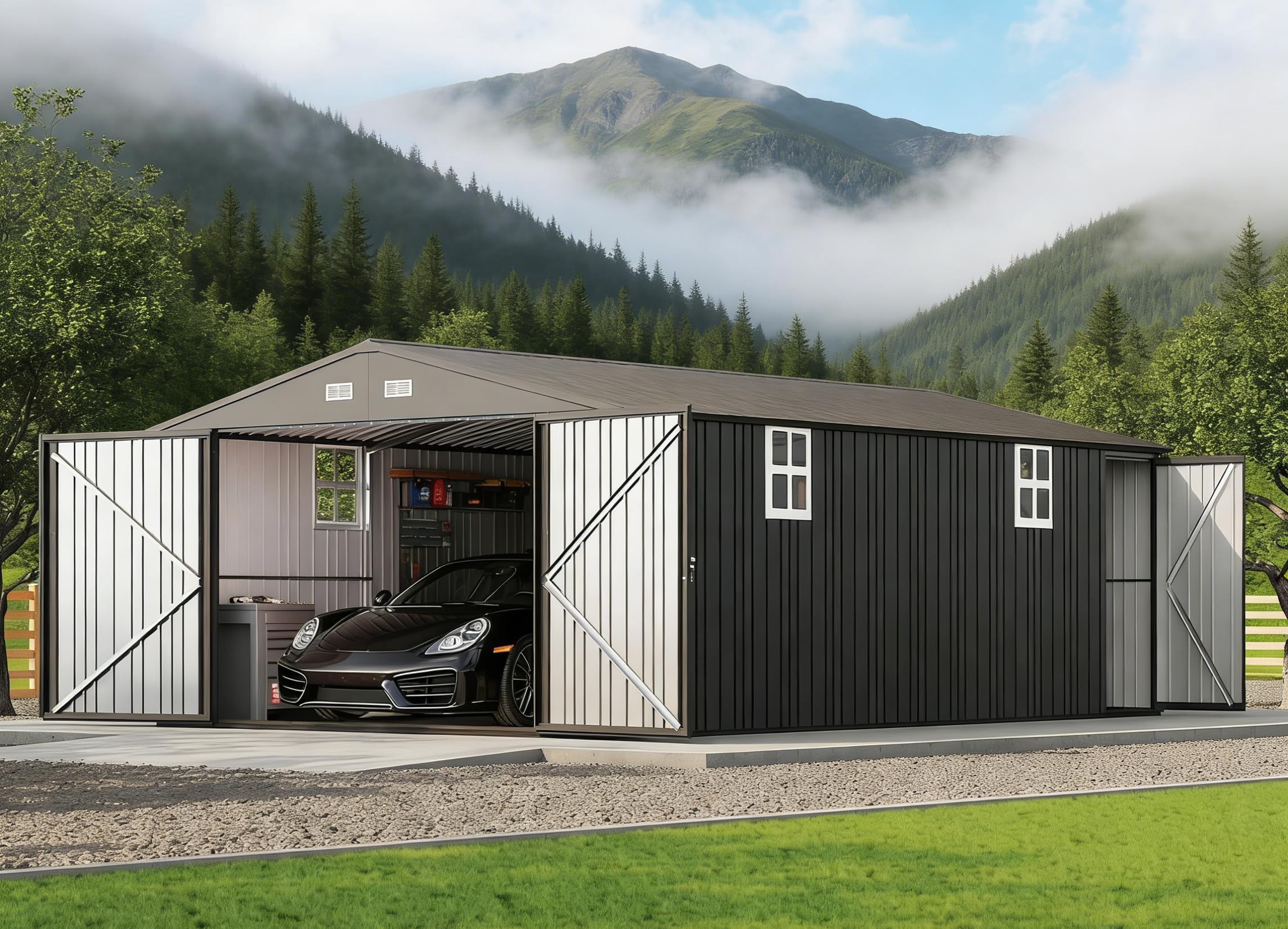

Image 1.1: Exterior view of the YZFfnte 12x20 FT Heavy Duty Metal Garage Shed, showcasing its design and double doors.

2. Safety Information

Please read and understand all instructions and safety warnings before assembly and use of this product. Failure to follow these instructions may result in injury or property damage.

• Personal Protective Equipment: Always wear appropriate safety gear, including gloves and eye protection, during assembly.
• Two-Person Assembly: Due to the size and weight of components, assembly requires at least two adults.
• Site Preparation: Ensure the assembly site is level, clear of debris, and has adequate space.
• Foundation: The shed must be anchored to a solid, level foundation (e.g., concrete slab, treated wood platform) to prevent shifting or overturning in high winds. Consult local building codes for specific requirements.
• Sharp Edges: Metal components may have sharp edges. Handle with care to avoid cuts.
• Ventilation: Ensure adequate ventilation if storing items that emit fumes or require air circulation.
• Children and Pets: Keep children and pets away from the assembly area. Do not allow them to play inside or around the shed unsupervised.
• Electrical Safety: If installing electrical wiring, consult a qualified electrician and adhere to all local electrical codes.

3. Setup and Assembly

3.1 Before You Begin

The shed is shipped in two sturdy boxes. Before starting assembly, unpack all components and verify against the parts list provided in your packaging. Ensure you have the following tools:

• Work gloves
• Safety glasses
• Measuring tape
• Phillips head screwdriver
• Adjustable wrench or socket set
• Step ladder
• Drill (optional, for pilot holes)

Select a level and stable site for your shed. A concrete slab or a well-prepared gravel base with a wooden frame is recommended for optimal stability and longevity.

Image 3.1: Detailed product dimensions, including overall length, width, height, and door/window measurements, essential for site planning.

3.2 Assembly Steps (General Guide)

Refer to the detailed assembly manual included in your packaging for step-by-step instructions specific to your model. The general assembly process involves:

1. Base Frame Assembly: Assemble the base frame on your prepared foundation. Ensure it is square and level.
2. Wall Panel Installation: Attach the wall panels to the base frame, securing them according to the instructions.
3. Roof Frame Construction: Assemble the triangle roof frame and reinforced roof beams. This structure provides critical support and stability.

Image 3.2: Illustration of the triangle roof frame and reinforced roof beams, highlighting the structural components for roof assembly.

4. Roof Panel Attachment: Install the roof panels, ensuring proper overlap and sealing to prevent leaks.
5. Door and Window Installation: Install the double doors and windows. The doors support reversible installation, allowing them to be mounted on either side to suit your preference.

Image 3.3: Visual guide demonstrating the reversible installation feature of the shed's double doors, allowing for left or right side opening.

6. Anchoring: Securely anchor the shed to its foundation using appropriate hardware (not always included, check your specific package) to withstand wind and other environmental forces.

4. Operation

4.1 Access and Security

The shed features wide double doors for easy access, allowing large items like vehicles, lawnmowers, or equipment to be moved in and out conveniently. A latching door lock is provided for security. Ensure the doors are properly closed and latched when not in use to protect contents from weather and unauthorized access.

4.2 Ventilation and Lighting

Two translucent windows allow natural light into the shed, reducing the need for artificial lighting during the day. While the windows provide some light, they are not designed for ventilation. Consider additional ventilation solutions if storing items that require significant airflow or if the shed will be used as a workshop.

4.3 Versatile Use

This metal garage shed is designed for multi-functional use:

• Vehicle Storage: Ideal for cars, trucks, motorcycles, ATVs, and bicycles.
• Equipment Storage: Store lawnmowers, garden tractors, snow blowers, and other outdoor power equipment.
• Tool Shed: Organize and protect hand tools, power tools, and workshop supplies.
• General Storage: Keep gardening supplies, pool accessories, seasonal decorations, and other household items secure.
• Outdoor Workshop: Provides a dedicated space for hobbies or small projects.

Image 4.1: An interior view of the shed illustrating its capacity for multi-functional storage, including parking a car and organizing tools on shelves.

5. Maintenance

Regular maintenance will ensure the longevity and optimal performance of your metal garage shed.

5.1 Regular Cleaning

• Exterior: Clean the exterior panels periodically with mild soap and water. Rinse thoroughly to prevent residue buildup. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Roof: Keep the roof clear of leaves, branches, and other debris to ensure proper water drainage.

5.2 Structural Integrity Checks

• Fasteners: Periodically inspect all bolts, screws, and other fasteners to ensure they are tight. Re-tighten as necessary.
• Anchoring: Verify that the shed remains securely anchored to its foundation, especially after severe weather conditions.
• Panels: Check for any signs of damage, corrosion, or loose panels. Address any issues promptly to prevent further deterioration.

5.3 Snow and Water Management

The sloped roof design helps prevent water and snow accumulation. However, in areas with heavy snowfall, it is advisable to regularly remove excessive snow from the roof to prevent structural stress. The shed is built to handle heavy winter snow loads with a maximum roof load capacity of 14.5 PSF.

Image 5.1: The shed pictured in a snowy environment, emphasizing its upgraded roof structure designed to prevent collapse under heavy snow loads.

6. Troubleshooting

This section addresses common issues you might encounter.

• Doors Not Closing Properly: Check if the shed is level. Ensure hinges are properly aligned and tightened. Inspect for any obstructions in the door track or frame.
• Water Leaks: Verify that all roof and wall panels are correctly overlapped and securely fastened. Check for any damaged seals or gaps. Apply silicone sealant to problematic areas if necessary.
• Shed Instability: Ensure the shed is properly anchored to a solid foundation. Re-check all frame connections and fasteners for tightness.
• Missing Parts: If you find any parts missing during unpacking, refer to the contact information in the Warranty and Support section to request replacements.

7. Specifications

Detailed specifications for the YZFfnte 12x20 FT Heavy Duty Metal Garage Shed (Model RYW621).

Image 7.1: Interior view showcasing the reinforced structures and indicating a storage capacity of 1480 cubic feet, suitable for various outdoor storage needs.

8. Warranty and Support

For specific warranty details, please refer to the documentation included with your product or contact the manufacturer directly. YZFfnte is committed to providing professional customer support to assist with any issues or concerns you may have regarding your metal garage shed. Please retain your proof of purchase for warranty claims.

If you require assistance with assembly, missing parts, or have any questions about the product, please contact YZFfnte customer service through the retailer where the product was purchased or via the contact information provided in your product packaging.
