1. Introduction
Welcome to the X-PRO Bali 50cc Gas Moped user manual. This guide provides essential information for the safe operation, maintenance, and troubleshooting of your new moped. Please read this manual thoroughly before operating the vehicle to ensure proper use and to maximize its lifespan.
1.1 Safety Information
WARNING: Operating a moped can be dangerous. Always wear a helmet and appropriate safety gear. Follow all local traffic laws and regulations.
Familiarize yourself with all controls and features before riding. Never operate the moped under the influence of alcohol or drugs. Regular maintenance is crucial for safe operation.
Important Note: The Manufacturer Statement of Origin (MSO) and Bill of Sale paperwork will be sent separately. These documents are required for vehicle registration.
2. Product Overview
The X-PRO Bali 50cc Gas Moped is designed for urban commuting, offering a blend of efficiency and ease of use. It features a reliable 4-stroke engine, automatic transmission, and essential safety components.
2.1 Key Features
- Engine: 49.5cc air-cooled 4-stroke engine for smooth power and fuel efficiency.
- Starting System: Convenient electric start with a backup kick-start.
- Transmission: CVT automatic transmission for simple, twist-and-go operation.
- Braking: Front disc brake and rear drum brake for reliable stopping power.
- Tires: 10-inch DOT-approved tires for solid traction.
- Lighting: LED lights for enhanced visibility.
- Storage: Built-in under-seat storage compartment.
2.2 Components

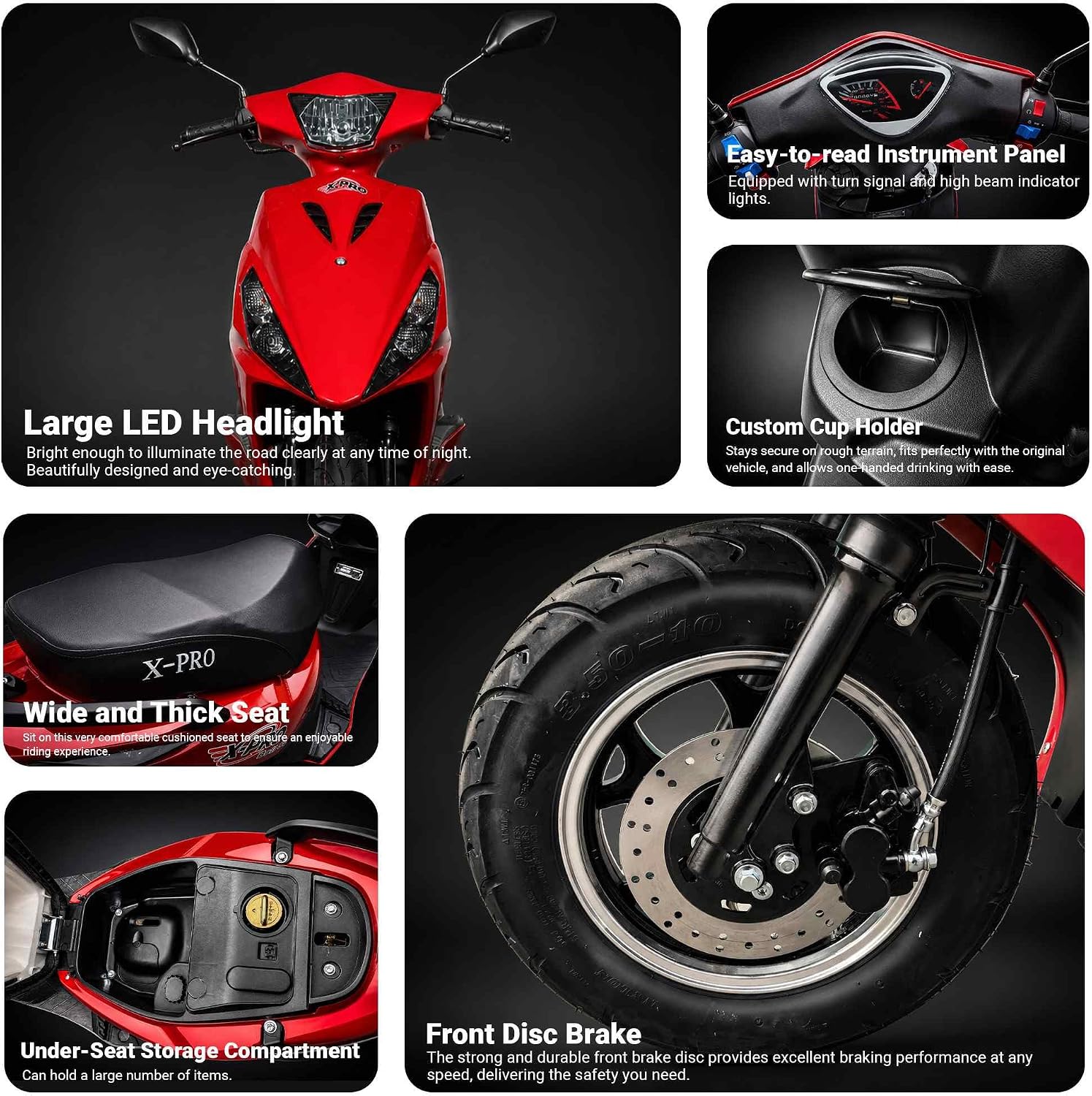

Below are images illustrating key components and features of the X-PRO Bali 50cc Moped.
3. Setup and Assembly
The X-PRO Bali 50cc Moped requires some assembly upon arrival. This typically includes attaching the handlebar, wheels, brakes, hub odometer counter, and connecting the battery. Specific steps may vary slightly by model.
3.1 Assembly Steps
- Uncrating: Carefully remove the moped from its shipping crate.
- Handlebar Installation: Securely attach the handlebar. Ensure all bolts are tightened to the manufacturer's specifications.
- Wheel Installation: Install the front wheel, ensuring the axle is properly seated and secured.
- Brake Connection: Connect and adjust the brake cables/lines. Test brake function immediately after connection.
- Battery Connection: Connect the battery terminals. Ensure correct polarity (red to positive, black to negative).
- Initial Fluid Checks: Verify engine oil level and add fuel.
3.2 Assembly Video Guide
For a visual guide on the assembly process, please refer to the official X-PRO Bali 50 Moped Assembly Video below.
4. Operating Instructions
Understanding how to properly operate your X-PRO Bali 50cc Moped is crucial for a safe and enjoyable riding experience.
4.1 Pre-Ride Checks
- Fuel Level: Ensure sufficient fuel is in the tank.
- Tire Pressure: Check tire pressure before each ride. Refer to specifications for correct PSI.
- Brakes: Test front and rear brakes for proper function and responsiveness.
- Lights: Verify headlights, taillights, and turn signals are working.
- Mirrors: Adjust mirrors for optimal rear visibility.
4.2 Starting the Engine
- Electric Start: Insert the key into the ignition and turn it to the 'ON' position. Squeeze the brake lever (either front or rear) and press the electric start button.
- Kick Start (Backup): If the electric start fails, turn the key to 'ON'. Extend the kick-start lever and push down firmly and smoothly until the engine starts.
4.3 Riding the Moped
The X-PRO Bali 50cc features a CVT automatic transmission, making it easy to ride.
- Acceleration: Gently twist the throttle grip towards you to accelerate. The CVT system will automatically adjust the gear ratio for smooth acceleration.
- Braking: To slow down or stop, gradually apply both the front (right lever) and rear (left lever) brakes simultaneously. Avoid sudden, hard braking, especially at high speeds.
- Turning: Lean into turns and use counter-steering techniques for stability.
5. Maintenance
Regular maintenance is essential to keep your X-PRO Bali 50cc Moped in optimal condition and ensure its longevity and safe operation.
5.1 Engine Maintenance
- Oil Changes: Perform the first oil change after the initial 300 miles (500 km) or 1 month of operation. Subsequent oil changes should be done every 1,000 miles (1,600 km) or 6 months, whichever comes first. Use recommended 4-stroke engine oil.
- Air Filter: Inspect and clean the air filter every 1,000 miles (1,600 km) or more frequently in dusty conditions. Replace if damaged.
- Spark Plug: Inspect the spark plug every 2,000 miles (3,200 km) and replace if necessary.
5.2 Brake System
- Brake Pad Wear: Regularly check the wear indicators on the front disc brake pads and rear drum brake shoes. Replace them before they reach their wear limits.
- Brake Fluid: For the front disc brake, check the brake fluid level periodically. Replace brake fluid according to the maintenance schedule in a more detailed service manual.
- Brake Adjustment: Ensure proper free play in the brake levers. Adjust if necessary.
5.3 Tires
- Tire Pressure: Maintain correct tire pressure as specified in the manual or on the tire sidewall. Incorrect pressure affects handling and tire life.
- Tread Wear: Inspect tire tread for wear and damage. Replace tires when the tread wear indicators are visible.
5.4 Storage
The under-seat storage compartment provides convenient space for small items. Ensure items are securely placed to prevent movement during operation.
6. Troubleshooting
This section addresses common issues you might encounter with your moped. For problems not listed here, consult a qualified technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start (Electric Start) | Low battery, loose battery connection, no fuel, kill switch engaged, brake lever not squeezed. | Check battery connections, charge battery, add fuel, disengage kill switch, ensure brake lever is squeezed. Try kick start. |
| Engine does not start (Kick Start) | No fuel, spark plug issue, engine flooded. | Add fuel, check spark plug, wait a few minutes and try again without throttle. |
| Poor acceleration/loss of power | Low fuel, clogged air filter, spark plug issue, CVT belt wear. | Check fuel, clean/replace air filter, inspect spark plug, consult technician for CVT belt. |
| Brakes feel spongy or ineffective | Worn brake pads/shoes, low brake fluid (front), air in brake line (front), improper adjustment. | Inspect and replace worn components, check/add brake fluid, bleed brake system (front), adjust brake cables. |
7. Specifications
Detailed technical specifications for the X-PRO Bali 50cc Moped (Model MC-D001).
| Feature | Specification |
|---|---|
| Engine Type | 49.5cc Air-Cooled 4-Stroke |
| Transmission | CVT Automatic |
| Starting System | Electric Start with Kick Start Backup |
| Brake Style | Front Disc Brake, Rear Drum Brake |
| Wheel Size | 10 Inches |
| Max Weight Limit | 330 Pounds |
| Product Dimensions (L x W x H) | 71.6" x 26" x 42" (181.9cm x 66cm x 106.7cm) |
| Item Weight | 280 Pounds |
| Frame Material | Steel/Aluminum Alloy |
| Special Features | LED Lights, Street Legal |
8. Warranty and Support
8.1 Warranty Information
The X-PRO Bali 50cc Moped comes with a 90-day warranty against manufacturer defects. This limited warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
8.2 Customer Support
For technical assistance, parts inquiries, or warranty claims, please contact X-PRO customer support. Refer to the contact information provided with your purchase documentation or visit the official X-PRO website for support details.
