IDEALHOUSE Height Adjustable C-Shaped End Table User Manual

1. Introduction

Thank you for choosing the IDEALHOUSE Height Adjustable C-Shaped End Table. This versatile and mobile table is designed to provide a convenient surface for various uses, including as a sofa side table, end table, or compact computer desk. Its C-shaped design allows it to slide easily under furniture, optimizing space in bedrooms, living rooms, or study areas. This manual provides essential information for safe assembly, operation, and maintenance of your new table.

2. Safety Information

• Ensure all parts are securely fastened before use.
• Do not overload the table. Refer to specifications for weight capacity.
• Keep small parts away from children during assembly.
• Avoid placing hot items directly on the table surface without protection.
• Use the lockable wheels to secure the table in place when not moving it to prevent accidental movement.
• Adjust the height carefully, ensuring the locking knobs are fully tightened after adjustment.

3. Package Contents

Please check that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• Tabletop
• Main Support Frame
• Base Frame with Wheels
• Adjustable Height Poles
• Shelves (if applicable)
• Locking Knobs and Fasteners
• Assembly Guide
• Tools: Allen Key, Screwdriver (may be included or required)

4. Setup and Assembly

Although minimal assembly is required, please follow these steps to ensure proper setup and stability.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
2. Attach Base Frame: Secure the main support frame to the base frame, ensuring the wheels are correctly oriented. Use the provided fasteners and tools.
3. Install Shelves: If your model includes shelves, attach them to the main support frame at the designated positions.
4. Attach Tabletop: Fasten the tabletop to the adjustable height poles.
5. Final Tightening: Once all components are in place, gently tighten all screws and locking knobs to ensure the table is stable. Do not overtighten.

Figure 4.1: Overall dimensions of the C-shaped end table.

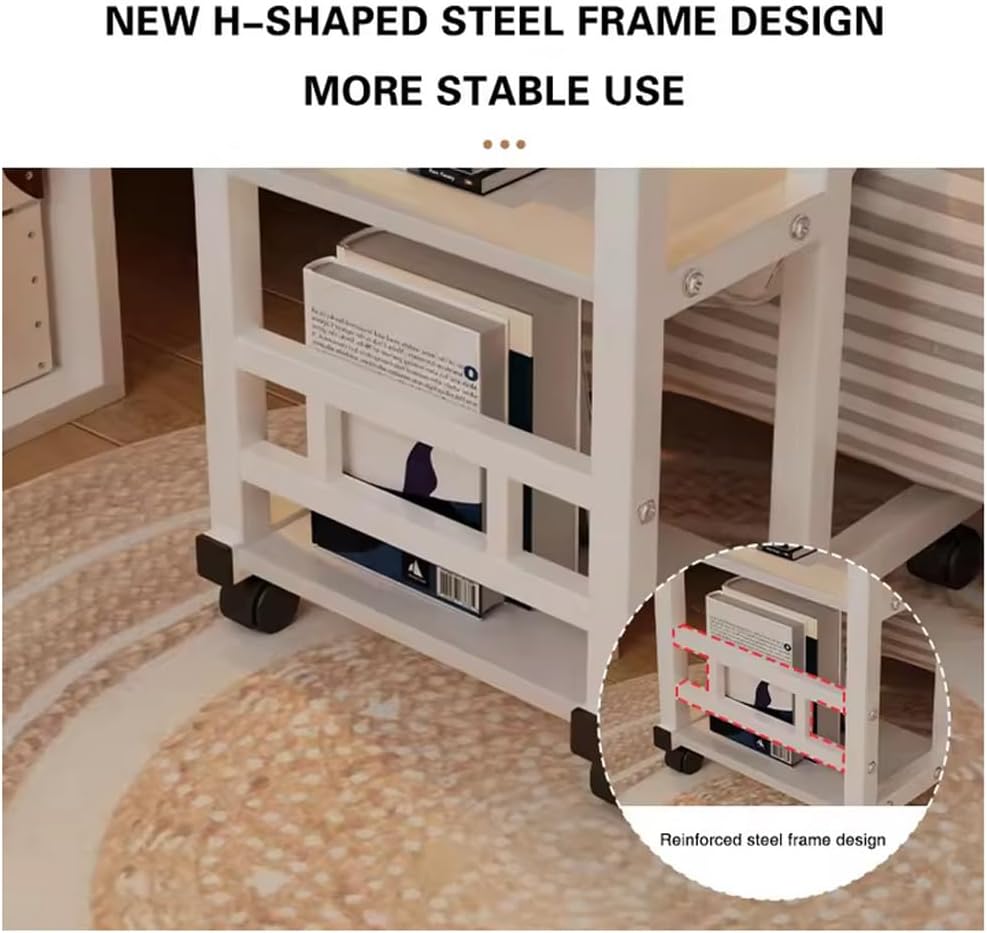

Figure 4.2: Reinforced H-shaped steel frame design for enhanced stability.

5. Operating Instructions

5.1 Height Adjustment

The table features an adjustable height mechanism, allowing you to customize its height from 60cm to 90cm to suit your needs.

1. Loosen Knobs: Locate the locking knobs on the adjustable height poles. Turn them counter-clockwise to loosen.
2. Adjust Height: Gently raise or lower the tabletop to your desired height.
3. Tighten Knobs: Once the desired height is reached, turn the locking knobs clockwise firmly to secure the tabletop in place. Ensure both knobs are equally tightened for stability.

Figure 5.1: Adjusting the table height using the locking knobs.

5.2 Using Lockable Wheels

The table is equipped with four smooth-rolling wheels, two of which are lockable, for easy mobility and secure positioning.

• To Move: Ensure the wheel locks are disengaged (lever in the 'up' position). Gently push the table to its desired location.
• To Lock: Once the table is in position, press down the lever on the two lockable wheels until they click into place. This will prevent the table from moving.
• To Unlock: Lift the lever on the lockable wheels to disengage the lock.

Figure 5.2: Detail of the lockable wheel mechanism.

5.3 C-Shaped Design Placement

The unique C-shaped design allows the table base to slide under sofas, beds, or chairs, bringing the tabletop closer to you for comfortable use.

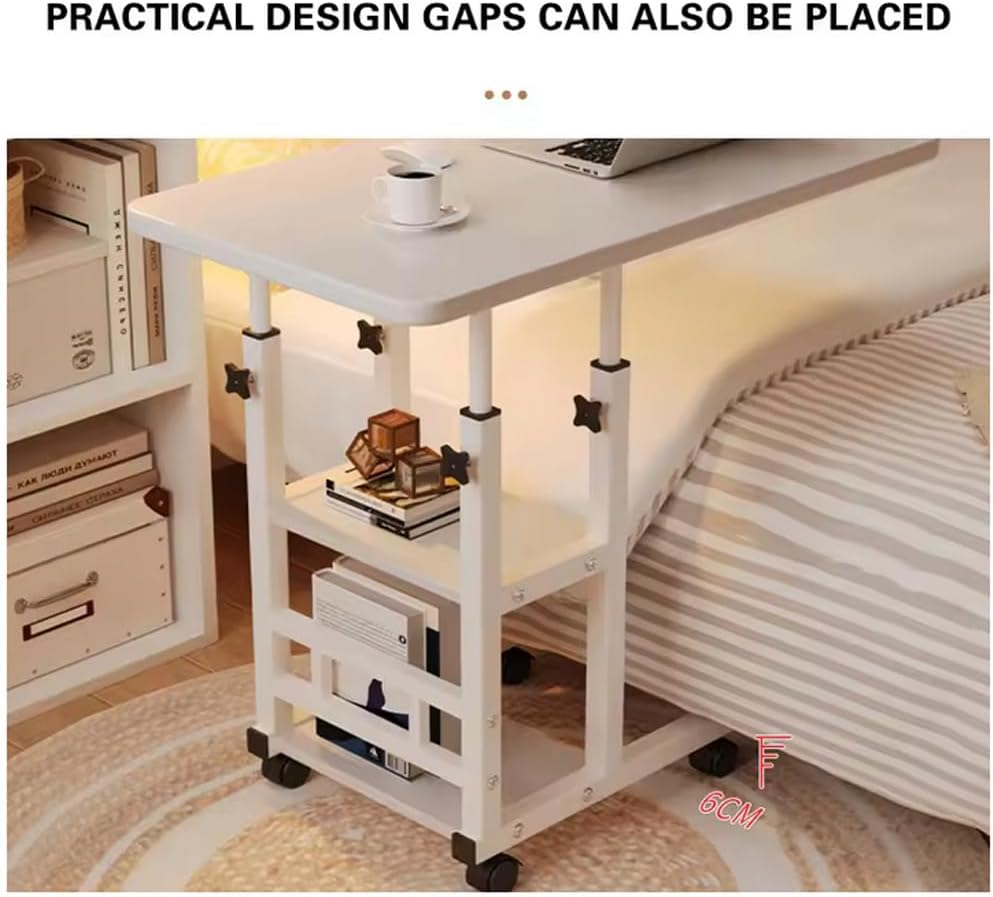

Figure 5.3: Table positioned with its base under a bed.

5.4 Rounded Table Corners

The table features rounded corners for user safety and comfort, reducing the risk of bumps and scrapes.

Figure 5.4: Rounded table corners for enhanced safety.

6. Maintenance

To ensure the longevity and appearance of your IDEALHOUSE C-Shaped End Table, follow these maintenance guidelines:

• Cleaning: Wipe the table surface with a soft, damp cloth. For stubborn marks, use a mild soap solution and dry immediately. Avoid abrasive cleaners or harsh chemicals.
• Inspection: Periodically check all screws and fasteners to ensure they remain tight. Retighten if necessary.
• Wheel Care: Keep the wheels free of dust and debris to ensure smooth movement.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight may cause discoloration or damage to the surface material.

7. Troubleshooting

If you encounter any issues with your table, refer to the following common problems and solutions:

• Table is Wobbly:
  • Ensure all assembly screws and height adjustment knobs are fully tightened.
  • Check that the table is on a flat, even surface.
• Wheels Not Rolling Smoothly:
  • Check for debris (hair, lint) caught in the wheels and clean them.
  • Ensure the wheel locks are fully disengaged.
• Height Adjustment is Difficult:
  • Ensure the locking knobs are sufficiently loosened before attempting to adjust.
  • Do not force the adjustment. If resistance is met, check for obstructions.

If these solutions do not resolve the issue, please contact IDEALHOUSE customer support.

8. Specifications

9. Warranty and Support

For warranty information or customer support, please refer to the documentation included with your purchase or contact IDEALHOUSE directly through their official website or the retailer where the product was purchased. Please have your model number (SODQAq7X18090cvfgWMXDQdd9) and purchase date available when contacting support.
