InfratexRC Remote Control Instruction Manual

1. Introduction

This manual provides instructions for the InfratexRC remote control, designed for use with various Saba United television models. This remote control offers a straightforward user experience with no complex setup required. Simply insert batteries, and it is ready for immediate use.

2. Safety Information

• Do not expose the remote control to direct sunlight, heat sources, or extreme temperatures.
• Avoid dropping the remote control or subjecting it to strong impacts.
• Do not immerse the remote control in water or other liquids.
• Keep batteries out of reach of children. If swallowed, seek immediate medical attention.
• Dispose of used batteries according to local regulations. Do not incinerate.

3. Package Contents

The package contains:

• 1 x InfratexRC Remote Control

Note: Batteries are not included and must be purchased separately.

4. Setup

4.1 Battery Installation

1. Locate the battery compartment cover on the back of the remote control.
2. Slide the cover downwards or press the latch and lift to open the compartment.
3. Insert two AAA batteries (not included), ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Replace the battery compartment cover by sliding it back into place until it clicks securely.

Once batteries are installed, the remote control is ready for use with your compatible Saba United TV. No additional programming is required.

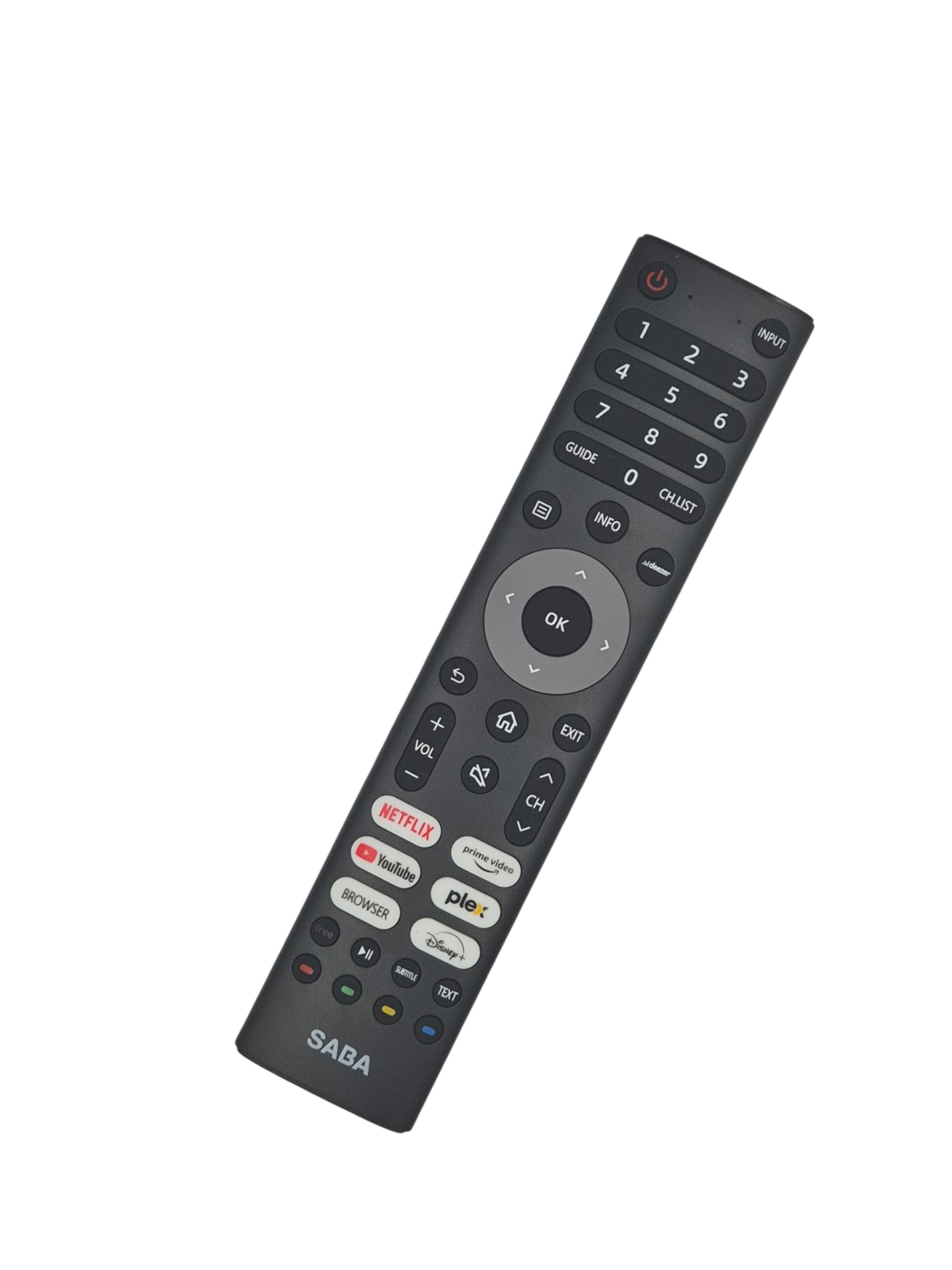

Figure 1: InfratexRC Remote Control. This image shows the front of the remote control, highlighting its design and button layout. The battery compartment is located on the rear side.

5. Operating the Remote Control

This remote control functions identically to your original Saba United TV remote. Point the remote control directly at the TV's infrared receiver. Ensure there are no obstructions between the remote and the TV.

5.1 Basic Functions

• Power Button: Turns the TV on or off.
• Number Buttons (0-9): Selects channels directly.
• Channel Up/Down: Navigates through channels sequentially.
• Volume Up/Down: Adjusts the TV's volume level.
• Mute Button: Silences the TV audio.
• Input/Source Button: Changes the input source (e.g., HDMI, AV).
• Menu Button: Accesses the TV's main menu.
• Navigation Buttons (Up, Down, Left, Right, OK): Used to navigate menus and confirm selections.
• Back/Exit Button: Returns to the previous screen or exits a menu.

Refer to your Saba United TV's original user manual for specific functions of advanced buttons, if present on this replacement remote.

6. Maintenance

6.1 Cleaning

To clean the remote control, gently wipe it with a soft, dry cloth. Do not use liquid cleaners, abrasive pads, or chemical solvents, as these may damage the surface or internal components.

6.2 Battery Replacement

Replace batteries when the remote control's response becomes sluggish or stops working. Always replace both batteries at the same time with new ones of the same type (AAA). Do not mix old and new batteries or different types of batteries.

If the remote control will not be used for an extended period, remove the batteries to prevent leakage and potential damage.

7. Troubleshooting

• Remote control is not working:
  • Check if the batteries are inserted correctly with the correct polarity (+/-).
  • Replace the batteries with new ones.
  • Ensure there are no obstructions between the remote control and the TV's infrared receiver.
  • Make sure you are within the effective operating range and pointing the remote directly at the TV.
• Some buttons are not responding:
  • This remote is designed to replicate the original remote's functions. If a specific button does not work, verify if your TV model supports that function with its original remote.
  • Clean the remote control as described in the Maintenance section.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the retailer or manufacturer's official website where the product was purchased. Keep your purchase receipt as proof of purchase.
