ZHIXJIA 4K 50MP Autofocus Digital Camera Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the ZHIXJIA 4K 50MP Autofocus Digital Camera, Model DC03. Designed for ease of use, this compact point-and-shoot camera is equipped with advanced features for capturing high-quality photos and videos. It supports 4K video recording and 50MP still images, featuring an 18X digital zoom, a 2.8-inch 180° flip screen, and autofocus capabilities. Additional functions include image stabilization, various shooting modes, and creative filters.

2. What's in the Box

Upon opening your ZHIXJIA DC03 camera package, please verify that all the following items are included:

• ZHIXJIA 4K 50MP Digital Camera (Model DC03)
• USB Charging Cable
• Drawstring Pouch
• Cleaning Cloth
• Wrist Strap
• 32GB TF Memory Card (pre-installed or included separately)
• User Manual (this document)

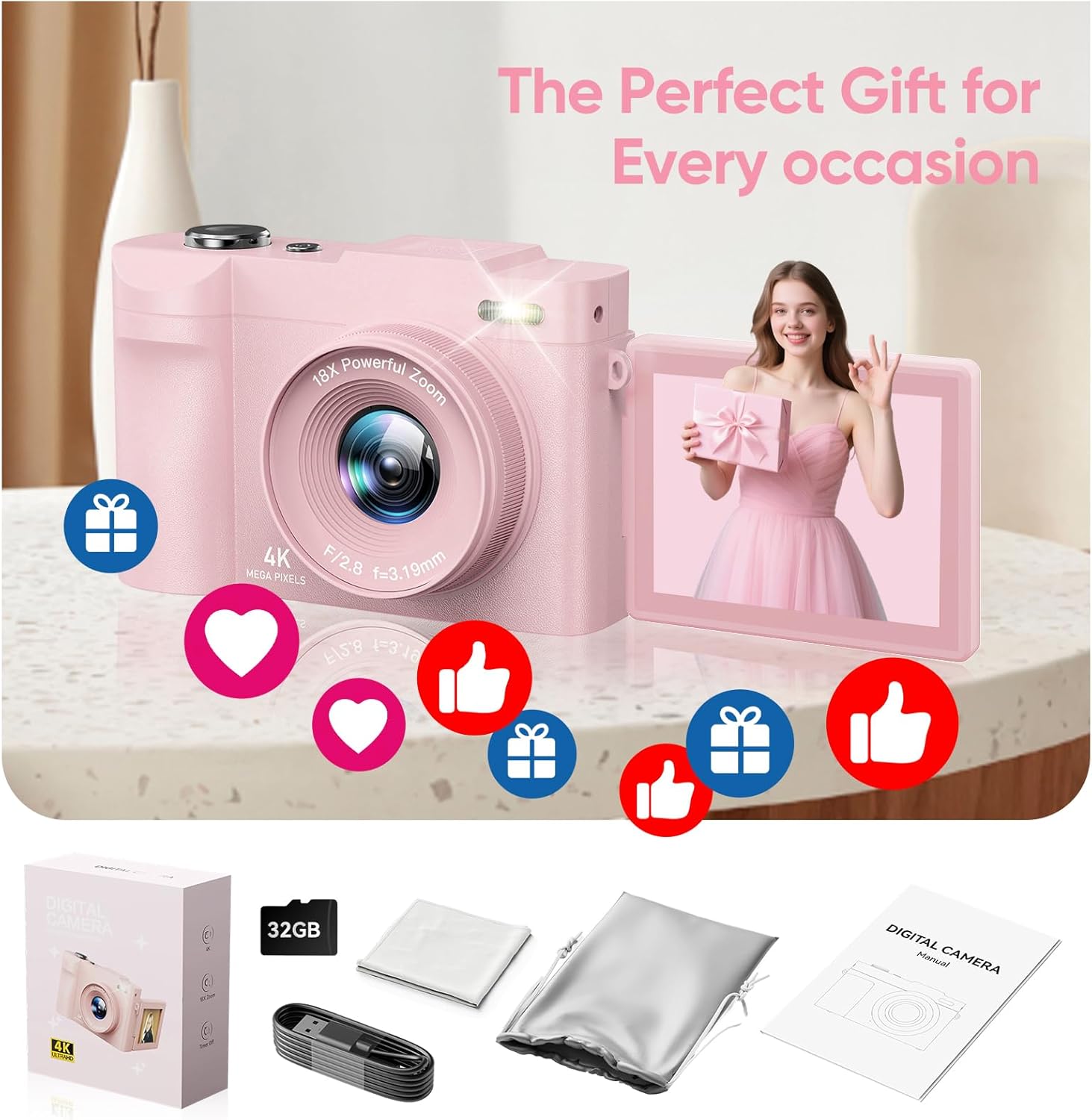

Image: All items included in the ZHIXJIA DC03 camera package.

3. Setup

3.1 Charging the Battery

Before initial use, fully charge the camera's internal rechargeable battery. Connect the camera to a USB power source using the provided USB charging cable. The charging indicator light will illuminate during charging and turn off when fully charged.

3.2 Inserting the Memory Card

The camera supports a 32GB TF (MicroSD) memory card. Locate the memory card slot on the side of the camera. Gently insert the TF card with the gold contacts facing down until it clicks into place. To remove, press the card in again until it springs out.

3.3 Powering On/Off

Press and hold the Power button (usually located on the top or back of the camera) until the screen illuminates to turn the camera on. To turn off, press and hold the Power button again.

3.4 Initial Settings

Upon first power-on, you may be prompted to set the language, date, and time. Navigate through the menu using the directional buttons and confirm selections with the OK button.

4. Operating the Camera

4.1 Taking Photos

1. Power On: Turn on the camera.
2. Frame Your Shot: Use the 2.8-inch LCD screen to compose your image.
3. Autofocus: The camera features autofocus. Half-press the Shutter button to allow the camera to focus on your subject.
4. Capture: Fully press the Shutter button to take the picture.

Image: The ZHIXJIA DC03 camera in use for photography.

4.2 Recording Videos

1. Switch to Video Mode: Use the mode button or menu to select video recording mode.
2. Start Recording: Press the Shutter button to begin recording.
3. Pause/Resume: Some models allow pausing and resuming video recording by pressing the Shutter button again.
4. Stop Recording: Press the Shutter button to stop recording.

4.3 Using the 180° Flip Screen for Selfies/Vlogging

The 2.8-inch screen can be flipped 180° forward, allowing you to see yourself while taking selfies or recording vlogs. Adjust the screen to your desired angle for optimal framing.

Image: Demonstrates the 180° flip screen in use for selfies.

4.4 Digital Zoom (18X)

Use the zoom buttons (often marked with 'W' for Wide and 'T' for Telephoto) to adjust the 18X digital zoom. Digital zoom magnifies the image electronically, which may affect image quality at higher magnifications.

Image: Visual representation of the 18X digital zoom feature.

4.5 Special Features and Settings

Access the camera's menu to explore various settings and features:

• Image Stabilization: Helps reduce blur from camera shake.
• Fill Light/Flash: Use the built-in flash for low-light conditions.
• Shooting Modes: Select from modes like Landscape, Macro, Portrait, Sports, Party, Beach, etc.
• Filters/Effects: Apply various creative filters (e.g., Black & White, Sepia) to your photos.
• Self-Timer: Set a delay (e.g., 2s, 5s, 10s) before a photo is taken.
• Smile and Face Detection: Automatically detects faces and smiles for optimal capture.
• Face Beauty: Enhances facial features in portraits.

Image: Example of the camera's filter options.

4.6 Transferring Files to a Computer

To transfer photos and videos, remove the TF memory card from the camera. Insert the TF card into a compatible card reader connected to your computer. The files will appear as a removable drive, allowing you to copy them to your computer.

5. Maintenance

• Cleaning the Lens and Screen: Use the provided cleaning cloth or a soft, lint-free cloth to gently wipe the camera lens and LCD screen. Avoid using abrasive materials or chemical cleaners.
• Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Store the camera in a cool, dry place when not in use for extended periods.
• Storage: When not in use, store the camera in its drawstring pouch to protect it from dust and scratches.
• Memory Card: Regularly back up your photos and videos from the memory card to prevent data loss. Format the memory card periodically within the camera's settings to maintain optimal performance.

6. Troubleshooting

Camera does not power on:

Ensure the battery is fully charged. If the battery is removable, ensure it is correctly inserted. Try charging the camera for at least 30 minutes.

Cannot take photos/videos:

Check if the memory card is inserted correctly and has sufficient free space. The camera may also not function if the battery is critically low.

Images are blurry:

Ensure the lens is clean. Allow the autofocus to lock onto the subject by half-pressing the shutter button before fully pressing it. Use the image stabilization feature if available and ensure adequate lighting.

Cannot transfer files to computer:

Ensure the memory card is properly inserted into the card reader. Try a different USB port or card reader. Verify that your computer's operating system recognizes the card reader.

7. Specifications

8. Warranty and Support

The ZHIXJIA 4K 50MP Autofocus Digital Camera comes with a one-year warranty covering manufacturing defects. Additionally, the manufacturer offers lifetime support for the product. For any questions, technical assistance, or warranty claims, please contact ZHIXJIA customer service.

Customer service is available 24/7. Please refer to the contact information provided on the product packaging or the official ZHIXJIA website for support details.
