Radioddity HF-010 Portable HF Antenna Instruction Manual

1. Introduction

The Radioddity HF-010 is a versatile 10-band (80m-6m) portable HF antenna designed for amateur radio operators. It offers robust construction with 304 stainless steel components, flexible deployment options, and efficient tuning for field operations such as POTA (Parks On The Air) and SOTA (Summits On The Air).

This manual provides detailed instructions for the assembly, setup, operation, and maintenance of your HF-010 antenna to ensure optimal performance and longevity.

Image: The Radioddity HF-010 antenna set up in a natural outdoor environment, demonstrating its portability for field operations.

2. Safety Information

• Avoid Power Lines: Never install or operate the antenna near overhead power lines or other electrical installations. Contact with power lines can be fatal.
• Lightning Safety: Do not operate the antenna during thunderstorms. Disconnect the antenna from your radio equipment during lightning activity.
• Secure Deployment: Always ensure the antenna is securely mounted using the tripod, ground spike, or other stable means to prevent it from falling, especially in windy conditions.
• RF Exposure: Maintain a safe distance from the antenna during transmission to minimize exposure to radio frequency (RF) energy. Consult your radio's manual for specific RF safety guidelines.
• Handle with Care: The antenna contains small parts and telescoping elements. Handle with care to avoid pinching fingers or damaging components.

3. Package Contents

Verify that all components listed below are present in your Radioddity HF-010 kit:

• Extension Rod (x2)
• Telescopic Whip
• Ground Spike
• Tunable Loading Coil (5-18MHz)
• Antenna Base
• Tripod Mount
• Fixed Loading Coil (3.5MHz for 80m)
• Carrying Bag
• Tape Measure (3m/10ft)
• Ground Radial Wires (x3)
• BNC-M to SO239 Adapter
• Connecting Piece
• Antenna Coax-Cable (32.8 ft / 10 m)
• Water Bag (for tripod stability)

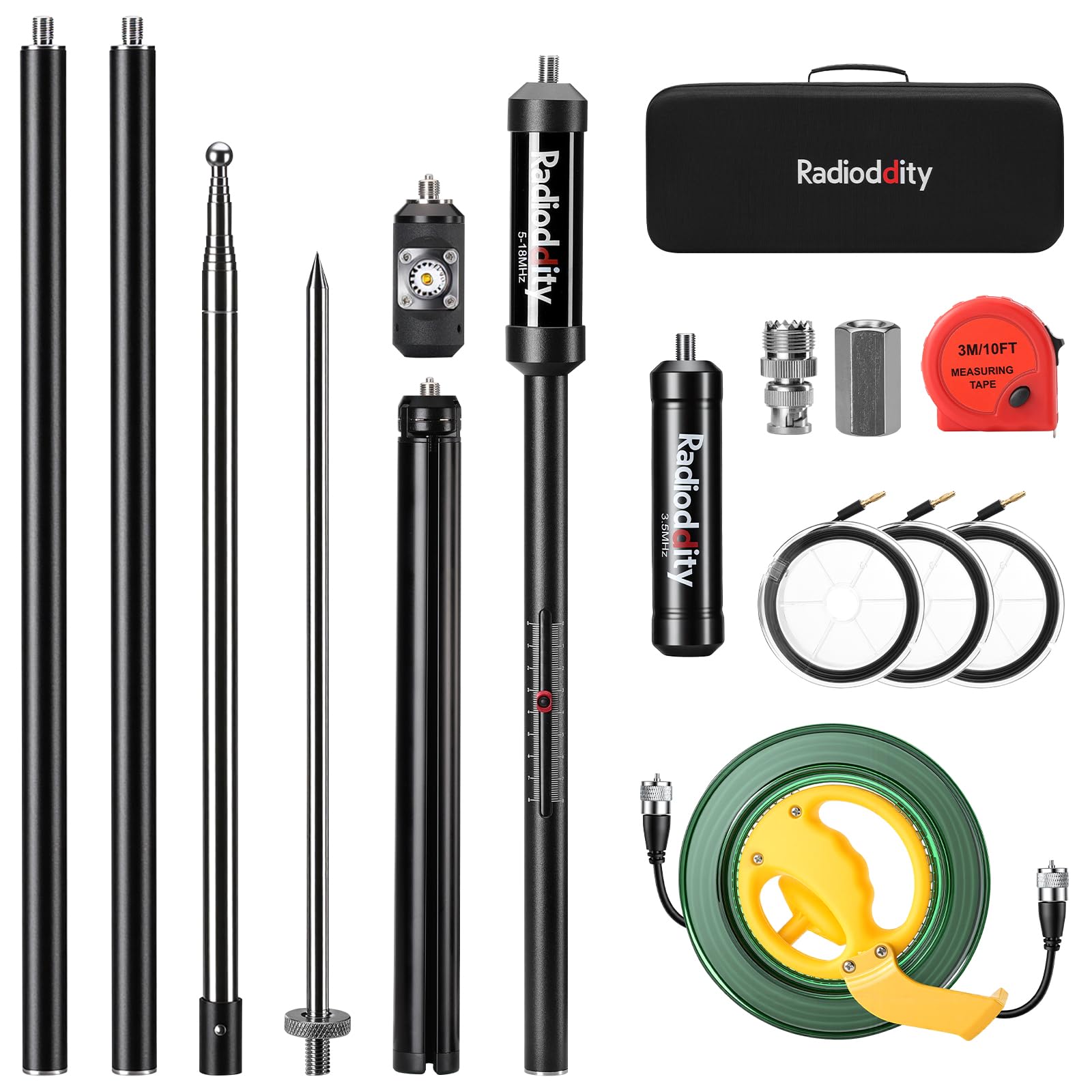

Image: All components of the Radioddity HF-010 kit, clearly labeled for identification.

4. Assembly and Setup

The HF-010 antenna offers flexible deployment options. Choose the method best suited for your operating environment.

4.1 General Assembly Steps

1. Connect Antenna Base: Screw the antenna base onto the top of the tripod mount or ground spike.
2. Add Extension Rods: Attach one or both extension rods to the antenna base, depending on desired height and band requirements.
3. Attach Loading Coil:
   • For 80m operation, attach the Fixed Loading Coil (3.5MHz).
   • For 60m-17m operation, attach the Tunable Loading Coil (5-18MHz). Adjust the sliding coil for resonance.
   • For 15m-6m operation, no loading coil is typically required; connect the telescopic whip directly to the extension rod or antenna base.
4. Attach Telescopic Whip: Screw the telescopic whip onto the top of the loading coil or extension rod. Extend the whip to the required length for your desired band (refer to Section 5.2).
5. Connect Coaxial Cable: Attach the 10m coaxial cable to the SO239 connector on the antenna base. Use the BNC-M to SO239 adapter if your radio has a BNC connector.
6. Deploy Radial Wires: Connect the three ground radial wires to the designated terminals on the antenna base. Extend them outwards from the antenna, laying them on the ground. The length of the radials is critical for tuning (refer to Section 5.2).

4.2 Deployment Options

• Tripod Mount: For hard surfaces like concrete or patios.
  • Unfold the tripod legs.
  • For added stability, fill the included water bag and place it over the tripod legs, resting on the center.
• Ground Spike: For soft ground such as soil or grass.
  • Gently push or twist the ground spike into the earth until stable. Do not hammer the spike.
• Vehicle Mount: The antenna can be mounted to a vehicle roof using a compatible magnetic antenna base (e.g., Radioddity M916, sold separately) and the optional HF-010A accessory. Ensure the magnetic base is securely attached to a clean, flat metallic surface.

Image: Examples of the HF-010 antenna deployed in diverse field environments, showcasing its adaptability.

5. Tuning and Operation

The HF-010 antenna covers 10 bands from 80m to 6m (3.5-50MHz). Proper tuning is essential for efficient operation and to protect your transceiver.

5.1 Band Selection and Coil Usage

• 80m (3.5MHz): Use the Fixed Loading Coil (3.5MHz).
• 60m-17m (5-18MHz): Use the Tunable Loading Coil (5-18MHz). Adjust the sliding coil for resonance.
• 15m-6m (21-50MHz): No loading coil is typically required. Connect the telescopic whip directly to the extension rod or antenna base.

5.2 Tuning Procedure

Tuning involves adjusting the telescopic whip length and, for certain bands, the sliding tunable coil and radial wire lengths. Use an antenna analyzer or the SWR meter on your transceiver for precise tuning.

1. Select Band: Choose your desired operating band and attach the appropriate loading coil (if any).
2. Extend Whip: Extend the telescopic whip to the approximate length specified in the tuning chart (refer to the table below). Use the included tape measure for accuracy.
3. Adjust Tunable Coil (if applicable): For 60m-17m, slide the tunable coil up or down to find the lowest SWR.
4. Adjust Radial Wires: Ensure radial wires are deployed to the correct length for the band. The wires are marked at 100cm intervals for convenience.
5. Fine-Tune: Make small adjustments to the whip length and/or tunable coil position until the SWR is at its lowest point (ideally ≤1.5:1). Mark your resonant points on the tape measure for quick future setup.

Image: Demonstrates the adjustable tunable coil and the use of the tape measure for setting whip length for specific bands.

5.3 Power Handling

The Radioddity HF-010 antenna supports up to 100W CW and 150W PEP SSB. Always operate within these limits to prevent damage to the antenna and your radio equipment.

6. Maintenance

Regular maintenance will extend the life and performance of your HF-010 antenna.

• Cleaning: After field use, especially in dusty or wet conditions, wipe down all components with a damp cloth to remove dirt and debris. Ensure all parts are dry before storage.
• Corrosion Protection: The antenna features 304 stainless steel connectors and an internal coil design for enhanced corrosion resistance. However, it is good practice to periodically inspect all connections for signs of wear or corrosion.
• Storage: Disassemble the antenna and store all components neatly in the included Oxford carrying bag. This protects the antenna from physical damage and environmental exposure during transport and storage.
• Inspection: Before each use, inspect the telescopic whip for smooth extension and retraction, and check all threaded connections for tightness.

Image: Illustrates the robust 304 stainless steel construction of the HF-010's connectors, designed for durability.

Image: Highlights the internal coil design of the HF-010, which provides superior protection against environmental elements compared to external coils.

7. Troubleshooting

If you encounter issues with your HF-010 antenna, consider the following common troubleshooting steps:

• High SWR:
  • Check Whip Length: Ensure the telescopic whip is extended to the correct length for the desired band.
  • Verify Coil Selection/Adjustment: Confirm the correct loading coil is used and, if tunable, that it is adjusted for minimum SWR.
  • Radial Deployment: Ensure radial wires are fully extended and of the correct length for the band. Poor ground connection or improperly deployed radials can cause high SWR.
  • Cable Connection: Check all coaxial cable connections for tightness and proper seating. Inspect the cable for damage.
  • Environment: Proximity to large metallic objects, buildings, or other antennas can affect SWR. Try relocating the antenna.
• Poor Signal Reports / Low Performance:
  • SWR Check: High SWR directly impacts performance. Resolve SWR issues first.
  • Antenna Orientation: While a vertical antenna is omnidirectional, local obstructions can affect signal.
  • Power Output: Ensure your transceiver is set to an appropriate power output for the band and conditions.
  • Band Conditions: HF propagation varies significantly. Check current band conditions.
• Physical Damage: If any component appears damaged, do not attempt to operate the antenna. Contact customer support for assistance.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or to purchase replacement parts, please contact Radioddity customer service through their official website or the retailer where you purchased the product.

Please have your product model (HF-010) and purchase details ready when contacting support.
