DurayLoly Ergonomic Office Chair with Adjustable Arms and Footrest (Model B0GLNX2GTZ)

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your DurayLoly Ergonomic Office Chair, Model B0GLNX2GTZ. Please read this manual thoroughly before assembly and use to ensure proper function and safety. Keep this manual for future reference.

Safety Information

• Do not exceed the maximum weight capacity of 400 lbs (181 kg).
• Ensure all screws and bolts are tightened securely before use. Periodically check and re-tighten if necessary.
• Keep hands and feet clear of moving parts during adjustment.
• Use the chair on a flat, stable surface to prevent tipping.
• Do not stand on the chair.
• Avoid exposing the chair to direct sunlight or extreme temperatures to prevent material degradation.

Package Contents

Before beginning assembly, verify that all components are present. Refer to the assembly video for visual identification of parts.

• Chair Backrest
• Chair Seat with Armrests
• Chair Base (5-star metal base)
• PU Caster Wheels (5x)
• Gas Lift Cylinder
• Footrest Assembly
• Mounting Plate/Mechanism
• Hardware Pack (screws, washers, Allen wrench)

Setup and Assembly

Follow these steps to assemble your DurayLoly Ergonomic Office Chair. A detailed assembly video is provided for visual guidance.

1. Assemble the Chair Base:
   Attach the five legs to the central hub of the chair base using the provided screws. Ensure they are securely fastened. Insert the five PU caster wheels into the ends of the legs until they click into place.
2. Install the Gas Lift:
   Insert the gas lift cylinder into the central hole of the assembled chair base.
3. Attach the Mounting Plate to the Seat:
   Align the mounting plate (mechanism) with the pre-drilled holes on the underside of the chair seat. Secure it with the appropriate screws. Ensure the 'FRONT' arrow on the mechanism points towards the front of the seat.
4. Attach Armrests to the Seat:
   Secure the adjustable armrests to the sides of the seat using the designated screws.
5. Connect Seat to Base:
   Carefully place the assembled seat onto the gas lift cylinder, ensuring it is centered and stable.
6. Attach Backrest:
   Align the backrest with the mounting points on the seat and secure it with the remaining screws.

Operating Instructions

Your DurayLoly Ergonomic Office Chair offers multiple adjustments for personalized comfort.

• Height Adjustment: Locate the lever under the seat on the right side. Pull the lever up to raise the seat. While seated, pull the lever up to lower the seat. Release the lever to lock the height.
• Backrest Recline (95°-155°): Use the lever on the left side under the seat to adjust the backrest angle. Pull the lever up to recline, and push it down to lock the desired position.
• Adjustable Armrests (5-level): The armrests can be adjusted to five different positions. Lift the armrest slightly and move it to the desired angle. They can also fold down completely to allow for cross-legged sitting.
• Retractable Footrest: Pull the footrest out from under the seat. Flip the padded section up to extend it. Push it back under the seat when not in use.
• 360° Swivel and Mobility: The chair features smooth-rolling PU caster wheels and a 360-degree swivel function for easy movement and rotation.
• Side Storage Pockets: Utilize the convenient pockets on the armrests for storing small items like remote controls or books.

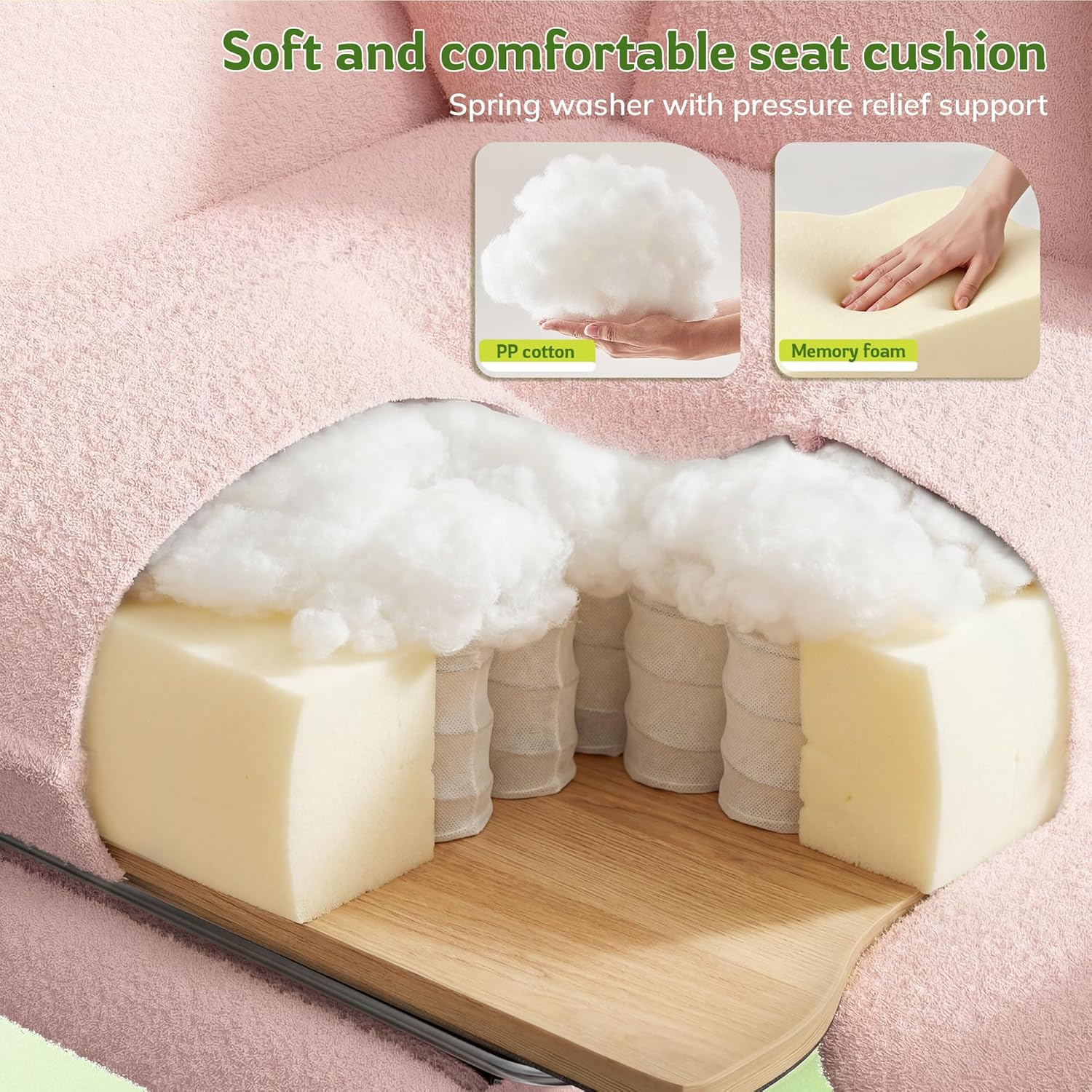

Visual Guide to Features

Maintenance

• Cleaning: For the teddy fleece fabric, gently vacuum regularly to remove dust and debris. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner following the product instructions, testing on an inconspicuous area first.
• Hardware Check: Periodically inspect all screws and bolts to ensure they are tight. Re-tighten as needed to maintain stability and safety.
• Caster Care: Keep the caster wheels free of hair and debris to ensure smooth rolling.

Troubleshooting

• Chair does not adjust height: Ensure the gas lift lever is fully engaged or disengaged as required. Check if the gas lift cylinder is properly seated in the base and seat mechanism.
• Chair is wobbly: Verify that all assembly screws are securely tightened. Check the chair base for any damage or unevenness.
• Casters not rolling smoothly: Inspect caster wheels for trapped debris (hair, lint) and clean them. Ensure they are fully inserted into the chair base.
• Backrest does not recline/lock: Check the recline lever and mechanism for any obstructions. Ensure the lever is fully pushed or pulled to engage the lock.

Specifications

Warranty and Support

This product is covered by standard manufacturer warranties. For specific warranty details, claims, or technical support, please refer to the warranty card included in your package or contact DurayLoly customer service directly. Protection plans are available for extended coverage.
