1. Introduction
This manual provides instructions for the assembly, operation, maintenance, and safety of your HOMENURSE Narrow Folding Walker, Model SKSW02-BL. Please read this manual thoroughly before use to ensure safe and proper operation.
The HOMENURSE Narrow Folding Walker is designed to provide mobility assistance for seniors and adults, offering adjustable width and height, a lightweight aluminum frame, and 5-inch wheels with ski glides for various surfaces.
2. Setup and Assembly
The walker is designed for quick and tool-free assembly. Follow these steps:
- Unpack Components: Carefully remove all parts from the packaging. Verify that all components are present: main walker frame, rear legs with wheels, and ski glides.
- Assemble and Adjust:
Connect the connecting tube to the rear leg. Ensure the numbers (e.g., 3 to 3, 4 to 4) align for proper fit. Insert the assembled rear leg tube into the frame slot. Press the push-pin and slide the leg into the frame until the pin locks into place at the desired height setting. The walker offers 8 levels of height adjustment from 30.7" to 37.7". Ensure all four legs are set to the same height and the pins are securely locked into place.
The width can be adjusted by swapping the wheels from the outside to the inside position. This allows the walker to fit through narrow spaces (17.7"-25.8").
Video: This video demonstrates the assembly process, including connecting the rear legs, adjusting height, and folding the HOMENURSE Narrow Folding Walker.
- Install Ski Glides (Optional): For easier forward motion on certain surfaces, replace the rear rubber tips with the provided ski glides.
Image: A step-by-step visual guide demonstrating the tool-free assembly of the walker, including how to attach the legs and adjust the height.
Image: The HOMENURSE Narrow Folding Walker demonstrating its adjustable width feature, allowing it to pass through narrow doorways. The width can be adjusted between 17.7 and 25.8 inches.
Image: A detailed diagram illustrating the process of swapping the wheels from an inside position to an outside position to adjust the walker's overall width.
3. Operating Instructions
3.1 Using the Walker
- Proper Posture: Stand upright with the walker in front of you. Your elbows should be slightly bent when holding the handles.
- Moving Forward: Push the walker slightly forward, then step into the walker, followed by your other foot. Maintain a steady pace.
- Turning: To turn, take small steps in the desired direction, moving the walker with you. Avoid twisting your body.
- Using Ski Glides: The ski glides on the rear legs allow for smoother movement without lifting the walker, especially on carpeted or uneven surfaces.
3.2 Folding the Walker
To fold the walker for storage or transport:
- Ensure no weight is on the walker.
- Lift the handles on the side bars of the walker. The walker will collapse inward.
- Once folded, the walker is compact for storage or transport.
Image: The HOMENURSE walker shown in its folded state, stored compactly next to furniture, and being easily placed into a car trunk for transport.
4. Maintenance
- Cleaning: Clean the walker frame with a damp cloth and mild soap. Do not use abrasive cleaners.
- Inspection: Regularly inspect all parts for wear, damage, or loose connections. Check the wheels, ski glides, and rubber tips for signs of wear.
- Lubrication: Periodically check the folding mechanisms and wheel axles for smooth operation. Lubricate with a silicone-based spray if necessary.
- Storage: Store the walker in a dry place away from direct sunlight and extreme temperatures.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Walker feels unstable or wobbly. | Legs not adjusted to equal height; loose connections. | Ensure all legs are set to the same height and push-pins are fully engaged. Check all screws and connections for tightness. |
| Difficulty folding the walker. | Mechanism obstructed or stiff. | Ensure no objects are obstructing the folding mechanism. Apply a silicone lubricant to the folding joints if stiff. |
| Wheels not rolling smoothly. | Debris in wheels; worn wheels. | Clean any debris from the wheels. If wheels are significantly worn, contact customer support for replacements. |
| Ski glides not moving smoothly. | Worn glides; inappropriate surface. | Inspect ski glides for wear and replace if necessary. Ensure glides are used on suitable surfaces (e.g., carpet, not rough concrete). |
6. Specifications
- Model: SKSW02-BL
- Material: Aluminum
- Weight Capacity: Up to 350 lbs
- Item Weight: 6.8 lbs
- Adjustable Height: 30.7" - 37.7" (8 levels)
- Adjustable Width: 17.7" - 25.8" (by swapping wheels)
- Wheel Size: 5 inches (front wheels)
- Foldable: Yes
- Included Accessories: 2x Ski Glides
- Package Dimensions: 17.24 x 13.46 x 4.8 inches
Image: A visual representation of the walker's reinforced structure, emphasizing the 1.35mm tubing thickness and its capacity to support up to 350 lbs.
Image: Close-up view of the 5-inch wheels and included ski glides, illustrating their function for stable and quiet movement on different floor types.
Image: A diagram illustrating the adjustable height feature of the walker, showing the minimum height of 30.7 inches and maximum height of 37.7 inches.

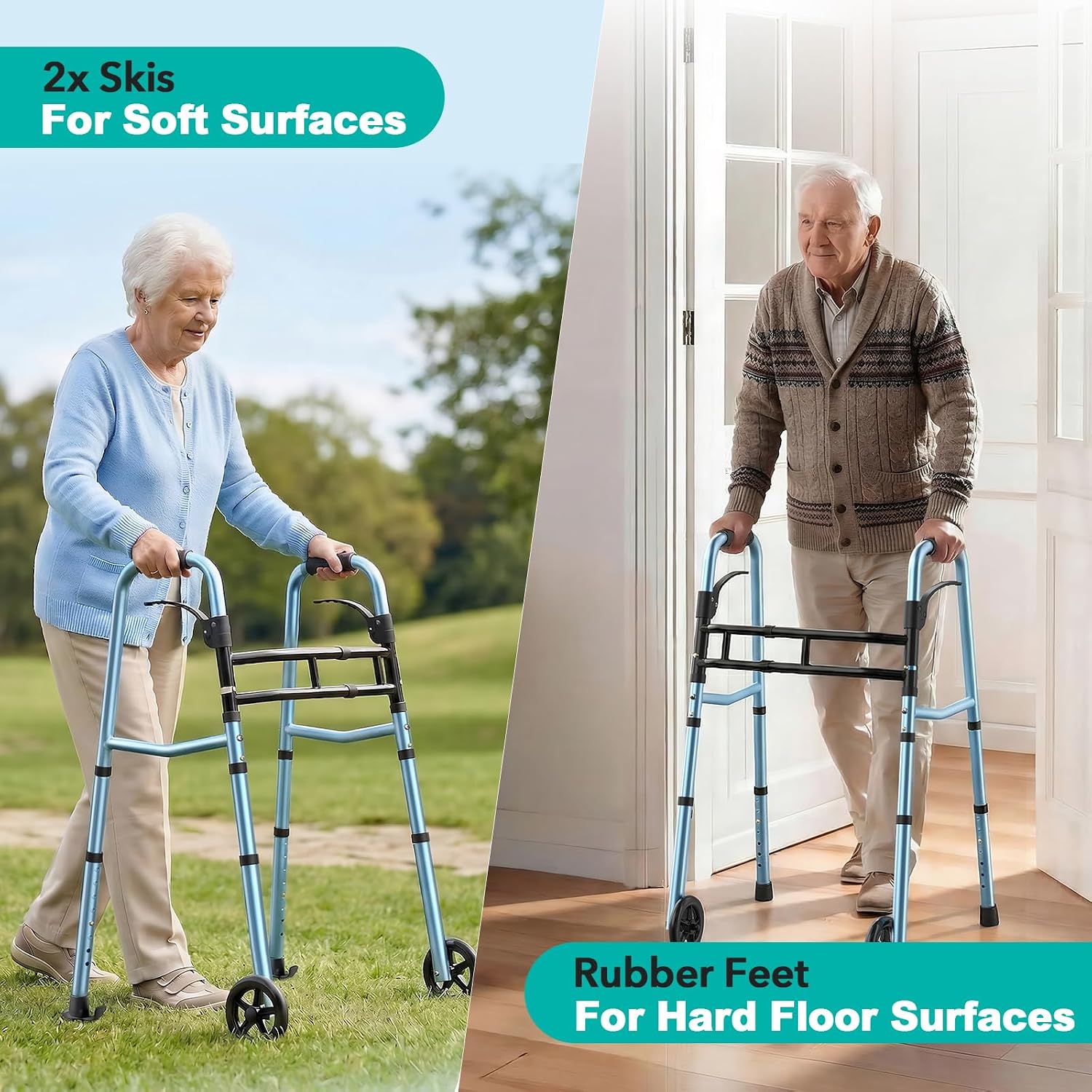

Image: Two scenarios demonstrating the versatility of the walker: one showing a user with ski glides for outdoor use, and another with rubber feet for indoor hard floor surfaces.
7. Warranty & Support
7.1 Warranty Information
This HOMENURSE walker comes with a 2-Year Manufacturer Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accidents, unauthorized modifications, or normal wear and tear.
Please retain your proof of purchase for warranty claims.
7.2 Customer Support
For technical assistance, warranty claims, or any questions regarding your HOMENURSE Narrow Folding Walker, please contact our customer support team.
- Website: HOMENURSE Official Store
- Email: support@homenurse.com
- Phone: 1-800-XXX-XXXX
8. Safety Information
- Always ensure the walker is fully open and all locking mechanisms are engaged before use.
- Do not exceed the maximum weight capacity of 350 lbs.
- Use the walker on level surfaces whenever possible. Exercise caution on uneven terrain or inclines.
- Do not use the walker to climb stairs or escalators.
- Regularly check the rubber tips and wheels for wear and replace them if necessary to prevent slipping.
- Consult with a healthcare professional or physical therapist to ensure this walker is appropriate for your specific mobility needs and to receive guidance on proper usage techniques.
- Keep hands and fingers clear of folding mechanisms when adjusting or folding the walker.
