Introduction
This manual provides essential information for the proper use and maintenance of your DOMANKI 14000 BTU Portable Air Conditioner, Model DMPAC-10-C1. This 3-in-1 unit offers cooling, dehumidifying, and fan functions to enhance your indoor comfort. Please read all instructions carefully before installation and operation to ensure safety and optimal performance.
Image: DOMANKI 14000 BTU Portable Air Conditioner in a living room setting.
Setup and Installation
The DOMANKI portable air conditioner is designed for easy setup. Follow these steps for proper installation:
Unpacking and Placement
- Carefully remove the unit and all accessories from the packaging.
- Place the unit on a flat, stable surface. Ensure there is at least 20 inches of clearance from walls or furniture to allow for proper airflow.
- The unit features 360° smooth-gliding wheels and built-in handles for easy mobility between rooms.
Window Kit Installation
The included universal window kit is suitable for both horizontal and vertical sliding windows, with an adjustable range of 20.5 to 57.3 inches. The installation process is tool-free.
- Prepare the Window: Install the foam sealing strip around the window frame to ensure a tight seal.
- Assemble Window Panel: Insert the inner panel into the outer panel of the window kit. Adjust the length to fit your window opening and tighten the screws.
- Install Exhaust Hose: Attach one end of the exhaust hose to the air conditioner unit's adapter. Connect the other end to the window baffle and secure it with the clips.
- Secure Window Kit: Place the assembled window kit into the window opening. Close the window against the kit to hold it in place.

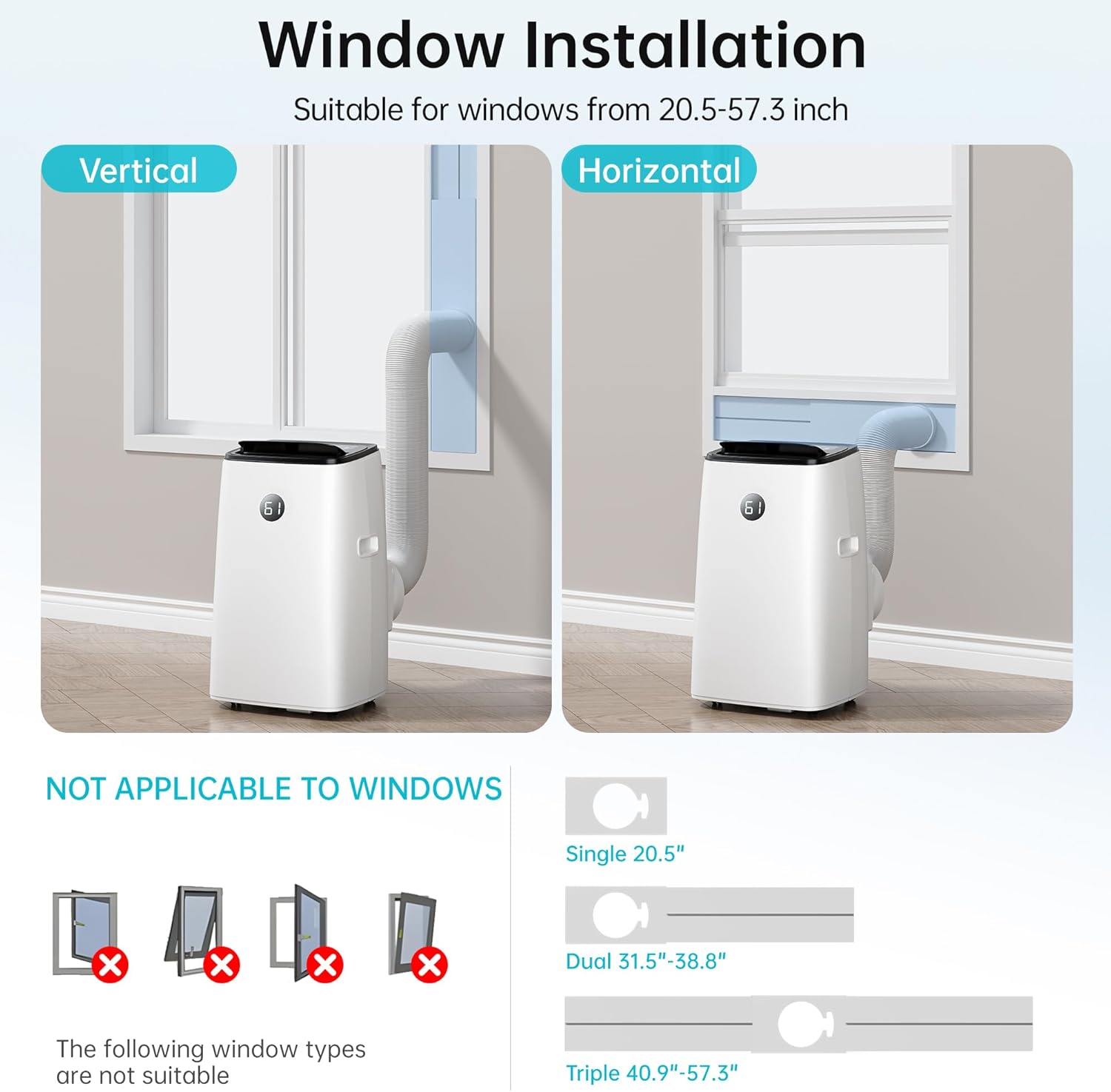

Image: Window installation guide for vertical and horizontal sliding windows.
Image: Visual steps for window kit and exhaust hose installation.
Included Components
Your DOMANKI portable air conditioner package includes:
- Portable Air Conditioner Unit
- Air Exhaust Hose
- Hose Adapters
- Window Kit (Window Boards)
- User Manual
- Full Function Remote Control (requires 2 x AAA batteries, not included)
- Drainage Hose
- Sealing Foam
- Butterfly Bolt
Image: All components included in the installation kit.
Operating Instructions
Your DOMANKI portable air conditioner offers multiple modes and convenient controls.
Control Methods
The unit can be controlled using the intuitive top-mounted control panel or the included full-function remote control.
Image: Top-mounted control panel with buttons for various functions.
Image: Remote control in use, showing its 28ft range.
Operating Modes
The unit features three primary operating modes:
- Cool Mode: Provides powerful cooling for rooms up to 700 sq. ft. Operates effectively between 61°F and 90°F.
- Dehumidifier Mode: Removes up to 96 pints of moisture per day, ideal for humid conditions.
- Fan Mode: Circulates air with three adjustable fan speeds (Low, Medium, High).
Image: Illustration of the 3-in-1 modes: Cool, Fan, and Dry (Dehumidifier).
Special Features
- Smart Sleep Mode: Reduces fan speed and noise level to 48dB for undisturbed sleep. The LED display dims automatically.
- 24-Hour Timer: Program the unit to turn on or off automatically, allowing for pre-cooling or energy saving.
- Auto Swing: Louvers automatically swing to circulate air evenly throughout the room.
- Child Lock: Prevents accidental changes to settings.
Image: Sleep Mode operation, showing low noise level for quiet rest.
Video Overview
Video: An overview of the Domanki portable air conditioner features and functions.
Maintenance
Regular maintenance ensures the longevity and efficiency of your air conditioner.
Filter Cleaning
The unit features a washable air filter. Clean the filter regularly to maintain optimal air quality and cooling performance.
- Turn off and unplug the unit before cleaning.
- Remove the air filter from the back of the unit.
- Wash the filter with warm, soapy water. Rinse thoroughly and allow it to air dry completely before reinserting.

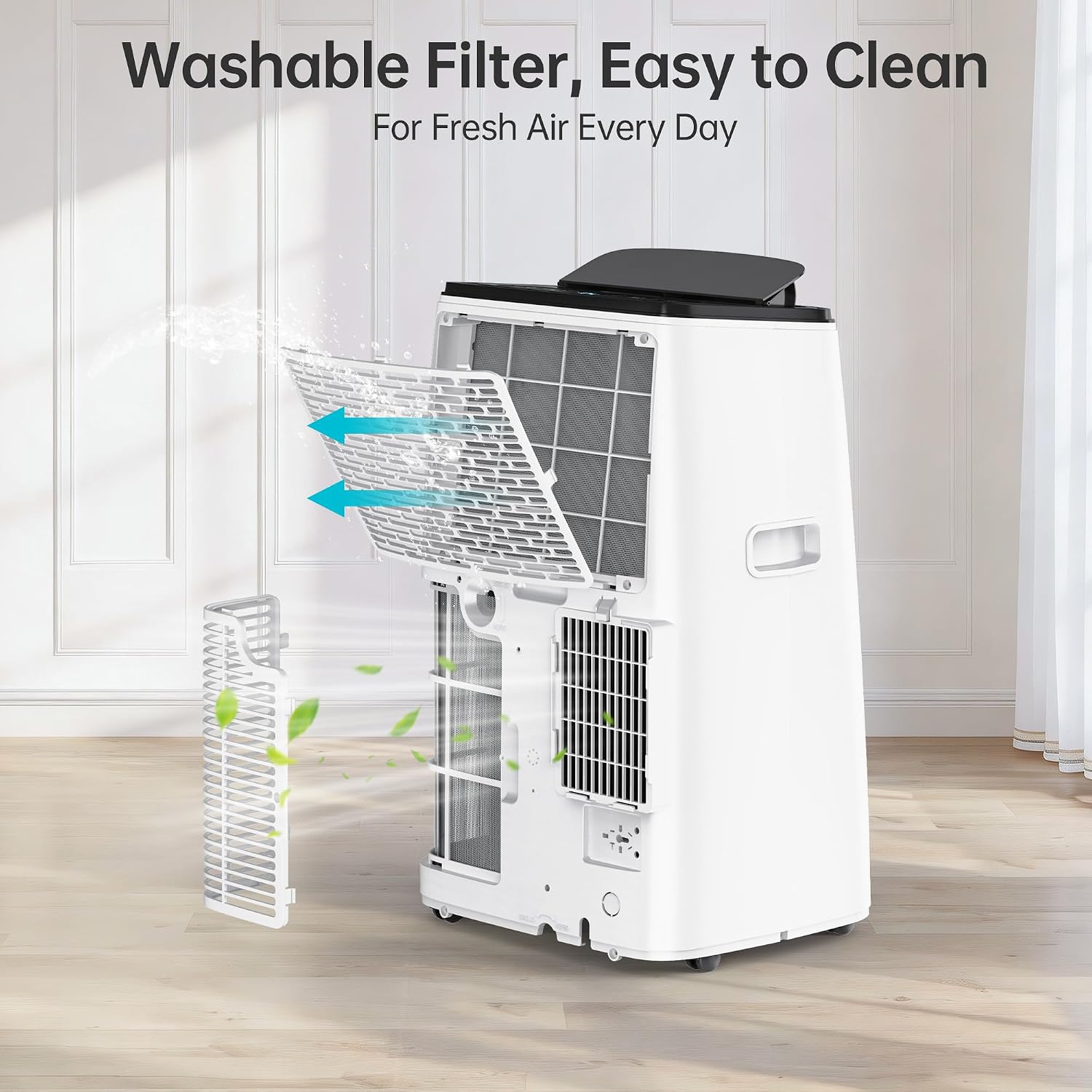

Image: Removing the washable filter for cleaning.
Drainage
The DOMANKI portable air conditioner utilizes an advanced self-evaporation system, which typically exhausts most condensation through the hose, allowing for no-drain operation during daily use.
- Manual Drainage: In high-humidity environments (above 80%), such as basements or laundry rooms, manual draining may be required approximately every 8 hours. The unit will automatically shut off when the internal tank is full to prevent overflows.
- Continuous Drainage: For continuous dehumidification or prolonged cooling in high humidity, connect the included drain hose to the unit's drainage port and direct it to a suitable drain or container.
Image: Diagram of the self-evaporating system, showing how condensation is processed.
Troubleshooting Guide
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power, full water tank, timer active. | Check power connection. Empty water tank if full indicator is on. Deactivate timer. |
| Unit does not cool effectively. | Dirty air filter, blocked air intake/outlet, room size too large, open doors/windows, exhaust hose not properly installed. | Clean air filter. Ensure clear airflow. Close doors/windows. Verify exhaust hose installation. |
| Water leakage. | Drainage plug loose, continuous drainage hose not properly connected. | Ensure drainage plug is secure. Check continuous drainage hose connection. |
| Unit is noisy. | Unit not on a flat surface, fan speed too high. | Place unit on a level surface. Reduce fan speed if noise is excessive. |
| Remote control not working. | Dead batteries, obstruction between remote and unit. | Replace AAA batteries. Ensure no obstacles block the signal. |
Product Specifications
Detailed technical specifications for the DOMANKI 14000 BTU Portable Air Conditioner.
| Feature | Specification |
|---|---|
| Brand | DOMANKI |
| Model Name | DMPAC-10-C1 |
| Cooling Power (ASHRAE) | 14000 British Thermal Units |
| Cooling Power (SACC) | 10000 British Thermal Units |
| Applicable Room Area | Up to 700 Square Feet |
| Dehumidification Capacity | 96 Pints/Day |
| Air Flow | 277 CFM (470 m³/h) |
| Operating Temperature Range | 61°F to 90°F |
| Noise Level | 48 Decibels (in Sleep Mode) |
| Voltage | 115 Volts |
| Wattage | 1250 watts |
| Refrigerant | R32 |
| Product Dimensions (D x W x H) | 13"D x 16"W x 26"H |
| Item Weight | 65 Pounds |
| Window Kit Compatibility | Horizontal and Vertical Sliding Windows (20.5" to 57.3") |
| Control Method | Push Button, Remote Control |
| Special Features | Auto Clean, Child Lock, Dehumidifier, Fast Cooling, Sleep Mode, Auto Swing |
Warranty Information
The DOMANKI 14000 BTU Portable Air Conditioner comes with a Limited Warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration of coverage. Keep your purchase receipt as proof of purchase for any warranty claims.
Customer Support
If you encounter any issues or have questions regarding your DOMANKI portable air conditioner that are not covered in this manual, please contact DOMANKI customer service. For the most up-to-date contact information, please refer to the official DOMANKI website or the contact details provided in your product packaging.
