Hoteche 230MM Band Saw Instruction Manual

Introduction

Thank you for choosing the Hoteche 230MM Band Saw. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new band saw. Please read this manual thoroughly before operating the tool to ensure proper use and to prevent injury or damage. Keep this manual in a safe place for future reference.

Important Safety Instructions

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when using power tools.

• Wear Eye Protection: Always wear safety goggles or safety glasses with side shields that comply with current standards.
• Keep Work Area Clean: Cluttered areas invite accidents. Ensure your workspace is well-lit and free of debris.
• Avoid Dangerous Environment: Do not use power tools in damp or wet locations, or expose them to rain. Keep work area well-lit.
• Keep Children Away: All visitors should be kept a safe distance from the work area.
• Secure Workpiece: Always clamp or secure the workpiece to prevent movement during cutting.
• Use the Right Tool: Do not force a small tool or attachment to do the job of a heavy-duty tool.
• Dress Properly: Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry which may get caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair.
• Maintain Tools With Care: Keep blades sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories.
• Disconnect Tools: Always disconnect the tool from the power source before making adjustments, changing accessories, or servicing.
• Avoid Accidental Starting: Ensure the switch is in the OFF position before plugging in.
• Stay Alert: Watch what you are doing, use common sense. Do not operate tool when you are tired.
• Check for Damaged Parts: Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function.

Package Contents

Verify that all items listed below are present and undamaged upon unpacking.

• Hoteche 230MM Band Saw Unit
• 1575×6.35×0.3mm 6TP1 Saw Blade (pre-installed or separate)
• Workbench (305x305MM)
• Attachments (as specified by manufacturer)
• Instruction Manual

Setup

Unpacking

Carefully remove all components from the packaging. Inspect the tool for any signs of damage that may have occurred during shipping. Retain packaging materials for future transport or if the unit needs to be returned.

Assembly

Some assembly may be required. Follow these general steps:

1. Base Assembly: Securely attach the band saw unit to a stable workbench or stand using appropriate fasteners.
2. Workbench Installation: Mount the 305x305MM workbench onto the band saw frame. Ensure it is level and securely fastened.
3. Blade Guard Adjustment: Adjust the blade guard to the appropriate height for the material being cut, ensuring maximum protection while allowing for the cut.

Blade Installation and Tensioning

If the blade is not pre-installed, carefully install the 1575×6.35×0.3mm 6TP1 saw blade according to the markings on the machine. Ensure the teeth are pointing downwards towards the workbench. Adjust the blade tension until it is firm but not overly tight, allowing for smooth operation without excessive deflection.

Workbench Adjustment for Bevel Cuts

The workbench can be tilted from 0 to 45 degrees for bevel cuts. Loosen the locking mechanism beneath the workbench, adjust to the desired angle using the angle scale, and then securely tighten the locking mechanism. Always ensure the workbench is firmly locked before operation.

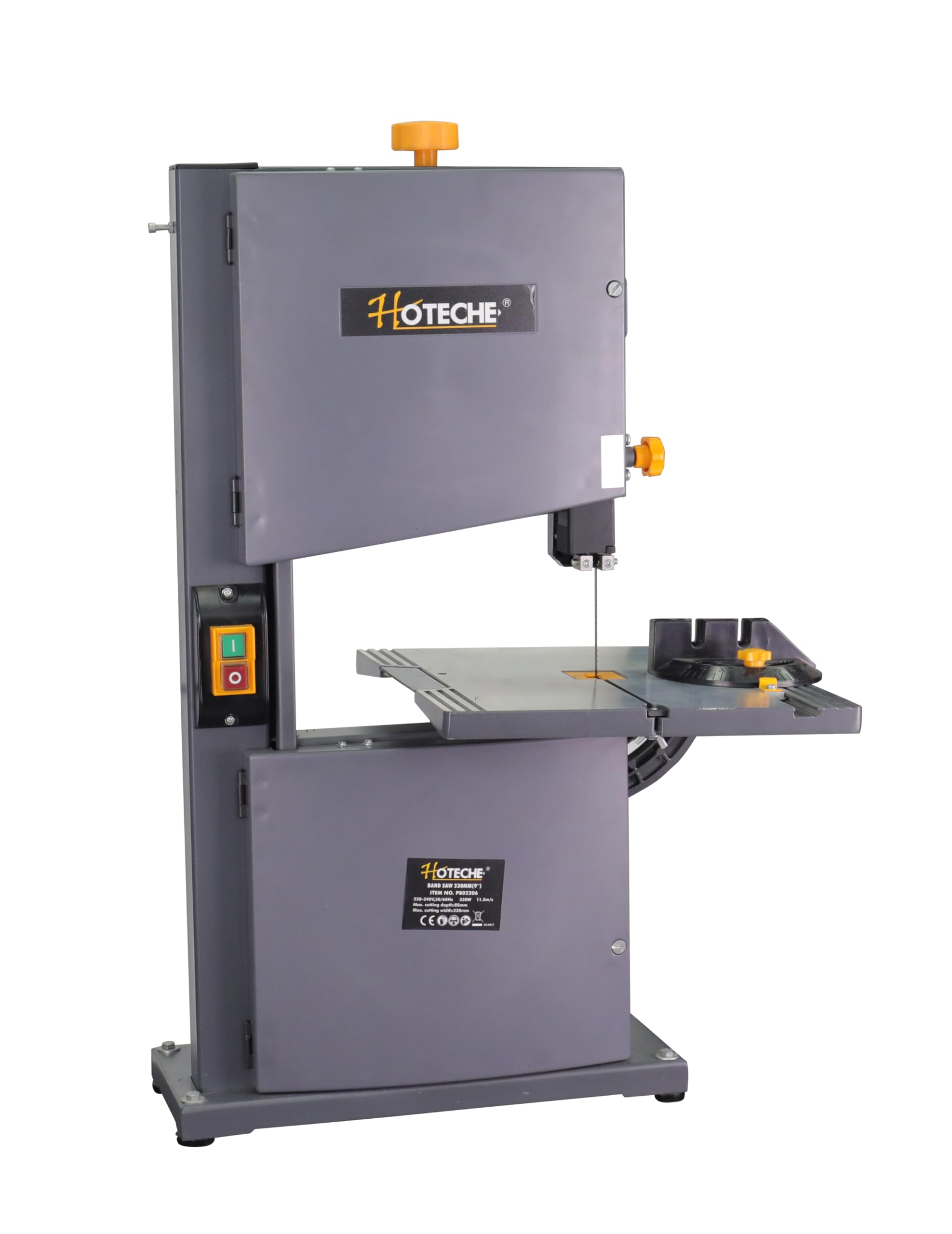

Image: The Hoteche 230MM Band Saw, illustrating its compact design, workbench, and blade area. This image helps visualize the overall product during setup.

Operating Instructions

Powering On/Off

Ensure the power cord is securely plugged into a grounded outlet. To start the band saw, press the ON switch. To stop, press the OFF switch. Always allow the blade to reach full speed before beginning a cut and to come to a complete stop before leaving the machine.

Basic Cutting Operations

For straight cuts, ensure the workbench is set at 0 degrees. Adjust the blade guard to be just above the workpiece. Guide the material smoothly and steadily into the blade. Do not force the material; let the blade do the work. Maintain a firm grip on the workpiece and keep hands clear of the blade path.

Bevel Cutting

To perform bevel cuts, adjust the workbench to the desired angle between 0 and 45 degrees as described in the Setup section. Ensure the workbench is securely locked. Proceed with cutting as you would for basic operations, maintaining a consistent feed rate.

Cutting Capacity

The Hoteche 230MM Band Saw offers a maximum cutting width of 230MM and a maximum cutting depth of 80MM. Do not attempt to cut materials exceeding these dimensions, as it can damage the tool and pose a safety risk.

Maintenance

Regular maintenance ensures the longevity and safe operation of your band saw. Always disconnect the power supply before performing any maintenance.

Cleaning

After each use, clear sawdust and debris from the workbench, blade area, and motor vents using a brush or vacuum. Do not use solvents that could damage plastic parts.

Blade Replacement and Care

Replace dull or damaged blades promptly. Refer to the blade installation section for proper replacement. Ensure the blade tension is correctly set after replacement. Periodically check the blade for signs of wear or damage.

Motor and Electrical Inspection

Periodically inspect the power cord for damage. Ensure all electrical connections are secure. The 350W copper wire motor is designed for durability; however, if you notice unusual noises or performance issues, discontinue use and consult a qualified service technician.

Troubleshooting

This section addresses common issues you might encounter. For problems not listed here, contact customer support.

• Saw does not start: Check power connection, ensure the switch is in the ON position, and verify the circuit breaker.
• Blade not cutting straight: Check blade tension, ensure blade guides are properly adjusted, and inspect the blade for damage or dullness.
• Excessive vibration or noise: Inspect blade for damage, check blade tension, ensure all fasteners are tight, and verify the unit is securely mounted.
• Motor overheating: Ensure motor vents are clear of debris. Avoid forcing the blade through material. Allow the motor to cool.

Specifications

Warranty and Support

This Hoteche 230MM Band Saw comes with a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, replacement parts, or any inquiries not covered in this manual, please contact Hoteche customer service through the official brand channels or your retailer.
