Seemar D6 Adult Electric Scooter User Manual

1. Introduction

Thank you for choosing the Seemar D6 Adult Electric Scooter. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your scooter. Please read it thoroughly before your first ride and keep it for future reference.

Safety Information

WARNING: Always wear a helmet and appropriate protective gear when riding. Obey all local traffic laws and regulations. Riding an electric scooter carries inherent risks, including injury or death. Ride responsibly.

• Always check the scooter for any damage or loose parts before each ride.
• Ensure the battery is sufficiently charged.
• Do not ride in heavy rain or through deep puddles, despite the IP55 water resistance rating.
• Avoid riding on slippery surfaces, steep inclines, or uneven terrain at high speeds.
• Maintain a safe distance from other vehicles and pedestrians.
• Familiarize yourself with the braking system before riding in traffic.

2. Product Overview

The Seemar D6 Electric Scooter is designed for urban commuting and recreational use, featuring a powerful motor, long-range battery, and robust construction.

Key Features:

• Motor: 500W brushless motor (800W peak power)
• Battery: 48V 13AH high-performance lithium-ion battery (624 Wh)
• Range: 50-55 km (31-34 miles) per charge
• Max Load: 150 kg (330 lbs)
• Tires: 10-inch inflatable all-terrain tires
• Suspension: Dual spring suspension (front and rear)
• Braking System: Dual disc brakes + EABS (Electronic Anti-lock Braking System)
• Lighting: LED headlights, left/right turn signals, rear brake lights
• Display: High-definition LED multi-functional display
• Portability: One-click folding mechanism, lightweight aluminum alloy frame
• Water Resistance: IP55 certified

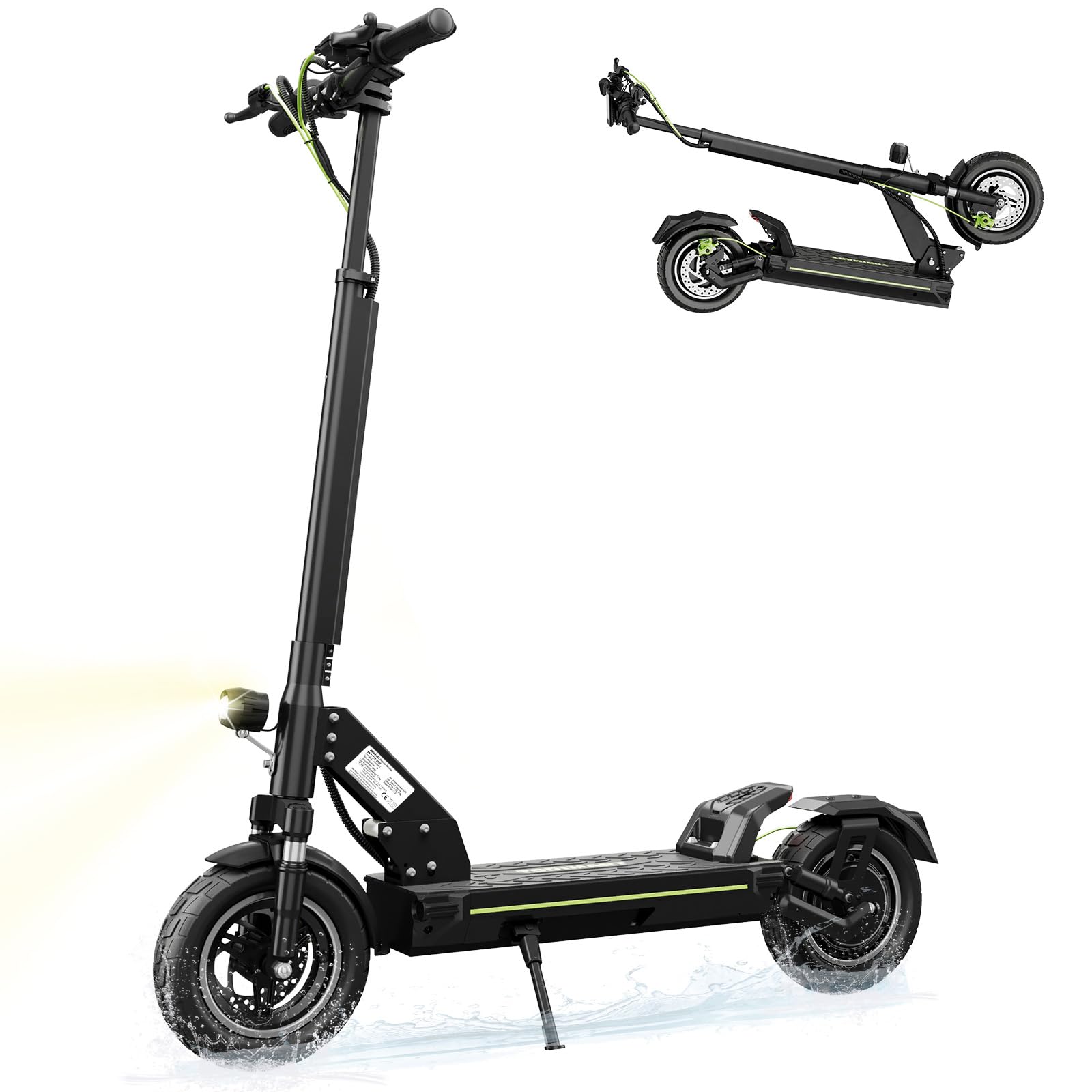

Figure 2.1: Seemar D6 Electric Scooter, showcasing its sleek design and robust build.

3. Setup and Initial Assembly

Your Seemar D6 scooter comes partially assembled. Follow these steps to complete the setup:

1. Unboxing: Carefully remove the scooter and all components from the packaging. Verify that all items listed in the 'What's in the Box' section are present: scooter, charger, installation tool, and this instruction manual.
2. Handlebar Installation: Unfold the scooter frame. Attach the handlebar to the stem using the provided installation tool. Ensure all screws are tightened securely.
3. Adjust Handlebar Height: The handlebar height is adjustable. Loosen the quick-release clamp, adjust the handlebar to a comfortable height, and then securely fasten the clamp.
4. Initial Charge: Before your first ride, fully charge the battery. Connect the charger to the scooter's charging port and then to a power outlet. The charging indicator on the charger will change color (e.g., red to green) when fully charged. This typically takes about 7 hours.

Figure 3.1: The adjustable handlebar and integrated LED display for real-time information.

4. Operating Instructions

Power On/Off

Press and hold the power button on the LED display to turn the scooter on or off.

LED Display Functions

The high-definition LED display shows real-time information:

• Speed: Current riding speed.
• Battery Level: Remaining battery charge.
• Speed Mode: Indicates the selected speed setting.
• Other Indicators: Headlight status, error codes, etc.

Speed Modes

The scooter offers three speed modes (10 km/h, 15 km/h, 25 km/h). Press the mode button on the display to cycle through these settings. The scooter also supports speed limit removal for private property use, consult local regulations before doing so.

Riding

1. Place one foot on the deck and push off with the other foot to gain initial momentum.
2. Gently press the accelerator lever to engage the motor.
3. Maintain balance and keep both hands on the handlebars.

Braking

The Seemar D6 features a dual braking system: front and rear disc brakes combined with EABS. To brake, gently squeeze the brake levers on the handlebars. For emergency stops, apply both brakes firmly and evenly.

Figure 4.1: The dual disc braking system ensures reliable stopping power.

Lights and Turn Signals

Activate the LED headlight for night riding. Use the left and right turn signals to indicate your direction to others. The rear light illuminates when braking.

Figure 4.2: Powerful LED lighting system for enhanced visibility and safety during night rides.

Folding Mechanism

To fold the scooter, locate the one-click folding lever near the base of the steering column. Follow the instructions to release the mechanism and fold the stem down until it locks into place. This makes the scooter compact for storage or transport.

Figure 4.3: The scooter's lightweight aluminum alloy frame and convenient folding mechanism for easy portability.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your Seemar D6 scooter.

• Battery Care:
  Charge the battery fully after each use. Avoid completely draining the battery. If storing the scooter for an extended period, charge it to about 50-70% every 1-2 months to preserve battery health. The 48V 13AH lithium-ion battery is designed for durability.


Figure 5.1: High-quality 48V 13AH lithium-ion battery providing extended range.

• Tire Pressure:
  Regularly check the pressure of the 10-inch pneumatic tires. Proper tire pressure improves ride comfort, range, and tire lifespan. Refer to the tire sidewall for recommended pressure.
• Brake Inspection:
  Inspect brake pads and discs for wear. Ensure brake levers operate smoothly and provide adequate stopping power. Adjust or replace components as needed.
• General Cleaning:
  Wipe down the scooter with a damp cloth. Avoid using high-pressure water jets directly on electronic components. The IP55 rating provides protection against splashes, but not submersion.
• Suspension Check:
  Periodically inspect the front and rear dual spring suspension for any signs of damage or excessive wear.


Figure 5.2: The dual spring suspension system absorbs shocks for a smoother ride on various terrains.

• All-Terrain Capability:
  The 10-inch inflatable all-terrain tires are designed for diverse surfaces. After riding on rough terrain, inspect tires for punctures or damage.

Figure 5.3: 10-inch all-terrain tires provide grip and stability, complemented by IP55 water resistance for varied conditions.

6. Troubleshooting

If you encounter issues with your Seemar D6 scooter, refer to the following common problems and solutions:

• Scooter does not power on:
  Ensure the battery is charged. Check all cable connections for looseness.
• Reduced range or power:
  Verify the battery is fully charged. Check tire pressure. Riding in cold weather or on inclines can reduce range.
• Brakes feel weak:
  Inspect brake pads and discs for wear. Adjust brake cable tension if necessary. If issues persist, professional service may be required.
• Unusual noises:
  Check for loose components, especially around the wheels and suspension. Inspect for debris caught in moving parts.
• Display not working:
  Ensure the scooter is powered on and the display cable is securely connected.

For problems not listed here, or if solutions do not resolve the issue, please contact customer support.

7. Specifications

8. Warranty and Support

Warranty Information

The Seemar D6 Electric Scooter comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

Spare Parts Availability

Spare parts for the Seemar D6 are available for up to 5 years from the date of purchase, ensuring long-term usability and maintenance.

Customer Support

For any questions, technical assistance, or warranty claims, please contact the seller or Seemar customer support. Please have your purchase receipt and scooter model number (D6) ready when contacting support.
