LINKHOO 1-Person Far Infrared Sauna User Manual

1. Safety Information

Please read all instructions carefully before assembly and use. Retain this manual for future reference.

• Ensure proper ventilation during use.
• Follow all assembly and electrical safety instructions.
• Do not place combustible material on heater at any time.
• Do not modify the product.
• Do not touch the heater when using this product.
• This product is prohibited for use by pregnant women, patients with severe hypertension, patients with electronic pacemakers, and people who drink alcohol or take drugs.
• For the physically and mentally disordered, as well as minors, adults are required to accompany them when using this product.
• When using this product, temperature is suggested to be set in the range of 39°C–45°C (102°F-113°F).
• Time of use should be set about 30 minutes, so as to avoid the discomfort of human body under high temperature and long time, which may cause accidents.
• If you are in poor physical condition or during the treatment period, please use this product under the guidance of your doctor.

2. Product Overview

The LINKHOO 1-Person Far Infrared Sauna is designed for personal wellness, offering a range of features for a comfortable and effective sauna experience.

• Far Infrared Heating: Equipped with 7 high-power infrared carbon panels targeting the 6-15µm golden band for deep penetration. The 1000W system uses an intelligent constant temperature algorithm to reach 122°F (50°C) in 15-20 minutes, providing 360° uniform heat.
• Material & Safety: Constructed from 100% Okoume Wood with food-grade oil-wax finishing, ensuring zero VOCs. Features 8mm tempered explosion-proof glass with a protective film to prevent fragmentation.
• Integrated Technology: Includes Bluetooth hidden speakers for immersive sound and 7-color smart lights with customizable modes for chromotherapy.
• Ergonomic Design: Features an ergonomic backrest, a hidden footrest for space-saving, rust-proof vents, and a USB control panel for convenience.
• Durable Construction: Built with a 16-inch extra-thick seat for strong load-bearing capacity and 80% thickened panels for enhanced heat retention and long-term durability.

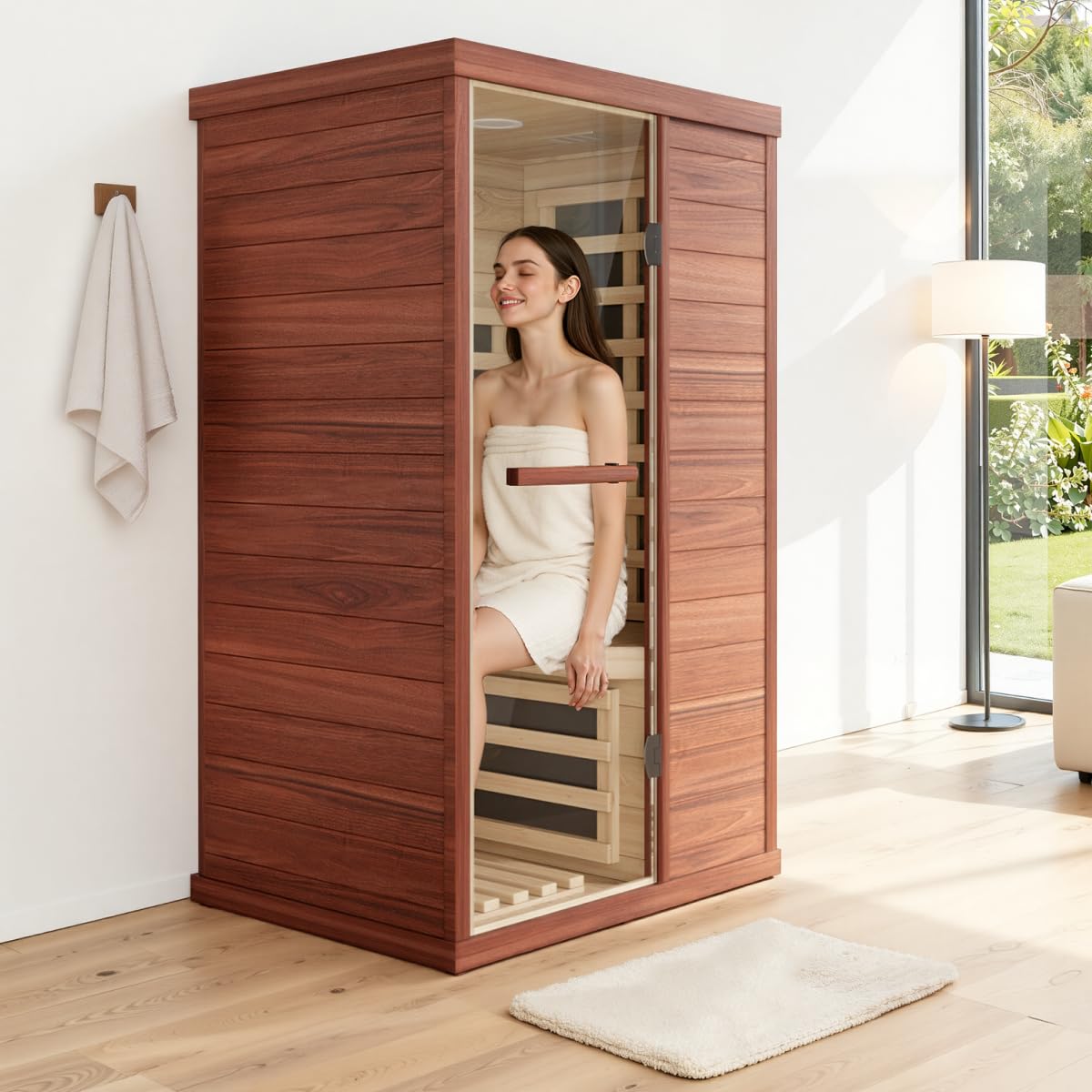

Image: Exterior view of the LINKHOO 1-Person Far Infrared Sauna.

3. Specifications

4. Setup & Assembly

The LINKHOO 1-Person Far Infrared Sauna is designed for straightforward assembly, typically requiring two people and approximately 15-25 minutes.

Assembly Steps:

1. Unpack Components: Carefully remove all parts from the packaging. Ensure all 9 main components are present.
2. Connect Modules: Assemble the main wall panels. The modules are designed to connect easily.
3. Thread Electrical Wires: Guide the electrical wires through the pre-drilled holes in the panels.
4. Connect Wires: Connect the electrical wires, ensuring secure connections.
5. Secure Top Panel: Place the top panel and fix it with the provided drill bit fixing screws.
6. Connect Heating Panels: Inside the seat area, connect the power cords of the 5 heating panels to the designated power strip.
7. Install Accessories: Attach the DIY clothes rack and cup holder in your preferred locations using the provided screws.

Image: Interior view highlighting ergonomic features like the backrest, cup holder, and hooks, along with the control panel.

5. Operating Instructions

Familiarize yourself with the control panel to customize your sauna experience.

Control Panel Functions:

• ON/OFF: Press to power the sauna on or off.
• TEMP (+/-): Adjust the desired temperature. Recommended range is 39°C–45°C (102°F-113°F).
• TIME (+/-): Set the session duration. Recommended maximum is 30 minutes.
• Bluetooth: Activate Bluetooth to connect your device for audio playback through the hidden speakers.
• LED/RGB: Cycle through the 7-color chromotherapy light modes.
• Inside/Outside Lights: Control the internal and external lighting.
• Sauna: Activates the heating elements.
• USB: Connect a USB device for charging or media playback.

Starting a Session:

1. Ensure the sauna is properly assembled and plugged into a 110V power outlet.
2. Press the ON/OFF button to power on.
3. Set your desired temperature and time using the TEMP and TIME buttons.
4. Press the 'Sauna' button to activate the heaters. Allow 15-20 minutes for the sauna to reach 122°F (50°C).
5. While preheating, you can activate Bluetooth for music or adjust chromotherapy lights.
6. Enter the sauna once the desired temperature is reached.

Image: Illustrates the deep body relaxation benefits of far infrared heat.

Image: Highlights the hidden design of the chromotherapy lights and Bluetooth speakers for an elegant and minimalist interior.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your sauna.

• Cleaning: Wipe down the interior and exterior wood surfaces with a clean, damp cloth after each use. Avoid using harsh chemical cleaners, as they can damage the wood and release harmful fumes.
• Wood Care: The Okoume wood is finished with food-grade oil-wax. Periodically inspect the wood for any signs of wear. If needed, reapply a natural, non-toxic wood oil or wax suitable for sauna use.
• Glass Cleaning: Clean the tempered glass with a non-abrasive glass cleaner and a soft cloth.
• Ventilation: Ensure the vents are clear of obstructions for proper airflow.
• Electrical Connections: Periodically check all electrical connections to ensure they are secure. Disconnect power before inspection.

7. Troubleshooting

If you encounter any issues, refer to the following common troubleshooting steps:

• Sauna not heating: Check if the power cord is securely plugged into a working outlet. Ensure all internal heating panel cords are connected. Verify the 'Sauna' function is activated on the control panel.
• Lights not working: Check the 'Inside' and 'Outside' light buttons on the control panel. If using chromotherapy, ensure the 'LED/RGB' function is active.
• Bluetooth not connecting: Ensure Bluetooth is enabled on your device and the sauna's control panel. Try restarting both devices.
• Unusual odors: A slight wood smell is normal for new saunas and will dissipate over time. Ensure proper ventilation.

If problems persist after attempting these steps, please contact customer support.

8. Warranty & Support

Your LINKHOO Far Infrared Sauna comes with a commitment to quality and customer satisfaction.

• Returns: Enjoy 30-day easy returns from the date of purchase.
• After-Sales Service: The product includes 3-Year After-Sales Service.
• Support: For any questions, technical assistance, or warranty claims, please contact LINKHOO customer support.
