Homkdom Queen Bed Frame

Homkdom Queen Bed Frame with Charging Station and LED Lights Instruction Manual

Model: Queen Bed Frame

Brand: Homkdom

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Homkdom Queen Bed Frame. This bed frame integrates a smart RGB LED lighting system, a convenient charging station, and a two-tier storage headboard, designed to enhance your bedroom's functionality and ambiance. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Safety Information

  • Do not exceed a total weight of 1,000 lbs (453.6 kg) on the bed frame.
  • Ensure all connections, screws, and bolts are securely tightened before and during use.
  • Keep electrical components (LED lights, charging station) away from water or excessive moisture.
  • Do not allow children to climb or play on the bed frame unsupervised.
  • Use only the provided power adapter for the LED lights and charging station.

Package Contents

Before assembly, verify that all components are present and undamaged. Refer to the parts list included in your packaging. Typically, the package includes:

  • Headboard components (upholstered panel, shelves, charging unit)
  • Metal bed frame components (side rails, support beams, legs)
  • Slats and slat connectors
  • LED light strip with remote control
  • Assembly hardware (screws, bolts, washers, Allen wrench)
  • Instruction manual

Setup and Assembly

Assembly of the Homkdom Queen Bed Frame is designed to be straightforward. All parts are clearly labeled, and simple instructions are provided. Two people can typically complete the assembly in under an hour using the included tools. A power drill can be used for faster setup, but is not required.

Assembly Steps:

  1. Unpack all components and lay them out on a clean, soft surface to prevent scratches.
  2. Identify all parts using the provided parts list.
  3. Assemble the headboard structure, attaching the upholstered panel and two-tier shelves. Secure the charging station unit into its designated slot.
  4. Assemble the metal bed frame, connecting the side rails and support beams.
  5. Attach the assembled headboard to the bed frame.
  6. Install the slats onto the bed frame, ensuring they are evenly spaced and securely fastened.
  7. Affix the LED light strip to the designated area on the headboard using the strong Velcro and buckles.
  8. Connect the power supply for the LED lights and charging station.
  9. Ensure all screws and bolts are fully tightened before placing your mattress on the frame.
Diagram showing the dimensions of the Homkdom Queen Bed Frame, including length, width, height, under-bed clearance, and headboard shelf dimensions. It also indicates a maximum load of 1000 lbs and a recommended mattress thickness of 8-12 inches.
Figure 1: Product Dimensions and Specifications. This diagram illustrates the overall dimensions of the bed frame, including its length (88 inches), width (60.5 inches), and height (40 inches). It also highlights the 14-inch frame height, 12-inch under-bed clearance, and the 1000 lbs maximum load capacity. A mattress recommendation of 8-12 inches thickness is also shown.

Operating Instructions

LED Lighting System:

The bed frame features built-in RGB LED light strips. These lights are controlled via a remote control, allowing you to customize your bedroom ambiance.

  • Power On/Off: Use the designated button on the remote to turn the lights on or off.
  • Color Selection: Choose from over 60,000 customizable colors using the color palette on the remote.
  • Brightness Adjustment: Adjust the light intensity to your preference.
  • Timing Mode: Set automated lighting schedules for convenience.
  • Music Mode: Sync the lights with music to create an immersive atmosphere.

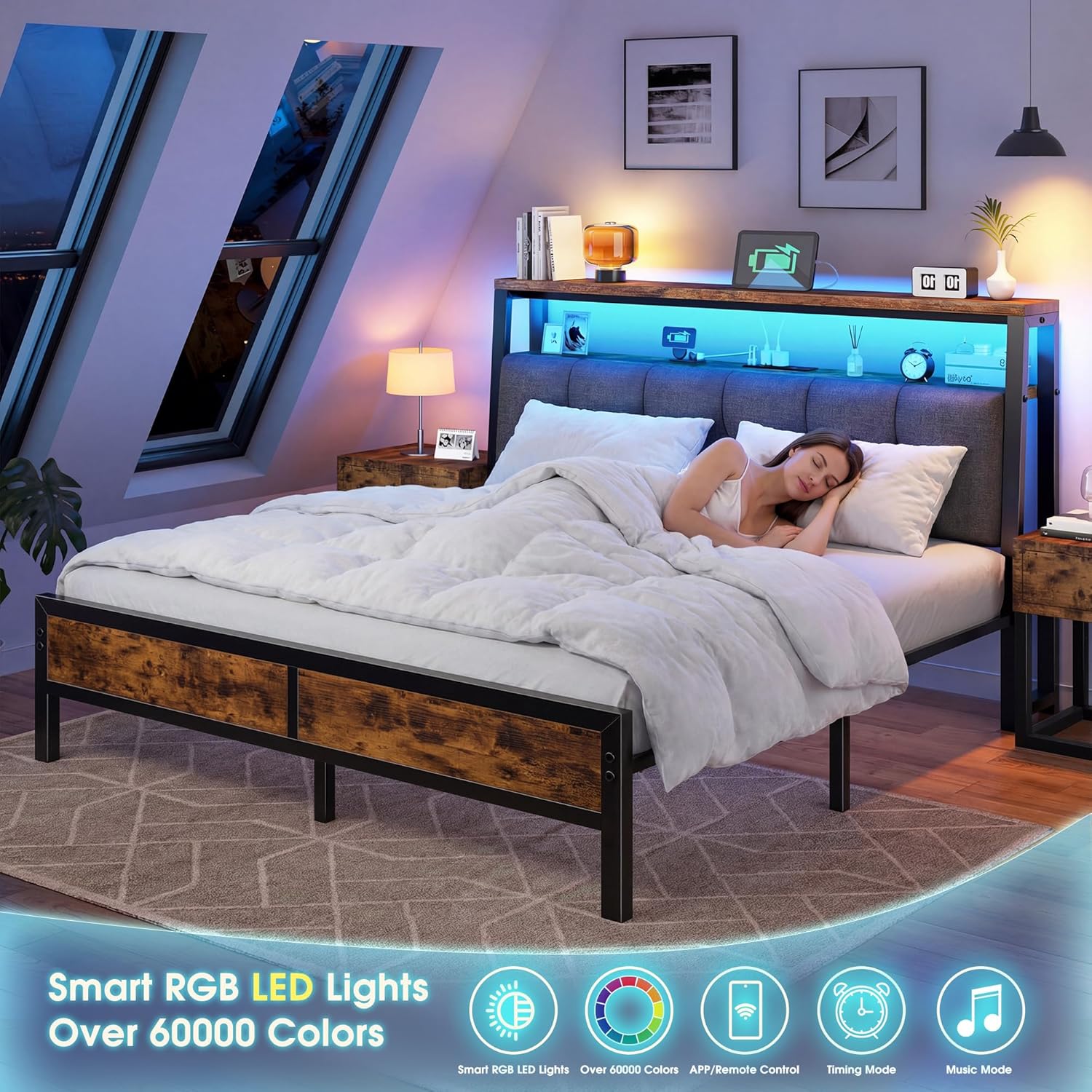

Bedroom scene at night showing the Homkdom Queen Bed Frame with its smart RGB LED lights illuminated in blue, creating an ambient glow. A person is resting comfortably on the bed, and the headboard shelves are visible with decorative items.
Figure 2: Smart RGB LED Lights in Operation. This image displays the Homkdom bed frame with its integrated RGB LED lights active, showcasing various color options and the ambient lighting effect they create in a bedroom setting. The headboard's functionality with decorative items is also visible.

Charging Station:

The headboard includes a built-in charging station for your electronic devices.

  • The charging station features 2 standard AC outlets (125V/12A), 1 Type-A USB port (5V/2A), and 1 Type-C USB port (5V/2A).
  • Simply plug your devices into the appropriate ports to charge them conveniently from your bed.
  • Ensure the bed frame's power cord is connected to a functional wall outlet for the charging station to operate.
Close-up view of the Homkdom bed frame's upholstered headboard, featuring a two-tier storage shelf with integrated charging ports (2 AC outlets, 1 Type-A USB, 1 Type-C USB) and a 4.9-foot power cord. Various items like a tablet, alarm clock, and decorative objects are placed on the shelves.
Figure 3: Headboard with Charging Station and Storage. This close-up shows the upholstered headboard with its two-tier storage shelves. The integrated charging station is clearly visible, featuring two AC outlets, one Type-A USB port, and one Type-C USB port, along with a 4.9-foot power cord. The shelves are utilized for displaying various items and charging devices.

Key Features

12-inch Under-Bed Storage:

The bed frame provides a generous 12 inches of clearance beneath, offering valuable storage space. This allows you to store suitcases, bins, and other items, helping to keep your room organized and tidy. The height is also sufficient for most robot vacuums to clean underneath easily.

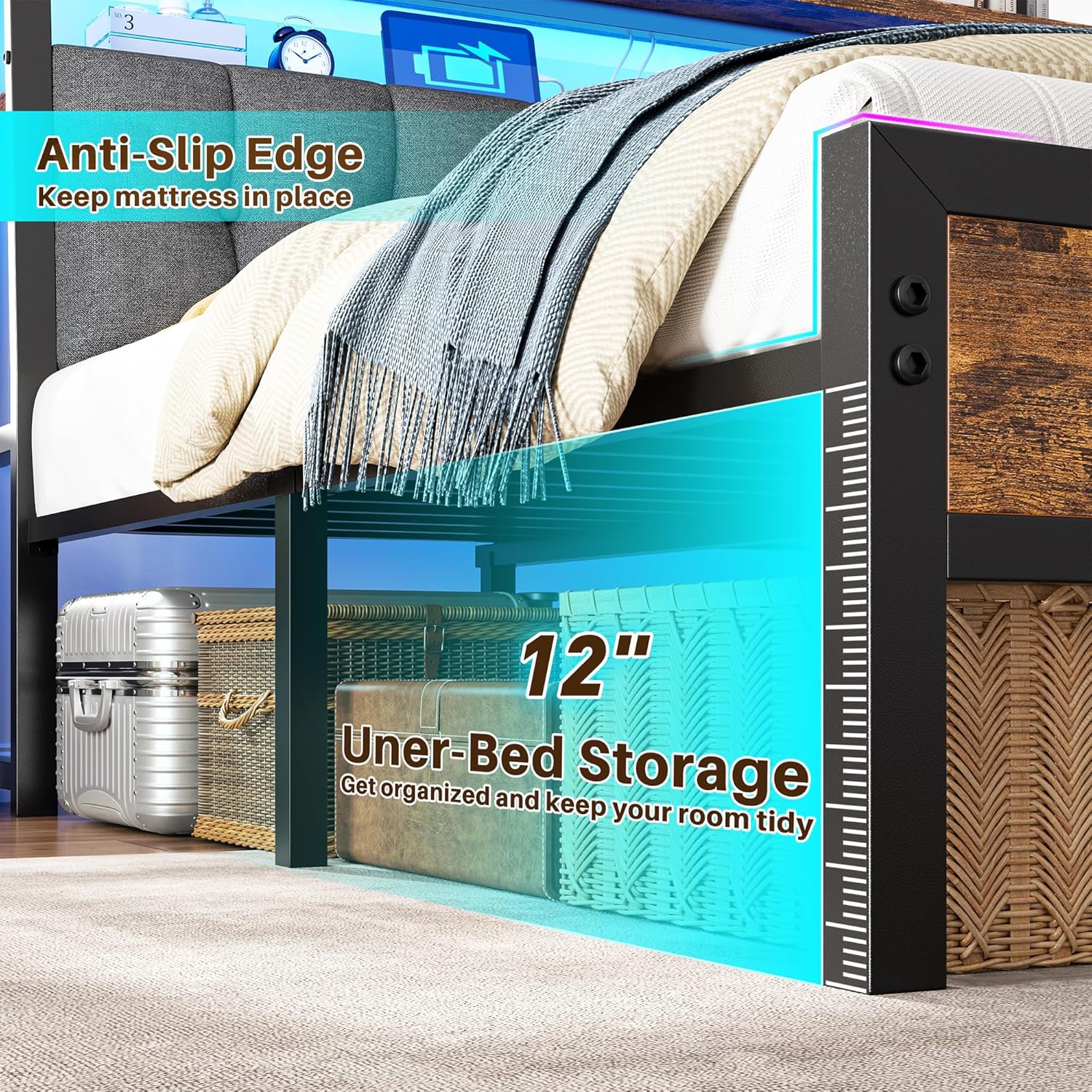

Illustration highlighting the 12-inch under-bed storage space of the Homkdom Queen Bed Frame, showing various storage bins and suitcases neatly tucked away beneath the frame. An anti-slip edge feature is also indicated to keep the mattress in place.
Figure 4: Under-Bed Storage. This illustration demonstrates the ample 12-inch under-bed clearance, showcasing how various storage containers and luggage can be neatly stored, contributing to a clutter-free room. The anti-slip edge feature, designed to keep the mattress securely in place, is also highlighted.

Comfortable Upholstered Headboard:

The headboard is upholstered with soft, breathable linen and high-density foam, providing excellent support for your back and shoulders. This design ensures comfort whether you are reading, lounging, or resting. The full-coverage design conceals the metal bar, preventing accidental bumps, and the foam is engineered to resist sagging over time.

Close-up view of a person sitting comfortably against the upholstered headboard of the Homkdom bed frame, demonstrating its ergonomic design and gentle back support. The integrated LED lights are visible, casting a blue glow.
Figure 5: Ergonomic Upholstered Headboard. This image shows a person comfortably leaning against the upholstered headboard, illustrating its ergonomic design and the gentle back support it provides. The integrated LED lights are subtly illuminated, adding to the relaxed ambiance.

Maintenance

  • Cleaning: For the upholstered headboard, gently spot clean with a damp cloth and mild detergent. For the metal frame and wooden shelves, wipe with a soft, dry cloth. Avoid harsh chemicals.
  • Hardware Check: Periodically check all screws and bolts to ensure they remain tight. Re-tighten if necessary to maintain stability and prevent noise.
  • LED Lights: Ensure the LED light strip is securely attached. If it becomes loose, re-secure it using the Velcro and buckles.
  • Electrical Components: Keep the charging station and LED light connections dry and free from dust.

Troubleshooting

ProblemPossible CauseSolution
LED lights not working or flickeringLoose power connection; remote control battery low; light strip detached.Ensure the power plug is fully inserted into the wall outlet and the bed frame. Check the remote control battery. Re-attach the LED strip securely. If the issue persists, unplug and re-plug the power adapter.
Charging station not providing powerBed frame not plugged in; device cable faulty.Verify the bed frame's main power cord is connected to a live wall outlet. Test with a different device cable.
Bed frame is noisy or squeakingLoose hardware; uneven floor.Tighten all screws and bolts on the frame and headboard. Ensure the bed is on a level surface. The frame includes noise-reducing strips, ensure they are properly installed.
Mattress sliding on the frameAnti-slip edges not engaged or insufficient.Ensure the mattress is properly seated within the anti-slip edges of the frame.

Specifications

FeatureDetail
SizeQueen
MaterialMetal frame, Fabric upholstered headboard
Product Dimensions (L x W x H)88" x 60.5" x 40" (2.24L x 1.54W x 1.02H Meters)
Under-Bed Clearance12 inches
Maximum Weight Recommendation1000 lbs (453.59 kg)
Headboard FeaturesUpholstered, 2-tier storage shelves, Integrated LED lights, Charging station
Charging Station Ports2 AC Outlets (125V/12A), 1 Type-A USB (5V/2A), 1 Type-C USB (5V/2A)
LED LightsSmart RGB, 60,000+ colors, App/Remote control, Timing mode, Music mode
Assembly RequiredYes (Simple assembly, tools included)

Product Overview Video

Video showcasing the Homkdom Queen Bed Frame, highlighting its features such as the integrated charging station, two-tier headboard storage, comfortable upholstered headboard, 12-inch under-bed storage, and smart RGB LED lighting system with various color options.

Warranty and Support

For warranty information, technical support, or to order replacement parts, please refer to the contact details provided with your purchase documentation or visit the official Homkdom website. Please have your model number and purchase date available when contacting support.
