1. Introduction
Thank you for choosing the FSKEKU YKF-8116F Commercial Soft Serve Ice Cream Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before initial use and retain it for future reference.
The YKF-8116F is a high-efficiency countertop soft serve ice cream machine designed for commercial use, offering a production capacity of 16-22 liters per hour. It features advanced technologies such as freshness preservation, pre-cooling, puffing, and intelligent monitoring to ensure consistent quality and ease of use.
2. Safety Instructions
To prevent injury or damage to the machine, always adhere to the following safety precautions:
- Ensure the machine is placed on a stable, level surface.
- Connect the machine to a grounded power outlet with the correct voltage (115V/60Hz).
- Do not operate the machine with a damaged power cord or plug.
- Keep hands and foreign objects away from moving parts during operation.
- Never immerse the machine's main body in water or other liquids.
- Unplug the machine before cleaning, maintenance, or when not in use.
- Only use food-grade ingredients and follow proper hygiene practices.
- Do not block ventilation openings.
- This appliance is for commercial use only and should be operated by trained personnel.
3. Product Overview and Features
The FSKEKU YKF-8116F is engineered for optimal performance and user convenience. Key features include:
- High-Efficiency Production: A powerful 1.35kW motor and 1.7L freezing cylinder deliver 16-22 liters per hour.
- Advanced Freshness & Pre-cooling: A single-pressure preservation system keeps mix fresh in the 7L hopper, while pre-cooling ensures consistent product temperature.
- Superior Texture with Puffing & Stirring: Innovative puffing technology creates a smoother texture, and the hopper stirring function prevents ingredient separation.
- Intelligent Monitoring & Safety: A Shortage Alarm system alerts operators to low mix levels, preventing cylinder freezing and ensuring continuous service.
- Compact Countertop Design: Measuring 230 x 680 x 815 mm (approx. 9.1 x 26.8 x 32.1 inches), this model maximizes output without requiring extensive space.
- Complete Accessory Kit: Includes 8 decorative nozzles, a detachable drip tray, and a full set of replacement sealing rings.

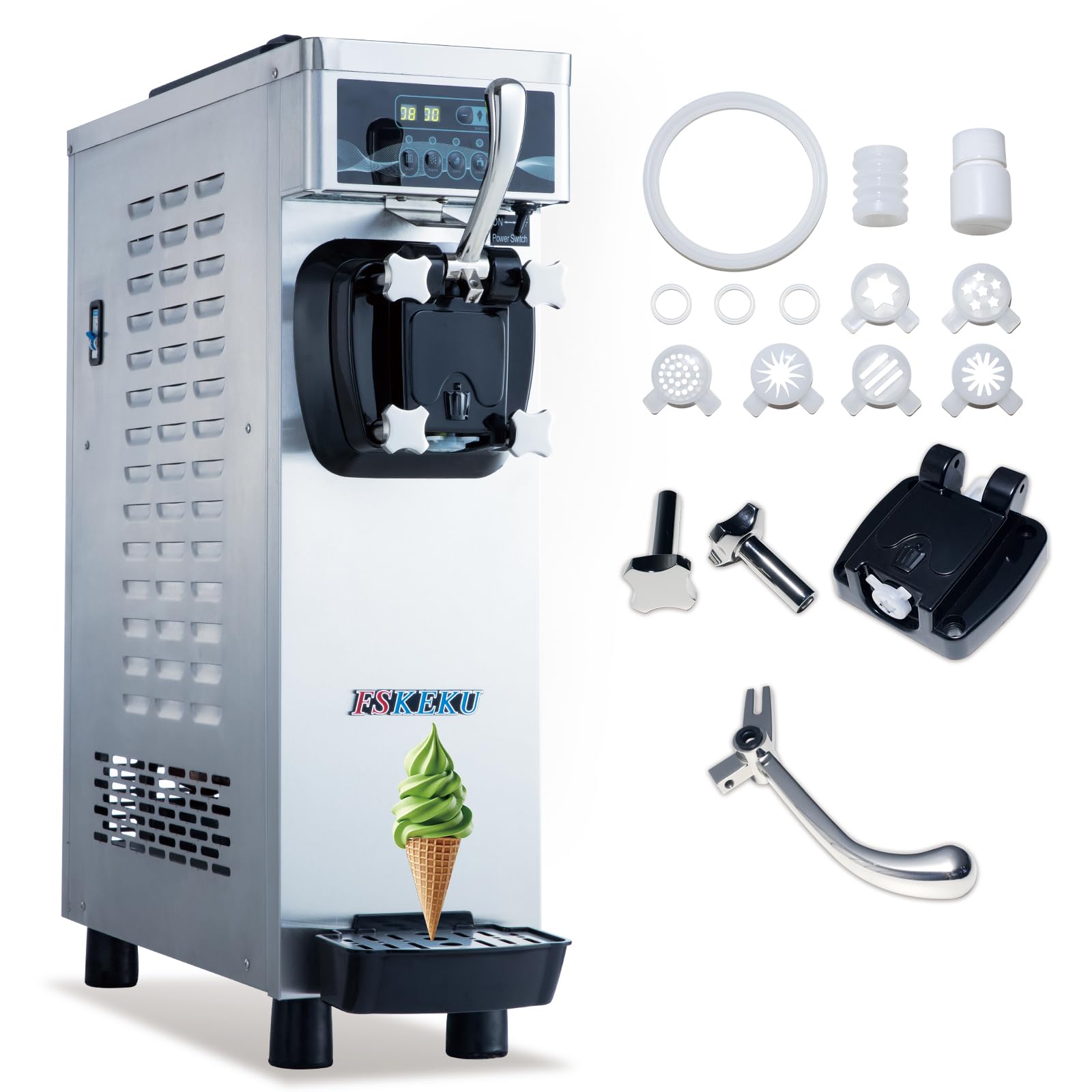

Figure 1: FSKEKU YKF-8116F Commercial Soft Serve Ice Cream Machine, front view.
4. Setup
4.1 Unpacking
- Carefully remove the machine from its packaging.
- Inspect for any shipping damage. Contact customer support immediately if damage is found.
- Remove all packing materials, including any protective films or tapes.
4.2 Placement
- Place the machine on a sturdy, level countertop capable of supporting its weight (approximately 152 lbs).
- Ensure adequate ventilation around the machine. Maintain at least 15 cm (6 inches) of clear space on all sides for proper airflow.
- Avoid placing the machine near heat sources or in direct sunlight.
4.3 Initial Cleaning
Before first use, thoroughly clean all parts that will come into contact with food.
- Disassemble the dispensing handle, cylinder cover, and stirring rod.
- Wash these components with warm, soapy water and rinse thoroughly.
- Sanitize all food-contact surfaces according to local health regulations.
- Wipe down the exterior of the machine with a damp cloth.
- Allow all parts to air dry completely before reassembly.
4.4 Power Connection
- Ensure the power switch is in the OFF position.
- Plug the machine into a dedicated, grounded 115V/60Hz electrical outlet.
5. Operating Instructions
5.1 Preparing the Mix
- Prepare your soft serve mix according to the manufacturer's instructions.
- Ensure the mix is thoroughly blended and free of lumps.
5.2 Filling the Hopper
- Open the dust-proof lid of the 7L stainless steel hopper.
- Pour the prepared soft serve mix into the hopper. Do not overfill.
- Close the lid securely.
Figure 2: The 7L hopper for continuous production.
5.3 Starting the Machine
- Turn on the main power switch.
- On the digital control panel, press the FRESH button to activate the pre-cooling and freshness preservation mode. This will cool the mix in the hopper.
- Once the mix is adequately cooled (indicated by the machine's display), press the AUTO button to begin the freezing process. The machine will start producing soft serve.
Figure 3: Digital control panel for easy operation.
5.4 Dispensing Soft Serve
- Place a cone or cup under the dispensing nozzle.
- Pull the ergonomic handle down to dispense the soft serve.
- Push the handle up to stop dispensing.
5.5 Puffing Technology
The machine features built-in puffing technology to create a lighter, smoother ice cream texture. This is automatically engaged during the freezing process when the AUTO mode is active. You can also use the PUFF button for single-pressure puffing if available on your model's control panel for specific texture adjustments.
Figure 4: Visual comparison of ice cream texture with and without puffing technology.
5.6 Low Mix Alarm
The intelligent monitoring system includes a Shortage Alarm. If the mix level in the hopper becomes too low, an alarm will sound, and an indicator will light up on the control panel. Refill the hopper promptly to prevent the cylinder from freezing and ensure continuous operation.
6. Maintenance
6.1 Daily Cleaning
Perform daily cleaning to maintain hygiene and machine performance:
- Turn off and unplug the machine.
- Remove any remaining soft serve mix from the hopper.
- Remove the detachable drip tray and wash it with warm, soapy water.
- Disassemble the dispensing handle, cylinder cover, and stirring rod. Wash, rinse, and sanitize these parts.
- Clean the inside of the hopper and freezing cylinder with a soft brush and food-grade cleaning solution, then rinse thoroughly.
- Wipe down all exterior surfaces with a damp cloth.
- Ensure all parts are dry before reassembling.
6.2 Regular Maintenance
- Sealing Rings: Periodically inspect the sealing rings (O-rings) for wear and tear. Replace them as needed using the provided accessory kit to prevent leaks and ensure proper machine function.
- Air Filters: Check and clean the air filters on the side panels regularly to ensure proper ventilation and cooling efficiency.
- General Inspection: Routinely check all connections and components for any signs of damage or loose parts.
Figure 5: Key user-friendly details for maintenance and operation.
7. Troubleshooting
This section addresses common issues you might encounter. For problems not listed here, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on | No power, loose plug, tripped circuit breaker | Check power connection, ensure outlet is functional, reset circuit breaker. |
| Ice cream is not freezing properly | Insufficient mix, warm mix, blocked ventilation, machine in 'FRESH' mode | Ensure hopper is filled, use pre-cooled mix, clear ventilation, switch to 'AUTO' mode. |
| Low Mix Alarm activates frequently | Hopper mix level is low | Refill the hopper with soft serve mix. |
| Leaking from dispensing nozzle | Worn or improperly installed sealing rings | Inspect and replace sealing rings as necessary. Ensure proper reassembly. |
| Unusual noise during operation | Loose components, motor issue | Turn off and unplug. Check for loose parts. If noise persists, contact support. |
8. Specifications
Detailed technical specifications for the FSKEKU YKF-8116F model:
| Feature | Specification |
|---|---|
| Model Name | YKF-8116F |
| Brand | FSKEKU |
| Power | 1.35 kW |
| Voltage | 115V / 60Hz |
| Output Capacity | 16-22 Liters/Hour |
| Mix Hopper Capacity | 7 Liters |
| Freezing Cylinder Capacity | 1.7 Liters |
| Dimensions (W x D x H) | 230 x 680 x 815 mm (approx. 9.1 x 26.8 x 32.1 inches) |
| Item Weight | 152 pounds (68.9 kg) |
| Material | Stainless Steel |
| Special Features | Compact Countertop Design, Continuous Production, Freshness Preservation, Intelligent Shortage Alarm, Puffing Technology, Hopper Stirring |
| Included Components | 1 x Commercial Ice Cream Machine, 1 x Drip Tray, 1 x Set of Sealing Rings, 1 x Stainless Steel Handle, 8 x Decorative Nozzles |
Figure 6: Dimensions and key specifications of the YKF-8116F.
9. Warranty and Support
FSKEKU is committed to providing high-quality products and customer satisfaction. Your FSKEKU YKF-8116F Commercial Soft Serve Ice Cream Machine comes with:
- Lifetime Maintenance Guidance: Access to expert advice for the lifespan of your machine.
- Free Spare Parts Support: Assistance with obtaining necessary replacement parts.
For technical support, warranty claims, or inquiries about spare parts, please contact FSKEKU customer service through the platform where you purchased the product or visit the official FSKEKU website for contact information.
