1. Important Safety Information
Read and understand all instructions before installing and using this product. Failure to follow these instructions could result in serious injury or death.
- Always supervise children and individuals with limited swimming ability when they are near the pool.
- Ensure the ladder is securely installed and stable before use.
- Do not dive or jump from the steps or ladder.
- The maximum weight capacity for the in-pool steps is 350 lbs. The maximum weight capacity for the swing-up ladder is 250 lbs. Do not exceed these limits.
- When not in use, always swing up and lock the outside ladder to prevent unauthorized access to the pool.
- Regularly inspect the steps and ladder for damage, wear, or loose components. Do not use if damaged.
- This ladder is not compatible with Intex, Coleman, pop-up, or inflatable style pools.
2. Product Overview
The Aqua Select Anti-Slip In-Pool Steps with Outside Flip-Up Ladder is designed to provide safe and easy entry and exit for above-ground swimming pools. This system features anti-slip treads on both the in-pool steps and the outside ladder, enhancing user safety. The outside ladder can be flipped up and locked to restrict pool access when unsupervised.
The closed side panels of these in-pool steps prevent entrapment while increasing the stability of the steps. This product is suitable for pools or decks up to 54 inches in height.

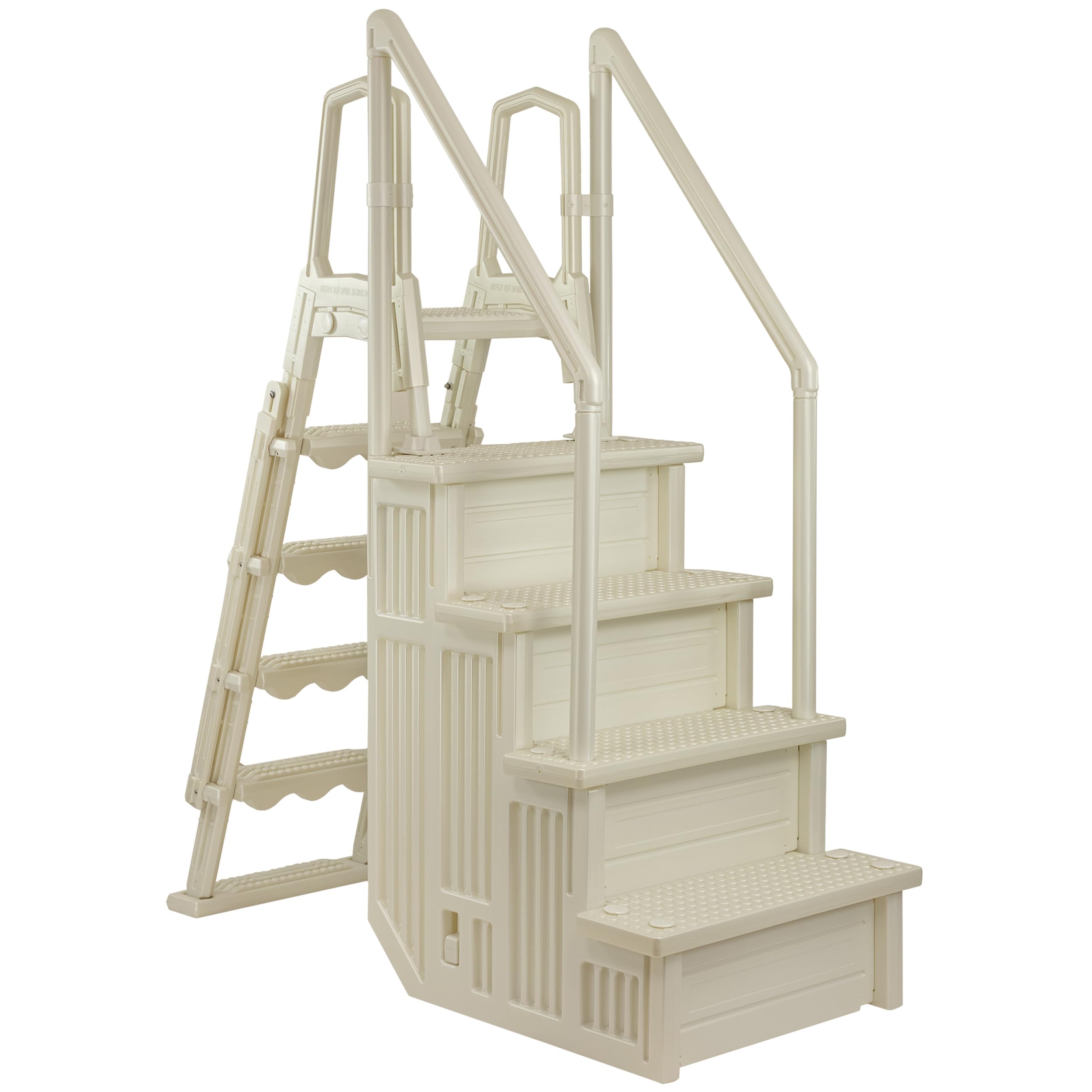

Figure 2.1: Complete Aqua Select Anti-Slip In-Pool Steps with Flip-Up Ladder system.
3. Components List
Before beginning installation, ensure all components are present and undamaged. Refer to your packaging for a detailed parts list. Key components include:
- In-Pool Step Unit (Pearl White)
- Outside Flip-Up Ladder Unit (Pearl White)
- Handrails for In-Pool Steps
- Handrails for Outside Ladder
- Adjustable Deck Attachment Brackets
- Mounting Brackets for connecting ladder to steps
- Hardware (screws, bolts, nuts, etc.)
Figure 3.1: Individual components of the step and ladder system.
4. Setup and Installation
This section outlines the general steps for assembling and installing your Aqua Select pool steps and ladder. Specific instructions and diagrams are provided in the included assembly manual.
4.1 Assembly
- Unpack Components: Carefully remove all parts from the packaging and verify against the components list.
- Assemble In-Pool Steps: Follow the snap-together instructions to assemble the main in-pool step unit. Ensure all connections are secure.
- Attach Handrails: Secure the handrails to the in-pool step unit using the provided hardware.
- Assemble Outside Ladder: Assemble the outside flip-up ladder unit, ensuring all steps and handrails are firmly attached.
Figure 4.1: Side view of the assembled in-pool steps.
Figure 4.2: Assembled outside flip-up ladder.
4.2 Placement and Securing
- Position In-Pool Steps: Place the assembled in-pool steps inside your above-ground pool.
- Add Weight for Stability: To prevent floating, funnel approximately 40 lbs of sand directly into the steps. Alternatively, use Aqua Select step weights (sold separately) and attach them to the steps.
- Mount to Pool/Deck: Use the adjustable deck attachment brackets to securely mount the in-pool steps to your pool's top rail or deck. Ensure the steps are level and stable. This system is designed for pools or decks between 48 and 54 inches in height.
- Attach Outside Ladder: Connect the outside flip-up ladder to the in-pool steps using the provided mounting brackets. Ensure a secure and stable connection.
Figure 4.3: Aqua Select steps and ladder system installed on an above-ground pool.
5. Operating Instructions
5.1 Entering and Exiting the Pool
- Ensure the outside ladder is in the down position and securely latched.
- Use the handrails for support when ascending or descending the steps and ladder.
- Step carefully on the anti-slip treads.
Figure 5.1: Close-up view of the anti-slip step treads.
5.2 Securing the Pool (Flip-Up Ladder)
- When the pool is not in use or is unsupervised, lift the outside ladder upwards.
- Engage the locking mechanism to secure the ladder in the upright position. This prevents unintended access to the pool.
- Always ensure the ladder is fully locked before leaving the pool area unattended.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your pool steps and ladder.
- Cleaning: Clean the steps and ladder regularly with mild soap and water. Avoid abrasive cleaners or brushes that could damage the surface or anti-slip treads.
- Inspection: Periodically inspect all components for cracks, breaks, loose fasteners, or excessive wear. Pay close attention to the anti-slip treads, handrails, and mounting points.
- Winterization: During the off-season, it is recommended to remove the steps and ladder from the pool, clean them thoroughly, and store them in a dry, protected area to prevent damage from freezing temperatures or prolonged exposure to harsh weather.
7. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Steps are floating or unstable. | Insufficient weight in steps; improper mounting. | Ensure 40 lbs of sand or Aqua Select step weights are properly placed inside the steps. Verify deck attachment brackets are securely fastened and adjusted. |
| Ladder feels wobbly. | Loose connections between ladder and steps or between steps and pool/deck. | Check all mounting brackets and hardware for tightness. Re-tighten as necessary. |
| Outside ladder does not lock securely. | Obstruction in locking mechanism; damaged latch. | Inspect the locking mechanism for debris. Ensure it engages fully. If damaged, contact customer support for replacement parts. |
| Steps or ladder appear damaged. | Wear and tear; accidental impact. | Discontinue use immediately. Contact customer support for assessment and potential replacement parts. |
8. Specifications
- Model Number: 842429
- Material: Resin
- Color: Pearl White
- Total Step Height: 44 ¼ inches
- Step Riser Height: 11 inches
- Step Front to Back: 36 inches
- Individual Step Dimensions: 28 inches W x 10 ½ inches D
- Step Deck Connector: 16 ½ inches L with 2-inch post hole
- Ladder Width: 25.43 inches
- Handrail Height: 22 inches
- Overall Product Dimensions (W x H): 28 inches W x 81 inches H
- Item Weight: 84 Pounds
- In-Pool Steps Weight Capacity: 350 lbs
- Swing-Up Ladder Weight Capacity: 250 lbs
- Compatible Pool/Deck Height: 48 to 54 inches
- Special Feature: Anti-Slip Treads
Figure 8.1: Key dimensions of the in-pool steps.
Figure 8.2: Detailed measurements of individual step treads.
9. Warranty Information
This Aqua Select product is covered by a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use and service. It does not cover damage resulting from improper installation, misuse, abuse, neglect, accident, or normal wear and tear.
For warranty claims or further details, please retain your proof of purchase and contact Aqua Select customer support.
10. Customer Support
If you have any questions, require assistance with installation, or need to report a problem, please contact Aqua Select customer support.
For more information about Aqua Select products, visit the official Aqua Select store: Aqua Select Store
