focemta FTCT-02-1 Outlet Tester User Manual

Introduction

This manual provides essential instructions for the safe and effective use of your focemta FTCT-02-1 Outlet Tester. This device is designed for quick and accurate detection of wiring conditions in standard North American 3-wire, 120-volt AC receptacles, including GFCI-protected outlets. Please read this manual thoroughly before operation.

Important Safety Information

• Always ensure the tester is in good condition before use. Do not use if damaged.
• This tester is designed for 90-135V standard North American AC circuits only. Do not use it on circuits outside this voltage range or in other electrical systems.
• Never attempt to open or modify the tester.
• Always follow local electrical codes and safety practices.
• If any wiring issues are detected, consult a qualified electrician for repair.
• Keep out of reach of children.

Product Features

• Designed for standard U.S. 3-wire and GFCI-protected 120-volt AC receptacles.
• Detects common wiring conditions: Correct Wiring, Open Ground, Open Neutral, Open Hot, Hot/Ground Reverse, Hot/Neutral Reverse.
• Integrated GFCI test button for verifying leakage protection function.
• Provides quick and reliable results through clear indicator lights.

Package Contents

• 1 x focemta FTCT-02-1 Outlet Tester

Setup

The focemta FTCT-02-1 Outlet Tester requires no complex setup. Simply plug the tester directly into the 3-prong wall receptacle you wish to test. Ensure it is fully inserted into the outlet for an accurate reading.

Image: The focemta FTCT-02-1 Outlet Tester plugged into a standard North American wall outlet. The tester displays two green lights, indicating correct wiring. A hand is visible near the GFCI test button.

Operating Instructions

1. Wiring Status Detection

Once the tester is plugged into an outlet, observe the indicator lights on the front panel. The combination of illuminated lights will indicate the current wiring status of the receptacle. Refer to the "Understanding Indicator Lights" section for detailed interpretations.

2. GFCI Test Function

To test a Ground Fault Circuit Interrupter (GFCI) protected outlet:

1. Plug the focemta FTCT-02-1 Outlet Tester into the GFCI-protected receptacle.
2. Verify that the indicator lights show "Correct Wiring" before proceeding.
3. Press the orange "GFCI" button located on the front of the tester.
4. A properly functioning GFCI outlet should trip, cutting power to the outlet and causing the indicator lights on the tester to turn off.
5. If the GFCI does not trip, it may be faulty and should be inspected by a qualified electrician.
6. To restore power, press the "RESET" button on the GFCI outlet itself.

Note: No official seller videos are available for embedding at this time.

Understanding Indicator Lights

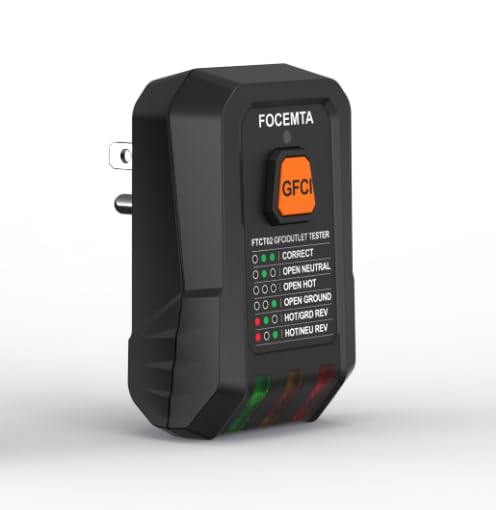

The focemta FTCT-02-1 Outlet Tester uses a combination of three indicator lights (typically two green and one red) to display the wiring status. A legend is usually printed on the device itself for quick reference.

Note: The exact color of the lights (e.g., green/red) may vary slightly, but the pattern of ON/OFF lights is consistent with the wiring status indicated on the tester's label.

Maintenance

• Cleaning: Wipe the tester with a dry, soft cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the tester in a cool, dry place, away from direct sunlight and extreme temperatures.
• Inspection: Periodically inspect the tester for any signs of damage, such as cracks in the casing or bent prongs. Discontinue use if damage is found.

Troubleshooting

• No Lights Illuminate:
• Ensure the tester is fully inserted into the outlet.
• Check if the outlet has power by testing with a known working device.
• The circuit breaker for the outlet may be tripped. Reset the breaker if necessary.
• This could also indicate an "Open Hot" condition, which requires professional attention.
• GFCI Does Not Trip:
• Ensure the outlet is indeed GFCI-protected.
• Verify the outlet is correctly wired (tester shows "Correct Wiring") before performing the GFCI test.
• If the GFCI still does not trip, the GFCI mechanism may be faulty. Consult a qualified electrician.
• Incorrect Wiring Indication:
• If the tester indicates any wiring fault (e.g., Open Ground, Hot/Neutral Reverse), do not use the outlet.
• Contact a qualified electrician immediately to diagnose and correct the wiring issue.

Specifications

Warranty and Support

For warranty information or technical support regarding your focemta FTCT-02-1 Outlet Tester, please refer to the product packaging or contact focemta customer service directly.

Manufacturer: Focemta
