SUNMAX HD4400W Pallet Jack with Built-in Digital Scale

1. Introduction

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your SUNMAX HD4400W Pallet Jack with Built-in Digital Scale. This equipment is designed to facilitate the transport and weighing of standard pallets in industrial and commercial environments. Please read this manual thoroughly before operating the pallet jack.

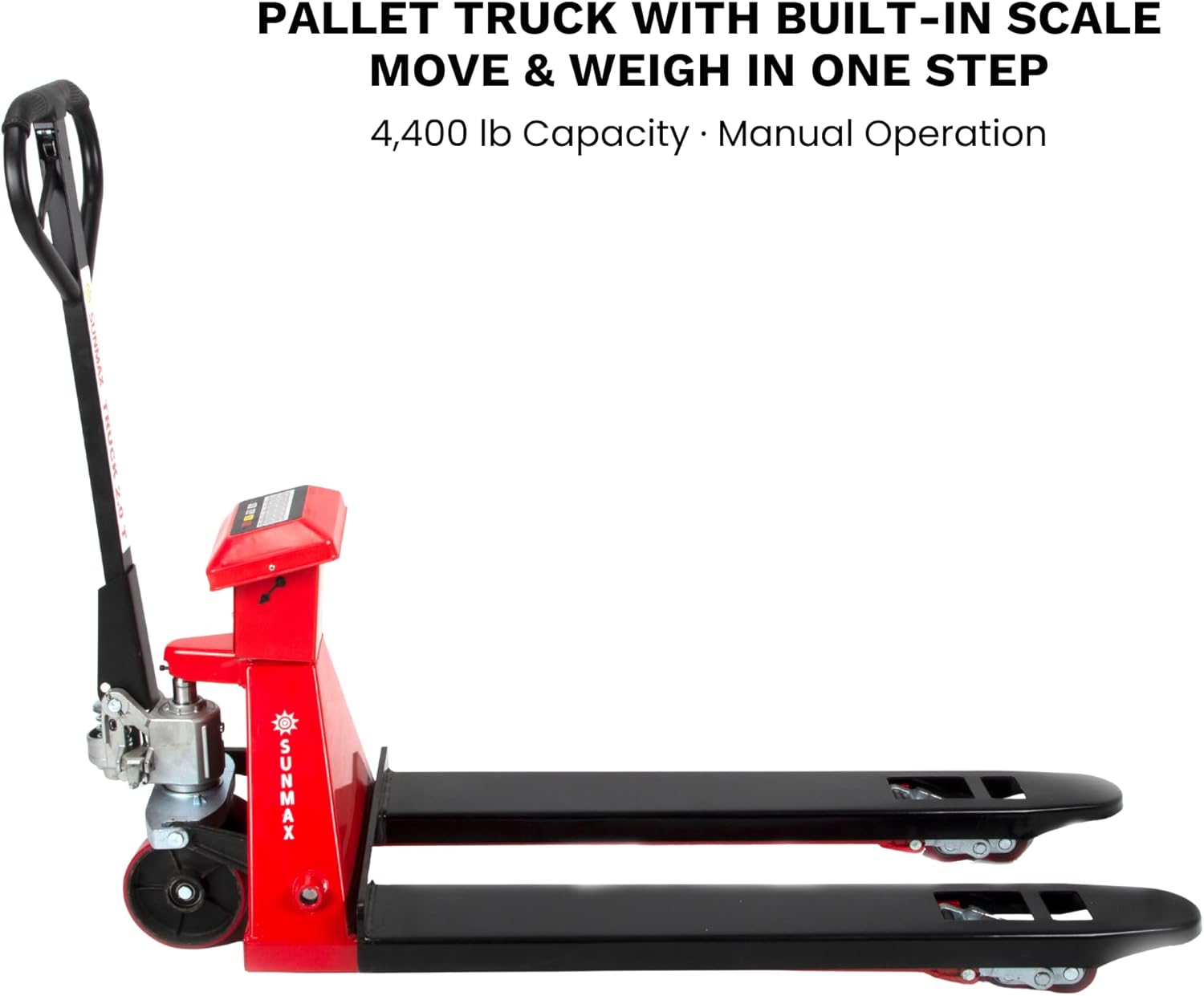

Image 1.1: The SUNMAX HD4400W Pallet Jack, a manual pallet truck with integrated digital scale for moving and weighing loads up to 4,400 lbs.

2. Safety Information

Adherence to safety guidelines is crucial for preventing injury and equipment damage. Always operate the pallet jack responsibly.

• Load Capacity: Never exceed the maximum load capacity of 4,400 lbs (2,000 kg). Overloading can cause structural damage and lead to accidents.
• Operating Environment: This pallet jack is designed for indoor use only on flat, dry, and even surfaces. Do not operate on inclines, uneven terrain, or wet floors.
• Personal Protective Equipment (PPE): Always wear appropriate safety footwear and gloves when operating the pallet jack.
• Load Stability: Ensure loads are properly centered and stable on the forks before lifting and moving. Unstable loads can shift and fall.
• Clearance: Maintain clear visibility and be aware of your surroundings, including personnel, obstacles, and overhead clearances.
• Scale Accuracy: The built-in scale is for internal logistics and inventory management. It is not legal for trade and should not be used for commercial transactions requiring certified weight measurements.
• Emergency Stop: Familiarize yourself with the handle's control lever for quick lowering of forks in an emergency.

Image 2.1: The pallet jack in use within a warehouse, demonstrating its intended indoor application for material handling.

3. Components Overview

The SUNMAX HD4400W Pallet Jack consists of several key components:

• Handle: Ergonomically designed for steering and operating the hydraulic lift.
• Control Lever: Located on the handle, it controls lifting, neutral, and lowering functions.
• Hydraulic Pump: Lifts the forks when the handle is pumped.
• Forks: Two steel blades designed to slide under pallets. Dimensions: 27 inches wide x 48 inches long.
• Load Wheels: Located at the end of the forks.
• Steering Wheels: Located under the handle for maneuverability. Made of polyurethane for smooth, quiet operation.
• Digital Scale Display: Integrated unit on the main body, providing weight readings and various functions.
• Scale Battery: Rechargeable lithium battery (Type-C charging) powers the digital display.

4. Setup

4.1 Unpacking and Inspection

1. Carefully remove the pallet jack from its packaging.
2. Inspect the unit for any signs of shipping damage. If damage is found, do not operate and contact customer support immediately.
3. Ensure all components are present and securely attached.

4.2 Initial Charging of the Digital Scale

The digital scale is powered by a rechargeable lithium battery. For optimal performance, fully charge the scale before first use.

1. Locate the Type-C charging port on the digital scale unit.
2. Connect the provided Type-C charging cable to the port and plug the other end into a suitable power source.
3. The display will indicate charging status. Allow the battery to charge completely.
4. Disconnect the charger once fully charged.

Image 4.1: The digital scale display unit, showing various functions and the Type-C charging port.

5. Operating Instructions

5.1 Moving the Pallet Jack

1. Ensure the control lever on the handle is in the NEUTRAL position (middle position) for easy steering.
2. Push or pull the handle to move the pallet jack to the desired location.
3. The polyurethane wheels are designed for smooth movement on flat indoor surfaces.

5.2 Lifting a Load

1. Position the pallet jack so the forks are aligned with the pallet openings.
2. Push the pallet jack forward until the forks are fully inserted under the pallet.
3. Move the control lever to the LIFT position (upward).
4. Pump the handle up and down to raise the forks and lift the pallet off the ground. Lift only high enough to clear the floor for movement.

5.3 Lowering a Load

1. Ensure the area is clear before lowering the load.
2. Move the control lever to the LOWER position (downward).
3. The forks will slowly descend. Release the lever to stop lowering at any point.
4. Once the pallet is fully on the ground, pull the pallet jack away from the pallet.

5.4 Using the Digital Scale

The integrated digital scale allows for simultaneous transport and weighing.

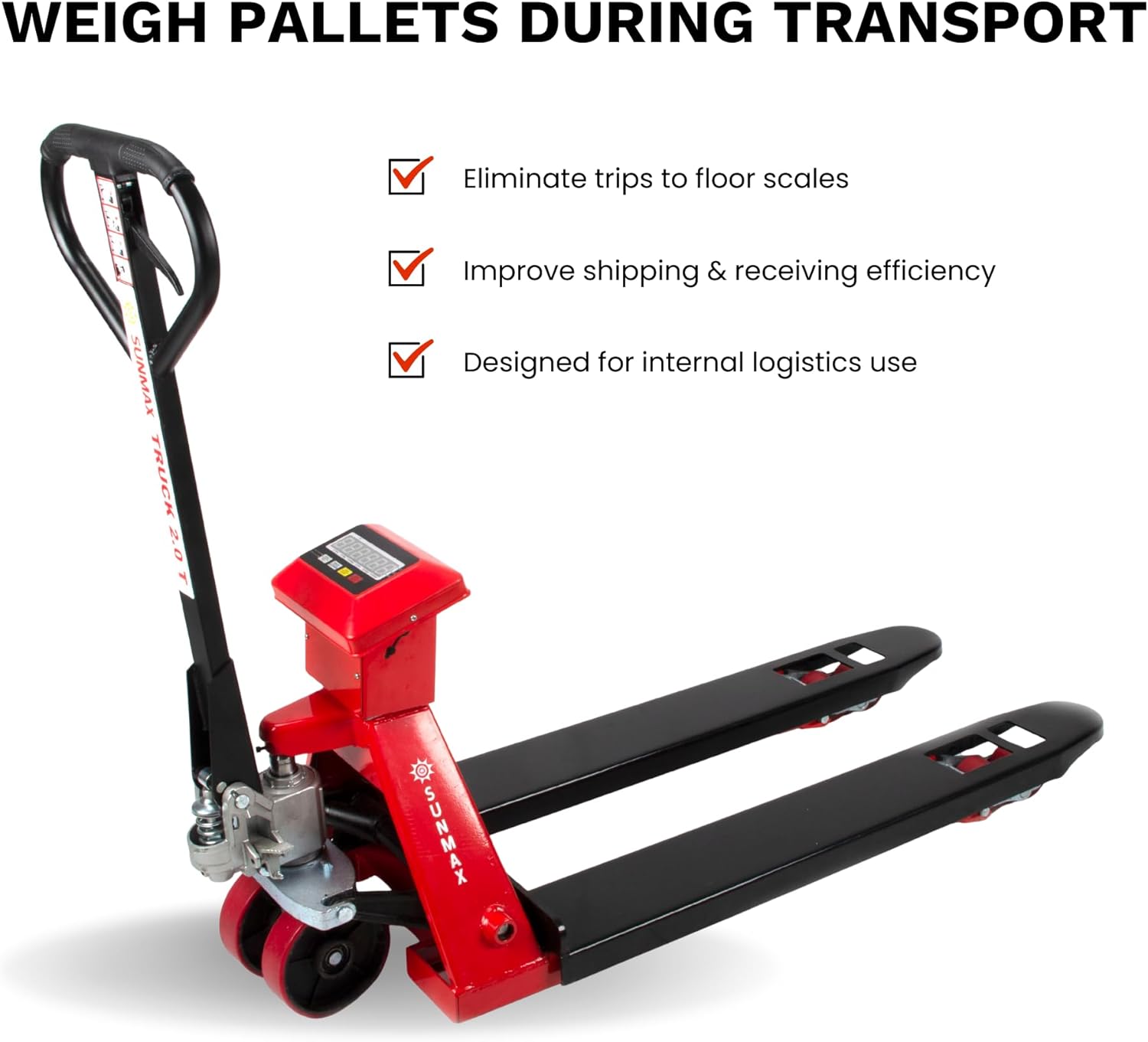

Image 5.1: The pallet jack with an integrated digital scale, allowing for weighing during transport to improve efficiency.

1. Power On/Off: Press the ZERO ON/OFF button to turn the scale on or off.
2. Weighing: Once the pallet is lifted, the weight will be displayed on the dual-color LED screen.
3. Unit Switching (lb/kg): Press the INQUIRE RED/GREEN button (short press) to switch between pounds (lb) and kilograms (kg).
4. Tare Function: To zero out the weight of a container or pallet, place the empty item on the forks, then press the TARE button. The display will show zero, and subsequent items added will show their net weight.
5. Accumulation: The scale can sum multiple weights. Refer to the scale's specific instructions for detailed accumulation procedures.
6. Counting Mode: For counting identical items, the scale can be set to counting mode. Consult the scale's manual for calibration and operation of this feature.
7. Weight Memory: The scale can store weight readings. Refer to the scale's specific instructions for accessing and utilizing weight memory.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your pallet jack.

• Cleaning: Keep the pallet jack clean, especially the forks, wheels, and scale display. Use a damp cloth; avoid harsh chemicals or excessive water.
• Hydraulic System: Periodically check the hydraulic fluid level. If low, refill with appropriate hydraulic oil. Inspect for any leaks.
• Wheel Inspection: Regularly inspect the polyurethane wheels for wear, damage, or debris. Clean any debris to ensure smooth rolling.
• Battery Care: Recharge the digital scale battery as needed. Avoid fully discharging the battery frequently to prolong its lifespan. Store the pallet jack in a cool, dry place.
• Fasteners: Check all bolts, nuts, and other fasteners periodically and tighten if necessary.

7. Troubleshooting

This section addresses common issues you might encounter.

8. Specifications

Detailed technical specifications for the SUNMAX HD4400W Pallet Jack.

• Model: HD4400W
• Brand: SUNMAX
• Material: Alloy Steel
• Color: Red and Black
• Load Capacity: 4,400 lbs (2,000 kg)
• Fork Dimensions (W x L): 27 inches x 48 inches
• Product Dimensions (L x W x H): 63.6" x 27.6" x 47.8" (1615 mm x 700 mm x 1215 mm)
• Item Weight: 227 lbs (103 kg)
• Wheel Type: Polyurethane
• Number of Wheels: 5
• Caster Wheel Diameter: 3 Inches
• Style: Industrial and Commercial Use
• Scale Power: Rechargeable Lithium Battery (Type-C charging)

Image 8.1: Dimensional diagram of the SUNMAX HD4400W Pallet Jack, including length, width, height, and fork lift range.

Image 8.2: Visual representation of the 4,400 lb load capacity and compatibility with standard 40x48 inch pallets, including two-way and four-way entry types.

Image 8.3: Features of the pallet jack, including its compact design for tight spaces and durable polyurethane wheels for smooth operation.

9. Warranty and Support

For warranty information, returns, or technical assistance, please contact SUNMAX customer support. The product is eligible for 30-day easy returns as per retailer policy.

Customer Support: Refer to your purchase documentation or the SUNMAX official website for contact details.
