1. Product Overview
The KRYTJACZ DK72400S is a high-power 6000W programmable motor controller designed for enhancing acceleration and speed in electric bikes and scooters. It incorporates advanced sine waving modulation technology for smooth power delivery, reduced vibrations, and lower noise levels. This controller is built with a high-strength aluminum alloy housing, ensuring excellent heat dissipation and impact resistance, contributing to its superior durability.
Key features include over 95% energy conversion efficiency, minimizing power loss and extending battery life. It provides a customizable solution for optimizing vehicle performance and personalizing rides, suitable for various terrains and supporting green transportation initiatives.
Figure 1: KRYTJACZ DK72400S Motor Controller. This image shows the motor controller in the foreground with a classic scooter in the background, illustrating its application in electric vehicles.
2. Setup and Installation
Proper installation of the DK72400S motor controller is crucial for optimal performance and safety. Ensure all connections are secure and correctly wired according to your vehicle's electrical system.
2.1 Wiring Connections
The controller comes with user-friendly wiring and protective electrical connections. Identify the main power input, motor phase wires (U, V, W), Hall sensor connections, throttle input, and other auxiliary connections such as brake signals and ignition.
- Power Input: Connect the battery positive and negative terminals to the corresponding inputs on the controller. Observe polarity carefully.
- Motor Phase Wires: Connect the three motor phase wires (U, V, W) from your motor to the labeled terminals on the controller.
- Hall Sensors: Connect the Hall sensor wires from the motor to the controller's Hall sensor input. This is essential for smooth motor operation.
- Throttle: Connect the throttle signal wire, power, and ground to the designated throttle input.
- Auxiliary Connections: Connect brake levers, ignition switch, and other accessories as required by your vehicle's design.

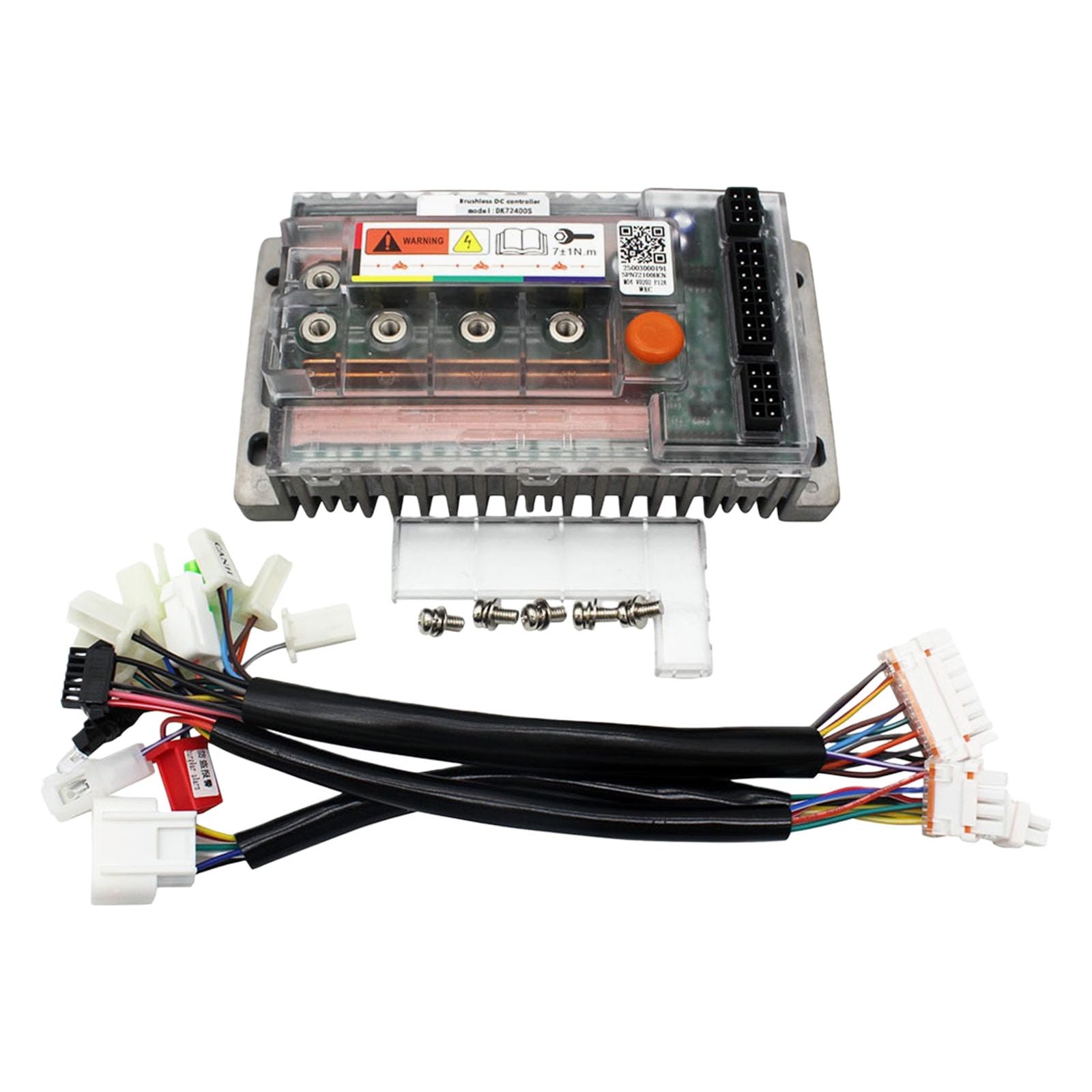

Figure 2: Controller and Wiring Harness. This image displays the DK72400S controller along with its comprehensive wiring harness, illustrating the various connection points for installation.
2.2 Programming
The DK72400S is a programmable controller. To customize settings such as speed limits, acceleration curves, and regenerative braking, you will need to purchase a separate USB cable. Connect the controller to a computer using the USB cable and use the provided software (if applicable) to adjust parameters. Refer to the software's specific instructions for detailed programming steps.
3. Operating Instructions
Once installed and programmed, the controller manages the power delivery to your electric motor. Its sine waving technology ensures a smooth and efficient ride.
- Power On: Turn on your vehicle's ignition. The controller will initialize.
- Throttle Control: Gently apply the throttle to initiate movement. The controller will translate your throttle input into smooth motor acceleration.
- Braking: When brakes are applied, the controller may cut power to the motor and, if configured, engage regenerative braking to recover energy.
- Monitoring: Pay attention to any dashboard indicators or diagnostic tools your vehicle may have to monitor controller and motor status.
Figure 3: Controller in Use. This image shows the motor controller superimposed on a scene of a person riding a scooter, demonstrating its functional context.
4. Maintenance
The DK72400S controller is designed for durability and minimal maintenance. However, periodic checks can help ensure its longevity and reliable operation.
- Cleanliness: Keep the controller free from dust, dirt, and moisture. Use a dry, soft cloth for cleaning.
- Connection Checks: Periodically inspect all wiring connections for tightness and signs of corrosion or damage. Loose connections can lead to intermittent operation or component failure.
- Heat Dissipation: Ensure the controller's aluminum alloy housing and fins are not obstructed, allowing for proper heat dissipation. Overheating can reduce performance and lifespan.
- Environmental Protection: While robust, avoid exposing the controller to extreme temperatures or direct water immersion.
5. Troubleshooting
If you encounter issues with your DK72400S motor controller, consider the following common troubleshooting steps:
- No Power: Check battery connections, ignition switch, and main fuse. Ensure the battery is charged.
- Motor Not Running: Verify all motor phase wires and Hall sensor connections are secure. Check throttle input. If programmable, ensure no error codes are displayed via diagnostic software.
- Intermittent Operation: Inspect all wiring for loose connections or damaged insulation. Check for signs of overheating.
- Reduced Performance: This could indicate a low battery charge, incorrect programming settings, or a motor issue. Review programming parameters and battery health.
- Unusual Noise/Vibration: Check motor connections and Hall sensors. This may also indicate a motor problem rather than the controller.
For persistent issues, consult a qualified technician or contact customer support.
6. Specifications
The following table details the technical specifications of the KRYTJACZ DK72400S motor controller:
| Specification | Value |
|---|---|
| Model | DK72400S |
| Type | Electric Motorcycle Brushless Controller |
| Voltage Range | 48V-72V |
| Current | 150A (Bus Current) |
| Phase Current | 400A |
| Power Output | 6000W |
| Energy Conversion Efficiency | >95% |
| Housing Material | Aluminum Alloy |
| Dimensions (L x W x H) | Approx. 15cm x 15cm x 15cm (5.91in x 5.91in x 5.91in) |
| Country of Origin | China |
Figure 4: Top View of Controller. This image provides a detailed top-down view of the DK72400S controller, showing its internal components and labeling.
7. Warranty and Support
The KRYTJACZ DK72400S motor controller comes with a manufacturer warranty for 90 days from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
7.1 Return Policy
A return policy of 30 days is typically offered for refunds or replacements. Please refer to your point of purchase for specific return instructions and conditions.
7.2 Customer Support
For technical assistance, warranty claims, or further inquiries, please contact KRYTJACZ customer support through the contact information provided at your point of purchase or on the official KRYTJACZ website.
