LyLmLe LED Pond Lights (Model P01-CB6W) Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of your LyLmLe LED Pond Lights (Model P01-CB6W). Please read this manual thoroughly before using the product and retain it for future reference.

2. Safety Information

WARNING: This product is designed for underwater use only. Do not operate the lights out of water for extended periods as this may cause overheating and damage.

• Ensure the power supply is disconnected before installation or maintenance.
• Only use the provided 12V transformer. Connecting to a higher voltage power source will damage the lights and may pose a safety hazard.
• Do not modify the product in any way. Unauthorized modifications may lead to malfunction, electric shock, or fire.
• Keep the transformer and all electrical connections dry and away from water splashes. The transformer is IP68 waterproof, but proper placement is still recommended.
• Regularly inspect cables and connections for damage. If any damage is found, discontinue use immediately and contact customer support.
• This product is not a toy. Keep out of reach of children.

3. Package Contents

Verify that all components are present in the package:

• LED Lights (6 units)
• 12V Transformer
• Remote Control

4. Product Features

• APP Control: Customize colors, brightness, dynamic scenes, music synchronization, and set on/off timers via smartphone application.
• 12V Low Voltage with Built-in Transformer: Safe for underwater use and simplifies installation by eliminating the need for an external transformer.
• SS316 Stainless Steel Construction: Crafted from premium SS316 stainless steel for rust and corrosion resistance, ensuring durability and optimal heat dissipation.
• Tempered Glass: Provides impact resistance and enhanced durability for the light lens.
• IP68 Waterproof Rating: Integrated sealing design and epoxy resin filling ensure full waterproofing for reliable outdoor and underwater use.
• Easy Installation: Each light weighs approximately 1.4lb, providing stability without additional anchoring. Lights can be securely placed and angled as desired.

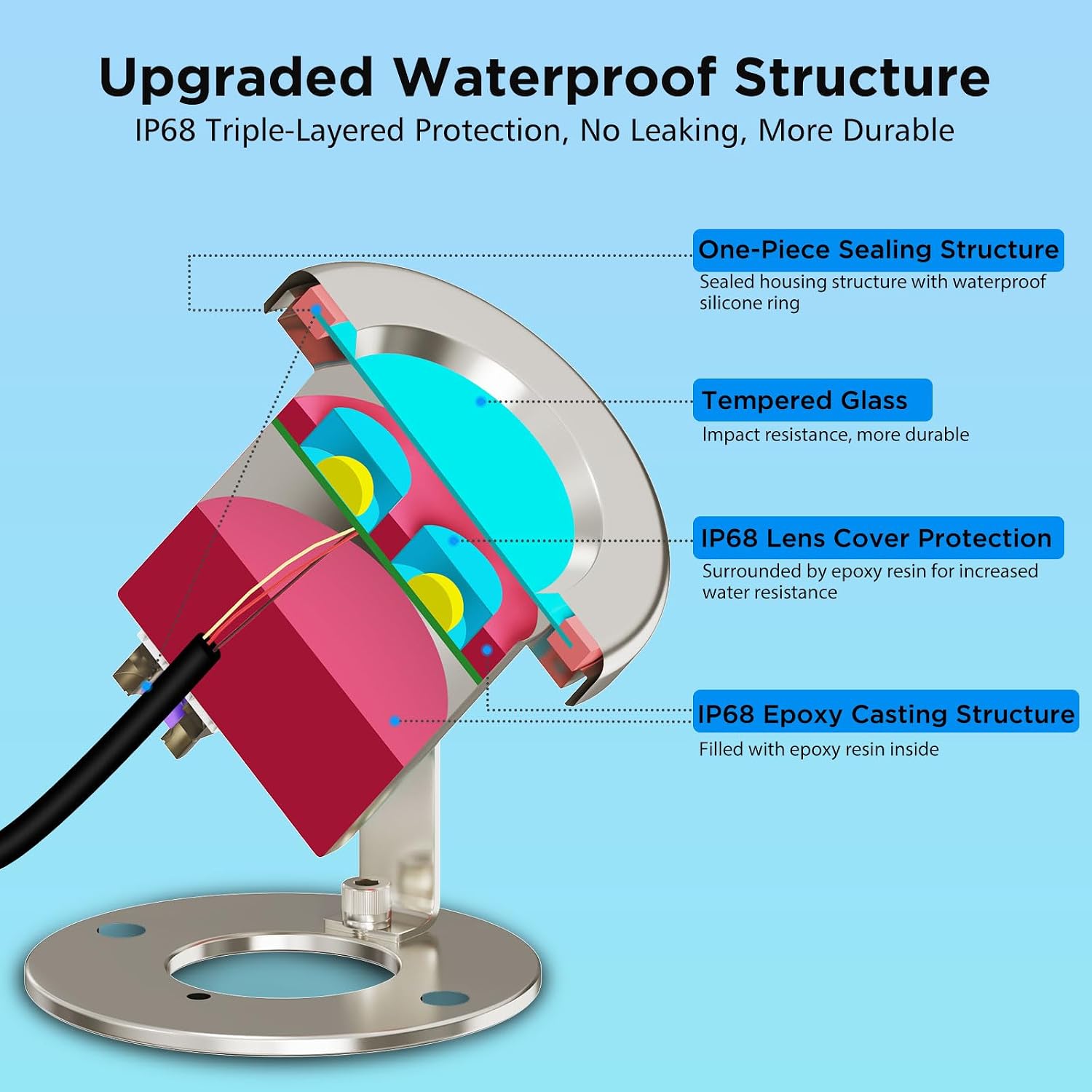

Figure 4.1: Upgraded Waterproof Structure. This diagram illustrates the internal components and sealing methods, including the one-piece sealing structure, tempered glass, IP68 lens cover protection, and IP68 epoxy casting structure, all contributing to the light's durability and water resistance.

Figure 4.2: SS316 Stainless Steel Construction. This image highlights the robust SS316 stainless steel material of the light, emphasizing its resistance to rust and corrosion, even when fully submerged.

5. Setup Instructions

1. Placement: Position the LED pond lights in your desired underwater locations within the pond, waterfall, or fountain. Ensure they are stable and angled correctly.
2. Connect Lights to Transformer: Connect each LED light cable to the corresponding output ports on the 12V transformer. Ensure all connections are secure. The transformer features detachable connectors for easy setup or extension.
3. Power Connection: Plug the 12V transformer into a standard AC 90-240V outdoor power outlet. Ensure the outlet is protected from direct water exposure.
4. Initial Power On: Once all connections are secure and the transformer is plugged in, the lights should illuminate.

Figure 5.1: Low Output Voltage Connection Diagram. This diagram illustrates the safe 12V DC low voltage system, showing how the six LED lights connect to the built-in transformer, which then connects to a standard AC power source. The cable length from the transformer to the lights is approximately 21ft (6.5m).

Figure 5.2: IP68 Waterproof Transformer. This image shows the robust, waterproof design of the transformer and its detachable connector, which allows for easy replacement or cable extension.

6. Operating Instructions

6.1. Remote Control Operation

The included remote control allows for basic functions:

• Power On/Off: Press the power button to turn the lights on or off.
• Color Selection: Use the color buttons to select static colors.
• Brightness Adjustment: Adjust the light intensity using the brightness control buttons.
• Mode Selection: Cycle through various dynamic lighting modes.

6.2. Smartphone App Control

For advanced features and customization, download and connect to the dedicated smartphone application. Refer to the 'App Control' section for detailed instructions.

7. App Control

The LyLmLe LED Pond Lights can be controlled via a smartphone application, offering extensive customization options.

1. Download the App: Scan the QR code provided in the packaging or search for the 'ELK-BLEDOM' app in your smartphone's app store (iOS/Android).
2. Enable Bluetooth: Ensure Bluetooth is enabled on your smartphone.
3. Connect to Lights: Open the app. The app should automatically detect and connect to your LyLmLe LED Pond Lights. If not, follow the in-app instructions to add a device.
4. Customize Settings: Once connected, you can:
   • Select from 16 million colors.
   • Adjust brightness levels.
   • Choose from 22 dynamic modes and 10 scene modes.
   • Synchronize lights with music.
   • Set custom on/off timers for automated operation.
   • Group multiple lights for synchronized control.

Figure 7.1: App Control Interface. This image shows the smartphone application's interface, demonstrating the ability to select colors, adjust brightness, and access various lighting modes for the pond lights.

Figure 7.2: Music Synchronization. This image illustrates the music synchronization feature, where the pond lights change colors and patterns in response to music played through the app.

8. Maintenance

Regular maintenance ensures optimal performance and longevity of your LyLmLe LED Pond Lights.

• Cleaning: Periodically clean the light lenses to remove algae, mineral deposits, or debris that may obstruct light output. Use a soft cloth and fresh water. Do not use abrasive cleaners.
• Cable Inspection: Regularly check all cables and connections for signs of wear, cuts, or damage. Replace any damaged components immediately.
• Transformer Placement: Ensure the transformer remains in a dry, protected location, even though it is IP68 rated.
• Winterization: In regions with freezing temperatures, it is recommended to remove the lights from the water during winter to prevent damage from ice expansion. Store them in a dry, temperate location.

9. Troubleshooting

10. Specifications

Figure 10.1: Product Dimensions. This technical drawing provides precise measurements for a single light unit, indicating a width of 3.35 inches and a height of 4.92 inches.

11. Warranty and Support

Your LyLmLe LED Pond Lights (Model P01-CB6W) are covered by a 2-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

The warranty does not cover:

• Damage caused by improper installation or operation.
• Damage caused by unauthorized modifications or repairs.
• Damage caused by accidents, misuse, or neglect.
• Normal wear and tear.

For warranty claims or technical support, please contact LyLmLe customer service through the retailer where the product was purchased or visit the official LyLmLe website for contact information.
