Ampfy Roller Shutter Motor Repair Kit for Bubendorff 41699 Control Board - Instruction Manual

Product Overview

This comprehensive repair kit is designed to address common electronic malfunctions in Bubendorff roller shutter motors, specifically those equipped with the 41699 electronic control board or similar versions. It provides the necessary components and tools to replace defective parts, restoring normal operation to your roller shutter.

Compatibility

This kit is compatible with Bubendorff roller shutter motors, including individually radio-controlled motors with automatic end-stop adjustment. It is suitable for motors manufactured after 2010 (types BLOC Y, MONO ID2, TRADI ID2, TRADI ID2 TITAN) that use the electronic board reference 41699 or a similar variant. Before purchase, carefully compare your motor and electronic board reference with the information provided to ensure compatibility.

Kit Contents

• 1 x Capacitor
• 1 x MKP Capacitor
• 1 x 50 cm Solder wire
• 1 x 50 cm Desoldering braid
• 1 x Instruction Manual (this document)

Safety Instructions

WARNING: Electrical work can be dangerous. Always ensure the device is disconnected from all power sources before beginning any repair work to prevent electric shock.

• Work in a dry, clean, and well-lit environment.
• Never reconnect the device to power until you are completely certain of the correct assembly and all connections are secure.
• Verify component compatibility with your device and electronic board reference before use.
• Components supplied may have visual differences (color, marking, brand, casing) from original parts; this does not affect functionality.

Preparation and Required Skills

This repair kit is intended for individuals with basic knowledge of electronics and soldering. If you are not confident in your abilities, it is recommended to seek assistance from a qualified technician.

Before You Begin

1. Identify the Fault: Common symptoms include the roller shutter moving in jerks, irregular motor operation, or unstable/abnormal panel behavior.
2. Gather Tools: In addition to the kit contents, you will need a soldering iron, a multimeter (optional, for testing), and appropriate safety gear (e.g., safety glasses).
3. Disconnect Power: Crucially, disconnect the roller shutter motor from the main power supply.
4. Access the Control Board: Carefully open the motor housing to access the electronic control board.
5. Identify Components: Before desoldering, carefully identify the location and polarity of the components to be replaced on the electronic board. Take photos for reference if needed.

Installation Guide: Component Replacement

Follow these steps to replace the defective electronic components on your Bubendorff 41699 control board.

1. Desolder Old Components: Using the desoldering braid and a heated soldering iron, carefully remove the old, defective capacitor(s) from the control board. Ensure all solder is removed from the through-holes.
2. Clean the Board: Gently clean the areas where components were removed to ensure good contact for the new parts.
3. Insert New Components: Insert the new capacitor(s) (1 x Capacitor, 1 x MKP Capacitor) into their respective positions on the control board. Pay close attention to polarity for electrolytic capacitors (usually marked with a stripe for the negative lead).
4. Solder New Components: Solder the new components securely to the board using the provided solder wire. Ensure strong, clean solder joints without bridging any connections.
5. Inspect Work: Visually inspect all solder joints for quality. Check for any solder bridges or cold joints. Ensure components are correctly oriented.
6. Reassemble: Carefully reassemble the motor housing, ensuring all connections are secure and no wires are pinched.

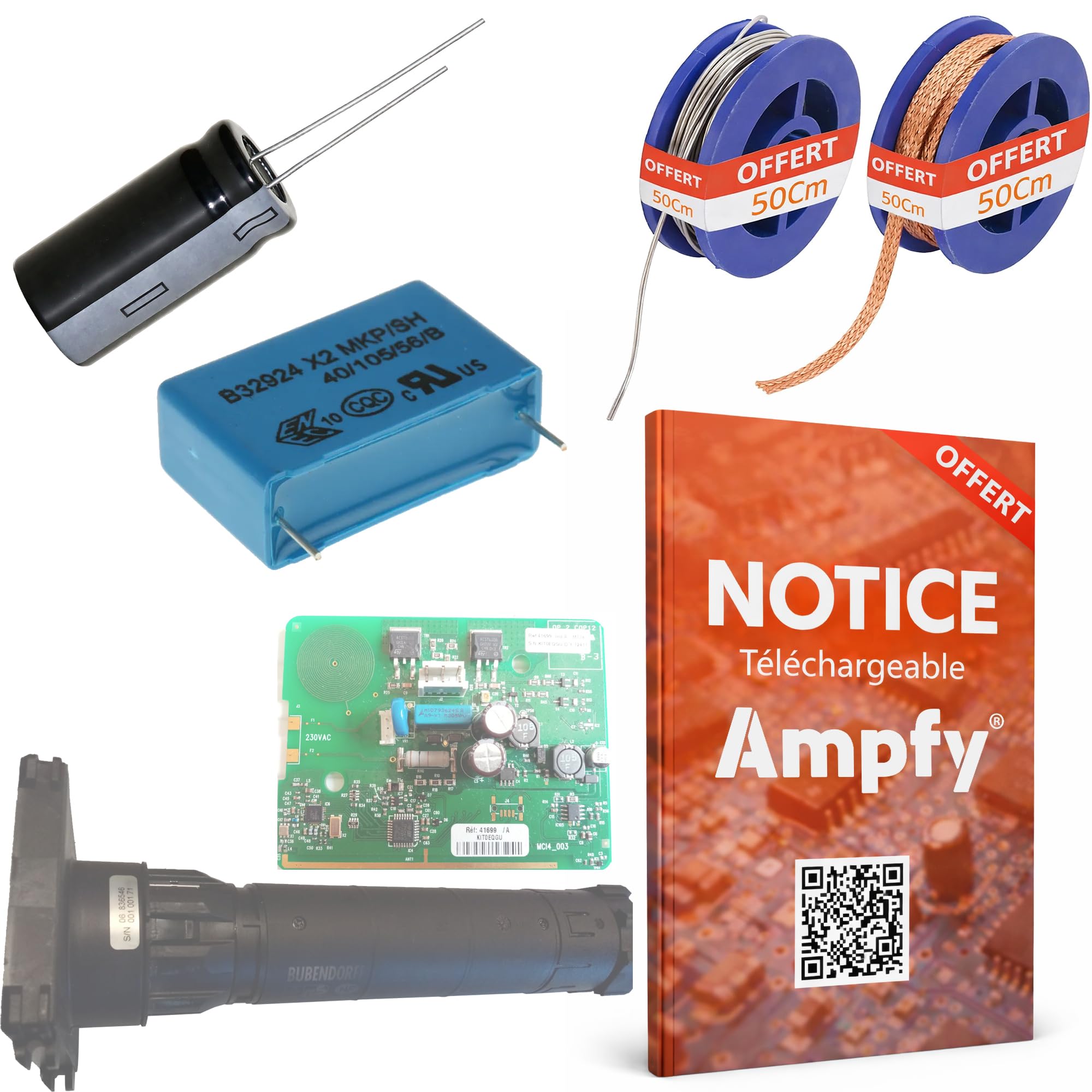

Image: Ampfy Roller Shutter Motor Repair Kit components. This image shows the various parts included in the kit, such as the capacitors, solder wire, and desoldering braid, essential for the repair process.

Troubleshooting

If, after installing the kit, the problem persists, the cause of the malfunction may lie elsewhere. Consider checking the following:

• Motor Itself: The motor unit might be faulty beyond the electronic board.
• Remote Control: Test the remote control with another compatible device or check its battery.
• Power Supply: Verify the power supply to the motor is stable and correct.
• Electrical Installation: Check the wiring and connections of your overall electrical installation.

Maintenance

Once the repair is complete, no specific ongoing maintenance is required for the electronic components. Ensure the motor housing remains sealed to protect the internal electronics from dust and moisture. Regular cleaning of the roller shutter itself can help prevent strain on the motor.

Product Specifications

Warranty and Support

For specific warranty information or technical support regarding your Ampfy repair kit, please refer to the seller's information on the purchase platform or contact Ampfy customer service directly. This kit is designed to replace specific components; the overall warranty of your Bubendorff motor may be affected by DIY repairs.
