Generic 12-Inch 21V Cordless Electric Chainsaw User Manual

1. Introduction

Thank you for choosing the Generic 12-Inch 21V Cordless Electric Chainsaw, Model GN-558B. This powerful tool is designed for efficient wood cutting tasks, including gardening, pruning, and logging. Equipped with a 1200W brushless motor and two 68V/6.0Ah lithium-ion batteries, it offers superior performance and extended runtime. Please read this manual carefully before operation to ensure safe and effective use of your chainsaw.

2. General Safety Instructions

WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

• Work Area Safety: Keep the work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions.
• Personal Safety: Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, gloves, and sturdy footwear. Do not overreach. Maintain proper footing and balance at all times.
• Chainsaw Specific Safety:
  • Always hold the chainsaw firmly with both hands when operating.
  • Ensure the safety lock button is engaged when not cutting to prevent accidental starting.
  • Be aware of kickback. Kickback may occur when the moving chain contacts an object at the upper quadrant of the guide bar nose.
  • Never operate the chainsaw with one hand.
  • Do not operate the chainsaw when tired or under the influence of drugs, alcohol, or medication.
  • Keep all parts of the body away from the saw chain when the chainsaw is operating.
  • Before starting the chainsaw, ensure the chain is not contacting any object.

3. Package Contents

Carefully unpack all items and ensure you have received all components listed below. If any items are missing or damaged, please contact customer support.

• 1x 12-Inch Cordless Electric Chainsaw (Main Unit)
• 2x Lithium-Ion Batteries (68V/6.0Ah)
• 1x Battery Charger
• 1x 12-Inch Guide Bar
• 1x Saw Chain
• 1x Wrench/Tool for assembly
• 1x Storage Case
• 1x User Manual (This document)

Figure 1: Complete package contents.

4. Product Overview

Familiarize yourself with the components of your chainsaw before operation.

Figure 2: Chainsaw components diagram.

1. Large Capacity Lithium Battery
2. Electric Lamp (LED light)
3. Oil Filling Port (for lubrication)
4. Anti-slip Auxiliary Handle
5. Enlarged Baffle (Deflector Guard)
6. Power Switch
7. Integrated Guide Bar Plate
8. High-Temperature Tempered Chain
9. Safety Lock Button

5. Setup and Assembly

5.1. Battery Charging and Installation

1. Charge Batteries: Before first use, fully charge both lithium-ion batteries using the provided charger. The charger indicator light will typically change from red to green when charging is complete.
2. Install Battery: Align the battery with the battery slot on the chainsaw handle and slide it in until it clicks securely into place. Ensure it is firmly seated.
3. Remove Battery: Press the battery release button (if present) and slide the battery out of the slot.

5.2. Guide Bar and Chain Installation

Important: Always wear protective gloves when handling the saw chain to prevent injury.

1. Remove Cover: Loosen the nuts on the side cover (chain cover) and remove it.
2. Install Chain: Carefully place the saw chain around the sprocket and then guide it into the groove of the guide bar. Ensure the cutting edges of the chain teeth are facing the correct direction (refer to the diagram or markings on the chain/bar).
3. Attach Guide Bar: Position the guide bar with the chain onto the chainsaw body, ensuring the guide bar studs pass through the holes in the guide bar.
4. Replace Cover: Reinstall the side cover and hand-tighten the nuts. Do not fully tighten yet.
5. Adjust Chain Tension: Use the tensioning screw (usually located near the guide bar) to adjust the chain tension. The chain should be snug against the guide bar but still able to be pulled freely by hand. A properly tensioned chain will have a small gap (approx. 2-3mm) between the chain and the guide bar when lifted from the center.
6. Final Tightening: Once the chain tension is correct, fully tighten the side cover nuts with the provided wrench.

Figure 3: Ensure correct chain installation and tension before use.

5.3. Lubrication

This chainsaw features an oil filling port for manual lubrication. It is crucial to lubricate the chain and guide bar regularly to ensure smooth operation and extend their lifespan. Use a high-quality bar and chain oil.

1. Locate the oil filling port (refer to Figure 2).
2. Open the cap and fill the reservoir with appropriate bar and chain oil.
3. Close the cap securely.
4. Check oil levels frequently during operation and refill as needed.

6. Operating Instructions

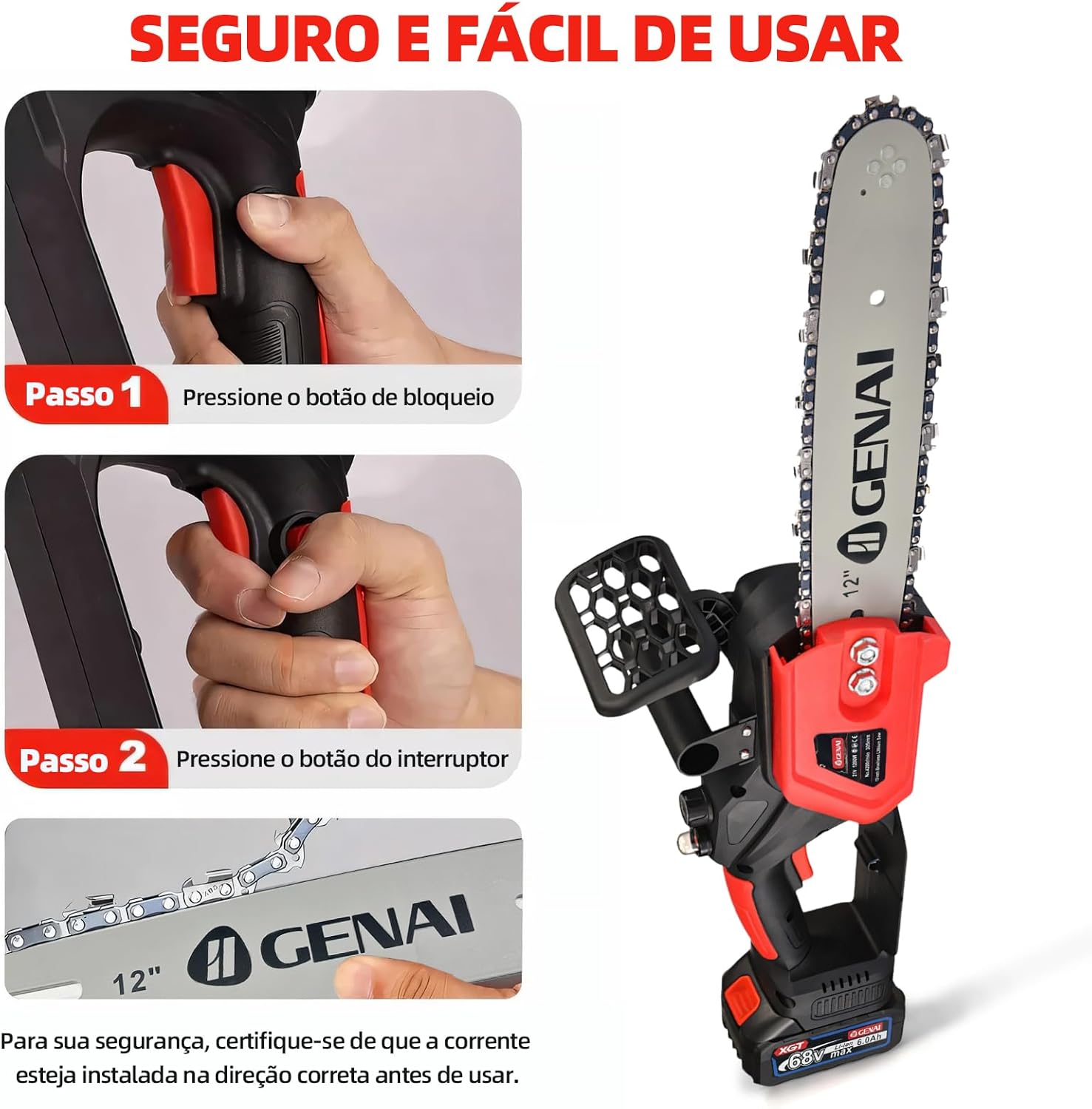

6.1. Starting the Chainsaw

1. Ensure the battery is fully charged and securely installed.
2. Hold the chainsaw firmly with both hands, one on the main handle and one on the auxiliary handle.
3. To start, first press and hold the Safety Lock Button (refer to Figure 2).
4. While holding the safety lock button, press the Power Switch (trigger) to start the chain.
5. Release the safety lock button once the chain is running. The chainsaw will continue to operate as long as the power switch is pressed.
6. To stop, release the power switch.

6.2. Cutting Techniques

Always maintain a stable stance and keep the chainsaw balanced. Plan your cut before starting.

• General Cutting: Apply light pressure. Let the saw do the work. Do not force the chain through the wood.
• Limbing: When cutting branches, be aware of spring-back. Cut smaller branches first to clear the area.
• Bucking (Cutting Logs): When cutting logs on the ground, avoid cutting into the ground as this dulls the chain quickly. If the log is supported at both ends, cut from the top (overbucking). If supported at one end, cut from the bottom first (underbucking) to prevent pinching, then finish from the top.
• Kickback Prevention: Avoid cutting with the tip of the guide bar. Always use the bottom or top edge of the guide bar.

Figure 4: Efficiently cutting a log with the chainsaw.

7. Maintenance

Regular maintenance ensures optimal performance and extends the life of your chainsaw.

7.1. Chain Sharpening

A sharp chain is essential for safe and efficient cutting. A dull chain will produce sawdust instead of chips and require more force to cut.

• Sharpen the chain regularly with a round file of the correct diameter (check manufacturer specifications for the chain).
• Maintain the correct filing angles for the top plate and side plate.
• Ensure depth gauges are also filed down to the correct height.
• If unsure, have the chain professionally sharpened or replaced.

Figure 5: High-hardness tempered chain for durability.

7.2. Cleaning and Lubrication

• After Each Use: Remove the battery. Clean sawdust, chips, and debris from the guide bar, chain, and sprocket area. Use a brush or compressed air.
• Guide Bar Maintenance: Flip the guide bar periodically to ensure even wear. Clean the guide bar groove to prevent sawdust buildup.
• Chain Lubrication: As mentioned in Section 5.3, ensure the oil reservoir is filled with bar and chain oil before and during operation.

7.3. Storage

• Always remove the battery before storing the chainsaw.
• Store the chainsaw in its original case in a dry, secure place, out of reach of children.
• Ensure the guide bar cover is in place to protect the chain.

8. Troubleshooting

9. Specifications

• Model: GN-558B
• Power Source: Battery Powered
• Motor: 1200W Brushless Motor (21V)
• Guide Bar Length: 12 Inches (30 cm)
• Chain Speed: 3.8 Meters per Second
• Battery Type: Lithium-Ion
• Battery Voltage/Capacity: 68V / 6.0Ah (x2 included)
• Product Weight: 2.5 Kilograms
• Product Dimensions (L x W x H): 20 cm x 10 cm x 25 cm
• Included Components: Electric Chainsaw, 2 Batteries, Charger, Guide Bar, Chain, Wrench, Storage Case.

10. Warranty and Support

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration. For technical support, replacement parts, or warranty claims, please contact your retailer or the manufacturer's customer service department.

Keep your proof of purchase for warranty purposes.
