1. Safety Information
Before operating the HX X6 Electric Scooter, please read and understand all safety instructions. Failure to follow these instructions may result in serious injury or property damage.
- Always wear a helmet and appropriate safety gear (knee pads, elbow pads) when riding.
- Ensure the scooter is fully charged and all components are securely fastened before each use.
- Do not ride in wet conditions, on uneven surfaces, or in heavy traffic.
- Observe local traffic laws and regulations.
- The scooter is designed for individuals aged 12 and above, with a maximum weight limit of 220 pounds (75 kg).
- This product has passed UL2272 safety and reliability certification, ensuring protection against overheating, over-discharge, and over-charge.
2. Product Overview

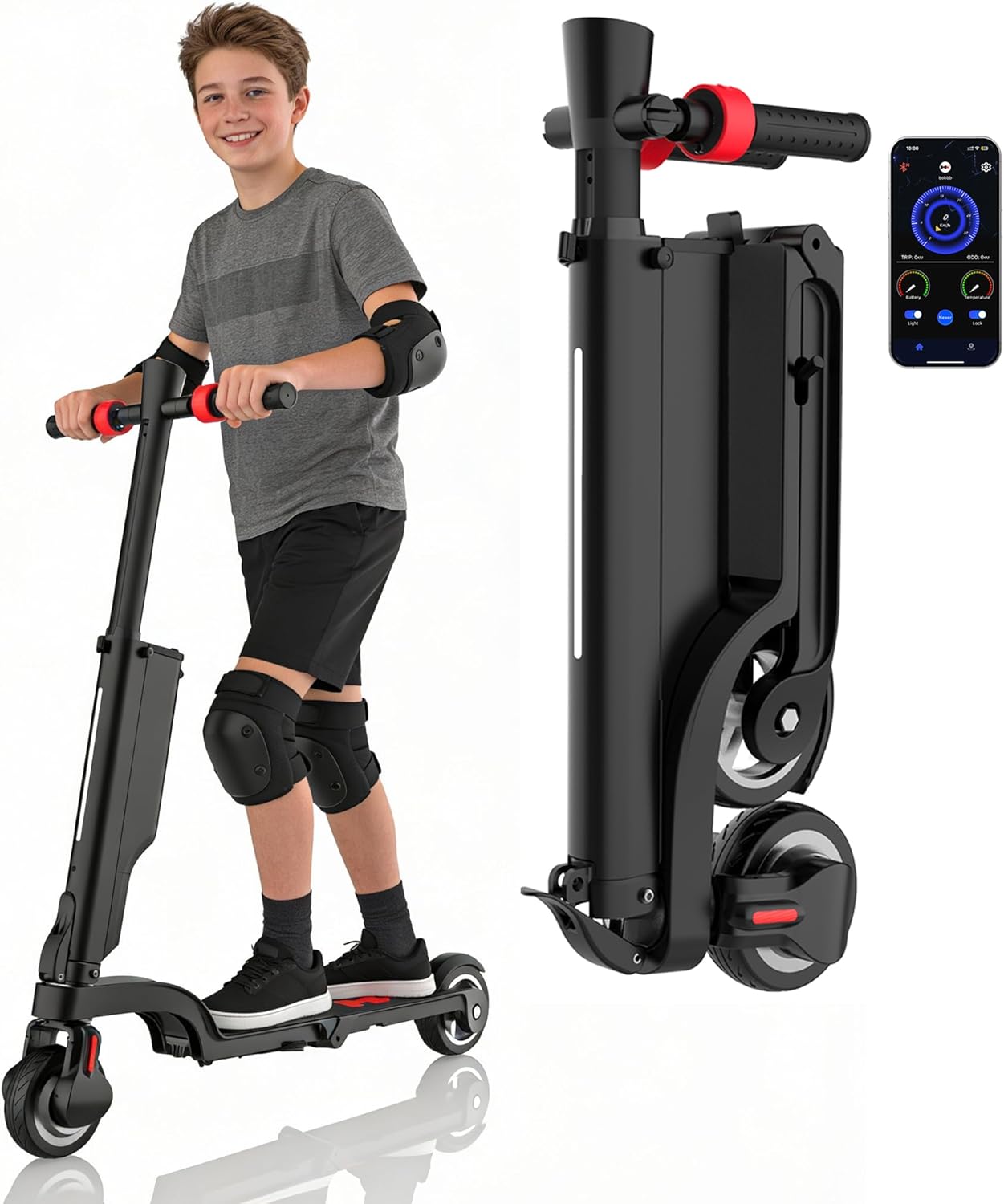

The HX X6 Electric Scooter is a portable and efficient personal transporter. It features a durable aluminum alloy frame, a 350W motor, and a dual braking system for a safe and smooth ride.
Included Components:
- HX X6 Electric Scooter
- 1 Battery + 1 Backpack
- Instruction Manual
- Charger
Key Features:
- Motor: 350W for speeds up to 16 MPH.
- Range: Up to 16 miles on a single charge.
- Battery: Removable for convenient charging.
- Braking System: Dual braking system including disc brakes and EABS regenerative anti-lock brakes.
- Portability: Triple-fold design for compact storage and easy transport.
- Tires: 5.5-inch solid tires.
- Smart Control: App integration for monitoring and control.
3. Setup
3.1 Unpacking and Initial Assembly
Carefully remove all components from the packaging. The scooter comes partially folded. Unfold the main frame, secure the handlebar stem, and attach the handlebars if they are separate. Ensure all locking mechanisms are engaged before use.
3.2 Initial Battery Charge
Before first use, fully charge the battery. The charging time is approximately 4-5 hours. The removable battery design allows for two charging methods:
- Directly charge the electric scooter by plugging the charger into the scooter's charging port.
- Remove the battery from the scooter and charge it separately.
4. Operating Instructions
4.1 Power On/Off and Speed Modes
To power on the scooter, press and hold the power button on the multifunctional console. The LED display will illuminate. To power off, press and hold the power button again.
The scooter features three gear acceleration modes:
- Low Speed: Ideal for beginners or crowded areas.
- Medium Speed: Balanced speed for general riding.
- High Speed: For experienced riders on open paths, reaching up to 16 MPH.
Use the controls on the handlebar to accelerate and switch between modes. The cruise control system can be activated for a consistent speed during longer rides.
4.2 Braking System
The HX X6 is equipped with a dual braking system for enhanced safety:
- Disc Brakes: Located on the rear wheel, activated by a lever on the handlebar.
- EABS Regenerative Anti-lock Brakes: Provides additional stopping power and helps recharge the battery slightly during braking.
Familiarize yourself with both braking mechanisms before riding at higher speeds.
Video 4.1: Demonstrates the HX X6 Electric Scooter in use by adults and teenagers, highlighting its general operation and riding experience.
5. App Control
The HX X6 Electric Scooter can be controlled and monitored via a dedicated smartphone application. Follow these steps to connect:
- Download the "Hxscooter" app from the App Store (iOS) or Google Play Store (Android).
- Register an account and log in.
- Ensure your scooter is powered on and Bluetooth is enabled on your smartphone.
- Open the app and connect to your X6 scooter via Bluetooth.
Through the app, you can check real-time speed, mileage, battery temperature, lock the scooter, and track its location.
6. Removable Battery Usage
The HX X6 features a unique removable battery design, offering flexibility and convenience for charging and extending range.
6.1 Battery Removal and Installation
To remove the battery, locate the release mechanism on the battery compartment and carefully slide the battery out. To install, align the battery with the compartment and push it firmly until it clicks into place.
6.2 Charging Options
As mentioned in the Setup section, the battery can be charged while installed in the scooter or separately when removed. This allows for charging in various locations without needing to transport the entire scooter.
Video 6.2: Demonstrates the process of removing and inserting the battery into the HX X6 Electric Scooter.
7. Folding and Portability
The HX X6 features an innovative triple-fold design, allowing it to be folded into a compact size for easy storage and transport.
7.1 Folding Procedure
The scooter can be folded in seconds by collapsing the pole, folding the handlebars, and folding the pedal. Refer to the illustrations for detailed steps.
7.2 Transport and Storage
Once folded, the scooter weighs only 10kg (22 lbs), making it suitable for carrying in a backpack (included with some variants), placing in car trunks, or transporting on public transit.
Video 7.3: Illustrates the multi-layer folding process of the HX X6 Electric Scooter, demonstrating its compact storage and ability to fit into a backpack.
8. Maintenance
Regular maintenance ensures the longevity and safe operation of your HX X6 Electric Scooter.
- Cleaning: Wipe the scooter with a damp cloth after use. Avoid using high-pressure water or harsh chemicals.
- Tires: Check the 5.5-inch solid tires regularly for wear and tear. While solid, ensure they are free from debris that could affect grip.
- Brakes: Periodically inspect the disc brakes and EABS system for proper function. Adjust or replace components as needed by a qualified technician.
- Battery Care: Store the battery in a cool, dry place. If storing for extended periods, charge the battery to approximately 50-70% and recharge every 3 months to prevent deep discharge.
- Fasteners: Regularly check all screws and bolts to ensure they are tight.
9. Troubleshooting
If you encounter issues with your HX X6 Electric Scooter, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on | Low battery; loose battery connection; power button malfunction | Charge battery; ensure battery is properly installed; contact support if issue persists. |
| Reduced range or speed | Low battery charge; heavy load; riding uphill; cold weather | Fully charge battery; reduce load; ride on flat terrain; battery performance may decrease in cold. |
| Brakes not responding effectively | Worn brake pads; loose brake cable; debris in brake mechanism | Inspect and adjust brake components; clean brake area; seek professional service. |
| App connection issues | Bluetooth off; app not updated; scooter not powered on | Ensure Bluetooth is on; update app; power on scooter; restart phone/app. |
10. Specifications
Detailed technical specifications for the HX X6 Electric Scooter:
| Feature | Specification |
|---|---|
| Brand | HX |
| Model | X6 |
| Motor Power | 350W |
| Maximum Speed | 16 MPH |
| Maximum Range | 13-16 Miles (depending on conditions) |
| Battery Charge Time | 4-5 Hours |
| Weight Limit | 75 Kilograms (approx. 220 lbs) |
| Number of Wheels | 2 |
| Wheel Material | Aluminum |
| Wheel Size | 5.5 Inches |
| Frame Material | Aluminum |
| Brake Style | Front Braking, Rear Braking (Disc & EABS) |
| Special Features | Triple Foldable, Removable Battery, App Control, Dual Braking System |
| Recommended Age | 12+ |
11. Warranty and Support
11.1 Warranty Information
The HX X6 Electric Scooter comes with a 1-year limited warranty. Specific components may have a 12-month or 180-day warranty period. Please refer to the warranty card included in your package for full details on coverage and terms.
11.2 Customer Support
For any questions, technical assistance, or warranty claims, please contact HX customer support. Contact details can typically be found on the product packaging, the official HX website, or through your retailer. Our team is committed to assisting you within 24 hours.
