PANCERKA Electric Kettle BD-123456 User Manual

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed. Please read all instructions carefully before operating this appliance.

• Read all instructions before use.
• Do not touch hot surfaces. Always use the handle.
• To protect against fire, electric shock, and injury, do not immerse the kettle, power base, cord, or plug in water or other liquids.
• Close supervision is necessary when the appliance is used by or near children.
• Unplug from the outlet when not in use and before cleaning. Allow the kettle to cool completely before handling or cleaning.
• Do not operate any appliance with a damaged cord or plug, or if the appliance malfunctions or has been damaged in any manner. Contact customer support for assistance.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury.
• Do not use outdoors.
• Do not let the power cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place the kettle on or near a hot gas or electric burner, or in a heated oven.
• Always attach the plug to the appliance first (if detachable), then plug the cord into the wall outlet. To disconnect, turn any control to "off" (if applicable), then remove the plug from the wall outlet.
• Do not use the appliance for purposes other than its intended use of boiling water.
• Extreme caution must be used when moving an appliance containing hot water.
• The kettle is only to be used with the power base provided.
• This appliance is intended for household use only.

Product Overview

The PANCERKA Electric Kettle is designed for efficient and safe water boiling. It features a 1.8L capacity, fast boil technology, and automatic safety functions.

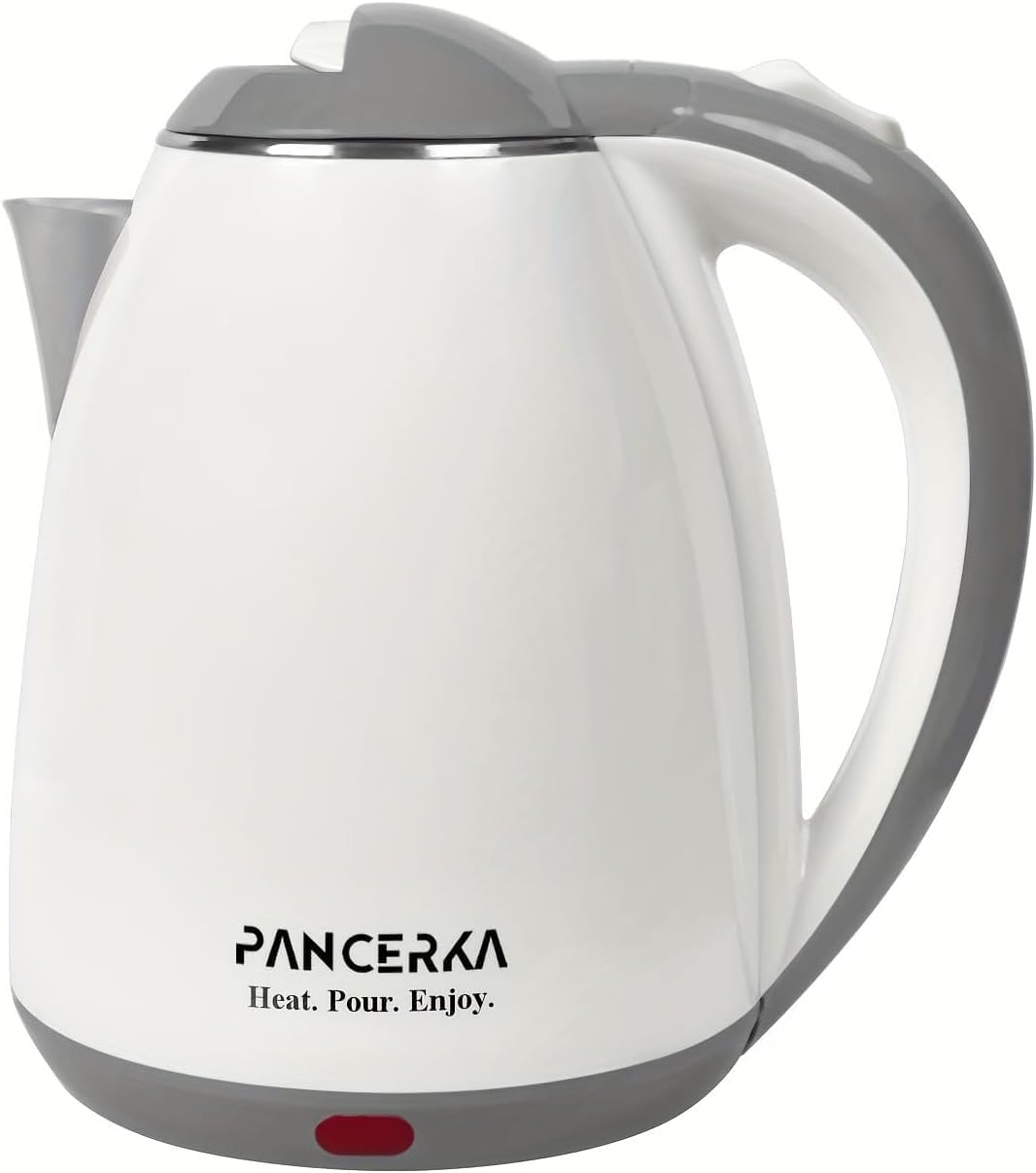

Image: The PANCERKA Electric Kettle on its 360-degree swivel power base. The image highlights the boil-dry protection feature and the convenience of cord-free serving.

Components:

• Kettle Body (1.8L capacity)
• Power Base (360-degree rotational)
• Lid with release button
• Handle
• On/Off Switch with indicator light
• Spout

Key Features:

• 1.8 Liter Capacity: Boils enough water for multiple servings, up to 7 cups.
• Fast Boil: Heats water quickly with 1000 watts of power, typically in about 3 minutes.
• Automatic Shut-Off: The kettle automatically turns off once water reaches a boil, preventing over-boiling.
• Boil-Dry Protection: Automatically shuts off power if the kettle is accidentally switched on without water or if it runs out of water during operation, preventing damage.
• Cool-Touch Exterior: Double-wall design helps keep the exterior cool to the touch for safe handling, even when water inside is hot.
• 360-Degree Swivel Base: Allows for easy lifting and placing of the kettle from any angle, suitable for both left and right-handed users.

Image: The PANCERKA Electric Kettle being filled with water, illustrating its 1.8L large capacity, suitable for preparing multiple servings of coffee, hot tea, oatmeal, or noodles.

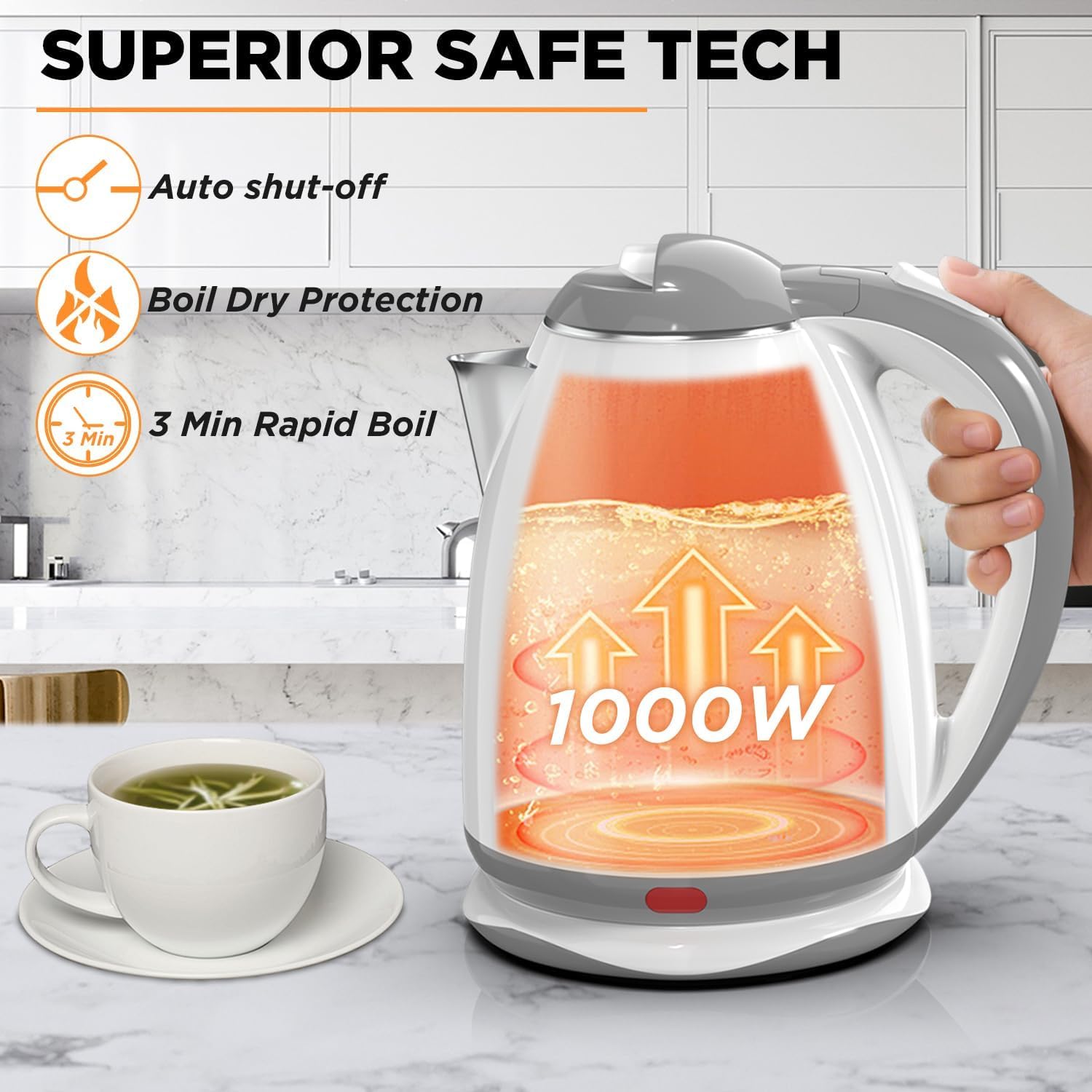

Image: An illustration of the kettle's interior, demonstrating the 1000W heating power and highlighting safety features like auto shut-off and boil-dry protection, which contribute to rapid boiling in approximately 3 minutes.

Setup

1. Unpacking: Carefully remove the kettle and all accessories from the packaging. Retain packaging for future storage or transport.
2. First Use Cleaning: Before first use, fill the kettle with clean water to the maximum fill line. Boil the water, then discard it. Repeat this process 2-3 times to remove any manufacturing residues and ensure optimal taste.
3. Placement: Place the power base on a flat, stable, heat-resistant surface. Ensure the power cord is not dangling or in a position where it can be tripped over.
4. Power Connection: Plug the power cord into a standard 110V AC electrical outlet.

Operating Instructions

1. Fill the Kettle: Press the lid release button to open the lid. Fill the kettle with the desired amount of fresh water. Do not fill below the minimum mark or above the maximum mark (1.8L).
2. Close the Lid: Close the lid securely until it clicks into place.
3. Place on Base: Place the kettle firmly onto the power base.
4. Start Boiling: Flip the On/Off switch downwards. The indicator light will illuminate, indicating that the kettle is heating.
5. Automatic Shut-Off: The kettle will automatically turn off once the water has reached a rolling boil, and the indicator light will extinguish.
6. Pouring: Carefully lift the kettle from its base using the handle and pour the hot water. Exercise extreme caution as the contents are hot.
7. Re-boiling: If you need to re-boil water, wait a few seconds for the internal thermostat to reset, then flip the On/Off switch again.

Image: A hand pouring hot water from the PANCERKA Electric Kettle into a teacup, demonstrating the controlled pouring action. The kettle's design facilitates easy serving.

Versatile Use:

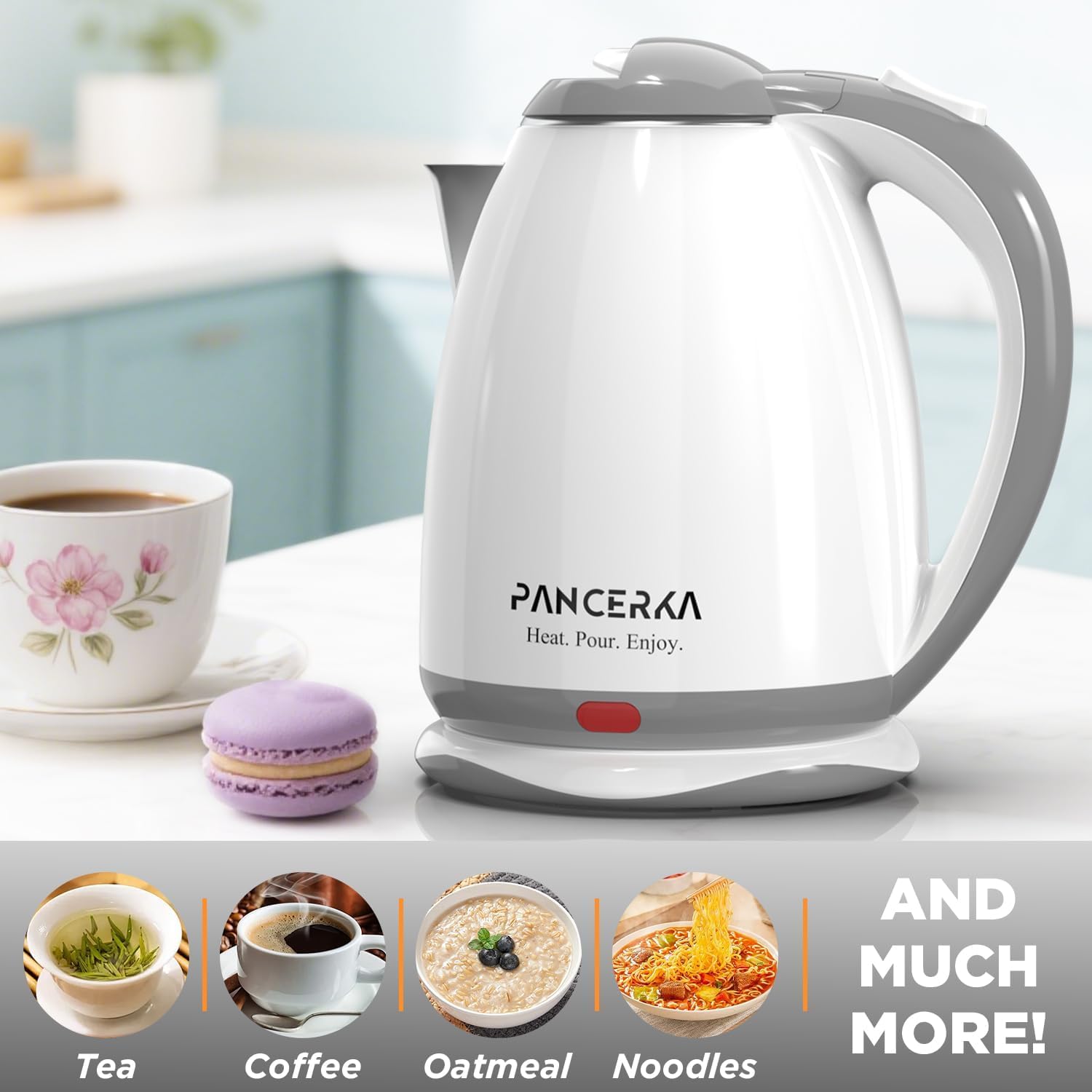

Image: The PANCERKA Electric Kettle on a kitchen counter, illustrating its versatility for preparing various hot beverages and instant meals such as tea, coffee, oatmeal, and noodles.

Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your kettle. Always ensure the kettle is unplugged and cool before cleaning.

1. Before Cleaning: Always unplug the kettle from the power outlet and allow it to cool completely before cleaning.
2. Exterior Cleaning: Wipe the exterior of the kettle with a soft, damp cloth. Do not use abrasive cleaners, harsh chemicals, or scouring pads, as they may damage the surface finish.
3. Interior Cleaning (Descaling): Over time, mineral deposits (limescale) may build up inside the kettle, especially in hard water areas. This can affect performance and taste.
   • Fill the kettle with 2 cups of white vinegar and 2 cups of water.
   • Bring the mixture to a boil and let it stand for at least 30 minutes, or longer for heavy buildup.
   • Pour out the mixture and rinse the kettle thoroughly with fresh water several times to remove any vinegar residue.
   • For stubborn deposits, repeat the process or use a commercial descaling solution specifically designed for kettles, following its instructions.
4. Do Not Immerse: Never immerse the kettle body or power base in water or any other liquid.

Image: A hand cleaning the interior of the PANCERKA Electric Kettle with a soft cloth, demonstrating the ease of access for cleaning. Another inset image shows the kettle being refilled, highlighting its user-friendly design for both cleaning and refilling.

Troubleshooting

Specifications

Image: The PANCERKA Electric Kettle with its dimensions clearly marked: 21.7cm (8.54in) in length and 24.5cm (9.64in) in height, providing a visual reference for its size.

Warranty and Support

This PANCERKA Electric Kettle is designed for reliability and performance. For any questions, concerns, or warranty inquiries, please contact the retailer or manufacturer directly.

Please retain your proof of purchase for warranty claims. Specific warranty terms and conditions may vary by region and retailer.
