1. Introduction
Thank you for choosing the Snrigw AR-JE4 Universal Replacement Remote Control. This remote is designed to provide a convenient and reliable solution for controlling various Fujitsu air conditioner models. It requires no programming or pairing, allowing for immediate use after battery installation.
Package Contents
- 1 x Snrigw AR-JE4 Universal Replacement Remote Control
Note: Batteries and a separate user manual are not included in the package.
Compatibility
This remote control is compatible with the following Fujitsu A/C models:
- AR-JE6
- AR-PV1
- AR-JE4
- AR-NJ1
- AR-JE5
- AR-JE3
- AR-PV2
- AR-PV4
- AR-DJ5
- AR-JE10
- AR-JE11
- ARJE6
- ASY7FMAD
Front view of the Snrigw AR-JE4 universal remote control, displaying its LCD screen and various function buttons.
2. Setup
Battery Installation
- Open the battery compartment cover on the back of the remote control.
- Insert two (2) AAA batteries (not included) into the compartment. Ensure the positive (+) and negative (-) polarities are aligned correctly as indicated inside the compartment.
- Close the battery compartment cover securely.
The remote control is ready for use immediately after battery installation. No programming or pairing is required.

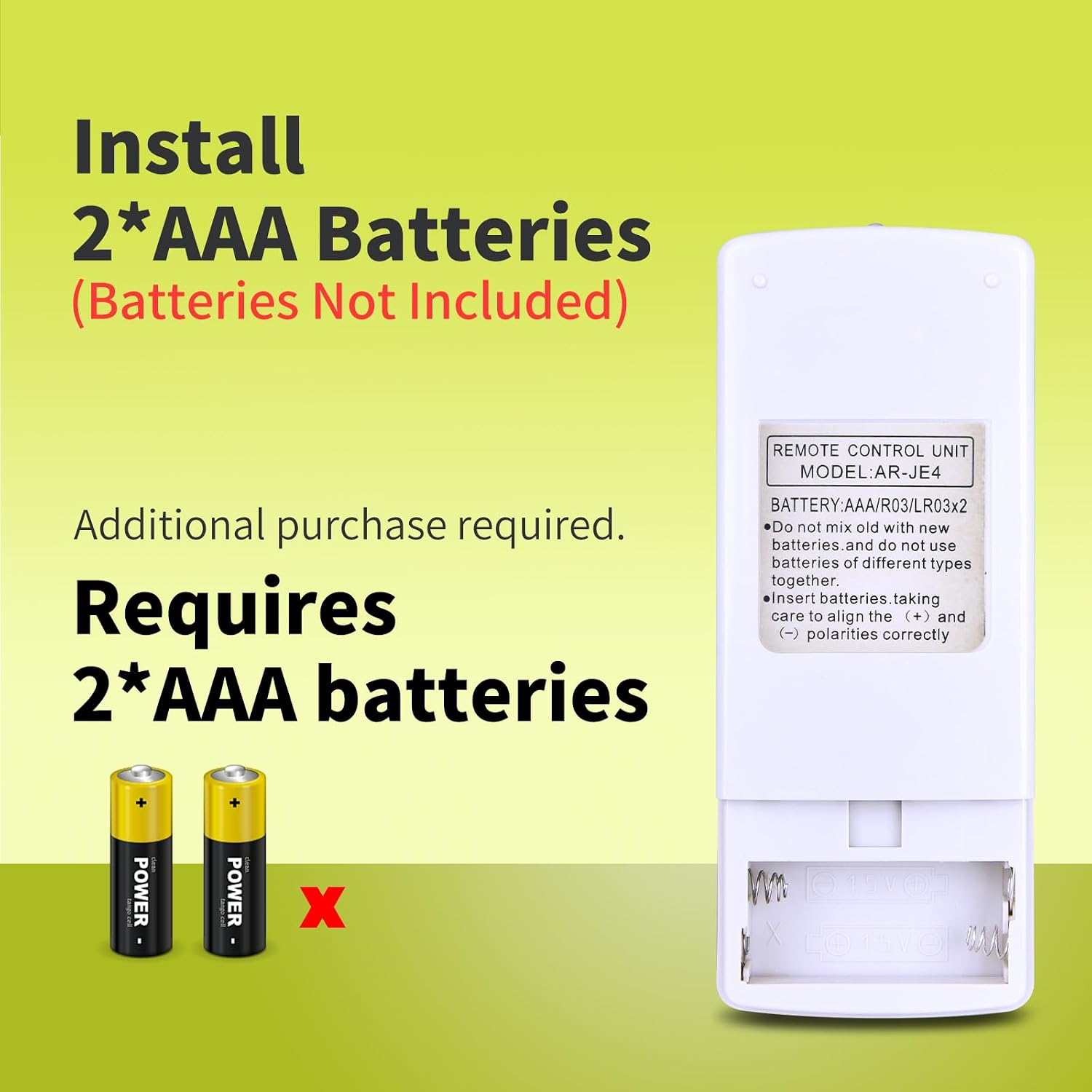

Image showing the open battery compartment of the remote control, indicating the need for two AAA batteries (not included) and correct polarity.
The remote control with text indicating 'No Pairing Needed' and 'No Programming Needed', highlighting its ease of use.
3. Operating Instructions
The Snrigw AR-JE4 remote control features a comprehensive set of buttons for controlling your Fujitsu air conditioner. Familiarize yourself with the button layout and their functions.
Basic Functions
- START/STOP: Powers the air conditioner ON or OFF.
- MODE: Cycles through operating modes: AUTO, COOL, DRY, FAN, HEAT.
- TEMP. CONTROL (▲/▼): Adjusts the desired temperature.
- FAN CONTROL: Adjusts fan speed: AUTO, HIGH, MED, LOW, QUIET.
Advanced Functions
- SLEEP: Activates or deactivates the sleep mode for comfortable night operation.
- SWING: Controls the louver swing function for air distribution.
- COIL DRY: Initiates the coil dry function to prevent mold growth.
- TIMER (OFF/ON/SET/CANCEL): Sets or cancels the timer for automatic power on/off.
- TEST RUN: Used for service or diagnostic purposes.
- ACL: (Accessory Clear) Typically used to reset settings or clear memory.
- MASTER CONTROL: Specific function depending on the Fujitsu model, often related to advanced settings.
The remote control highlighting its key features: Mode Adjustment and Fan Speed Control.
4. Features
- Ergonomic Design: Crafted from durable ABS plastic with an ergonomic arc design for comfortable handling.
- Responsive Buttons: Silicone buttons provide a comfortable feel and precise reaction to commands.
- Large LED Screen: Features a clear, large LED screen for easy viewing of settings.
- Extended Range: Operates effectively at a distance of over 26 feet (approximately 8 meters), offering flexible control.
- Wide Angle Control: Designed for multi-angle remote control, ensuring signal stability even when not directly pointed at the unit.
- Compact Size: Dimensions of approximately 5.47 inches (13.9 cm) in length, 2.20 inches (5.6 cm) in width, and 0.63 inches (1.6 cm) in thickness for easy storage.

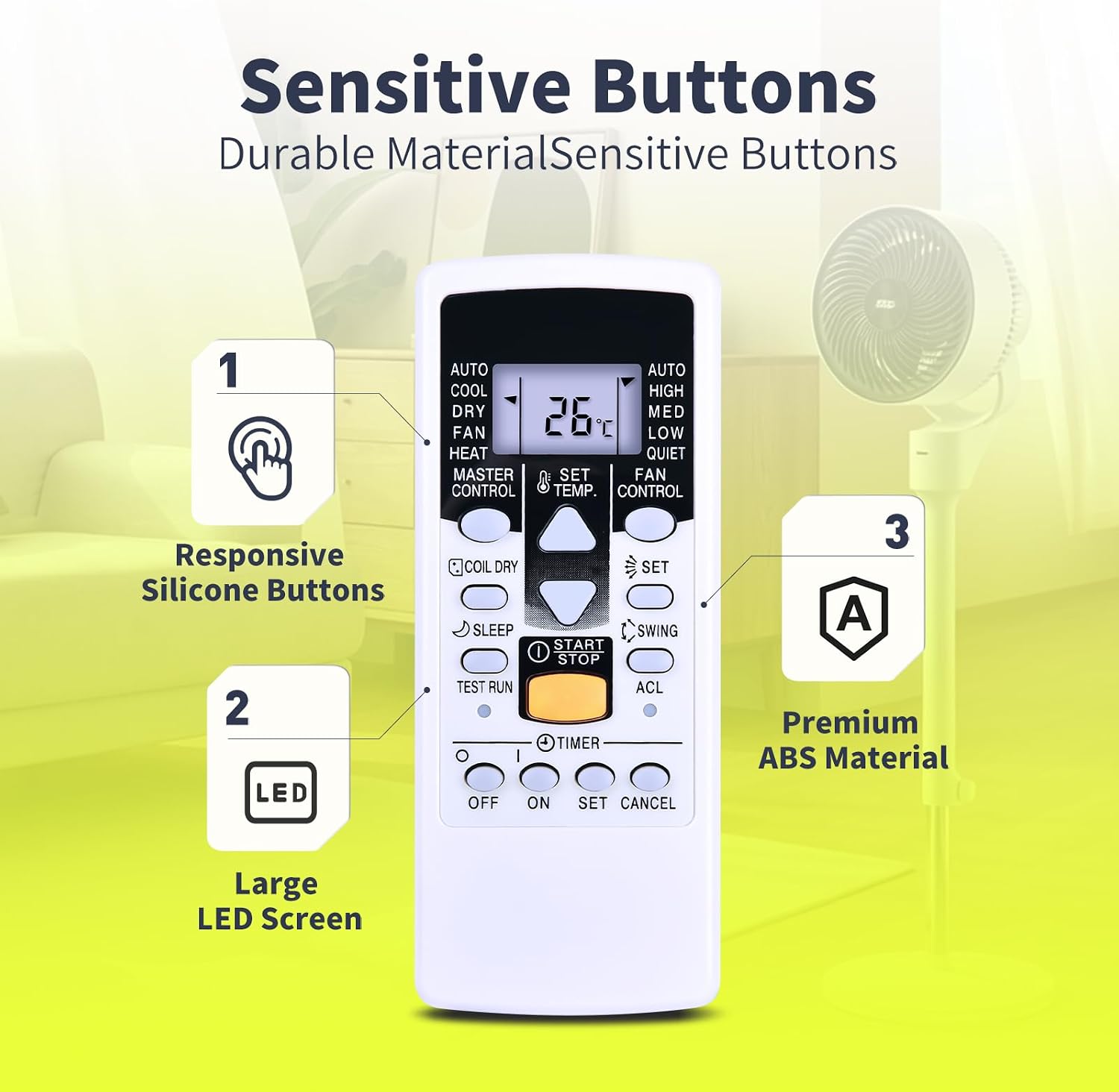

Close-up of the remote control's buttons, emphasizing responsive silicone buttons, a large LED screen, and premium ABS material construction.
Illustration demonstrating the remote control's long-distance capability (26 feet) and wide-angle operation (120 degrees) for signal stability.
The remote control with dimensions (5.47in length, 2.20in width, 0.63in thickness) illustrating its compact size.
5. Troubleshooting
If you experience issues with your remote control, please consider the following:
- Remote not responding: Ensure batteries are inserted correctly with the correct polarity. Replace old batteries with new AAA batteries.
- Limited range: Check for any obstructions between the remote control and the air conditioner's receiver. Ensure batteries are not low.
- Incorrect function: Verify that your air conditioner model is listed in the compatibility section.
6. Specifications
| Attribute | Detail |
|---|---|
| Brand | Snrigw |
| Model | AR-JE4 |
| Compatible Devices | Fujitsu Air Conditioners |
| Connectivity Technology | Infrared |
| Special Feature | Ergonomic Design |
| Color | Black |
| Maximum Range | 26 Feet (approx. 8 meters) |
| Material | ABS Plastic |
| Power Source | 2 x AAA Batteries (not included) |
| Dimensions (L x W x T) | Approx. 5.47 in x 2.20 in x 0.63 in (13.9 cm x 5.6 cm x 1.6 cm) |
7. Warranty and Support
For information regarding warranty, returns, or technical support, please refer to the retailer or platform where the product was purchased. Keep your purchase receipt as proof of purchase.
