IDEALHOUSE Single Door Lockable Metal End Table User Manual

1. Introduction

Thank you for choosing the IDEALHOUSE Single Door Lockable Metal End Table. This manual provides essential information for the safe assembly, operation, and maintenance of your new storage cabinet. Please read these instructions carefully before beginning assembly and retain them for future reference.

Image 1: The IDEALHOUSE Single Door Lockable Metal End Table in a living room setting.

2. Safety Information

Always follow the assembly instructions provided. Ensure the cabinet is stable and level before use. Keep the cabinet away from heat sources and do not overload it. Use the locks and handles on the door to secure items and prevent accidents. Regularly check and maintain the leveling feet to ensure stability and prevent floor damage. An anti-tipping device is included and must be installed to prevent the cabinet from falling over, especially in households with children or pets.

3. Package Contents

Before assembly, please verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Metal Cabinet Panels (Top, Bottom, Sides, Back, Door)
• Adjustable Shelves (2 units)
• Door Handle
• Lock and Keys
• Adjustable Leveling Feet (4 units)
• Anti-Tipping Hardware (Wall anchor kit)
• Assembly Hardware (Screws, bolts, etc.)
• User Manual (This document)

Image 2: Key features and components of the IDEALHOUSE Metal End Table.

4. Assembly Instructions

Assembly typically takes 15-30 minutes. It is recommended to assemble the unit on a soft, clean surface to prevent scratches. While assembly videos are mentioned as available, specific links are not provided in this manual. Please refer to the included paper instructions or contact customer support for video access.

Step-by-Step Guide:

1. Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out and compare them against the package contents list to ensure everything is present.
2. Assemble the Frame: Attach the side panels to the bottom panel using the provided hardware. Ensure all connections are secure but do not overtighten until the entire frame is assembled.
3. Attach the Back Panel: Slide or screw the back panel into place, securing it to the side and bottom panels.
4. Install the Top Panel: Secure the top panel to the assembled frame using the appropriate hardware.
5. Attach the Door: Carefully align the door hinges with the pre-drilled holes on the cabinet frame and secure the door. Ensure the door opens and closes smoothly.
6. Install Handle and Lock: Attach the door handle and install the lock mechanism. Test the lock with the provided keys.
7. Insert Adjustable Shelves: Place the shelf pins into the desired height holes inside the cabinet. Slide the adjustable shelves onto the pins.
8. Attach Leveling Feet: Screw the four adjustable leveling feet into the bottom corners of the cabinet. Adjust them to ensure the cabinet is stable and level on your floor.
9. Install Anti-Tipping Device: Secure the anti-tipping hardware to the back of the cabinet and to a wall stud, following the specific instructions provided with the kit. This step is crucial for safety.

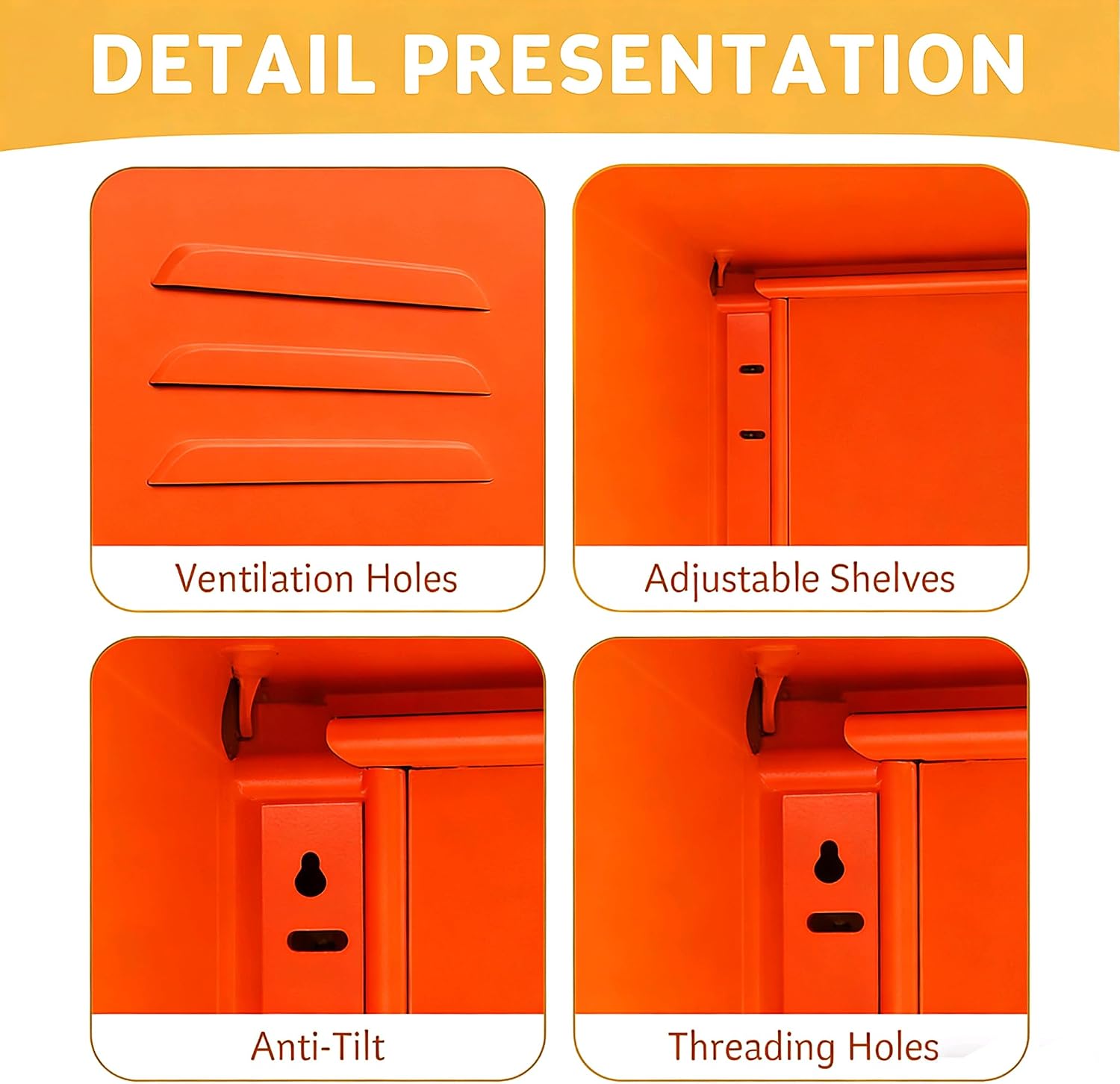

Image 3: Detailed view of key features including adjustable shelves and anti-tilt mechanism.

5. Operating Instructions

Using the Lock:

The cabinet is equipped with a key lock for securing your items. Insert the key into the lock and turn it to the appropriate position to lock or unlock the door. Ensure the door is fully closed before attempting to lock it.

Adjusting Shelves:

The two internal shelves are adjustable. To change the shelf height, first remove all items from the shelf. Then, lift the shelf slightly and remove the four shelf pins from their current holes. Reinsert the pins into the desired height holes, ensuring they are securely seated, and then place the shelf back onto the pins.

Anti-Tipping Feature:

The anti-tipping device, once installed, helps prevent the cabinet from accidentally tipping over. Regularly check that this device remains securely attached to both the cabinet and the wall.

6. Maintenance

Cleaning:

Wipe the cabinet surfaces with a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or solvents, as these can damage the powder-coated finish. Dry immediately with a clean, dry cloth.

General Care:

• Periodically check all screws and fasteners to ensure they remain tight. Retighten if necessary.
• Ensure the adjustable leveling feet are properly adjusted to keep the cabinet stable and prevent wobbling.
• Do not place excessively heavy items on the shelves or top surface to avoid deformation or damage.
• Keep the cabinet away from direct sunlight and high humidity to prolong its lifespan.

7. Troubleshooting

If you encounter any issues with your IDEALHOUSE Metal End Table, please refer to the following common problems and solutions:

8. Specifications

Below are the technical specifications for the IDEALHOUSE Single Door Lockable Metal End Table:

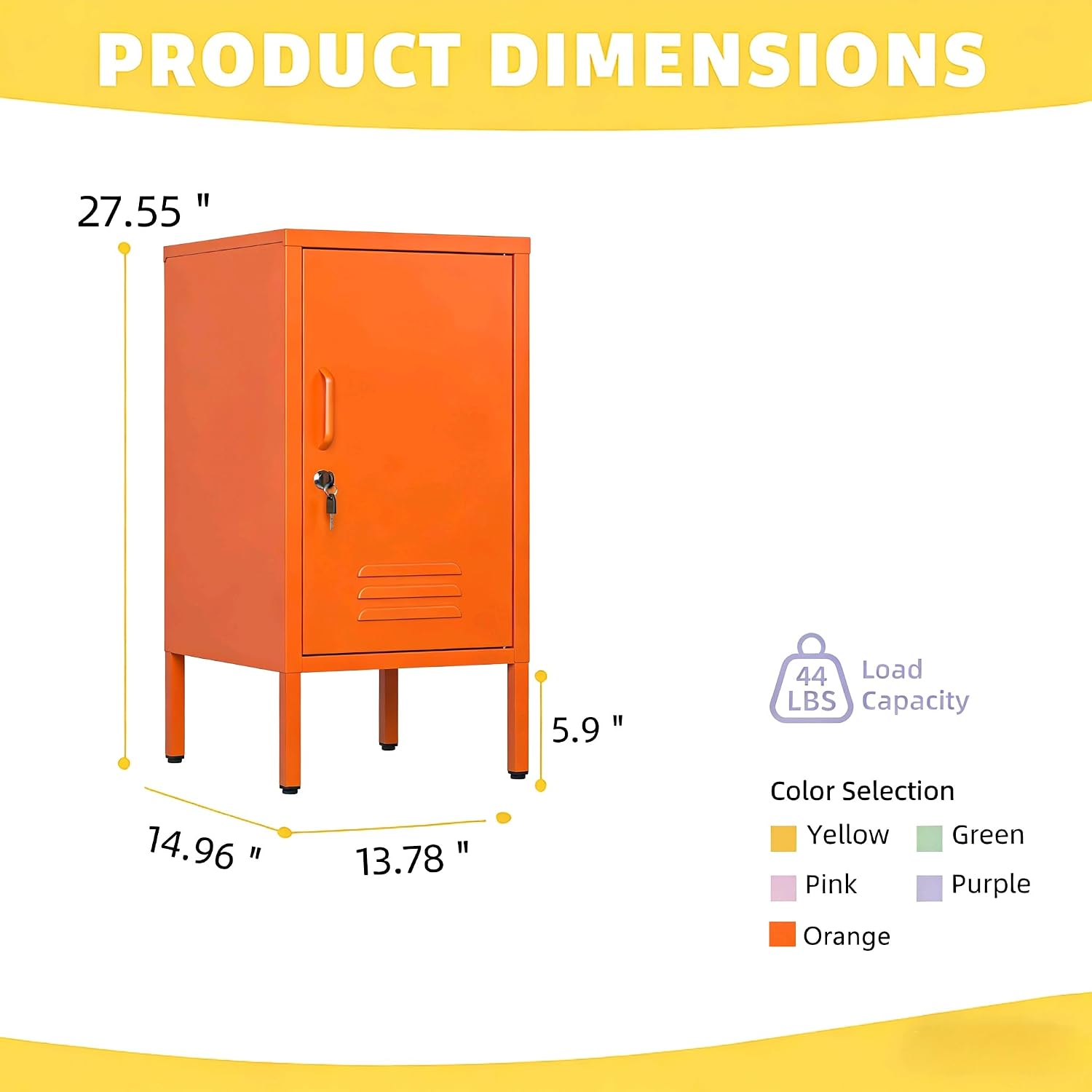

Image 4: Product dimensions and load capacity.

9. Warranty and Support

For warranty information, specific assembly video links, or any other product-related inquiries, please contact IDEALHOUSE customer support. Refer to the contact information provided with your purchase documentation or visit the official IDEALHOUSE website.
