Hothope Commercial Ice Crusher IM-S2-H Instruction Manual

1. Safety Information

Please read all instructions carefully before operating the Hothope Commercial Ice Crusher. Retain this manual for future reference.

• Electrical Safety: Ensure the power supply matches the voltage specified on the appliance. Do not operate with a damaged cord or plug. Keep the appliance away from water.
• Blade Safety: The unit contains sharp blades. Exercise extreme caution when handling, cleaning, or performing maintenance. Keep hands and utensils away from the ice chute during operation.
• Supervision: This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance.
• Stable Placement: Always place the ice crusher on a stable, flat, and dry surface to prevent tipping.
• Ventilation: Ensure adequate ventilation around the unit to prevent overheating. Do not block air vents.
• Intended Use: Use this appliance only for its intended purpose of crushing ice. Do not attempt to crush other materials.

2. Product Overview

The Hothope Commercial Ice Crusher is designed for efficient and safe ice shaving, suitable for various commercial and home applications.

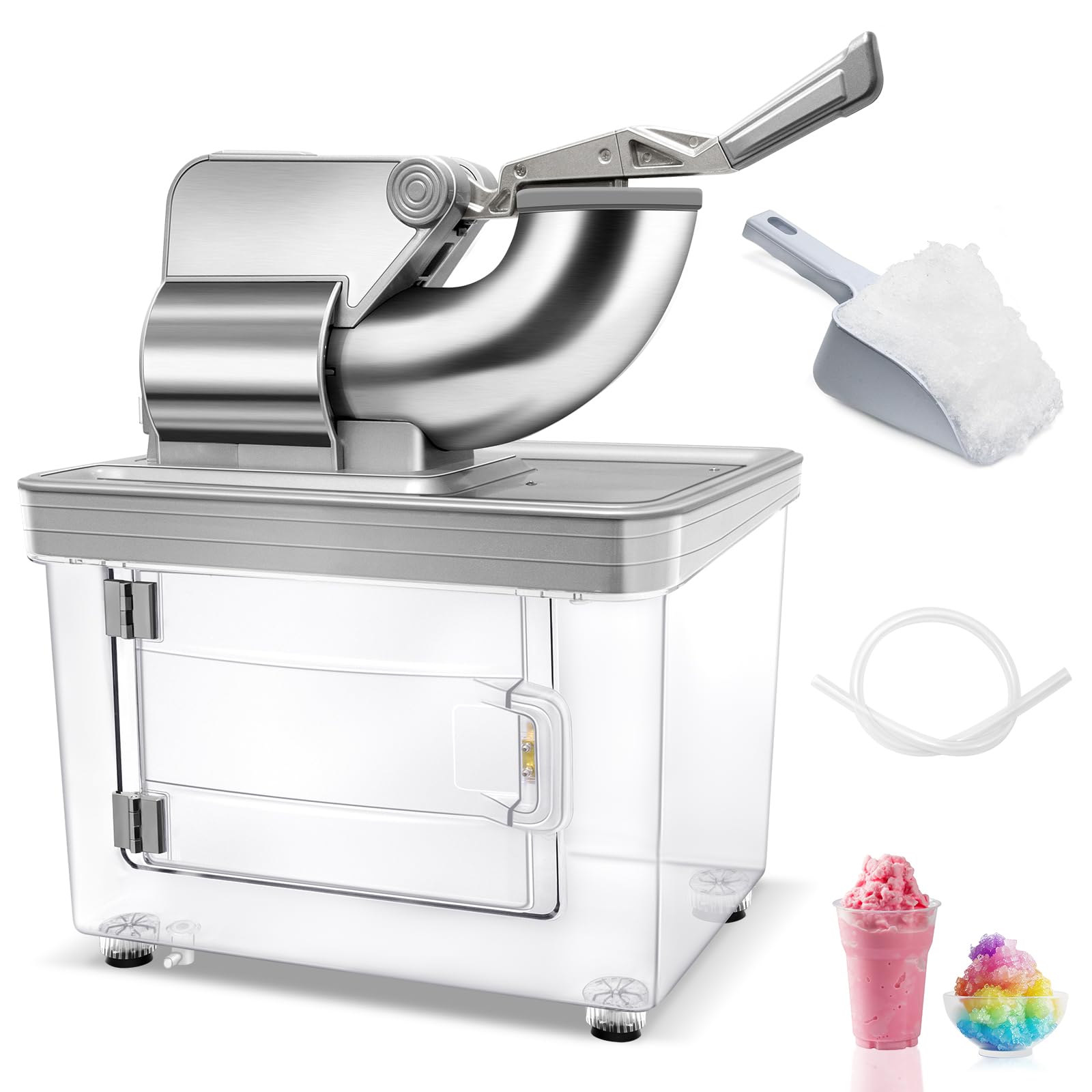

Figure 2.1: Hothope Commercial Ice Crusher IM-S2-H.

Key Features:

• Premium Quality: Constructed with high-grade 304 stainless steel and food-grade materials for durability and safety.
• Efficient Ice Crushing: Features a 350W powerful motor with a rotation speed of 1450rpm, capable of producing up to 480 lbs of shaved ice per hour.
• Large Storage: Equipped with a 40L transparent PC bin for easy observation and ample storage of shaved ice.
• High-Efficiency Dual Blades: Dual blades provide double the shaving speed compared to single-blade machines.
• User-Friendly Design: Includes an ergonomic handle, waterproof switch, and non-slip feet for stable and comfortable operation.
• Versatile Applications: Ideal for making snow cones, slushies, milkshakes, yogurt freezes, and for preserving seafood.

Figure 2.2: Illustration of the powerful motor and dual stainless steel blades for efficient ice shaving.

Figure 2.3: Key user-friendly design elements including the non-slip handle, splash-proof cover, waterproof switch, and protective limit switch.

Figure 2.4: The 40L ice storage bin with door handle, anti-slip feet, and water outlet for convenience.

3. Setup

Follow these steps to set up your ice crusher before first use:

1. Unpacking: Carefully remove all packaging materials and inspect the unit for any damage.
2. Placement: Place the ice crusher on a clean, dry, and stable countertop or table. Ensure there is enough space around the unit for proper ventilation.
3. Drainage Tube: Connect the provided drainage tube to the water outlet at the bottom of the storage bin. Direct the tube into a suitable drain or container to collect melted ice water.
4. Power Connection: Plug the power cord into a grounded electrical outlet. Ensure the voltage matches the appliance's requirements (110V).
5. Initial Cleaning: Before first use, clean all parts that will come into contact with ice. Refer to the 'Maintenance' section for detailed cleaning instructions.

4. Operating Instructions

Operating the Hothope Commercial Ice Crusher is straightforward:

1. Prepare Ice: Use ice cubes that are not excessively large. For best results, use ice from a freezer rather than freshly made ice, as it tends to be harder.
2. Turn On: Ensure the unit is properly plugged in. Flip the red waterproof switch to the 'ON' position.
3. Add Ice: Lift the handle to open the ice inlet. Carefully place a moderate amount of ice into the stainless steel ice barrel. Do not overfill.

Figure 4.1: Demonstrating how to add ice cubes into the ice inlet for crushing.

4. Crush Ice: Firmly press down the ergonomic handle. The machine will automatically start crushing the ice. Maintain pressure on the handle until all ice is crushed.

Figure 4.2: Close-up view of the ice crushing mechanism and the resulting shaved ice.

5. Collect Shaved Ice: The shaved ice will fall into the 40L transparent storage bin below. Use the provided ice scoop to retrieve the desired amount of shaved ice.
6. Turn Off: When finished, release the handle and flip the red waterproof switch to the 'OFF' position. Unplug the unit from the power outlet.

5. Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your ice crusher.

Cleaning:

• Before Cleaning: Always unplug the appliance from the power outlet before cleaning.
• Exterior: Wipe the exterior surfaces with a damp cloth and mild detergent. Do not use abrasive cleaners or immerse the main unit in water.
• Ice Barrel and Blades: Carefully clean the stainless steel ice barrel and blades. Use a brush or cloth to remove any ice residue. Be extremely cautious due to sharp blades. Rinse with water and dry thoroughly.
• Storage Bin: Remove the transparent PC storage bin and wash it with warm, soapy water. Rinse thoroughly and dry completely before reattaching.
• Drainage Tube: Periodically flush the drainage tube with clean water to prevent blockages.

Storage:

When not in use for extended periods, ensure the unit is clean and dry. Store it in a cool, dry place away from direct sunlight and moisture.

6. Troubleshooting

If you encounter issues with your Hothope Commercial Ice Crusher, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Hothope customer support.

7. Specifications

Detailed technical specifications for the Hothope Commercial Ice Crusher IM-S2-H:

Figure 7.1: Visual representation of the product dimensions.

8. Warranty and Support

For warranty information, technical support, or service inquiries, please contact Hothope customer service. Keep your purchase receipt and product model number handy when contacting support.

Contact Information: Please refer to the Hothope official website or your purchase documentation for the most up-to-date contact details.
