GarveeHome 63 in-86.6 in Extendable Dining Room Table Instruction Manual

1. Introduction

Thank you for choosing the GarveeHome Extendable Dining Room Table. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new dining table. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Safety Information

• Keep all packaging materials away from children.
• Assemble the table on a soft, clean surface to prevent scratches.
• Ensure all screws and bolts are tightened securely before use. Periodically check and re-tighten as necessary.
• Do not overload the table. Refer to specifications for weight capacity.
• Keep hands clear of moving parts during extension and retraction of the leaf.

2. Package Contents

Before assembly, verify that all parts and hardware are present. Each component and hardware bag is labeled to match the assembly guide.

Components:

• Tabletop halves
• Extension leaf (integrated butterfly leaf)
• Table legs (4)
• Frame support beams

Hardware & Tools:

• Various screws, bolts, and washers (labeled bags)
• Wooden dowels
• Allen wrench (included)
• Assembly Guide

Image: Easy Assembly Diagram with Labeled Parts

3. Setup & Assembly

Assembly typically requires two people and can be completed in approximately 40 minutes. Follow the detailed instructions provided in your assembly guide, matching labeled parts and hardware.

General Assembly Steps:

1. Attach the metal pins and cam locks to the tabletop halves as indicated in the manual.
2. Connect the frame support beams to the tabletop halves using the provided hardware.
3. Assemble the V-shaped table legs.
4. Attach the assembled legs to the main table frame using the designated bolts and washers. Ensure all connections are secure.
5. Carefully flip the table upright.

Image: Underside of the table frame showing sturdy construction.

4. Operating Instructions: Extending and Retracting the Table

Your GarveeHome dining table features an integrated butterfly extension leaf for flexible seating capacity. This mechanism is designed for easy, one-person operation.

To Extend the Table:

1. Locate and release the locking mechanisms underneath the table on both sides.
2. Gently pull the tabletop halves apart, creating a gap in the center.
3. Rotate the folded butterfly leaf upright (90 degrees) from its stored position.
4. Unfold the leaf fully, ensuring it lays flat.
5. Slide the tabletop halves back together until they meet the extended leaf, creating a flush surface.
6. Secure the locking mechanisms underneath the table.

To Retract the Table:

1. Release the locking mechanisms underneath the table.
2. Pull the tabletop halves apart slightly.
3. Fold the butterfly leaf inward and rotate it back into its stored position beneath the table.
4. Slide the tabletop halves back together until they meet.
5. Secure the locking mechanisms.

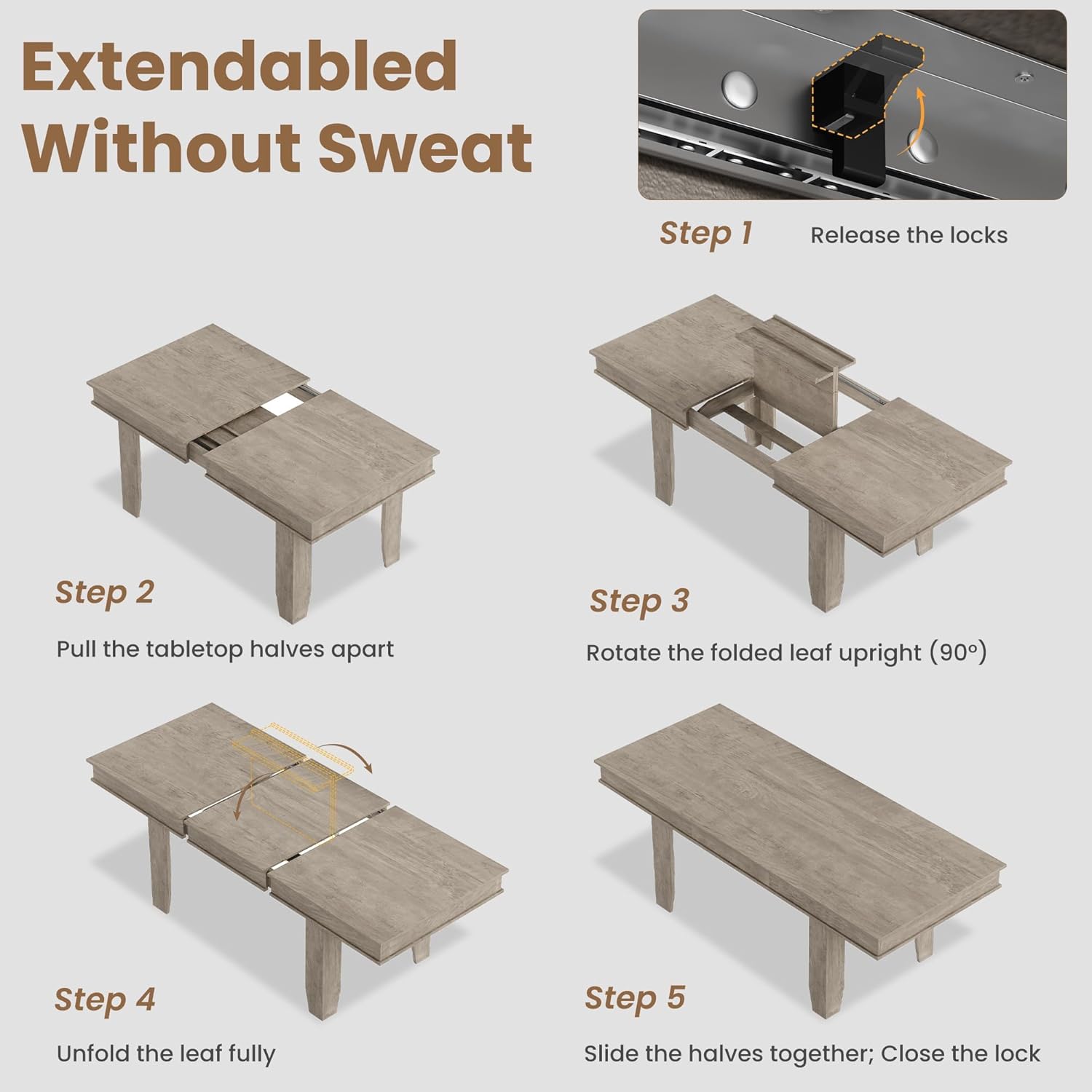

Image: Visual guide for extending the table.

Image: Detail of the integrated butterfly leaf design.

Image: Close-up of the smooth and secure extension mechanism.

5. Maintenance & Care

To ensure the longevity and appearance of your GarveeHome dining table, follow these care guidelines:

• Clean the table surface with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Wipe up spills immediately to prevent staining.
• Use placemats or coasters to protect the surface from hot items, scratches, and moisture.
• Avoid placing the table in direct sunlight or near heat sources to prevent warping or discoloration.
• The table is made from quality MDF with a scratch- and stain-resistant laminate finish, designed for durability.

Image: Close-up of the table's waterproof and dustproof wood grain finish.

6. Troubleshooting

If you encounter any issues with your dining table, refer to the following common solutions:

• Table feels wobbly: Check all leg and frame connections. Tighten any loose screws or bolts. Ensure the table is placed on a flat, even surface.
• Extension leaf is difficult to operate: Ensure all locking mechanisms are fully disengaged. Check for any obstructions in the sliding mechanism. Apply a small amount of silicone lubricant to the slides if necessary.
• Gaps between tabletop sections: Ensure the extension leaf is fully unfolded and properly aligned. Slide the tabletop halves firmly together and engage all locks.

7. Specifications

Key specifications for your GarveeHome Extendable Dining Room Table:

• Brand: GarveeHome
• Model Name: 63-89IN Extendable Dining Room Table
• Color: Grey
• Frame Material: Engineered Wood (MDF)
• Product Dimensions (Extended): 86.6"D x 35.4"W x 30.4"H
• Item Weight: 9.6 ounces
• Seating Capacity (Unextended): 6 people
• Seating Capacity (Extended): Up to 10 people
• Special Features: Expandable, Integrated Butterfly Extension Leaf, Sturdy V-shaped legs, Non-slip foot pads, Scratch- and stain-resistant laminate finish.

Image: Product dimensions and seating configurations.

8. Warranty & Support

For warranty information, product support, or to order replacement parts, please contact GarveeHome customer service directly. Refer to your purchase documentation for specific warranty terms and contact details.

You can also visit the GarveeHome store on Amazon for additional product information and support options: GarveeHome Store
