1. Introduction
Thank you for choosing the Rhevoy 360 Swivel Glider Recliner Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new recliner. Please read these instructions thoroughly before use and retain them for future reference.
This oversized recliner offers 360-degree swivel, 30-degree rocking motion, and features comfortable massage and heating functions for enhanced relaxation.
2. Safety Information
- Electrical Safety: Ensure the power cord is not pinched or damaged during assembly or use. Do not rotate the chair 360 degrees while it is plugged in to avoid damaging the cord.
- Weight Capacity: The maximum weight capacity for this recliner is 350 lbs (approximately 158 kg). Do not exceed this limit.
- Children and Pets: Keep children and pets away from the moving parts of the recliner, especially during reclining and closing operations.
- Placement: Place the recliner on a level surface. Ensure adequate space around the chair for reclining and swiveling motions without obstruction.
- Cleaning: Disconnect the power supply before cleaning. Refer to the maintenance section for cleaning instructions.
- Intended Use: This chair is designed for indoor use only.
3. Package Contents
Your Rhevoy 360 Swivel Glider Recliner Chair will arrive in two separate boxes. Please ensure you have received both packages before beginning assembly. Carefully unpack all components and check against the list below. If any parts are missing or damaged, please contact customer support.
- Chair Base (with swivel and rocking mechanism)
- Backrest
- Seat Cushion (integrated with footrest mechanism)
- Lumbar Pillow
- Power Adapter
- Massage Remote Control
- Instruction Manual (this document)
4. Assembly Instructions
Assembly of your recliner is designed to be straightforward. It is recommended to have a second person assist with some steps. Please refer to the assembly video for a visual guide.
Assembly Video Guide
This video demonstrates the step-by-step assembly process for the Rhevoy 360 Swivel Nursery Glider Recliner. It shows how to connect the backrest, seat, and power cables.
Step-by-Step Assembly:
- Unpack Components: Carefully remove all parts from the two boxes. Place them on a clean, soft surface to prevent damage.
- Attach Backrest: Align the metal brackets on the backrest with the corresponding slots on the seat base. Slide the backrest down firmly until it clicks securely into place.
- Connect Cables: Locate the power cables and connectors inside the back of the chair. Connect the corresponding color-coded cables (typically red to red, white to white, etc.). Ensure all connections are secure.
- Connect Power Adapter: Plug the power adapter into the chair's main power input, then plug the adapter into a wall outlet.
- Position Lumbar Pillow: Place the lumbar pillow on the chair for added comfort and support.
- Final Check: Ensure all parts are securely attached and the chair is stable before use.
5. Operating Instructions
Your recliner is equipped with multiple features for your comfort. Familiarize yourself with these functions for optimal use.
General Operation Video
This video showcases the various features of the Rhevoy 360 Swivel Nursery Glider Recliner, including its swivel, rocking, reclining, massage, and heating functions.
5.1 Reclining Function
To recline the chair, locate the labor-saving handle on the side of the seat. Pull the handle to release the footrest and lean back to your desired position. To return to the upright position, push the footrest down with your legs until it locks into place, then lean forward.
Image showing the recliner in various positions: upright for reading, partially reclined for watching, and fully reclined for sleeping.
5.2 Swivel and Rocking
The chair features a 360-degree swivel base, allowing you to rotate freely. It also provides a gentle 30-degree rocking motion for added comfort. Important: Do not rotate the chair 360 degrees while it is plugged into a power outlet to prevent damage to the electrical cord.
Image depicting the 360-degree swivel and 30-degree rocking capabilities of the chair.
5.3 Massage and Heating Functions
Use the included remote control to operate the massage and heating features. The chair has 8 massage points and 5 distinct massage modes. The built-in heating function provides warmth for a cozy experience.

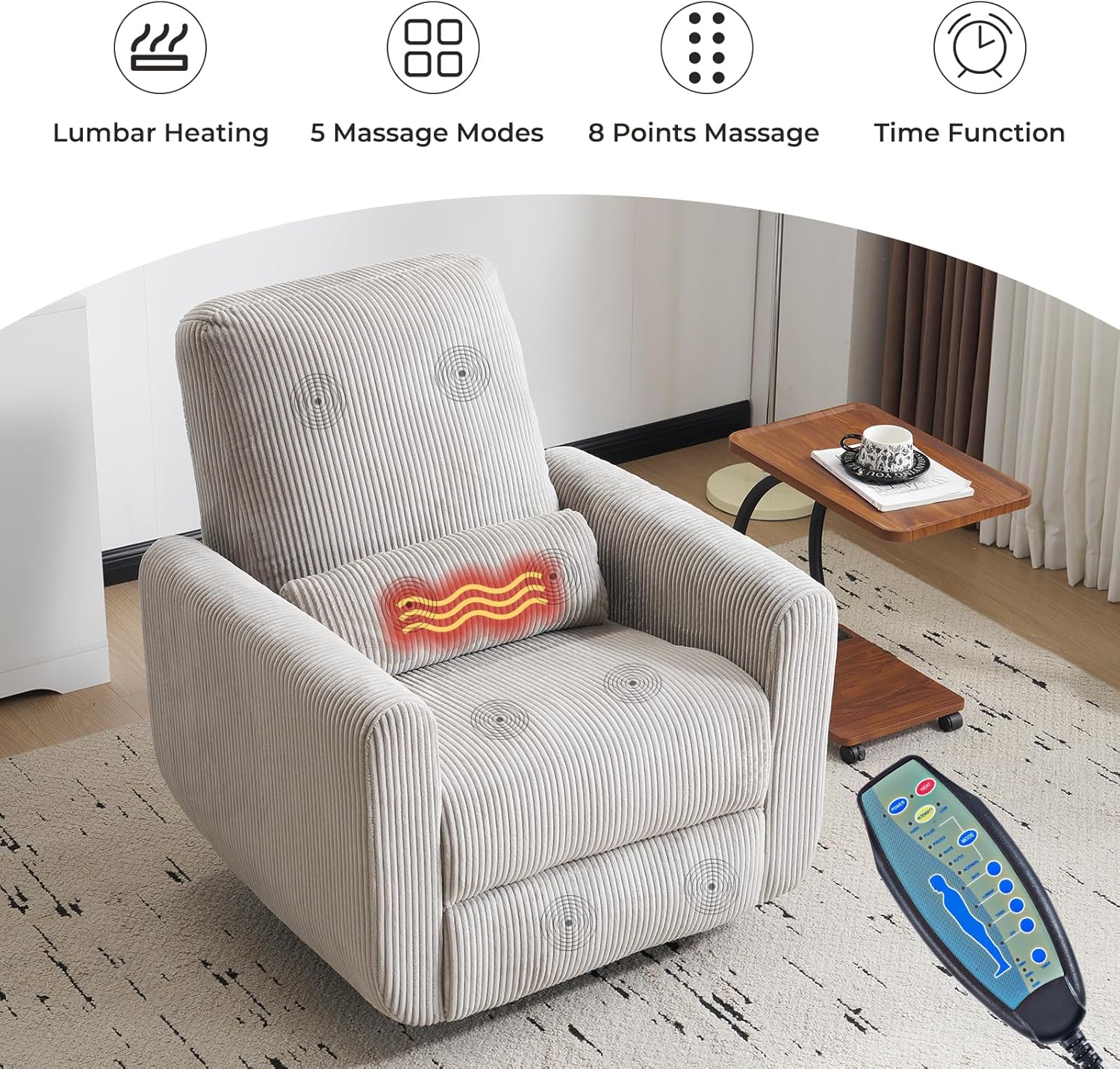

Image showing the recliner with massage points and the remote control for operating massage and heating functions.
6. Maintenance
Proper care will extend the life of your recliner.
- Cleaning Fabric: The chair features a velvety corduroy fabric. For general cleaning, use a soft brush or vacuum cleaner with an upholstery attachment to remove dust and debris. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner following the product's instructions, testing on an inconspicuous area first.
- Mechanism Care: Periodically check all bolts and screws to ensure they are tight. Do not over-tighten.
- Electrical Components: Keep electrical components dry. Do not expose the chair to excessive moisture.
7. Troubleshooting
If you encounter any issues with your recliner, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not recline or footrest does not extend. | Reclining mechanism is jammed or handle is not fully engaged. | Ensure no obstructions are under the footrest. Pull the reclining handle firmly. If the issue persists, check the mechanism underneath the chair for any loose parts (ensure power is disconnected first). |
| Massage/Heating functions not working. | Power cord disconnected, remote control not working, or internal wiring issue. | Check if the power adapter is securely plugged into both the chair and the wall outlet. Ensure all internal cables are connected properly (refer to assembly section). Try replacing remote batteries if applicable (though this model seems wired). If still not working, contact customer support. |
| Chair feels unstable or makes unusual noises. | Loose connections or uneven placement. | Ensure the chair is on a flat, level surface. Check all assembly connections (backrest to base) to ensure they are secure. If noises persist, contact customer support. |
8. Specifications
Key dimensions and technical details for your Rhevoy 360 Swivel Glider Recliner Chair.
Image displaying detailed product dimensions including height, width, and depth in various configurations.
- Model Name: 036
- Brand: Rhevoy
- Color: Grey (as per current variant)
- Material: Corduroy (Fabric), Metal (Frame), Foam (Fill)
- Product Dimensions (Upright): 33.4"D x 38.5"W x 34.2"H
- Seat Size: 24"W x 20.4"D
- Item Weight: 97.9 Pounds
- Maximum Weight Recommendation: 350 Pounds
- Features: 360° Swivel, 30° Rocking, Heating, 8-Point Massage (5 modes), Manual Recline
- Assembly Required: Yes
- Included Components: Cushion (Lumbar Pillow)
9. Warranty and Support
Rhevoy offers a 2-year warranty for this product. This warranty covers faulty, damaged, or missing parts. If you have any questions, concerns, or require assistance with your purchase, please do not hesitate to contact our customer support team. We are committed to providing prompt and helpful service.
For support, please refer to the contact information provided with your purchase documentation or visit the official Rhevoy store page on Amazon: Rhevoy Store.
