INFANS Licensed Ford Mustang GT500 Ride-On Car Instruction Manual

1. Safety Information

Read all instructions before operating the vehicle. Failure to follow these instructions may result in injury or damage.

• Recommended Age: This ride-on car is suitable for children aged 3 to 8 years.
• Weight Capacity: Do not exceed the maximum weight capacity of 66 lbs (30 kg).
• Seat Belt: Always ensure the child is securely fastened with the provided seat belt before operation.
• Supervision: Adult supervision is required at all times during operation.
• Safe Environment: Operate the vehicle on flat, dry surfaces away from traffic, pools, or other hazards.
• Material Safety: The product is made from non-toxic materials, free from BPA, PVC, Phthalates, Lead, Latex, and Formaldehyde. It complies with US CPSIA and ASTM requirements for stability, asphyxiation, load, and shear.
• Soft Start Function: The vehicle features a soft start function to prevent sudden acceleration, ensuring a smooth and comfortable ride for the child.

2. Product Overview

The INFANS Licensed Ford Mustang GT500 Ride-On Car offers an authentic driving experience for children with its sleek design and advanced features.

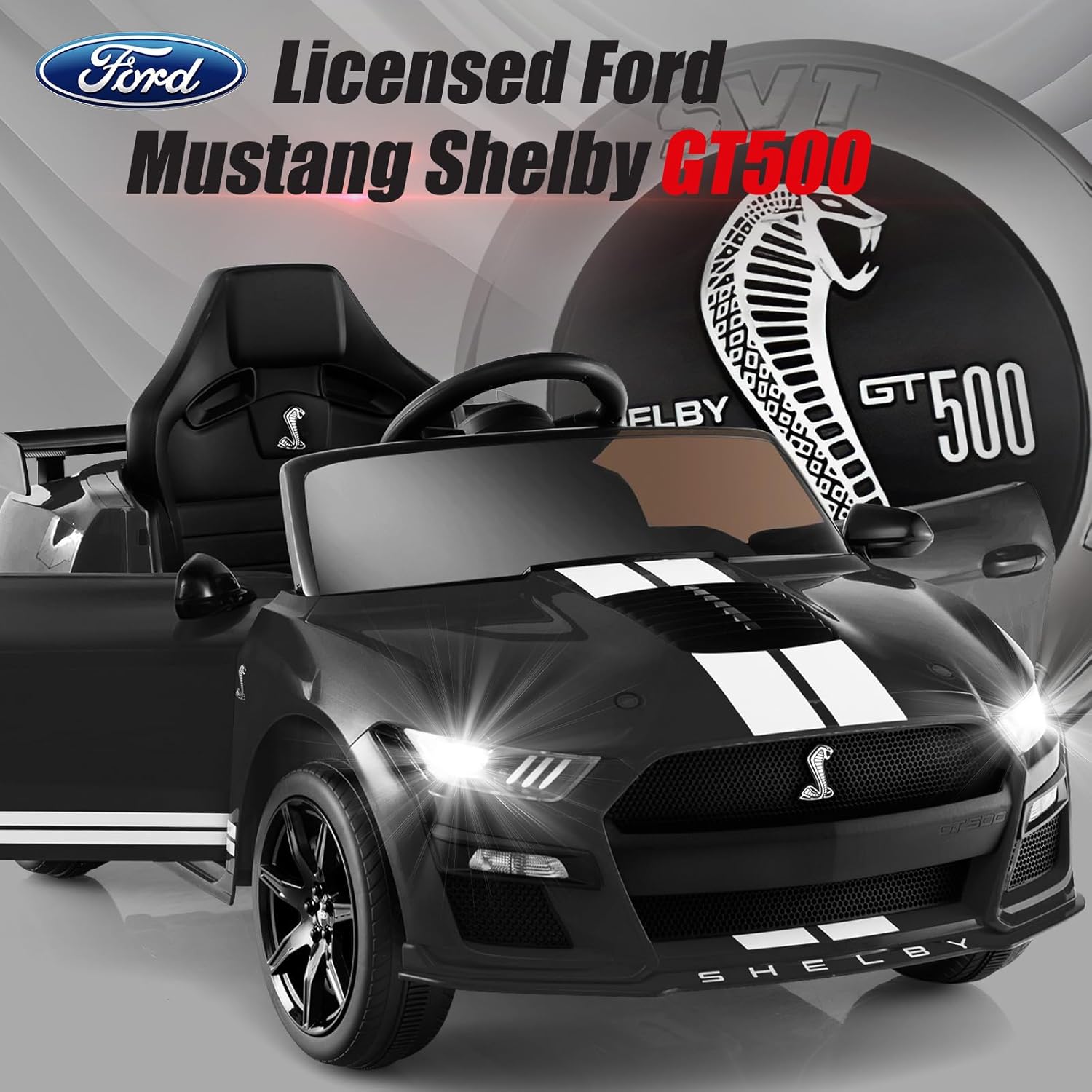

Front view of the INFANS Licensed Ford Mustang GT500 Ride-On Car, highlighting its licensed design.

Key Features:

• Licensed Ford Mustang GT500 Design: Features an official Ford Mustang look with a streamlined design, cool rear wing, and LED headlights.
• Powerful 12V Motor: Equipped with 2 x 30W motors and a 12V 4.5AH rechargeable battery, providing stable power and a maximum speed of 2.3 mph.
• Dual Driving Modes: Supports both parental remote control (2.4G) and child manual operation (steering wheel and pedals).
• Multimedia Functions: Includes Bluetooth, music, radio, USB/MP3 interface, and a power display for entertainment and monitoring.
• Safety Features: Integrated seat belt, double lockable doors, and a soft start function for enhanced child safety.
• Durable Construction: Features durable wheels suitable for various surfaces and bright headlights for visibility.

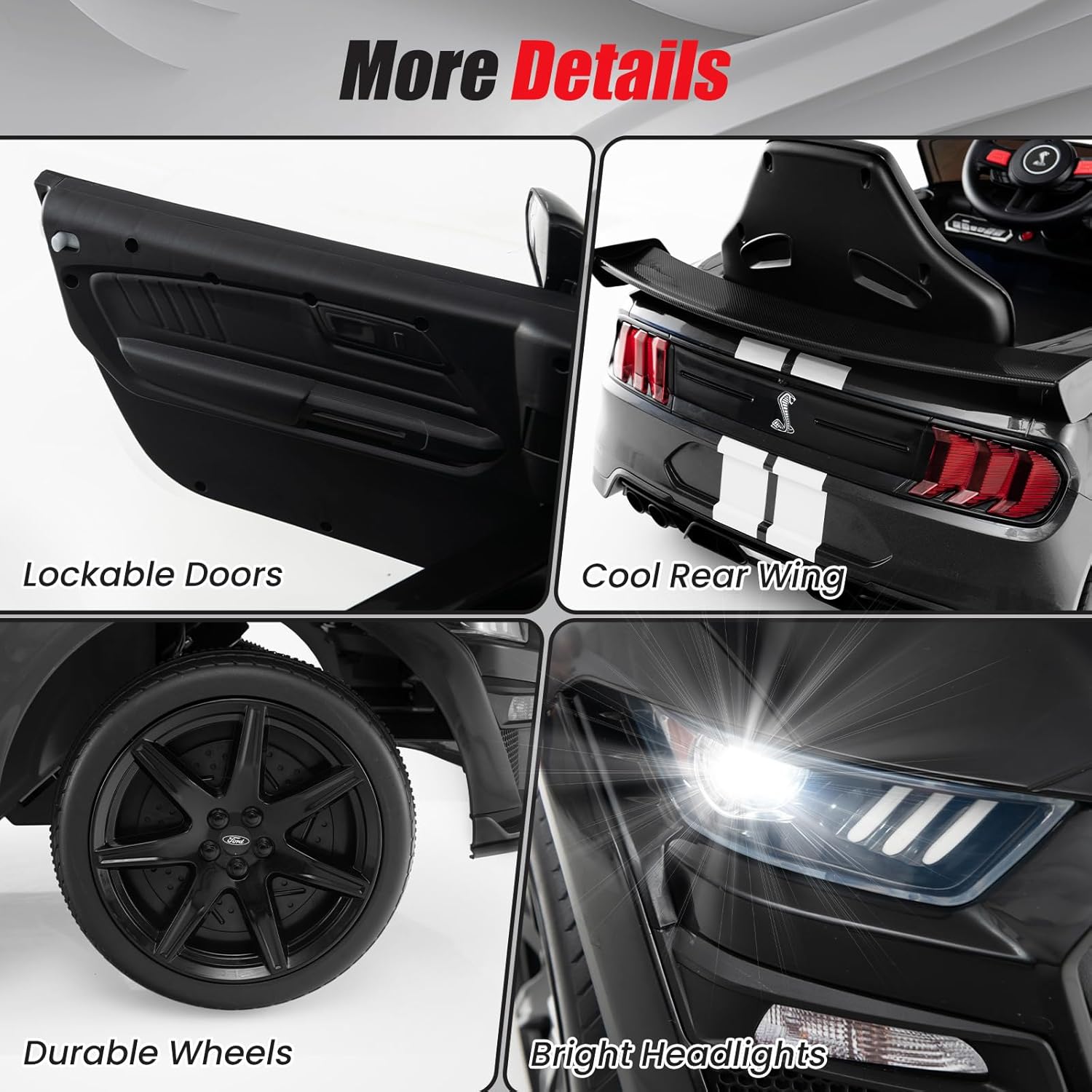

Close-up details of the ride-on car, showing lockable doors, the cool rear wing, durable wheels, and bright headlights.

3. Setup and Assembly

Assembly of the INFANS Ford Mustang GT500 is straightforward. Follow the included instruction manual for detailed steps. The process typically takes about 10-30 minutes.

Package Contents:

• 1 x Ride-on Car body
• 1 x Remote Control
• 1 x Charger
• 1 x Instruction Manual
• Wheels and other assembly components

Assembly Steps:

1. Carefully unpack all components and verify against the parts list in the manual.
2. Attach the wheels to the axles as instructed. Ensure all fasteners are secure.
3. Install the seat, ensuring it snaps into place and is firmly attached.
4. Connect any necessary wiring for the battery and control panel as shown in the manual.
5. Attach the steering wheel and any other exterior components like the rear wing.
6. Before first use, fully charge the vehicle's battery for 8-12 hours.

4. Operating Instructions

The ride-on car offers two modes of operation: manual driving by the child and remote control by an adult.

A child operating the ride-on car while an adult uses the remote control, demonstrating dual driving modes.

4.1. Child Manual Operation:

• Ensure the vehicle is powered on.
• The child can use the steering wheel to control direction and the foot pedal for acceleration.
• The steering wheel includes buttons for the horn and engine sounds.

4.2. Parental Remote Control (2.4G):

The remote control allows parents to steer and control the vehicle for younger children or for safety intervention. Requires 2 x 1.5V AAA batteries (not included).

• Forward/Backward: Use the joystick or designated buttons to move the car forward or backward.
• Left/Right Turn: Control the steering to turn the vehicle left or right.
• Speed Selection: Choose from three different speed settings to match the child's skill level and environment.
• Park Function: A dedicated button allows you to stop the vehicle immediately.

4.3. Multimedia Player:

The dashboard of the ride-on car, featuring controls for music, USB, lights, radio, and a power display.

• The control panel features 8 buttons for various functions including song selection, radio, and light control.
• Connect a USB device or MP3 player to the USB interface to play custom music or stories.
• The power display indicates the remaining battery life.

5. Maintenance

5.1. Charging the Battery:

• Use only the original charger provided with the vehicle.
• Connect the charger to the charging port on the vehicle.
• The initial charging time is 8-12 hours. Subsequent charging times should also be within this range.
• Do not overcharge the battery, as this can reduce its lifespan.
• Expected play time on a full charge is 1-2 hours, depending on usage.

5.2. Cleaning and Storage:

• Clean the vehicle with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Store the vehicle in a dry, cool place away from direct sunlight and moisture.
• If storing for an extended period, charge the battery fully every 3 months to maintain its health.

6. Troubleshooting

If you encounter issues with your INFANS Ford Mustang GT500, please refer to the following common solutions:

• Vehicle Not Moving:
  • Check if the battery is fully charged.
  • Ensure all electrical connections are secure.
  • Verify the power switch is in the 'ON' position.
• Remote Control Not Working:
  • Replace the AAA batteries in the remote control.
  • Ensure the remote control is paired with the vehicle according to the manual.
• Reduced Speed or Short Play Time:
  • The battery may not be fully charged or is nearing the end of its lifespan.
  • Operating on rough terrain or carrying excessive weight can reduce performance.
• Unusual Noises:
  • Inspect wheels and axles for any obstructions or loose parts.
  • If the noise persists, contact customer support.

For further assistance, please refer to the detailed troubleshooting section in your included instruction manual or contact INFANS customer support.

7. Specifications

Visual representation of the product's dimensions, weight capacity, and suitable age range.

8. Warranty and Support

For specific warranty details and customer support, please refer to the warranty card included with your product or contact INFANS directly. Keep your purchase receipt for warranty claims.

Manufacturer: INFANS
