1. Product Overview
The MQHUAYU Vertical Hydroponic Tower Garden is designed for cultivating plants indoors or outdoors, offering a space-efficient solution for growing up to 56 plants simultaneously. This system utilizes hydroponic technology, which allows plants to grow without soil, using a nutrient-rich water solution. Key features include a 7-layer design, an automated water circulation system, and a compact footprint.
Image: MQHUAYU Vertical Hydroponic Tower Garden in a kitchen setting, demonstrating its use in a home environment.
This system is engineered for efficient plant growth, consuming significantly less water compared to traditional soil gardening methods. It promotes a cleaner growing environment by eliminating soil, reducing weeds, and minimizing pest issues.
Image: Comparison illustrating the benefits of the hydroponic tower over traditional soil gardening, highlighting water efficiency and cleanliness.
2. Package Contents
Verify that all components are present in the package before beginning assembly:
- Vertical Tower Sections (7 tiers)
- Base Reservoir
- 12V Water Pump
- Smart Timer
- Lockable Swivel Casters (4 wheels)
- Seed Sponges / Growing Medium
- Water Level Gauge
- Instruction Manual

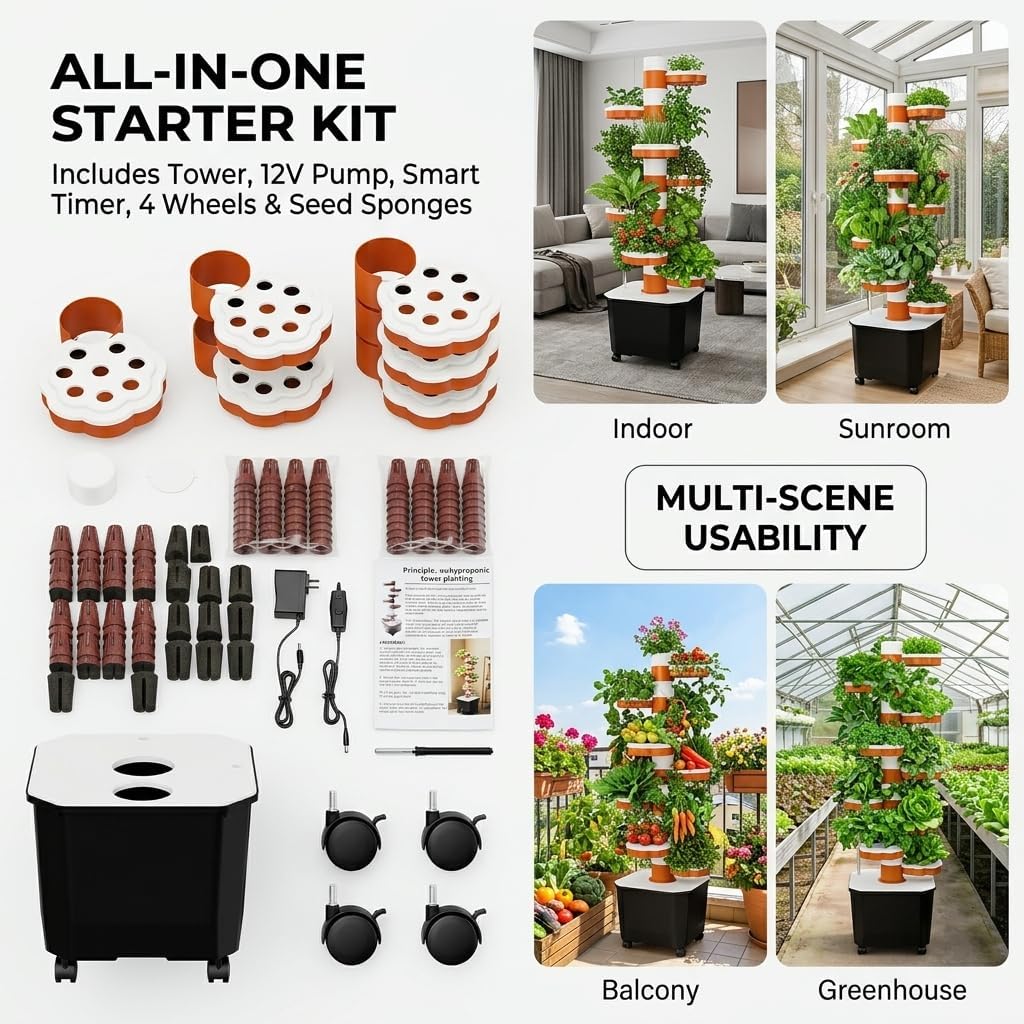

Image: Visual representation of all components included in the starter kit.
3. Setup Instructions
The MQHUAYU Vertical Hydroponic Tower Garden features a tool-free, snap-fit modular design for quick assembly.
- Step 1: Prepare the Base. Place the base reservoir on a flat, stable surface. Attach the four lockable swivel casters to the bottom of the reservoir.
- Step 2: Install the Water Pump. Place the 12V water pump inside the base reservoir. Connect the pump's tubing to the central water distribution pipe that extends upwards from the base. Ensure the pump's power cord is routed through the designated opening in the reservoir lid.
- Step 3: Stack the Tiers. Begin stacking the 7 tower sections (tiers) onto the central pipe, one by one. Each tier should snap securely into place. Ensure proper alignment for water flow.
- Step 4: Connect the Smart Timer. Plug the water pump into the smart timer, and then plug the smart timer into a standard electrical outlet.
- Step 5: Insert Growing Medium. Place the provided seed sponges or growing medium into each of the 56 planting pods.
Image: Diagram illustrating the simple, tool-free assembly process of the hydroponic tower.
4. Operating Instructions
4.1 Initial Water and Nutrient Filling
- Fill the base reservoir with approximately 4 to 5.3 gallons (15-20 liters) of water. Use the visual water level gauge to monitor the water level.
- Add your chosen hydroponic nutrient solution according to the manufacturer's instructions for the specific plants you are growing. Mix thoroughly.
- Check the pH level of the nutrient solution and adjust as necessary for optimal plant growth (typically between 5.5 and 6.5 for most plants).
4.2 Smart 24H Auto-Circulation Timer
The included smart timer controls the water pump, providing automated nutrient flow to your plants. It offers customizable ON/OFF cycles.
- ON Duration Options: 1 minute, 5 minutes, 10 minutes.
- OFF Duration Options: 5 minutes, 10 minutes, 30 minutes.
Select the appropriate ON/OFF cycle based on your plants' needs and environmental conditions. For most plants, a cycle of 5 minutes ON and 30 minutes OFF is a common starting point.
Image: Detailed view of the smart 24-hour recirculation system, including the water pump, timer, and water level gauge.
4.3 Water Level Monitoring
Regularly check the water level using the visual gauge on the side of the base reservoir. Refill with water and adjust nutrient concentration as needed to prevent the pump from running dry and to maintain optimal nutrient levels for plant health.
5. Maintenance
5.1 Cleaning
Regular cleaning is essential to prevent algae growth and nutrient imbalances. The modular design allows for easy disassembly.
- Weekly: Top off water and adjust nutrient solution. Wipe down any visible algae.
- Bi-weekly/Monthly: Perform a full system flush. Drain the old nutrient solution, rinse the reservoir and tower sections with clean water. Refill with fresh water and new nutrient solution.
- Deep Cleaning: For thorough cleaning, the quick-detach layers are dishwasher safe. Ensure all components are completely dry before reassembly.
- Pump Maintenance: Periodically clean the water pump filter to ensure efficient operation and prevent blockages.
5.2 Nutrient Management
Monitor your plants for signs of nutrient deficiencies or excesses. Adjust the concentration of your hydroponic nutrient solution as recommended by the nutrient manufacturer for the specific growth stage of your plants. Regularly check and maintain the pH level of the solution.
6. Troubleshooting
Refer to the table below for common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Water pump not circulating | No power, low water level, clogged pump | Check power connection, refill reservoir, clean pump filter. |
| Plants wilting or stunted growth | Incorrect nutrient concentration, improper pH, insufficient light | Adjust nutrient solution, check/adjust pH, ensure adequate light exposure. |
| Algae growth in reservoir or pods | Excessive light exposure to water, infrequent cleaning | Ensure reservoir lid is secure, reduce light to water, perform regular cleaning. |
| Water leakage | Improperly assembled tiers, loose connections | Verify all tower sections are securely snapped, check pump tubing connections. |
7. Product Specifications
Detailed specifications for the MQHUAYU Vertical Hydroponic Tower Garden.
| Specification | Detail |
|---|---|
| Brand | MQHUAYU |
| Model Number | SPZZXT |
| Product Dimensions (L x W x H) | 15.7" x 15.7" x 48" (approx. 40cm x 40cm x 122cm) |
| Water Reservoir Capacity | 4-5.3 gallons (15-20 liters) |
| Pod Capacity | 56 Pods (7 layers, 8 pods per layer) |
| Pump Voltage | 12V |
| Material | Food-grade, BPA-free |
| Key Features | Smart 24H Timer, 360° Lockable Wheels, Water Level Gauge, Modular Design |
Image: Diagram detailing the 56-pod capacity and overall dimensions of the hydroponic tower.
8. Warranty and Support
8.1 Warranty Information
This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or contact customer support for specific details regarding coverage and duration.
8.2 Customer Support
For any questions, technical assistance, or support needs, please contact MQHUAYU customer service. Contact information can typically be found on the product packaging or the official MQHUAYU website.
