PURPLE LEAF 13' x 13' Hardtop Aluminum Gazebo Instruction Manual

1. Introduction

Thank you for choosing the PURPLE LEAF 13' x 13' Hardtop Aluminum Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

1.1 Safety Information

• Ensure all parts are present and undamaged before assembly. Do not proceed with assembly if any parts are missing or damaged.
• Assembly requires at least two adults. Some steps may require more.
• Wear appropriate safety gear, such as gloves and eye protection, during assembly.
• Securely anchor the gazebo to the ground or a solid surface to prevent wind damage.
• Do not hang heavy objects from the gazebo frame or roof.
• Regularly inspect the gazebo for loose connections or damage.
• Consult local building codes and HOA guidelines for any required permits or restrictions before installation.

2. Product Features

The PURPLE LEAF 13' x 13' Hardtop Aluminum Gazebo is designed for durability and comfort, offering a robust outdoor shelter solution.

• Premium Materials: Features a galvanized steel roof and an upgraded aluminum frame with a 5-year fade-resistant powder coating. These materials are engineered to resist rust, UV rays, heavy winds, and snow, ensuring long-term durability and all-weather protection.
• Optimized Drainage System: The slanted roof design incorporates gutters that direct rainwater through drainage holes located in the four corners, effectively preventing water accumulation on the roof.
• Integrated Curtains & Netting: Equipped with upgraded 260 GSM netting and heavy-duty black curtains. These provide protection against rainwater and UV rays, maintain ventilation, and offer privacy.
• Enhanced Stability: Features 4.7-inch upgraded aluminum poles with a triangular structure for increased stability and weather resistance.
• Double Roof Design: Allows for better air circulation and provides resistance against wind rates up to 40 mph and snow loads up to 2500 lbs.

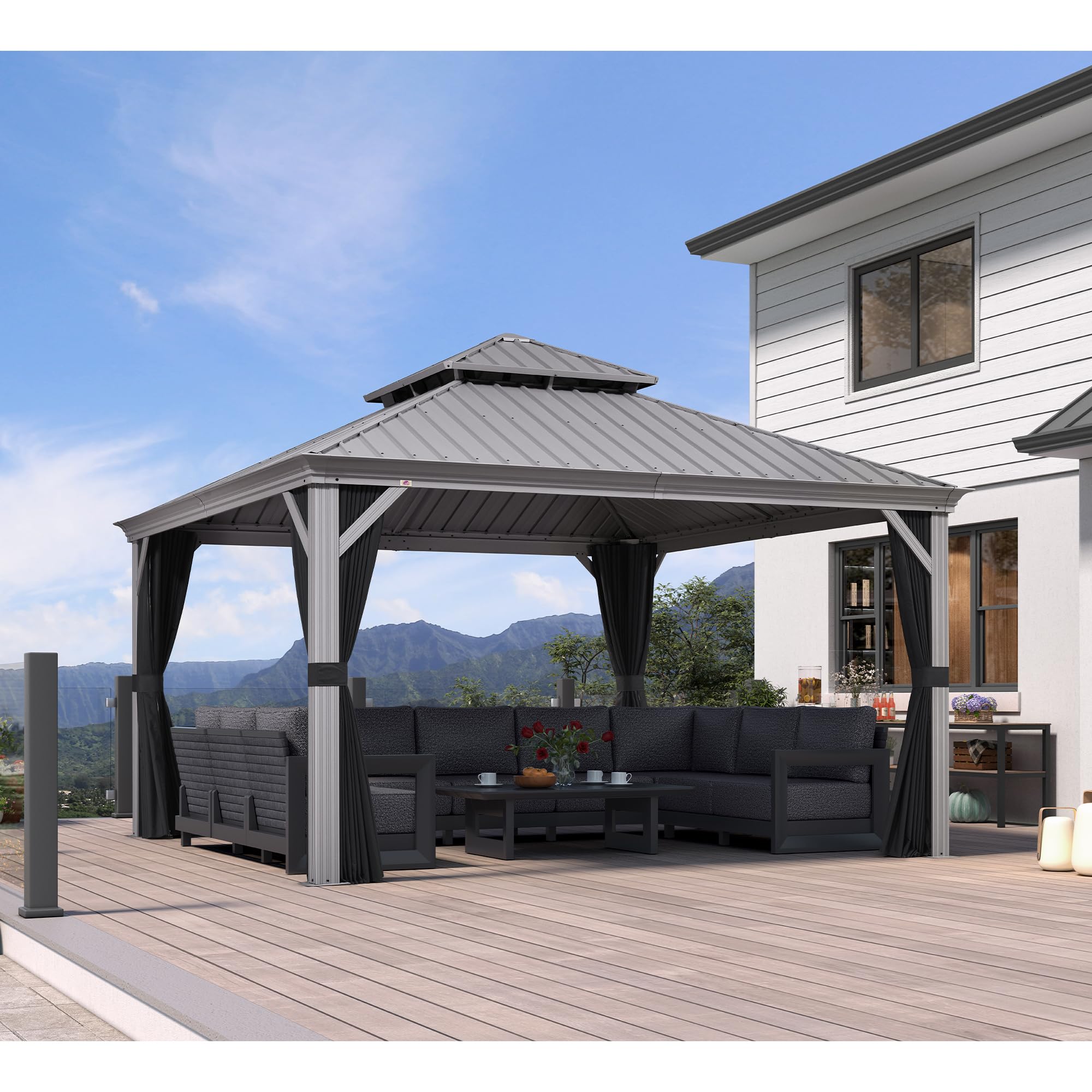

Image: The PURPLE LEAF 13' x 13' Hardtop Aluminum Gazebo set up on a patio with outdoor seating.

Image: Detailed view of the gazebo's optimized drainage system, illustrating how water is channeled away from the roof.

Image: Comparison highlighting the 4.7-inch upgraded aluminum pole of the PURPLE LEAF gazebo, indicating enhanced stability.

Image: Close-up of the high-quality 260 GSM textilene netting, designed for steadfastness and wind resistance.

Image: Detail of the unique black curtain, highlighting its fade resistance, 99% sunlight block, and 5-second flame shield properties.

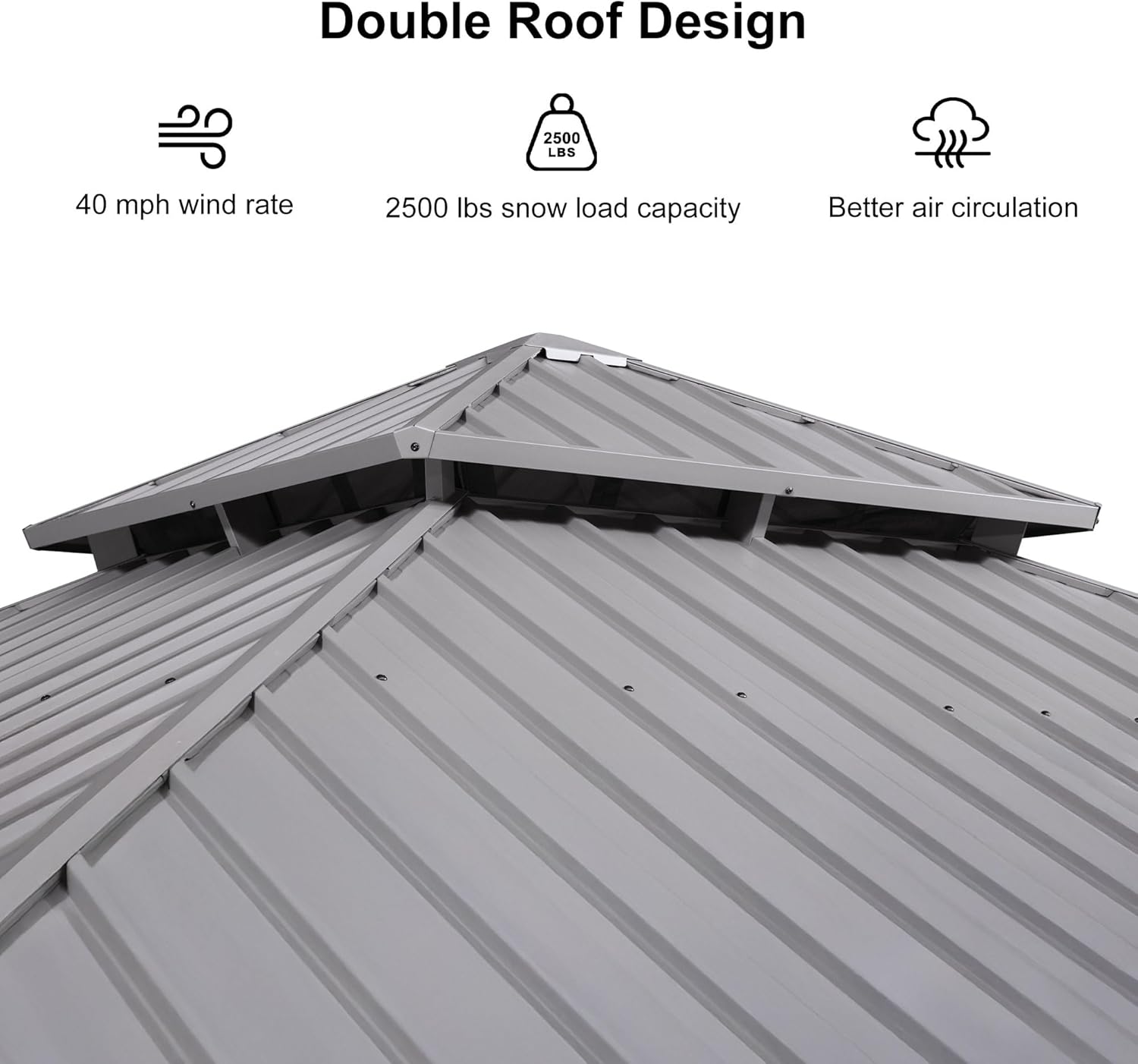

Image: The double roof design, illustrating its capacity to withstand 40 mph winds and 2500 lbs snow load, while providing better air circulation.

Image: Close-up of the light gray powder coating, emphasizing its 5-year fade resistance, enhanced UV resistance, and rust prevention.

3. Setup and Assembly

Assembly of the PURPLE LEAF Hardtop Aluminum Gazebo requires careful attention to detail and the assistance of at least two adults. Please follow the step-by-step instructions provided in the separate assembly guide included with your product packaging. This section provides general guidance.

3.1 Before You Begin

• Unpack and Identify Parts: Carefully unpack all components and lay them out. Refer to the parts list in your assembly guide to ensure all pieces are present.
• Tools Required: Gather necessary tools, which typically include a ladder, wrench, screwdriver, and possibly a power drill (for anchoring).
• Site Preparation: Choose a level and stable location for your gazebo. Clear the area of any debris or obstacles. Ensure adequate clearance around the gazebo for safe use and maintenance.

3.2 General Assembly Steps

1. Assemble the Base Frame: Connect the base rails and posts according to the diagrams in your assembly guide. Ensure all connections are secure but do not fully tighten bolts until instructed.
2. Install Roof Supports: Attach the roof support beams to the top of the posts. This step often requires multiple people to lift and secure the beams.
3. Attach Roof Panels: Carefully install the galvanized steel roof panels. Pay close attention to the orientation and overlap of the panels to ensure proper water drainage.
4. Install Curtains and Netting: Slide the curtains and netting onto their respective tracks or rods as specified.
5. Final Tightening and Anchoring: Once all components are in place and aligned, fully tighten all bolts. Securely anchor the gazebo to your chosen surface using appropriate hardware (not always included, depending on surface type).

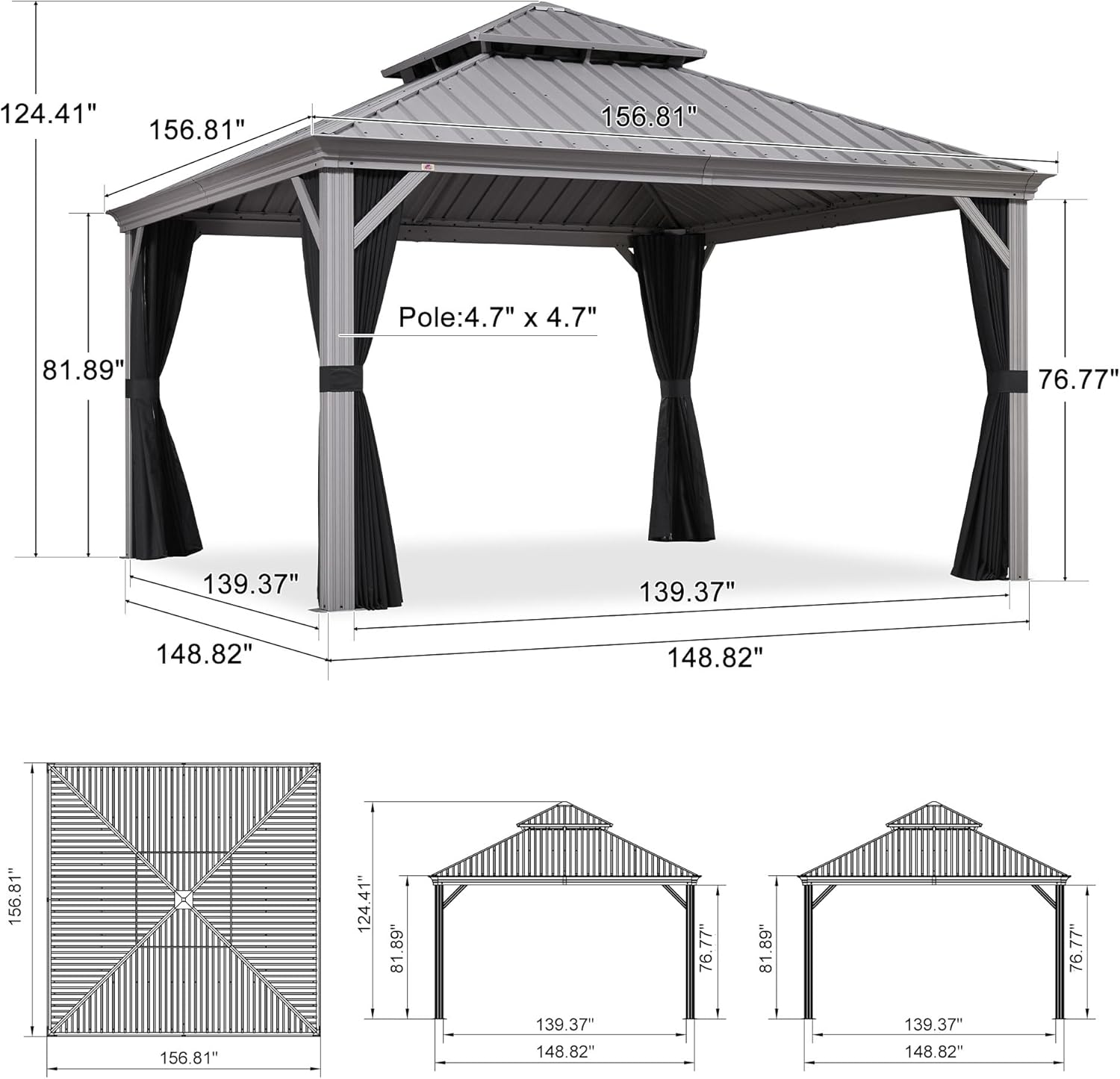

Image: Dimensional drawing of the 13' x 13' gazebo, showing overall length, width, and height, along with pole dimensions.

4. Operating Instructions

4.1 Using the Curtains and Netting

• The gazebo includes two sets of coverings: mosquito netting and privacy curtains.
• Slide the netting to enclose the gazebo for insect protection while maintaining airflow.
• Use the privacy curtains for shade, privacy, or protection from light rain.
• When not in use, tie back the curtains and netting to the gazebo posts to prevent them from flapping in the wind.

4.2 Drainage System

The gazebo's sloped roof and integrated gutters are designed to manage rainwater. Ensure that the drainage holes in the corners are clear of debris (leaves, dirt) to allow water to flow freely. Blocked drainage can lead to water accumulation and potential damage.

4.3 Hanging Items

The roof structure includes a hook for hanging lightweight items such as decorative lights or a small fan. Do not exceed the weight limit specified in your assembly guide for this hook.

5. Maintenance

Regular maintenance will extend the life and appearance of your gazebo.

5.1 Cleaning

• Frame: Clean the aluminum frame with a mild soap and water solution. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots. Avoid abrasive cleaners or harsh chemicals.
• Roof: Periodically clean the galvanized steel roof to remove leaves, dirt, and other debris. A soft brush and water can be used. Ensure drainage channels are clear.
• Curtains and Netting: The curtains and netting can be spot cleaned with mild soap and water. For deeper cleaning, follow the care instructions on the fabric tags. Ensure they are completely dry before storing or tying back to prevent mildew.

5.2 Seasonal Care

• Winter: While designed for all-weather, in areas with heavy snowfall, it is recommended to regularly clear snow from the roof to prevent excessive weight accumulation.
• Wind: In anticipation of strong winds, ensure curtains and netting are securely tied back or removed if extreme weather is expected. Verify all frame connections are tight.

6. Troubleshooting

This section addresses common issues you might encounter with your gazebo.

6.1 Water Accumulation on Roof

• Issue: Water is pooling on the roof instead of draining.
• Solution: Check the drainage channels and holes in the corners for blockages (e.g., leaves, debris). Clear any obstructions. Ensure the roof panels are correctly installed and overlapped according to the assembly instructions.

6.2 Gazebo Instability

• Issue: The gazebo feels wobbly or unstable.
• Solution: Verify that all bolts and screws are fully tightened. Ensure the gazebo is properly anchored to a solid, level surface. Re-check the assembly of the posts and roof supports for correct alignment.

6.3 Curtains/Netting Not Sliding Smoothly

• Issue: Curtains or netting are difficult to open or close.
• Solution: Inspect the tracks for any debris or obstructions. Clean the tracks with a damp cloth. Ensure the fabric is not snagged or twisted.

7. Specifications

8. Warranty and Support

8.1 Product Warranty

PURPLE LEAF offers the following warranty coverage for this gazebo:

• Hardtop Roof: Covered for 5 years.
• Curtain and Netting: Covered for 2 years.
• Frame Construction: Covered for 1 year.

Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use and conditions. It does not cover damage due to improper assembly, misuse, neglect, accidents, or extreme weather conditions.

8.2 Customer Support

For any questions, missing parts, or assistance with assembly or operation, please contact PURPLE LEAF customer service. Refer to the contact information provided in your product packaging or visit the official PURPLE LEAF website for support.
