Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your AOGLLATI 140x190cm Storage Bed. Please read these instructions carefully before beginning assembly or use to ensure safe and correct operation. Keep this manual for future reference.

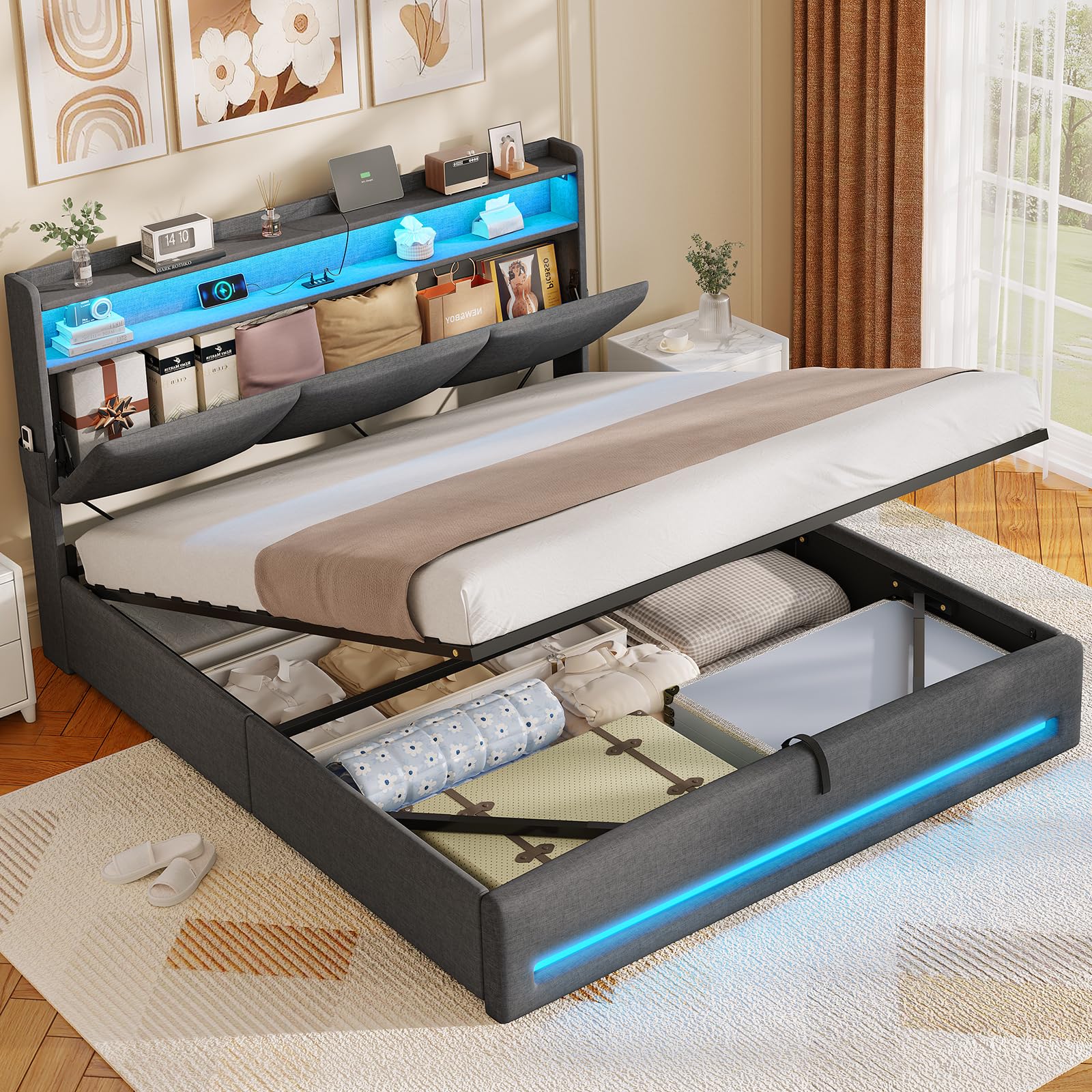

Image: The AOGLLATI 140x190cm storage bed in dark grey, showcasing its upholstered headboard, LED lighting, and overall design.
Safety Information
General Safety:
- Ensure all components are securely fastened before use.
- Do not exceed the maximum weight capacity for the bed frame or the hydraulic lift mechanism.
- Keep children and pets away from the bed during assembly and when operating the hydraulic lift.
- Avoid placing heavy objects on the headboard shelves that could fall.
Electrical Safety (LED & USB):
- Only use the provided power adapter for the LED lights and USB ports.
- Do not expose electrical components to water or excessive moisture.
- If any electrical component is damaged, discontinue use and contact customer support.
Hydraulic Lift Safety:
- Always use the lifting strap to raise and lower the bed base.
- Ensure the mattress is properly positioned on the bed frame before operating the hydraulic lift.
- Do not place hands or other body parts near the hydraulic mechanism when raising or lowering the bed base.
- The hydraulic lift is designed to assist with lifting the bed base and mattress. Do not attempt to lift the bed base without a mattress, as it may spring up too quickly.
Package Contents
Your AOGLLATI storage bed is delivered in two reinforced packages (A/B) to prevent damage during transit. These packages may arrive at different times. Please ensure you have received both packages before beginning assembly.
Verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
Image: An illustration detailing the bed's dimensions (Length 209cm, Width 141cm, Height 106cm) and indicating that the product is shipped in two separate packages for protection.
Included Components:
- Upholstered Headboard with Storage
- Bed Frame Components (Wood and Metal Slats)
- Hydraulic Lift Mechanism
- LED Light Strips & Power Station
- USB Charging Ports (Integrated)
- Assembly Hardware Kit
- Installation Manual
- Necessary Installation Tools
Setup (Assembly)
Assembly of the AOGLLATI storage bed requires careful attention to the provided instructions. All parts are numbered, and screws are sorted by size to simplify the process. It is recommended to have two people for assembly.
- Unpack Components: Carefully unpack all parts from both packages. Lay them out on a clean, soft surface to prevent scratches.
- Identify Parts: Match each component with its corresponding number in the instruction manual.
- Assemble Frame: Follow the step-by-step diagrams in the included installation manual to assemble the main bed frame. Ensure all bolts and screws are tightened securely.
- Install Hydraulic Mechanism: Attach the hydraulic lift mechanism according to the manual. Pay close attention to the orientation of the hydraulic arms.
- Attach Slatted Base: Secure the wooden and metal slats to the bed frame. Ensure the anti-vibration EVA strips are correctly placed to prevent squeaking.
- Install Headboard: Mount the upholstered headboard to the bed frame. Connect the LED light strips and USB charging station as instructed.
- Final Checks: Verify that all connections are secure and the bed frame is stable. Test the hydraulic lift mechanism by gently raising and lowering the bed base.
Image: A detailed diagram illustrating the hydraulic lift mechanism, the lifting strap for easy operation, and the mattress stabilizers designed to prevent mattress movement.
Image: A close-up view of the mattress retainer bar, which helps keep the mattress securely in place on the bed frame.
Operating Instructions
Hydraulic Storage Lift
The bed features a hydraulic lift mechanism for easy access to under-bed storage. This allows you to store items like luggage, storage boxes, seasonal clothing, and bedding without moving the mattress.
- To Open: Grasp the lifting strap located at the foot of the bed. Gently pull upwards to engage the hydraulic mechanism. The bed base will lift smoothly.
- To Close: Gently push the bed base downwards. You may need to apply slight pressure to fully engage the closing mechanism. Ensure the mattress stabilizers are aligned to prevent the mattress from shifting.
Note: The hydraulic system is designed to work with a mattress in place. Attempting to lift an empty bed base may cause it to rise too quickly.
Image: The bed with its hydraulic lift mechanism raised, revealing a large storage area underneath suitable for various items.
Integrated USB Charging Ports
The headboard includes a power strip with 3 USB-A ports and 1 USB-C port, allowing you to charge multiple electronic devices simultaneously.
- Connect the bed's power cord to a wall outlet.
- Plug your devices (phones, alarm clocks, etc.) into the available USB-A or USB-C ports on the headboard.
Image: A close-up view of the practical charging station integrated into the headboard, featuring 3 USB-A ports and 1 USB-C port, with devices connected and charging.
Image: A detailed shot of the USB-A and USB-C ports available on the integrated charging station.
Smart RGB LED Lighting
The bed features RGB LED strips on both the headboard and footboard, controllable via a mobile application and remote control. This allows for customization of color, brightness, lighting modes, timer functions, and music synchronization.
- Power On/Off: Use the remote control or mobile app to turn the LED lights on or off.
- Color Selection: Choose from millions of colors to set the desired ambiance.
- Brightness Adjustment: Adjust the intensity of the light.
- Lighting Modes: Select static or dynamic lighting modes.
- Timer Function: Set a timer for the lights to turn off automatically.
- Music Synchronization: In music sync mode, the lights will change color and pattern according to the rhythm of the music.
Image: The bed illuminated with intelligent RGB LED lighting, highlighting features like millions of colors, 30 lighting modes, timer function, music synchronization, and control via app/remote.
Image: The AOGLLATI storage bed with its LED lights set to a blue color, creating a calm ambiance.
Image: The AOGLLATI storage bed with its LED lights set to a warm yellow color, providing a cozy atmosphere.
Upholstered Headboard with Storage
The upholstered headboard offers both open and hidden storage compartments for convenience.
- Open Shelves: Two open shelves provide easy access to items like glasses, tablets, remote controls, and charging phones.
- Hidden Compartment: A closed compartment allows you to discreetly store books and other personal belongings, protecting them from dust and keeping your space tidy.
Image: The upholstered headboard featuring two open shelves for immediate access to items and a hidden compartment for discreet storage, illuminated by blue LED lights.
Maintenance
Regular maintenance helps prolong the life and appearance of your AOGLLATI storage bed.
- Cleaning: For the fabric upholstery, gently vacuum with an upholstery attachment to remove dust. For spills, blot immediately with a clean, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Frame Inspection: Periodically check all bolts and screws to ensure they remain tight. Retighten if necessary.
- Hydraulic Mechanism: The hydraulic system is generally maintenance-free. Avoid applying excessive force or lubricants to the mechanism.
- LED Lights: If LED strips become dusty, gently wipe them with a dry, soft cloth.
- Anti-Vibration Strips: The EVA anti-vibration strips are designed to reduce noise. Ensure they are properly seated between the slats.
Image: A close-up view of the EVA anti-vibration strips installed between the bed slats, designed to minimize noise and creaking.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed base does not lift smoothly or is difficult to close. | Hydraulic mechanism not properly installed or misaligned. Mattress too light or too heavy. | Review assembly instructions for hydraulic mechanism. Ensure mattress is within recommended weight range for hydraulic beds. Apply gentle, even pressure when closing. |
| LED lights are not working or colors are inconsistent. | Power connection issue. Faulty LED strip or controller. | Check all power connections. Ensure the power adapter is securely plugged into an outlet and the bed. Try resetting the LED controller (if applicable). If issues persist, contact customer support. |
| USB ports are not charging devices. | Power connection issue. Device cable faulty. | Verify the bed's main power cord is plugged in. Try a different USB cable or device to rule out cable/device issues. |
| Bed frame squeaks or makes noise. | Loose bolts or screws. Anti-vibration strips misplaced or missing. | Tighten all assembly bolts and screws. Ensure EVA anti-vibration strips are correctly installed between the slats. |
Specifications
| Feature | Detail |
|---|---|
| Brand | AOGLLATI |
| Model Number | AG-190 |
| Dimensions (L x W x H) | 209 x 141 x 106 cm (82.3 x 55.5 x 41.7 inches) |
| Product Weight | 50 Kilograms (110 lbs) |
| Color | Dark Grey |
| Upholstery Material | Linen Fabric |
| Frame Material | Wood and Metal |
| Special Features | Hydraulic Lift Device, Upholstered Headboard with Storage, Integrated USB Ports (3x USB-A, 1x USB-C), RGB LED Lighting (App/Remote Control), Mattress Stabilizers, Anti-Vibration Slats |
| Mattress Size Compatibility | 140x190 cm (Mattress not included) |
Warranty and Support
Warranty:
This product is covered by standard legal guarantees. For specific details regarding warranty coverage and duration, please refer to your purchase documentation or contact the seller directly. The product also offers a 30-day return policy.
Customer Support:
Should you have any questions, require assistance with assembly, or encounter any issues with your AOGLLATI storage bed, please do not hesitate to contact AOGLLATI customer service. Our professional and attentive support team is committed to providing assistance.
Contact information can typically be found on your purchase invoice or the seller's page on the platform where the product was purchased.
Online Resources:
For additional information or to visit the AOGLLATI brand store, please visit: AOGLLATI Brand Store
