1. Introduction
The Timjorman RGB Cordless Table Lamp is designed to provide versatile lighting for various environments. Featuring a dual-light design with both RGB ambient lighting and 3000K warm white illumination, this portable lamp offers convenience and style. Its compact, rechargeable design makes it suitable for bedrooms, restaurants, patios, and more.
2. What's Included
- 1 × Timjorman Cordless Table Lamp
- 1 × Type-C Charging Cable
3. Setup
3.1 Unpacking
Carefully remove all components from the packaging. Inspect the lamp for any signs of damage. Retain packaging for future storage or transport.
3.2 Charging the Lamp
Before first use, fully charge the lamp. Connect the provided Type-C charging cable to the lamp's charging port and to a suitable USB power adapter (not included). The indicator light will show charging status.
Image: Charging progress and estimated battery life for different brightness levels.
A full charge typically takes approximately 2 hours. The lamp can provide up to 60 hours of light on the lowest setting, 20 hours on medium, and 10 hours on the highest setting.
4. Operating Instructions
4.1 Power On/Off and Brightness Adjustment
The lamp features a touch sensor located on the top surface for control.
- To Power On/Off: Short press the touch button.
- To Adjust Brightness: With the lamp on, short press the touch button repeatedly to cycle through three brightness levels: 30%, 60%, and 100%.
Image: The top surface of the lamp serves as a touch sensor for controlling light settings.
Image: Illustrates the three adjustable brightness settings: 10% (First Level), 50% (Second Level), and 100% (Third Level).
4.2 RGB Ambient Light Mode
The lamp features a top RGB light that cycles through various colors.
- To Activate RGB Mode: Long press the touch button for approximately 2 seconds. The RGB light will begin to cycle through colors.
- To Deactivate RGB Mode: Long press the touch button again. The lamp will return to warm white light.

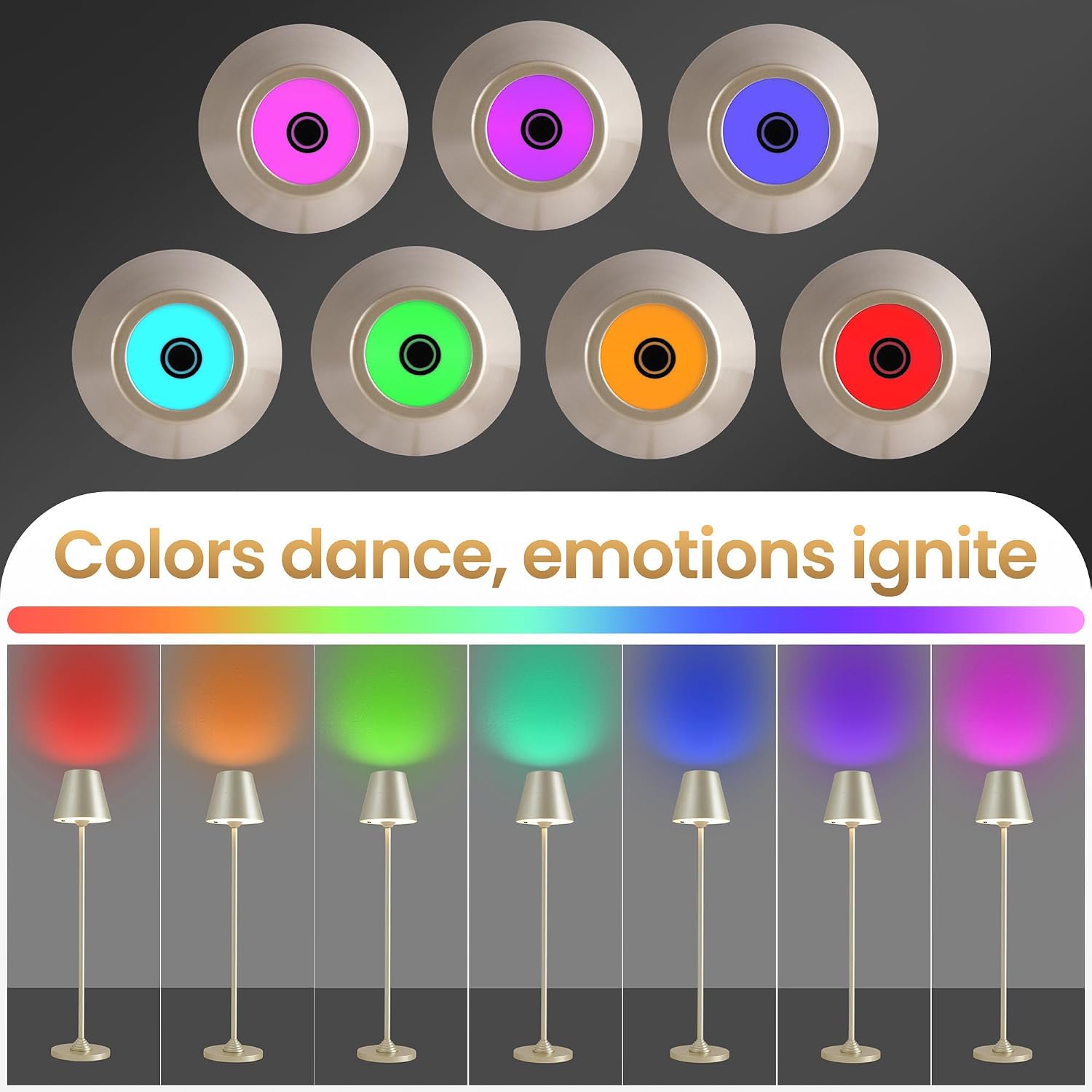

Image: The lamp's top RGB light can cycle through a spectrum of colors to create different moods.
4.3 Smart Sleep Timer Mode
The lamp includes a sleep timer function for automatic shut-off.
- To Activate Sleep Timer: While the lamp is on, long press the touch button. The indicator light will change color to signify the timer setting.
- 15-Minute Timer: The indicator light will turn orange.
- 30-Minute Timer: The indicator light will turn purple.
- The lamp will automatically turn off after the selected time.
Image: Visual representation of the 15-minute (orange) and 30-minute (purple) auto-off sleep timer settings.
4.4 Product Videos
Video: Demonstrates the compact design and various lighting features of the Timjorman Cordless Table Lamp.
Video: Showcases the portability and dimmable features of the rechargeable LED lamp.
5. Features
- Dual Light Source: Features a top RGB light for cycling through colorful breathing effects and a bottom 3000K warm white light for comfortable illumination.
- Palm-Sized Compact Design: With a slim 50mm diameter base and a height of 238mm, this lamp fits effortlessly on small tables, nightstands, and various other surfaces.
- 3-Level Touch Dimming: Easily adjust brightness with a single tap on the top sensor, choosing from three distinct brightness levels.
- Smart Sleep Timer Mode: Includes a convenient 15-minute or 30-minute sleep timer, ideal for bedside use, allowing the lamp to automatically turn off.
- Rechargeable and Cordless: Powered by a built-in rechargeable battery and Type-C charging, providing wireless lighting without the need for messy cords.
- Premium Full-Metal Construction: Built with a durable iron lampshade, stainless steel stem, and aluminum base for stability and long-lasting quality.
- Versatile Placement: Ideal for bedroom bedside lighting, restaurant and café tables, bar ambiance, patio gatherings, camping, and kids' room night lighting.
Image: The lamp provides warm, inviting light, perfect for dining or social settings.
Image: The compact size and lightweight design allow for easy portability and placement in various locations.
6. Specifications
| Model Number | MINI-02 |
| Dimensions (D x W x H) | 1.96" x 1.96" x 9.84" (50mm x 50mm x 238mm) |
| Item Weight | 0.42 Pounds |
| Light Source Type | LED |
| Color Temperature | 3000K Warm White + RGB |
| Brightness Levels | 3 (30%, 60%, 100%) |
| Control Method | Touch |
| Power Source | Battery Powered (Rechargeable via Type-C) |
| Voltage | 5 Volts |
| Wattage | 1 Watt |
| Materials | Iron (lampshade), Stainless Steel (stem), Aluminum (base) |
| Indoor/Outdoor Usage | Indoor (Not Water Resistant) |
7. Maintenance
- Cleaning: Wipe the lamp with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Storage: When not in use for extended periods, store the lamp in a cool, dry place. Ensure it is fully charged before storage and recharge every 3-6 months to maintain battery health.
- Water Exposure: This lamp is not water-resistant. Avoid exposure to water or high humidity.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | Battery is depleted. | Charge the lamp using the provided Type-C cable. |
| Touch sensor malfunction. | Ensure your finger is making full contact with the touch sensor. Try a different finger or a gentle, firm press. | |
| Lamp does not charge. | Charging cable or adapter issue. | Try a different Type-C cable or USB power adapter. Ensure connections are secure. |
| RGB light is not working. | Not in RGB mode. | Long press the touch button for 2 seconds to activate RGB mode. |
9. Warranty and Support
This Timjorman product comes with a 6-month manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or any questions regarding your product, please contact Timjorman customer service through the retailer where the product was purchased or refer to the contact information provided with your product packaging.
