1. Introduction
This manual provides detailed instructions for the proper installation, operation, maintenance, and troubleshooting of the Generic Mod-H9S-5685 Spindle Assembly. This replacement part is designed to restore optimal performance to compatible lawn tractors and zero-turn mowers from brands such as Cub Cadet, MTD, and Troy Bilt, specifically those with 50-inch and 54-inch cutting decks.
Please read this manual thoroughly before attempting any installation or maintenance procedures to ensure safety and correct functionality.
2. Safety Information
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, during installation and maintenance.
- Ensure the equipment is turned off, the engine is cool, and the spark plug wire is disconnected to prevent accidental starting before beginning any work.
- Use proper lifting techniques or equipment when handling heavy components.
- Refer to your equipment's original owner's manual for specific safety precautions related to your model.
- Keep children and bystanders away from the work area.
3. Setup and Installation
This section outlines the steps for replacing an existing spindle assembly with the new Generic Mod-H9S-5685 unit. It is recommended to replace all spindle assemblies on a deck simultaneously for balanced performance.
3.1 Tools Required
- Socket wrench set
- Torque wrench
- Pry bar or similar tool (for belt removal)
- Grease gun (for maintenance)
- Safety glasses and gloves
3.2 Installation Steps
- Prepare the Mower: Park the mower on a flat, stable surface. Engage the parking brake. Disconnect the spark plug wire. If possible, remove the mower deck from the tractor according to your equipment's owner's manual.
- Remove Mower Blades: Carefully remove the mower blades from the underside of the deck. Note the orientation of the blades for correct reinstallation.
- Remove Deck Belt: Loosen any tensioners and carefully remove the deck belt from around the spindle pulleys.
- Remove Old Spindle Assembly: Locate the mounting bolts that secure the spindle assembly to the mower deck. These are typically on the top side of the deck. Remove these bolts. The old spindle assembly can then be removed from the underside of the deck.
- Clean Mounting Area: Clean any debris, rust, or old gasket material from the spindle mounting area on the mower deck.
- Install New Spindle Assembly: Position the new Generic spindle assembly into the opening on the mower deck. Ensure the mounting holes align. Use the provided mounting bolts to secure the spindle assembly. Tighten bolts evenly and to the torque specifications recommended by your equipment manufacturer (if available).
- Reinstall Deck Belt: Route the deck belt around the spindle pulleys and any idler pulleys according to your equipment's belt diagram. Ensure the belt is properly seated.
- Reinstall Mower Blades: Attach the mower blades to the bottom of the new spindle assembly. Ensure they are installed with the cutting edge facing the correct direction. Tighten the blade bolts securely to the manufacturer's specifications.
- Final Checks: Reconnect the spark plug wire. Reattach the mower deck to the tractor if it was removed. Test the mower in a safe, open area to ensure proper operation and blade engagement.

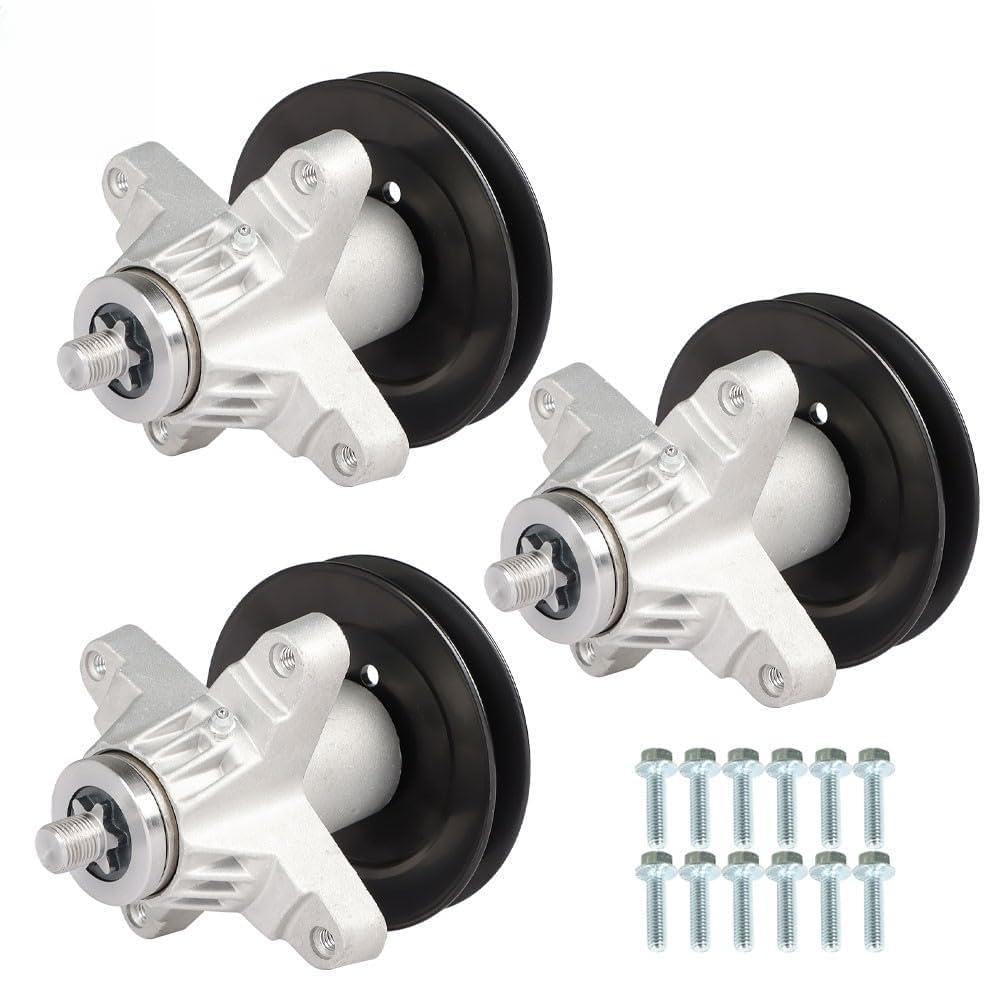

Image 1: The Generic Spindle Assembly, showing the main body, pulley, and mounting points. Note the grease fitting for maintenance.
4. Operating Considerations
Once installed, the spindle assembly functions as a critical component of your mower deck, allowing the blades to rotate smoothly and efficiently. Proper installation ensures:
- Smooth Blade Rotation: The internal bearings allow the blade shaft to spin freely, reducing friction and wear.
- Consistent Cut Quality: A properly functioning spindle maintains the correct blade height and angle, contributing to an even cut.
- Reduced Vibration: Worn or damaged spindles can cause excessive vibration. A new spindle helps minimize this, improving operator comfort and extending the life of other components.
5. Maintenance
Regular maintenance of your spindle assembly will extend its lifespan and ensure optimal performance of your mower deck.
5.1 Greasing
The spindle assembly is equipped with a grease fitting (as shown in Image 1). It is recommended to apply grease periodically, typically every 25 operating hours or annually, whichever comes first. Use a high-quality lithium-based grease. Apply grease until a slight resistance is felt or until a small amount of fresh grease purges from the seals.
5.2 Inspection
- Check for Play: With the mower off and blades removed, try to move the blade shaft up and down or side to side. Excessive play indicates worn bearings and may require replacement.
- Listen for Noise: During operation, unusual noises such as grinding, squealing, or rattling from the deck can indicate spindle issues.
- Examine for Damage: Visually inspect the spindle housing for cracks, bends, or other physical damage.
6. Troubleshooting
If you experience issues with your mower deck after installing the new spindle assembly, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Excessive vibration | Unbalanced blade, loose mounting bolts, bent blade, or internal spindle damage. | Check blade balance and tightness. Inspect blades for bends. Re-check spindle mounting bolts. If vibration persists, inspect spindle bearings. |
| Loud grinding or squealing noise | Lack of lubrication, worn bearings, or foreign object interference. | Apply grease to the fitting. Inspect for foreign objects. If noise continues, bearings may be failing, requiring spindle replacement. |
| Poor cut quality / Uneven cut | Incorrect blade installation, dull blades, or excessive play in spindle. | Ensure blades are sharp and installed correctly. Check for vertical play in the spindle shaft. |
| Belt frequently comes off pulley | Incorrect belt routing, worn belt, or misaligned pulley. | Verify belt routing against diagram. Inspect belt for wear. Check if the spindle pulley is bent or misaligned. |
7. Specifications
- Part Number: Mod-H9S-5685
- Replaces OEM Part Numbers: 918-04126A, 618-04126A, 918-04126, 618-04126, 618-04125, 918-0412, 618-04125A, 918-04125B
- Compatibility: Designed for Cub Cadet, MTD, Troy Bilt, Kioti Daedong, Massey Ferguson, Rover 50-inch and 54-inch cutting decks. Refer to your equipment's manual for specific model compatibility.
- Included Components: 3x Spindle Assemblies, mounting bolts.
- Features: Grease fitting for lubrication, designed to match OEM fit and function.
8. Warranty and Support
As a generic replacement part, specific warranty terms may vary. Please refer to the seller or retailer from whom you purchased this product for detailed warranty information.
For any questions regarding installation, compatibility, or performance, please contact the seller directly for assistance. Provide your product model number (Mod-H9S-5685) and details of your equipment for the most accurate support.
